Zeiss SKU: 495009-2026-000

ZEISS Stemi 508 Trino M LED – Stereo Microscope Complete System incl. Transport Case

€7.503,00 €8.337,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

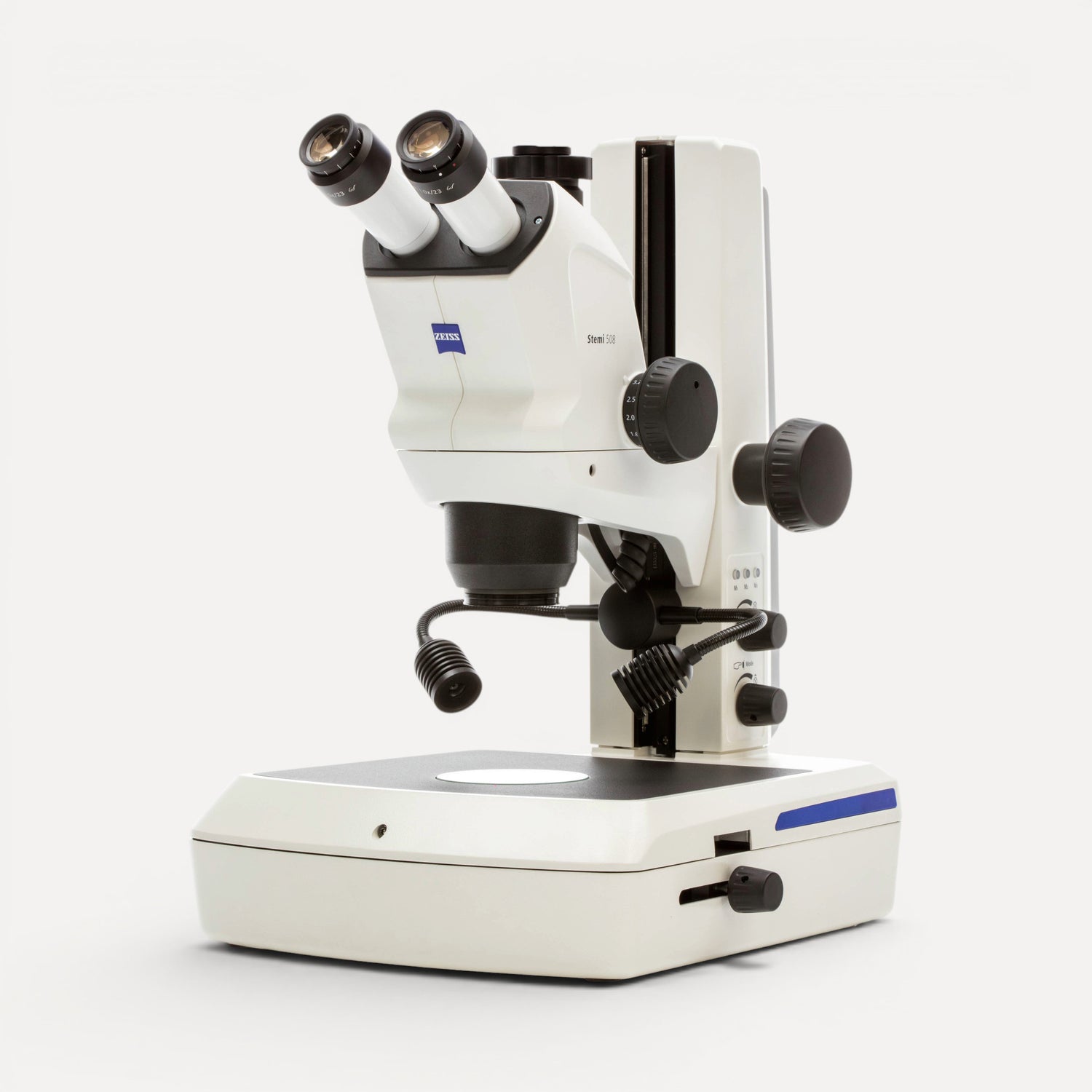

ZEISS Stemi 508 Trino with Stand M LED, Auxiliary Lenses, K LED Illumination & Polarization Module – High-Performance Stereo Microscope for Lab, QC & Material Analysis

The ZEISS Stemi 508 Trino with M LED stand, two apochromatic auxiliary lenses, complete K LED illumination, transmitted light modules, and polarization accessories is a comprehensively equipped premium stereo microscope for research, quality control, material analysis, electronics, life science, and documentation.

The trinocular tube with a 60N camera interface (50:50 splitting) allows simultaneous observation through the eyepieces and camera output.
The apochromatic Greenough system delivers sharp, color-true 3D images across the entire 8:1 zoom.

The combination of the M LED stand, brightfield transmitted light module, M LED transmitted light unit, and K LED spot, dual spot & ring light offers maximum illumination flexibility for transparent, structured, reflective, and technical samples.

With the 0.63× and 1.5× auxiliary lenses, both long working distances (127 mm) and higher detailed magnifications (FWD 53 mm) can be utilized.

The included polarization set (analyzer + polarizer) enables reflection control, contrast enhancement, and material analysis.

A high-quality complete system for professional users that covers almost all application fields.

The set also includes a custom-fit transport case that securely protects the microscope and M LED stand for transport, service operations, or training.

Key Features

  • Trinocular tube with 50:50 camera split

  • Large M LED stand with memory functions

  • Two auxiliary lenses: 0.63× (127 mm FWD) & 1.5× (53 mm FWD)

  • Brightfield transmitted light (M LED) + M LED transmitted light module

  • Complete K LED illumination (spot, dual spot, segmentable ring light)

  • Polarization module (analyzer + polarizers)

  • Transport case for safe equipment setup

  • Ideal for lab, QC, industry & research

Ideal for

  • Material analysis & material testing

  • Electronics manufacturing & micro-repair

  • Life Science & biology

  • Quality control & documentation

  • Research, education & lab practice

Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Trinocular Premium Stereo Microscope with LED Transmitted Light, K LED Illumination & Polarization Module

Microscope set consisting of:

Microscope body ZEISS Stemi 508 Trino

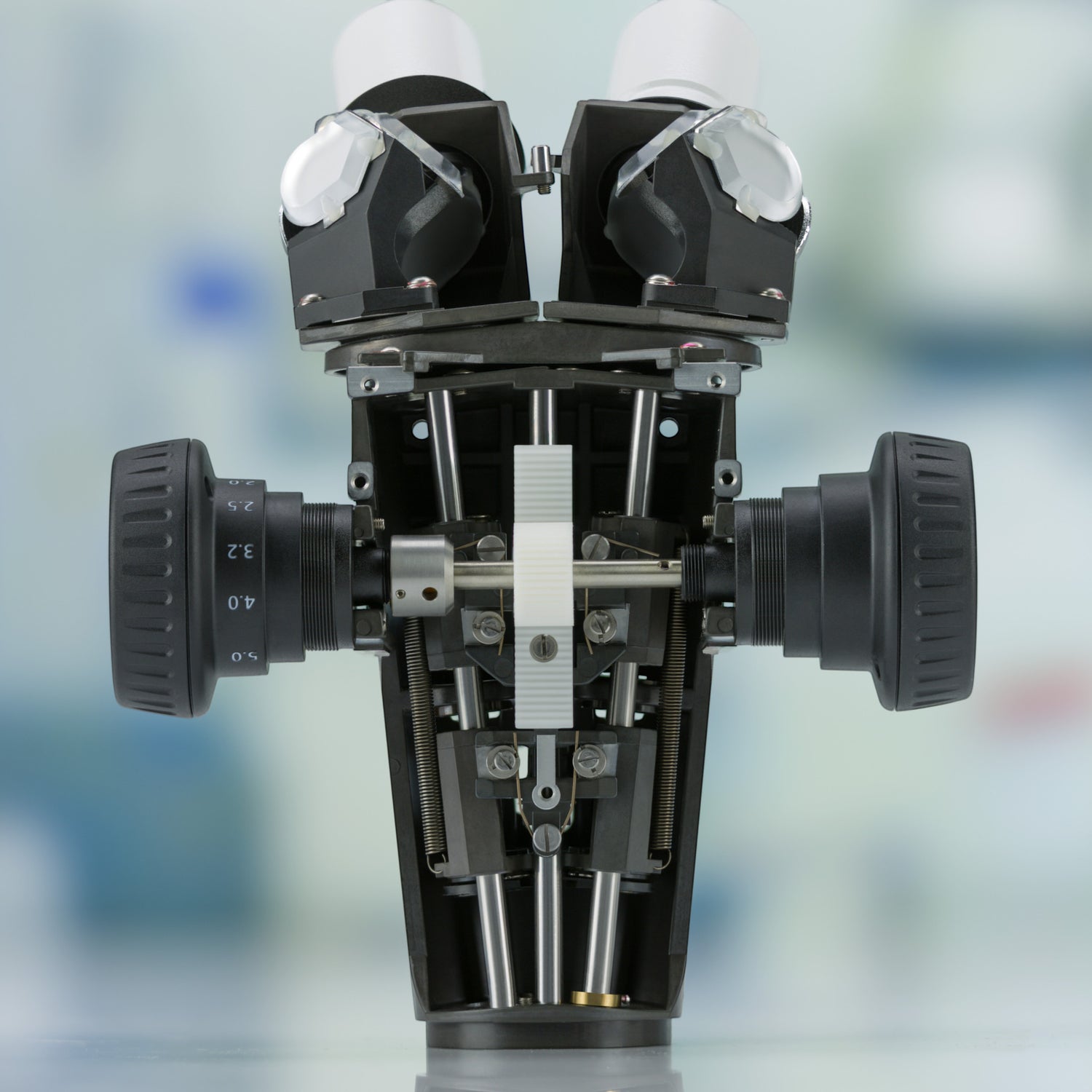

– Apochromatic Greenough system
– 60N camera port with fixed 50vis : 50doc split

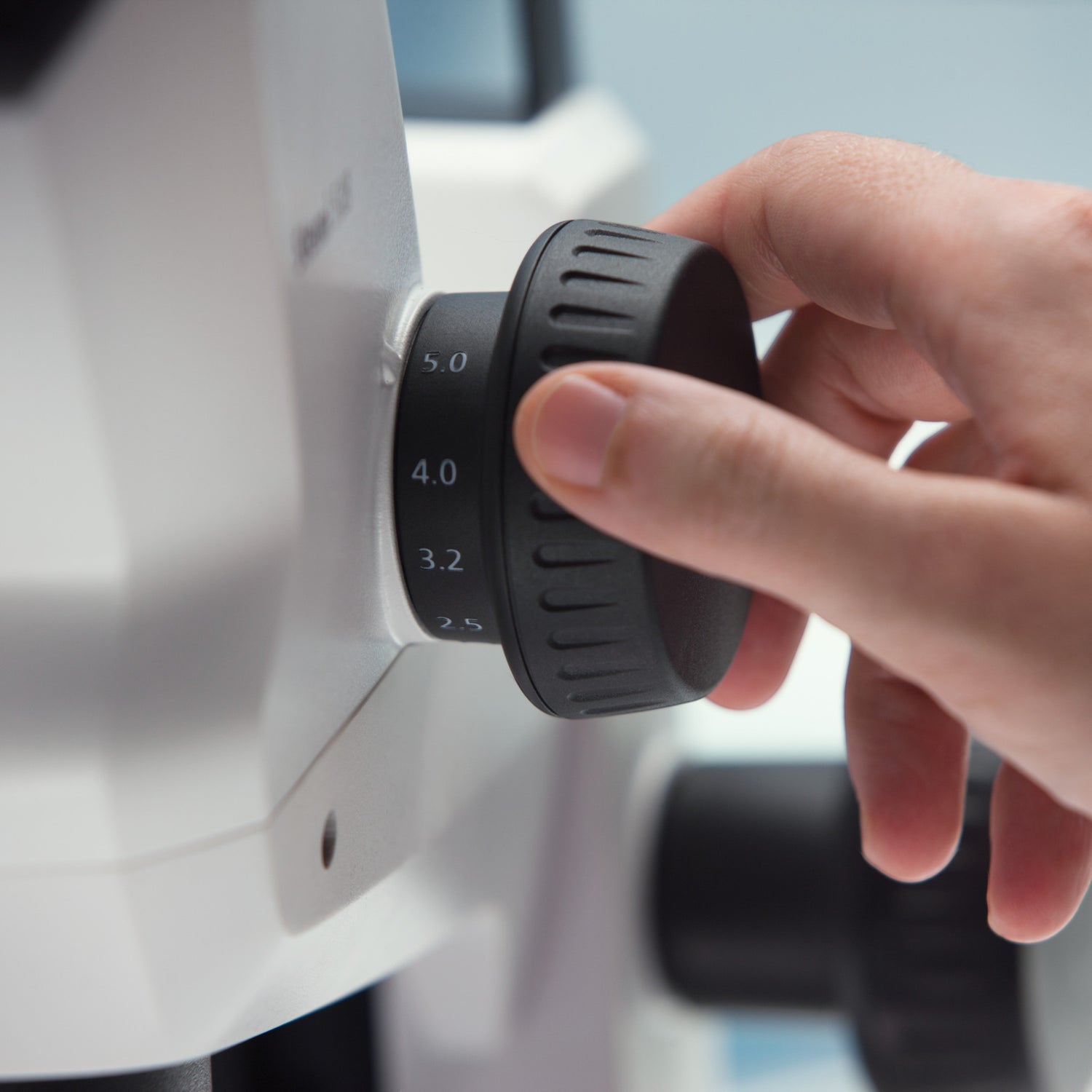

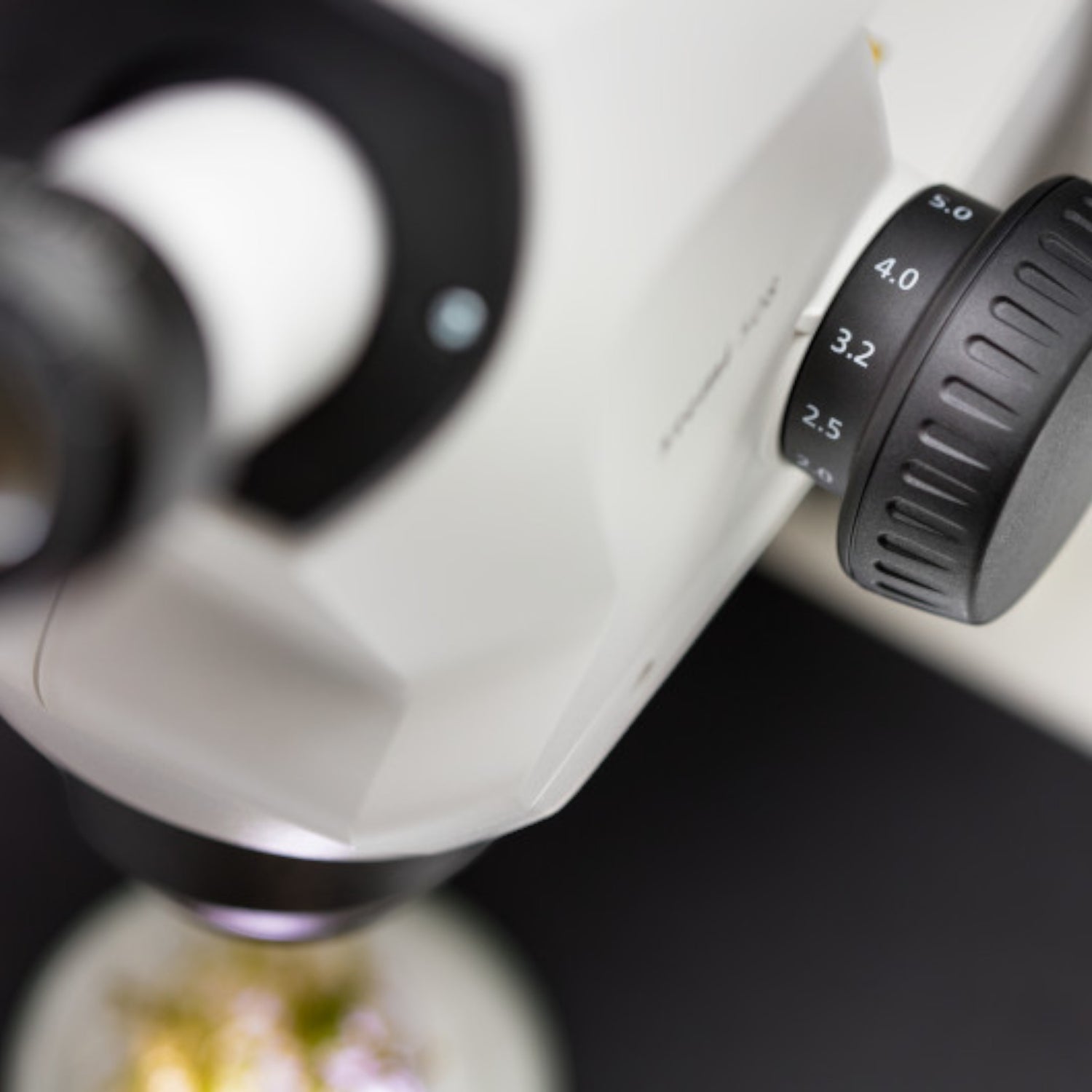

– Zoom 8:1 (0.63× – 5.0×)
– Click stops 0.63×, 0.8×, 1×, 1.25×, 1.6×, 2×, 2.5×, 3.2×, 4×, 5×
– Working distance 92 mm without auxiliary optics
– Viewing angle 35°
– Interpupillary distance 55–75 mm
– Eyepiece mount Ø 30 mm
– Mount Ø 76 mm (stand) / Ø 53 mm (lights)

Eyepiece accessories

– Eyecups

Auxiliary Optics

Apo 0.63× Auxiliary Lens (FWD 127 mm)
– Large working distance
– Ideal for large samples and repair work

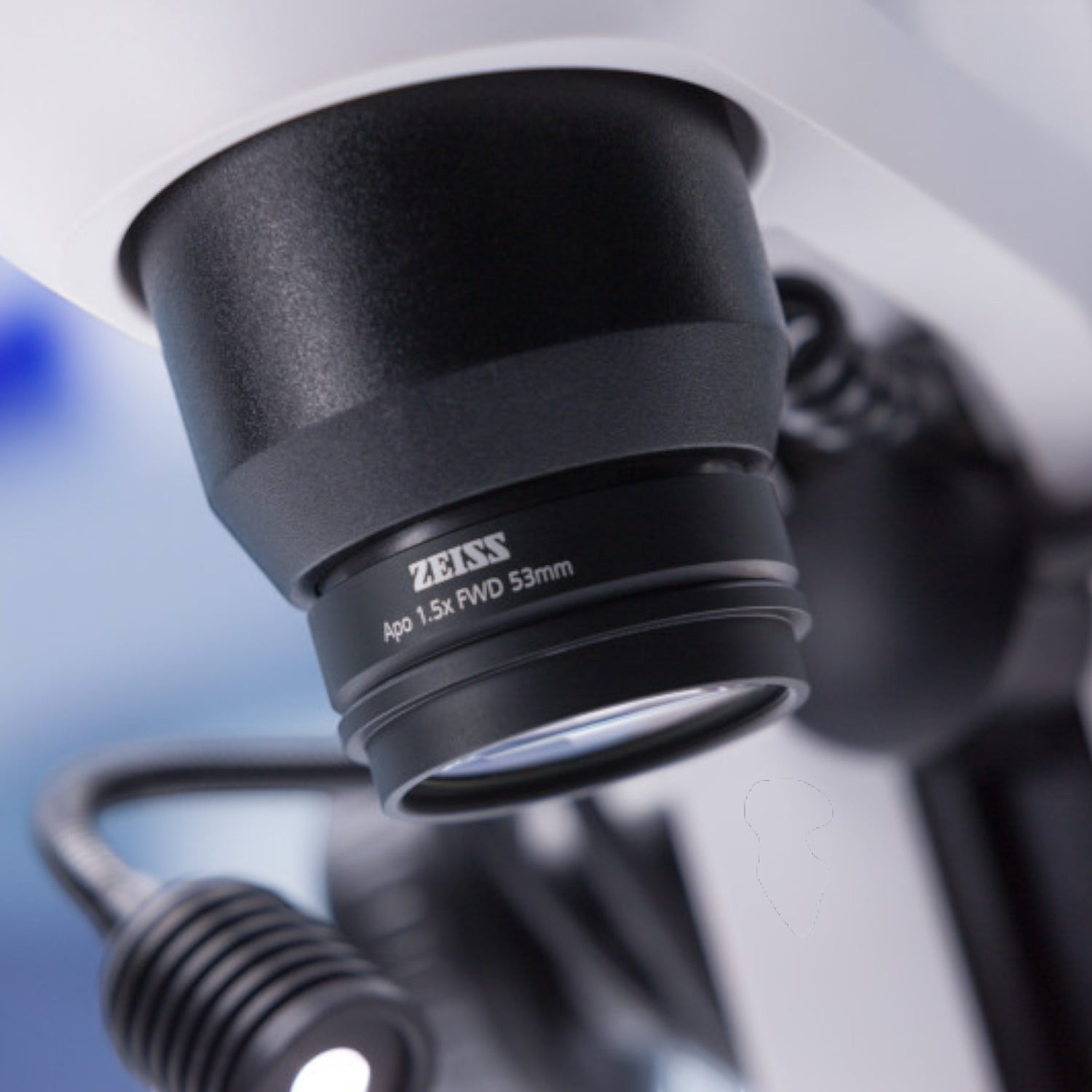

Apo 1.5× Auxiliary Lens (FWD 53 mm)
– Increased detail magnification
– For fine structures and high-resolution inspection

Stand M LED

– Stand base 340 × 300 × 35 mm
– Working surface 255 × 215 mm
– Through-hole Ø 40 mm
– Column 360 mm, travel range 190 mm
– Load capacity 5 kg

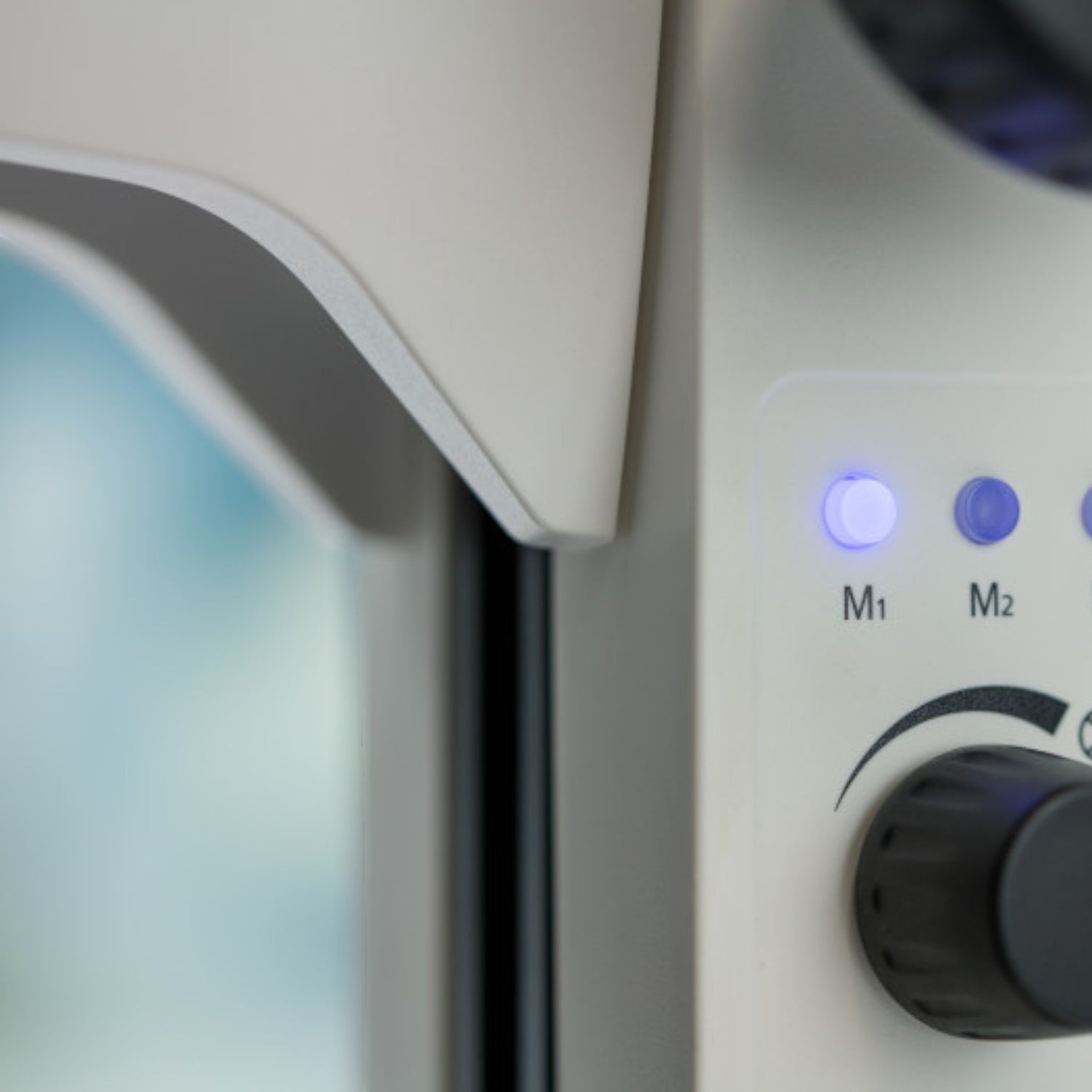

– 3× memory buttons for light combinations
– AL/DL control via rotary push knob
– Power supply 12V DC 24W / 100–240V AC
– Glass & B/W plastic plate Ø 84×5 mm
– Dust cover

Transmitted Light System

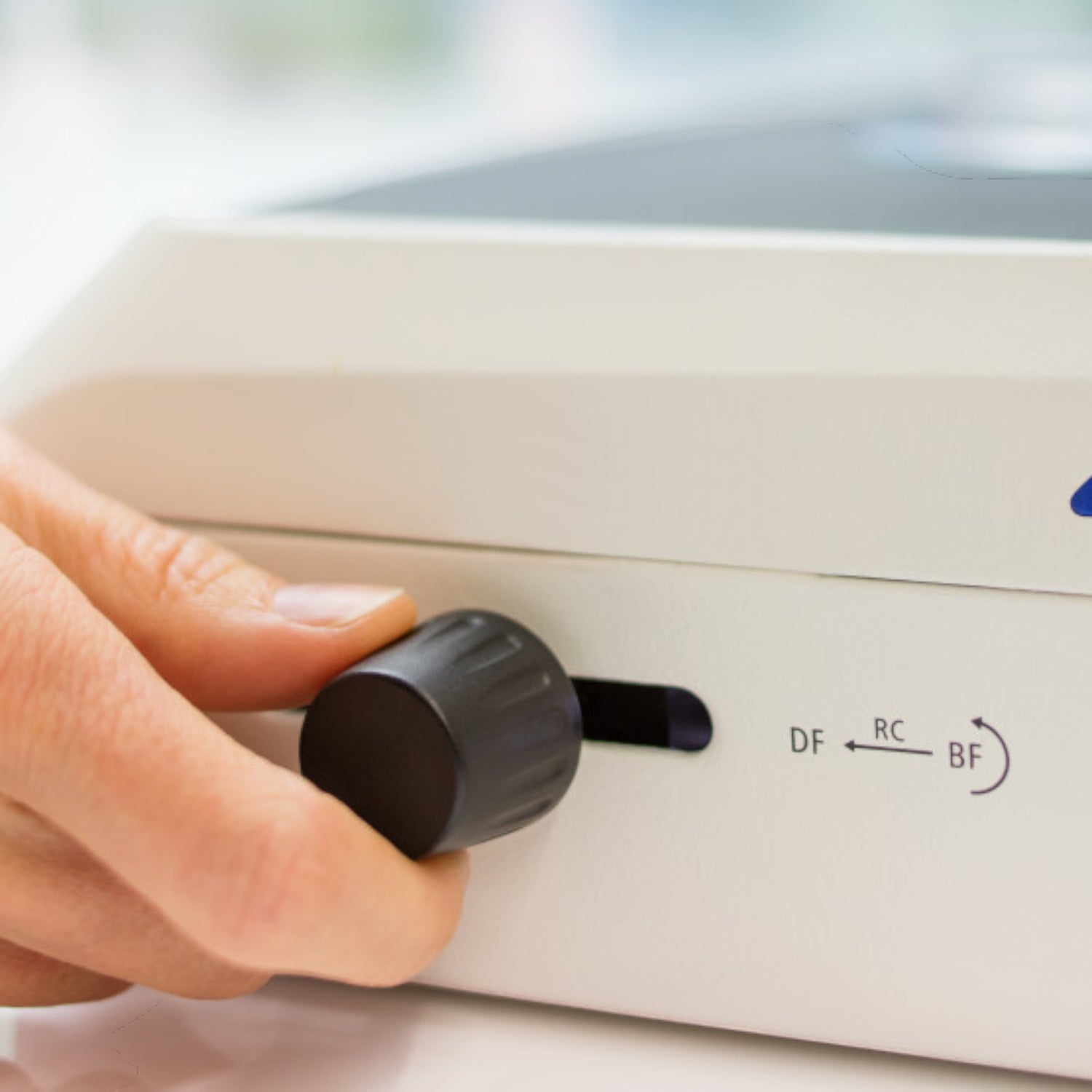

Transmitted Light Module Brightfield M LED
– Brightfield transmitted light for transparent samples

Transmitted Light Unit M LED (cordless)
– Mirror for brightfield, darkfield & oblique light
– Rotatable and movable
– Matte/glossy mirror side

K LED Illumination System

Spotlight K LED
– Targeted incident light
– Tilting and zoomable
– Thread M24×0.5

Dual Spotlight K LED
– Two flexible gooseneck arms
– Variable, combinable illumination

Ring light K LED, segmentable
– 48 LEDs
– 4 illumination modes
– Manual rotation (90°) or continuous
– Retaining ring A53 included

Polarization Accessories

Analyzer M49/52 (rotatable)
– Contrast enhancement
– Suppression of reflections

Polarizer Spot K LED
– For directed polarized illumination

Polarizer Transmitted Light K/M
– Polarization filter for transmitted light

Transport Case

– Suitable for Stemi 508 with M LED
– Stable & shockproof
– For mobile use and protection

Main Technical Data

– Zoom range: 0.63× – 5.0×
– Magnification: 6.3× – 75× (with auxiliary optics)
– Working distance: 53 mm / 127 mm (depending on auxiliary optics)
– Illumination: LED incident light + LED transmitted light
– Polarization: fully supported Pol-setup

Applications

– Material testing & industrial analysis
– Electronics inspection
– Life Science & research
– QC & documentation
– Education, teaching, routine work
