Zeiss SKU: 415501-0021-001

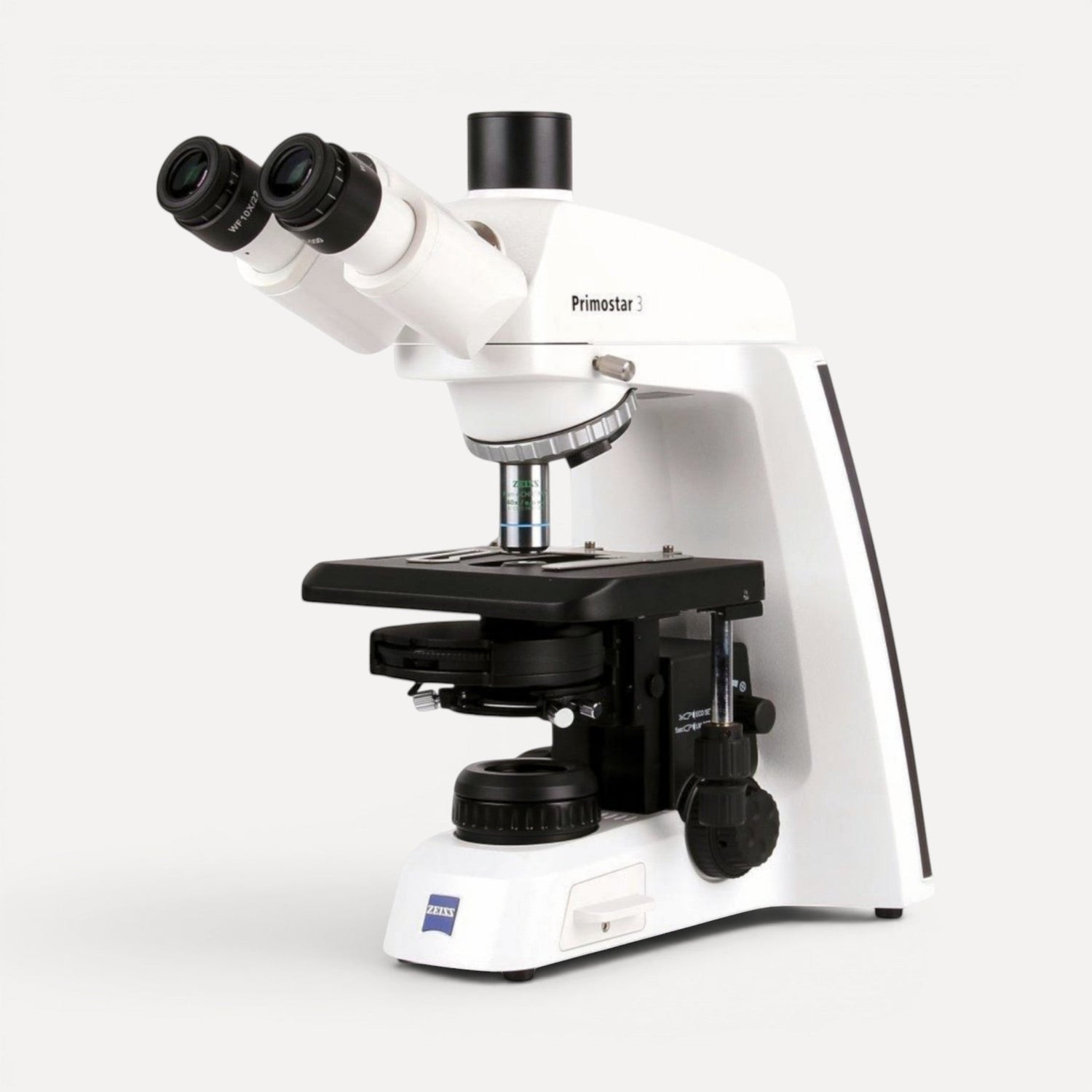

ZEISS Primostar 3 Trino with phase contrast – Transmitted light microscope with iPlan-Achromat 40x Ph2 objective

€2.019,00 €2.244,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Focused Phase Contrast Microscopy with Trinocular Setup

The ZEISS Primostar 3 Full-Köhler Trino is a compact solution for education and routine laboratory work, focusing on phase contrast Ph2.
The trinocular phototube allows for simultaneous visual observation and the optional connection of a camera for documentation or teaching purposes.

Thanks to switchable LED and halogen transmitted light illumination, an ergonomic mechanical stage, and clearly defined phase contrast equipment, this system offers reproducible results with easy operation.

Key Features

  • Full-Köhler transmitted light microscope

  • Trinocular phototube (50:50)

  • Phase contrast Ph2

  • LED and halogen transmitted light illumination

  • 5-position objective nosepiece

  • Mechanical stage 75 × 50 mm

  • Camera connection prepared

Ideal for

  • Education in biology and medicine

  • Cell and tissue culture

  • Phase contrast examinations (Ph2)

  • Routine laboratories

  • Users with an external camera


Application Examples

Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Trinocular Full-Köhler Transmitted Light Microscope with Phase Contrast Ph2

System Features

– Full-Köhler stand
– Transmitted-light modules with
– LED 3 W white light, approx. 5600 K
– 6 V / 30 W halogen lamp
– Halogen lamp 6 V / 30 W (spare)
– Color filter set: blue, green, yellow
– LightManager
– ECO mode
– Country-specific power cord
– Dust cover

Stage and Mechanics

– Cross-stage 75 × 50 mm
– Right-hand stage drive
– Specimen holder for two slides
– Left-hand spring lever

Tube

– Trinocular photo tube 25° / field of view 22
– Split ratio 50 % visual / 50 % camera
– Camera connection prepared (C-mount)

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Nosepiece and Objectives

– 5-fold nosepiece, backward-facing

Objectives:
– iPlan-Achromat 40× Ph2

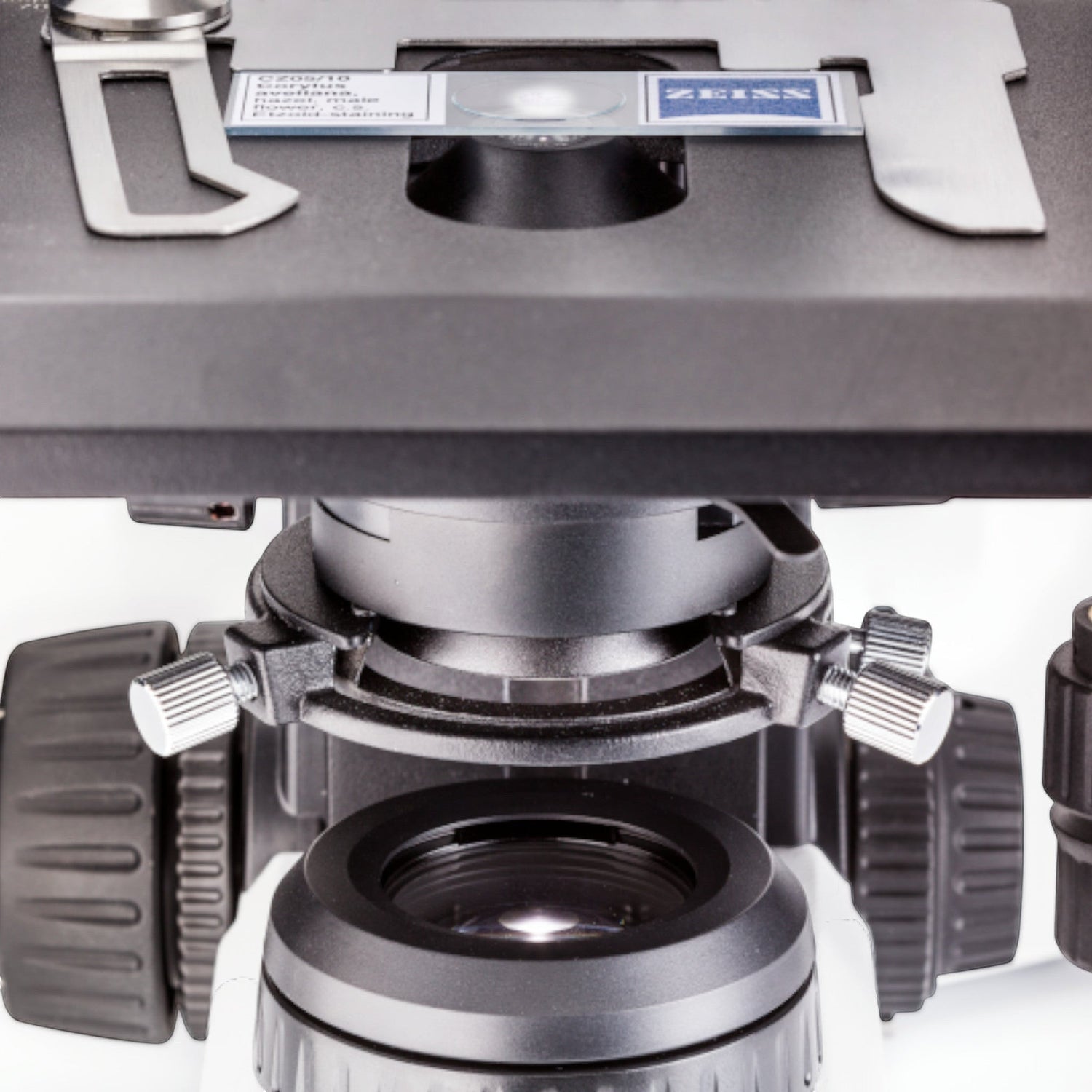

Condenser

– Abbe condenser 0.9 / 1.25 with slot
– Phase shifter H / Ph2
