Zeiss SKU: 415501-0031-001

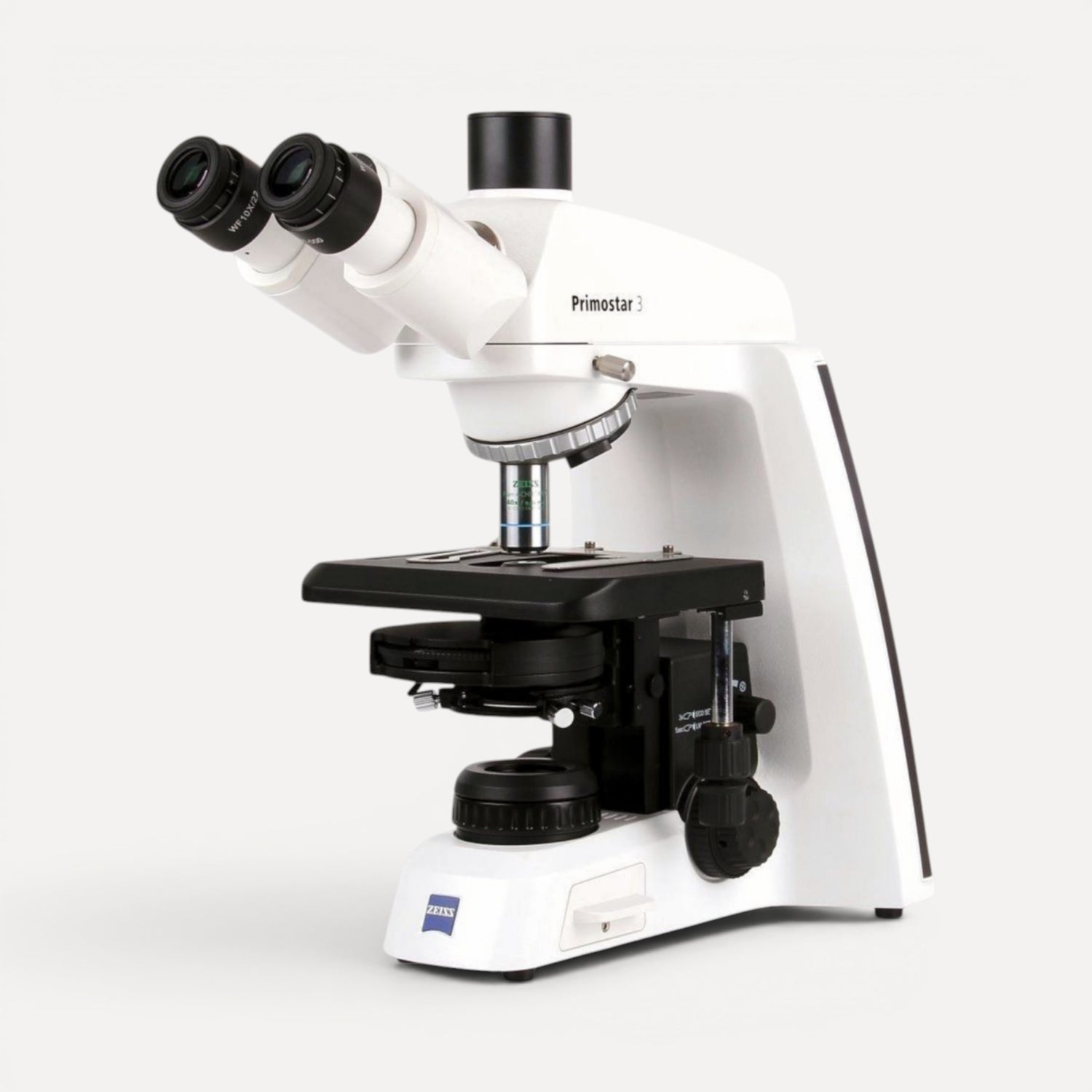

ZEISS Primostar 3 Trino with phase contrast – Transmitted light microscope

€2.649,00 €2.944,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Flexible transmitted light microscopy with phase contrast and trinocular setup

The ZEISS Primostar 3 Full-Köhler Trino is a versatile transmitted light microscope for training, routine laboratory work, and documentation.
With a trinocular photo tube, Full-Köhler illumination, and HF, DF, and phase contrast capabilities, this system offers optimal conditions for high-contrast observations of transparent samples.

The combination of LED and halogen transmitted light, coded objective turret, and ergonomic mechanical stage ensures reproducible results and comfortable work.

Main features

  • Full-Köhler transmitted light microscope

  • Trinocular photo tube (50:50)

  • Phase contrast HF / DF / Ph1–Ph3

  • LED and halogen transmitted light illumination

  • Coded 5-position objective turret

  • Mechanical stage 75 × 50 mm

  • Camera connection prepared

Ideal for

  • Biology and medicine training

  • Cell and tissue culture

  • Phase contrast and contrast techniques

  • Routine laboratories

  • Users with external cameras

Application examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Trinocular full-Köhler transmitted light microscope for brightfield, darkfield, and phase contrast

System Features

– Full-Köhler stand
– Transmitted light modules with
– LED 3 W white light, approx. 5600 K
– 6 V / 30 W halogen lamp
– Halogen lamp 6 V / 30 W (spare)
– Color filter set: blue, green, yellow
– LightManager
– ECO mode

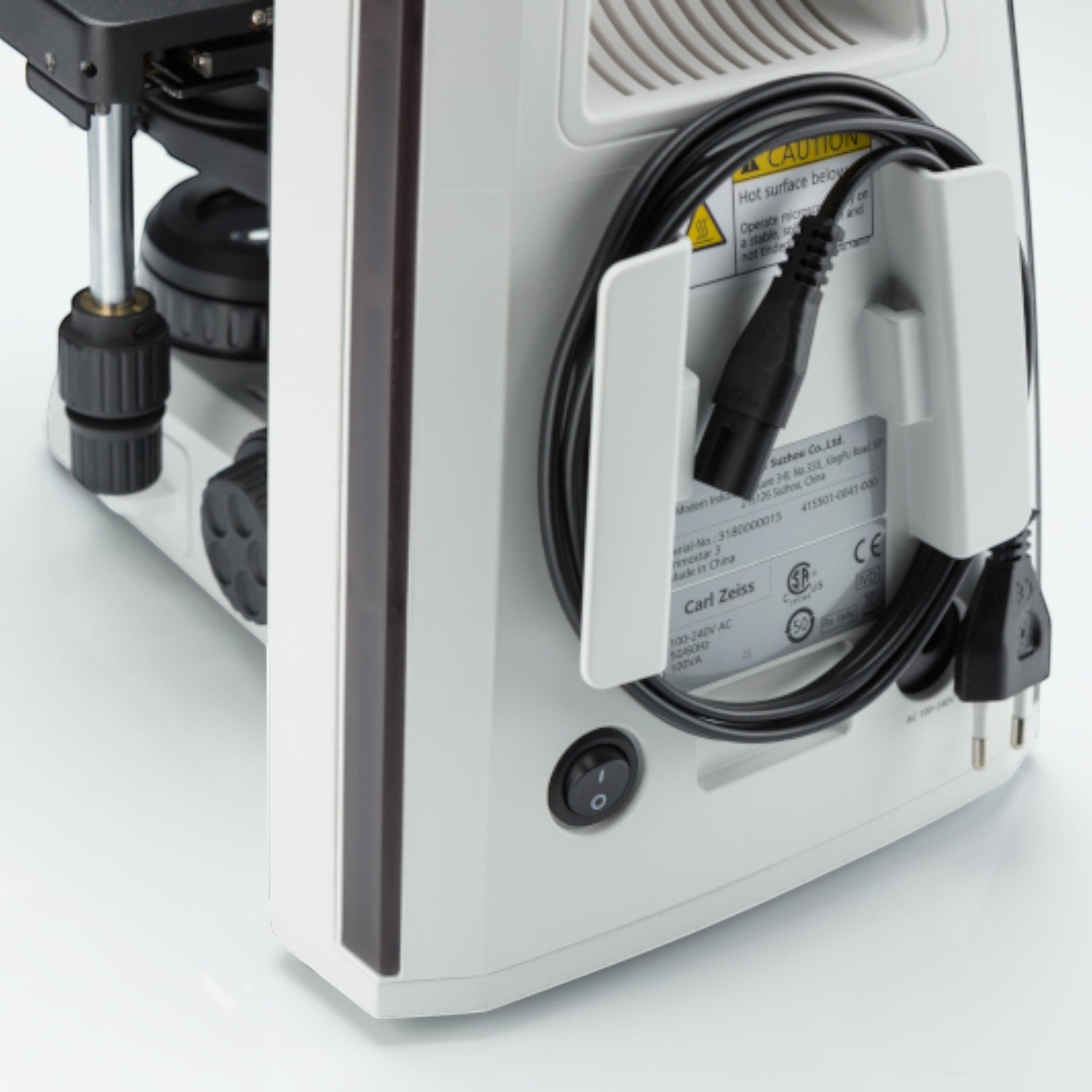

– Country-specific power cable
– Dust cover

Stage and Mechanics

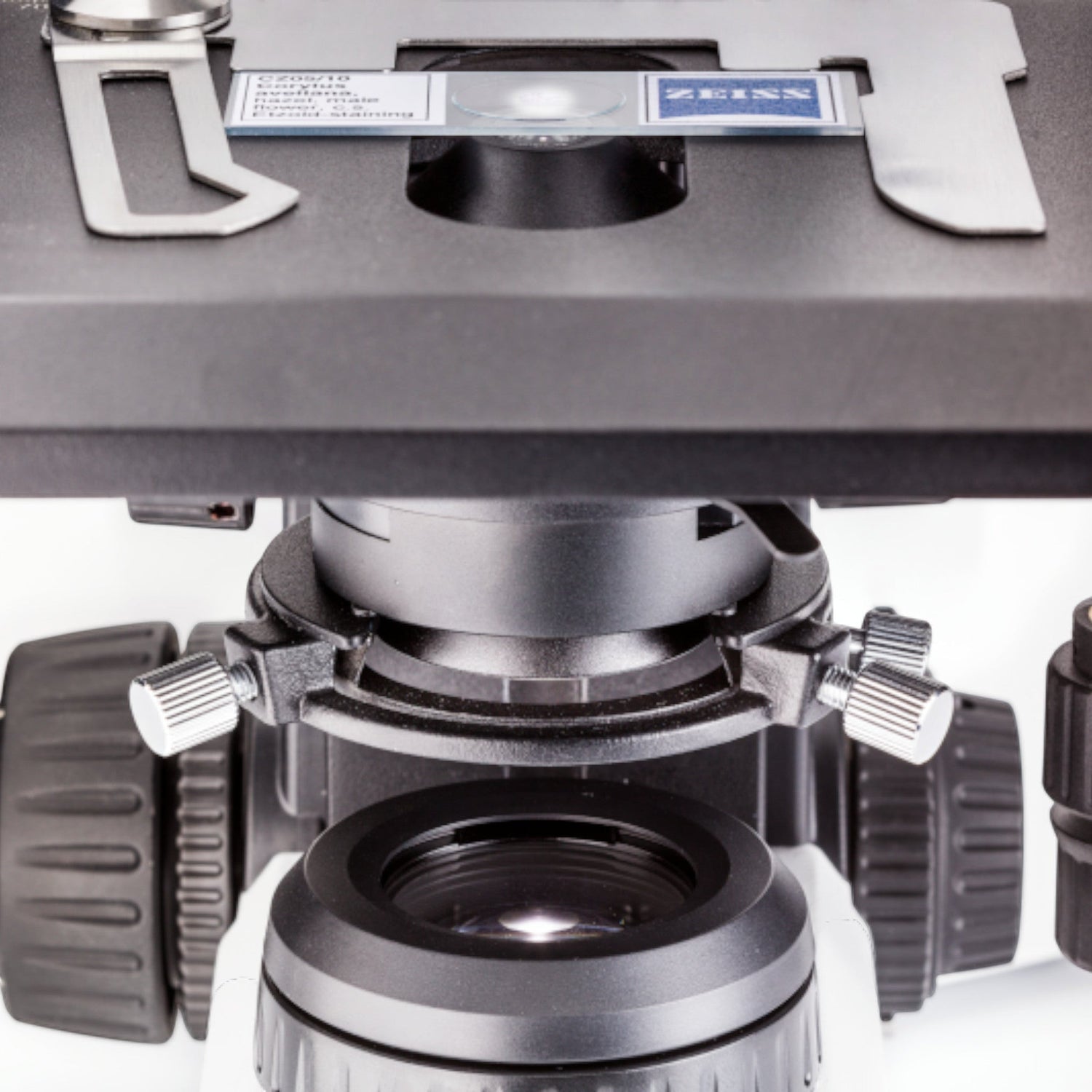

– Cross-stage 75 × 50 mm

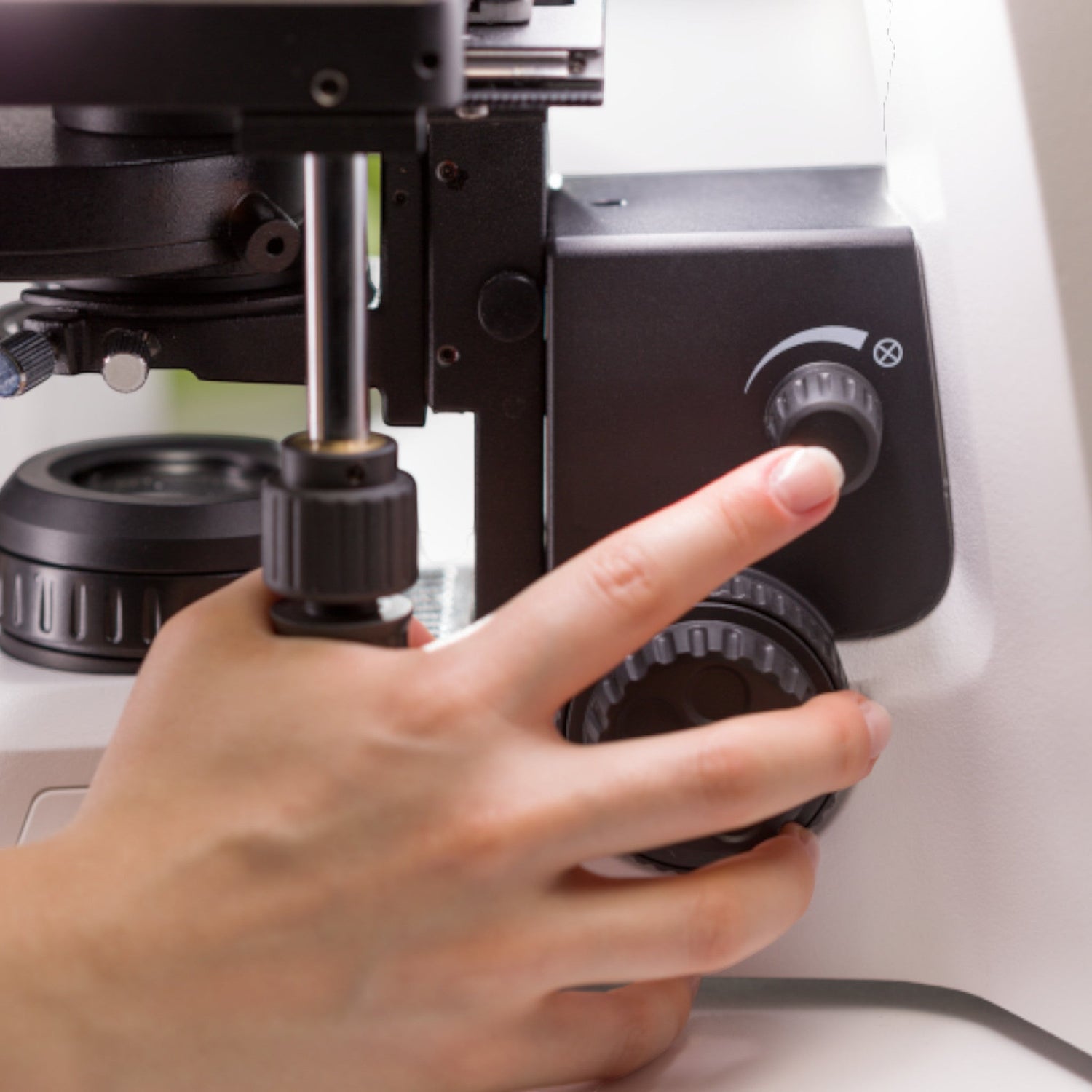

– Right-hand stage drive

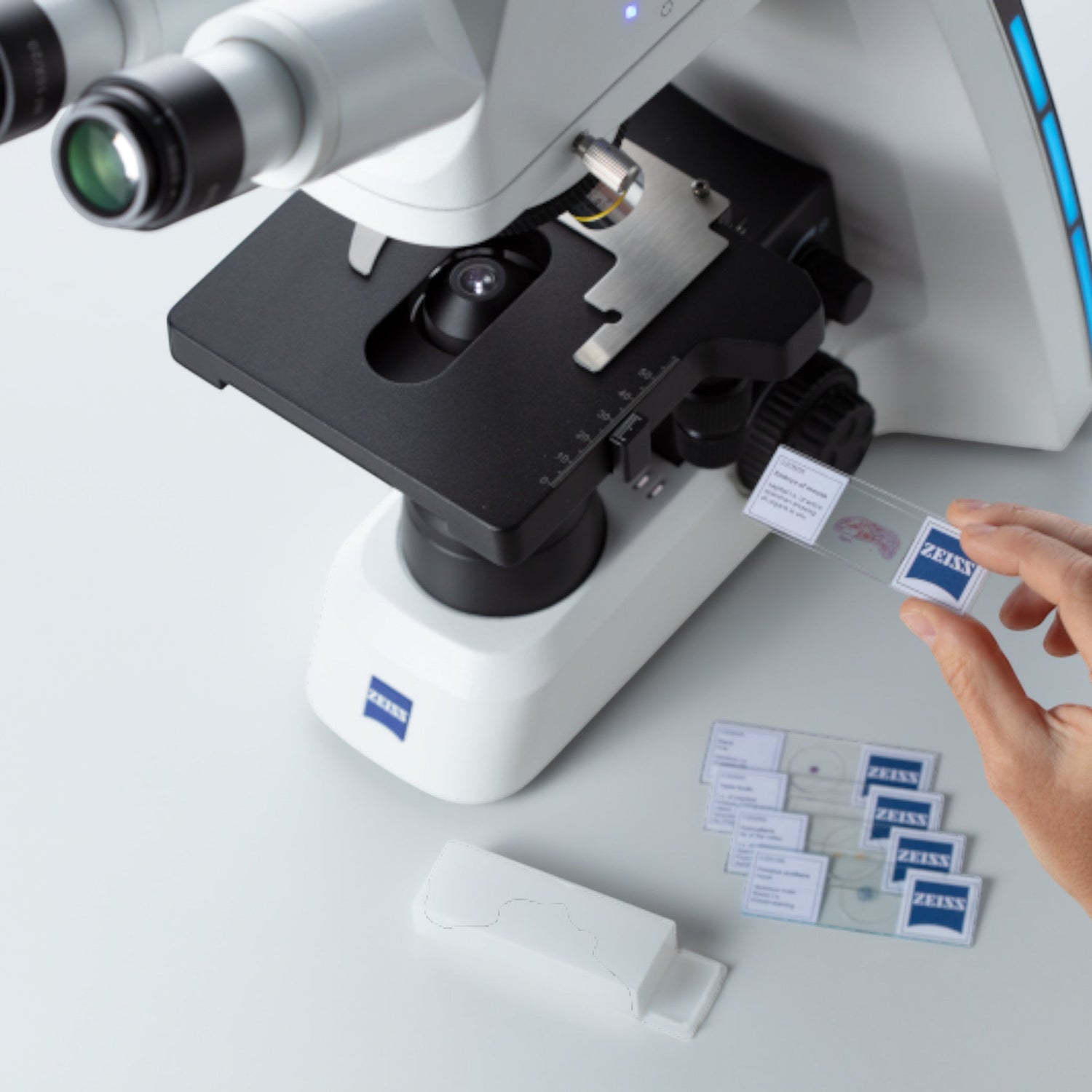

– Specimen holder for two slides
– Left-hand spring lever

Tube

– Trinocular photo tube 25° / field of view 22
– Splitting ratio 50 % visual / 50 % camera
– Camera connection prepared (C-mount)

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Nosepiece and Objectives

– 5-position nosepiece, coded, rear-facing

Objectives:
– iPlan-Achromat 40× Ph2

Condenser

– Abbe condenser

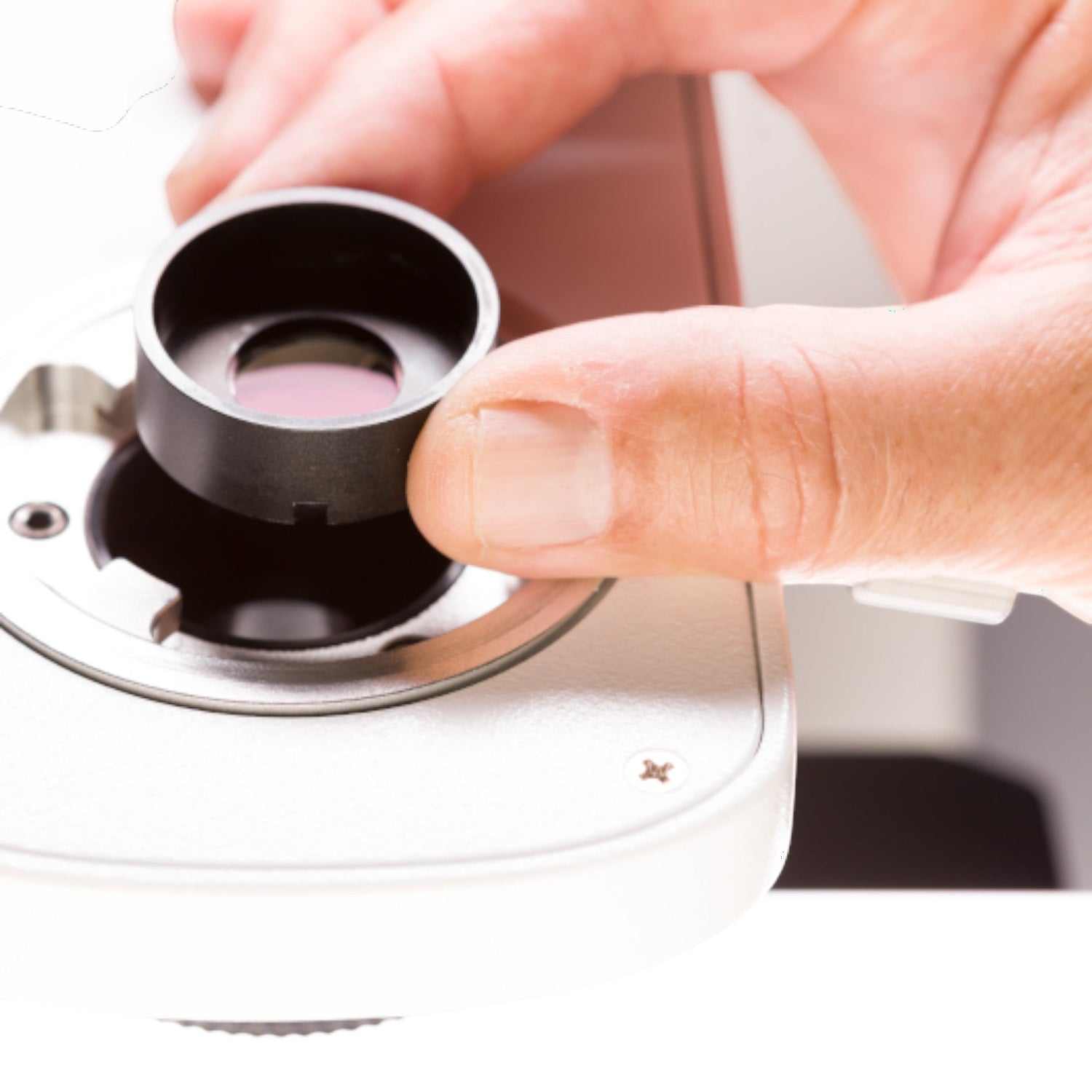

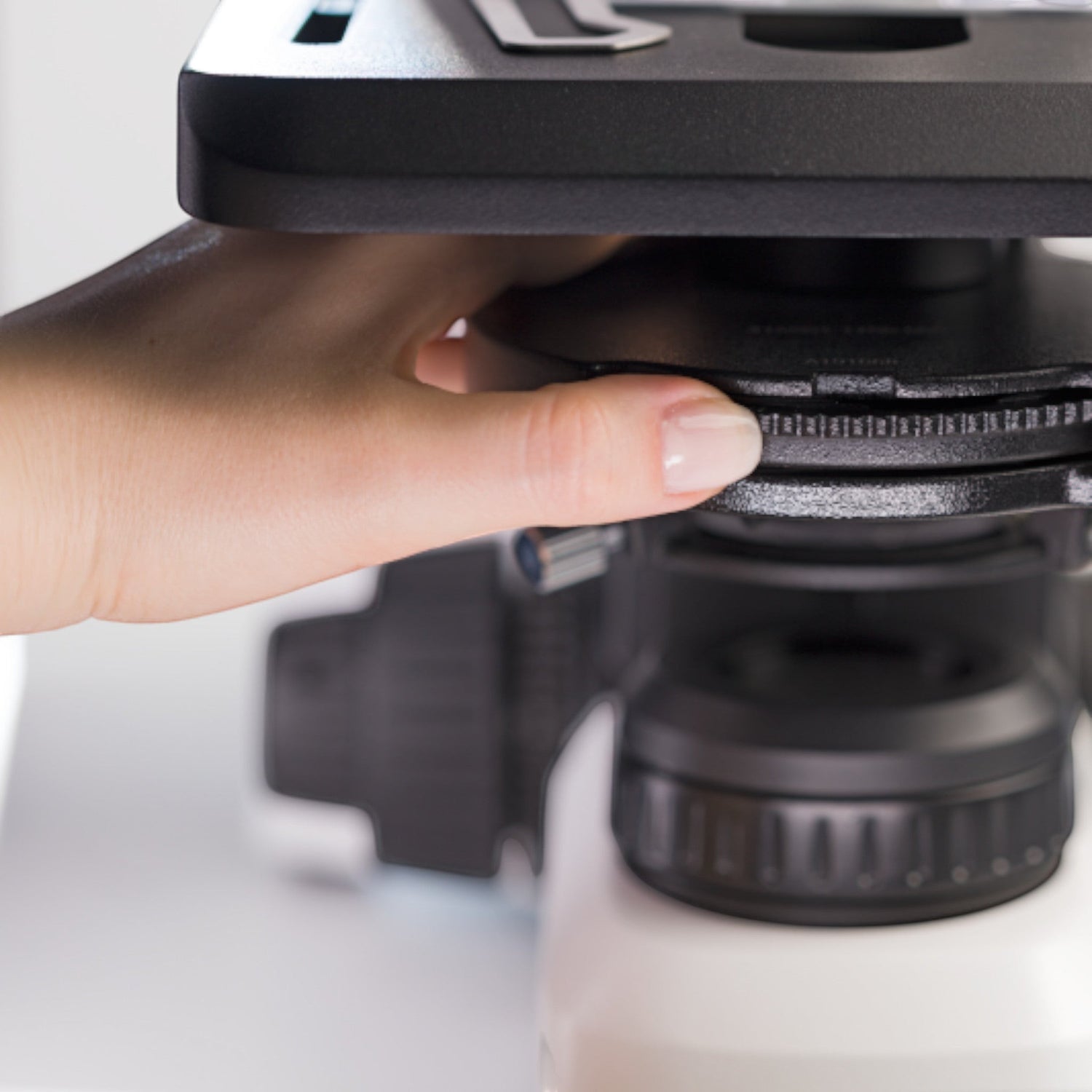

– Modulator disk for
– Brightfield
– Darkfield
– Ph1
– Ph2
– Ph3
