Zeiss SKU: 415501-0021-000

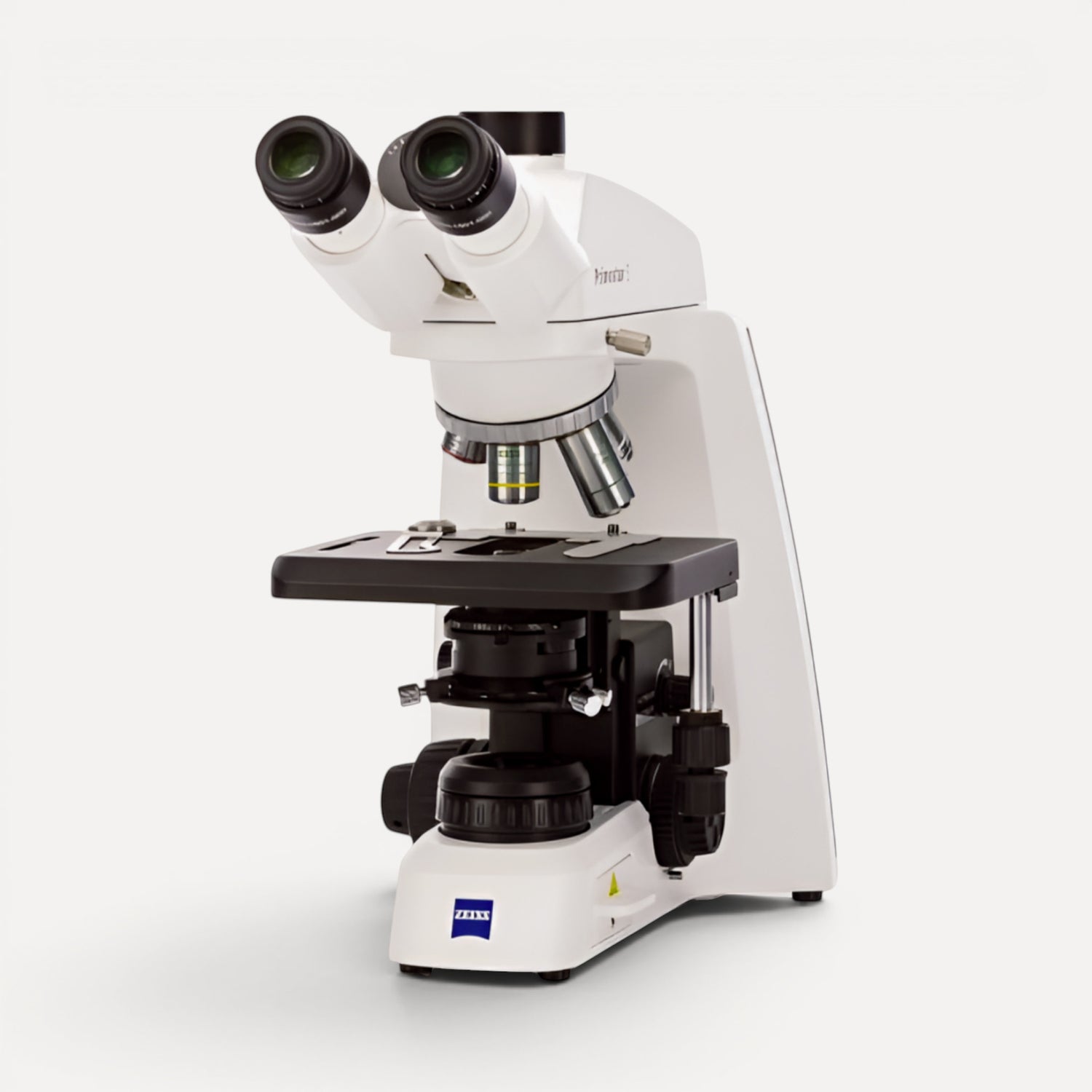

ZEISS Primostar 3 Trino with phase contrast – Transmitted light microscope with iPlan-Achromat objectives 4x, 10x, 40x Ph2

€2.273,00 €2.526,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Reliable transmitted light and phase contrast microscopy with trinocular setup

The ZEISS Primostar 3 Full-Köhler Trino is a versatile transmitted light microscope for training, lab routines, and prepared documentation solutions.
With a trinocular phototube, Full-Köhler illumination, and Ph2 phase contrast, the system enables high-contrast observations of transparent samples while providing excellent user ergonomics.

The combination of switchable LED and halogen transmitted light illumination, a mechanical stage, and proven iPlan-Achromat objectives offers a stable foundation for reproducible results.

Key Features

  • Full-Köhler transmitted light microscope

  • Trinocular phototube (50:50)

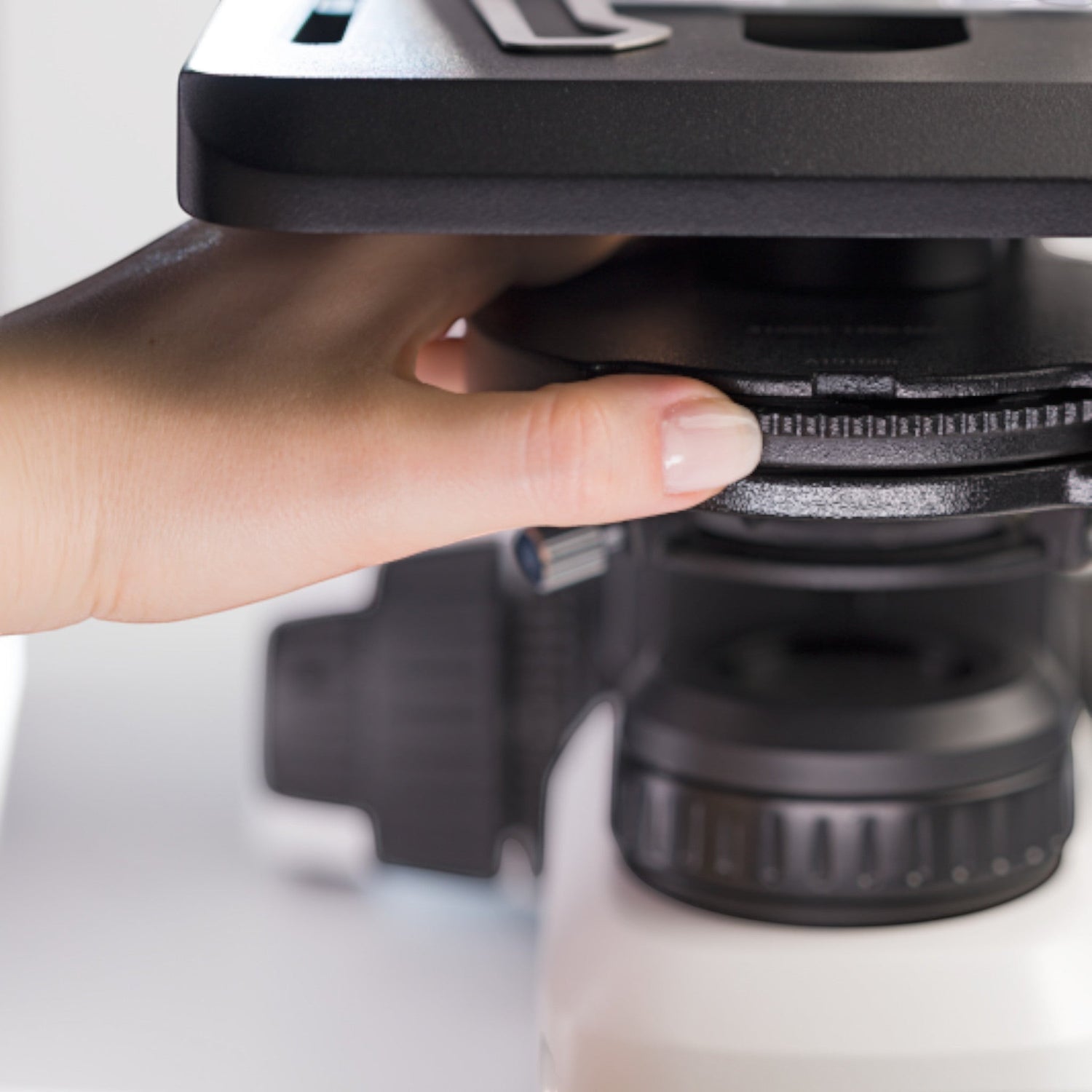

  • Ph2 phase contrast

  • LED and halogen transmitted light illumination

  • 5-position objective nosepiece

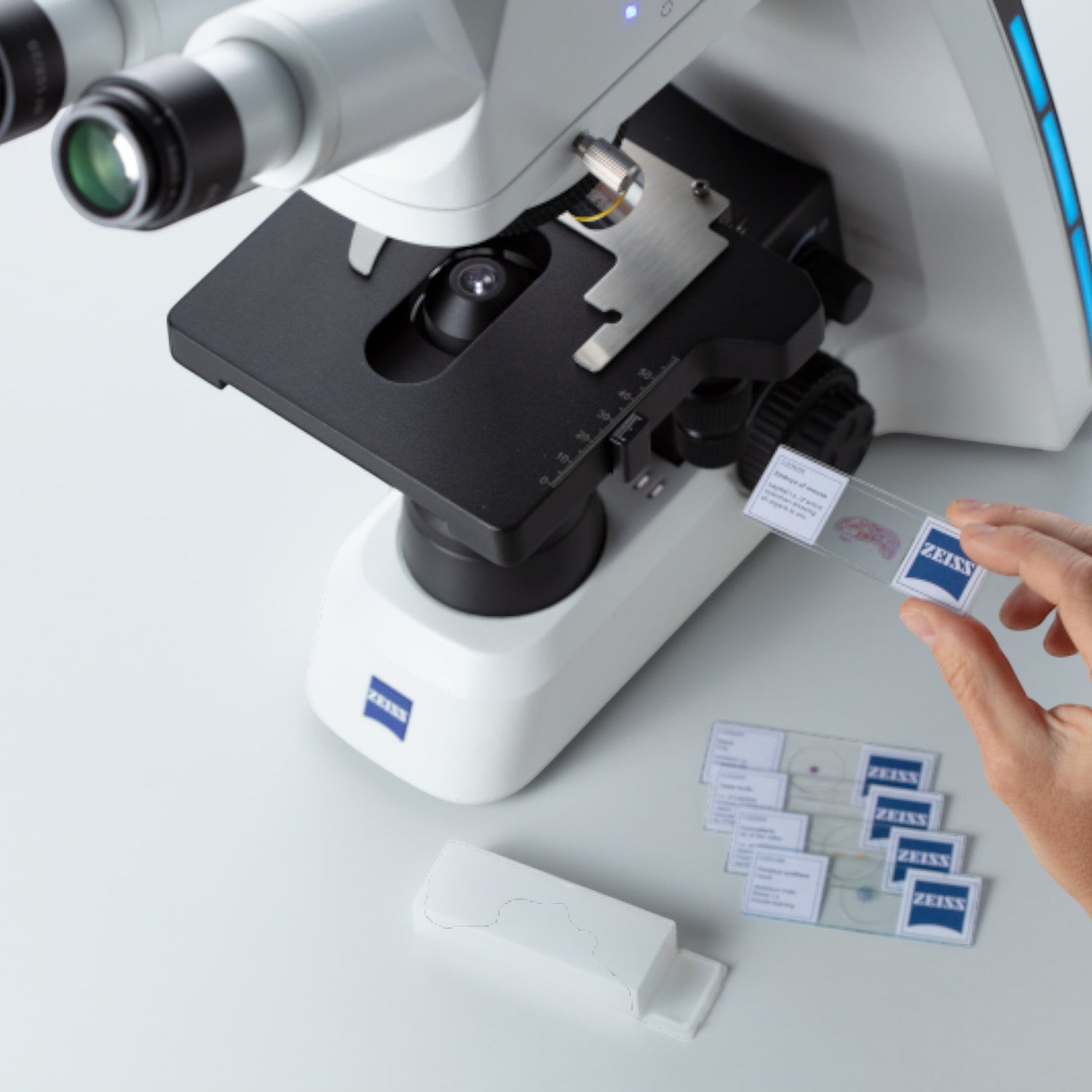

  • Mechanical stage 75 × 50 mm

  • Camera port prepared

Ideal for

  • Biology and medical training

  • Cell and tissue culture

  • Phase contrast microscopy

  • Routine laboratories

  • Users with an external camera

Application Examples

Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Trinocular full-Köhler transmitted light microscope with phase contrast Ph2

System Equipment

– Full Köhler Stand
– Transmitted light modules with
– LED 3 W white light, approx. 5600 K
– 6 V / 30 W halogen lamp
– Halogen lamp 6 V / 30 W (spare)
– Color filter set: blue, green, yellow
– LightManager
– ECO-Mode

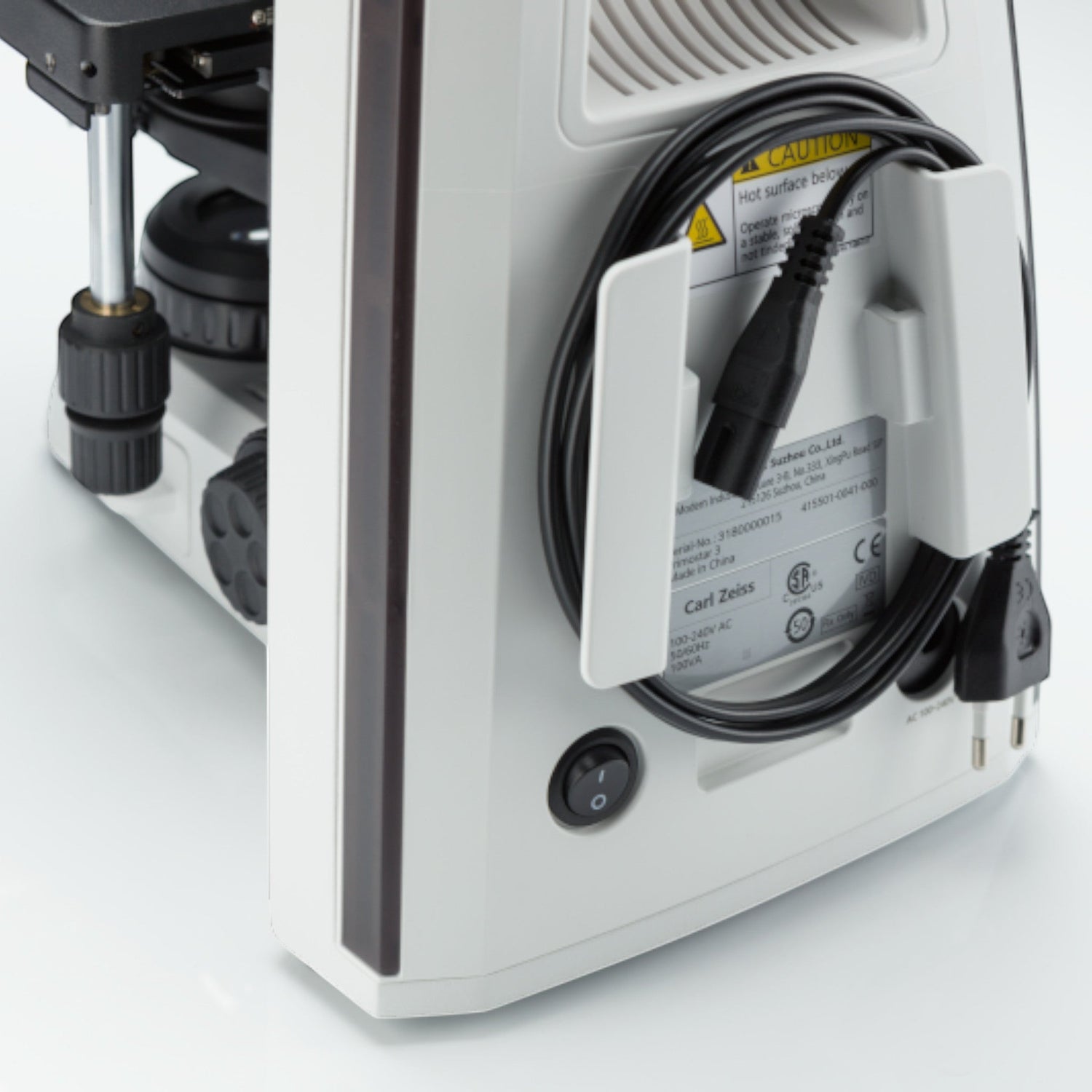

– Country-specific power cable
– Dust cover

Stage and Mechanics

– Cross-motion stage 75 × 50 mm

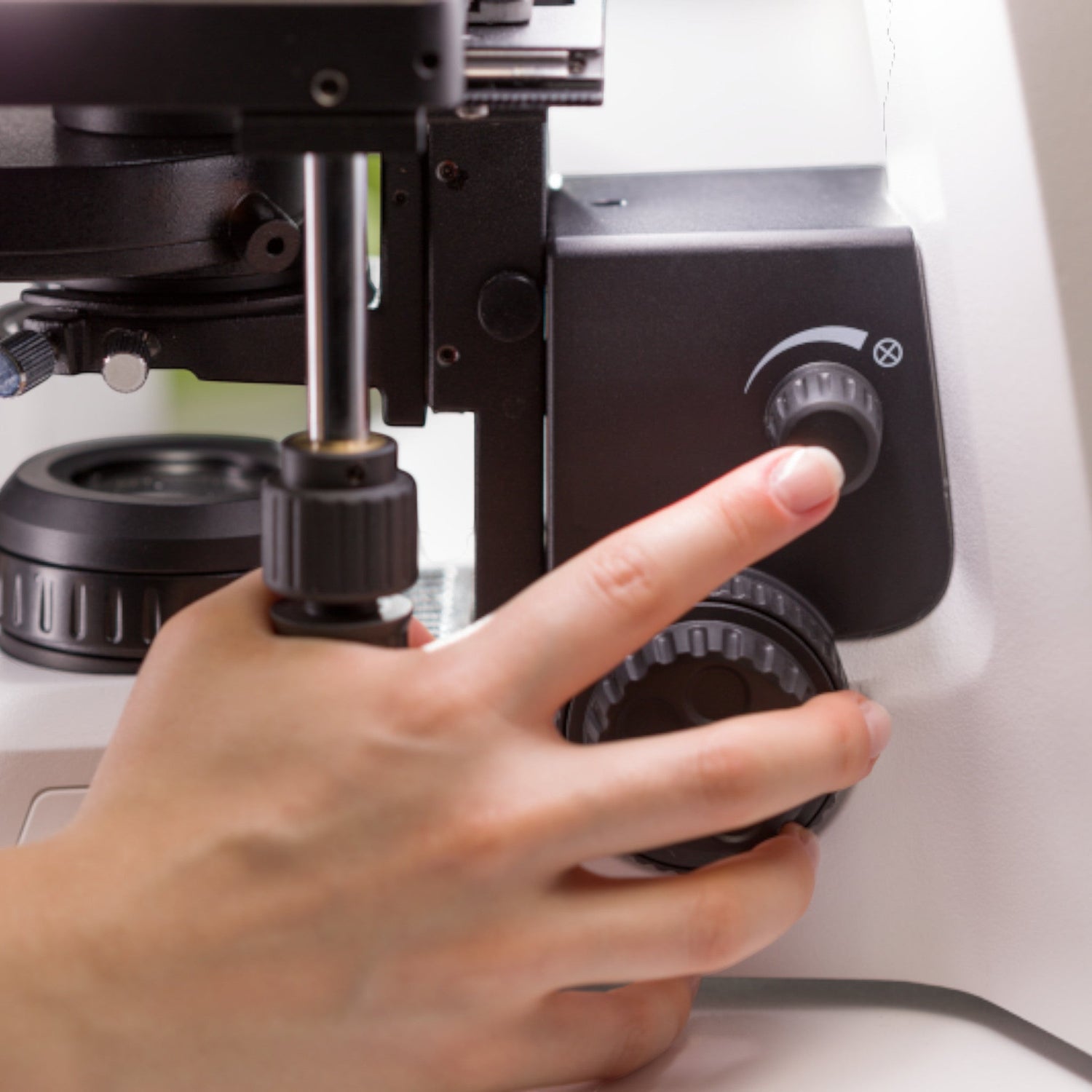

– Right-hand stage drive
– Specimen holder for two slides
– Left-hand spring lever

Tube

– Trinocular photo tube 25° / field of view 22
– Split ratio 50 % visual / 50 % camera
– Camera connection prepared (C-mount)

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Nosepiece and Objectives

– 5-fold revolving nosepiece, backward inclined

Objectives:
– iPlan-Achromat 4×
– iPlan-Achromat 10×
– iPlan-Achromat 40× Ph2

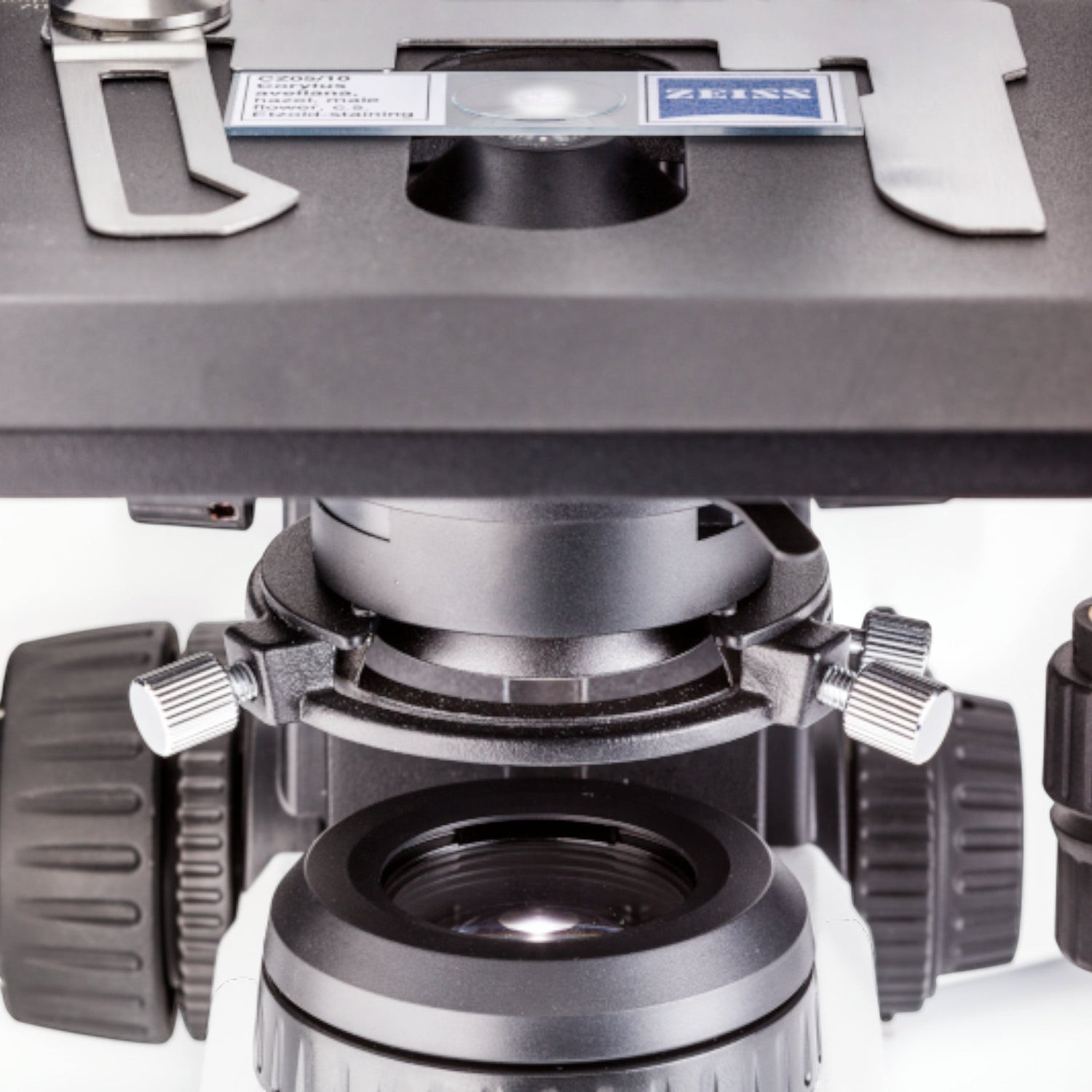

Condenser

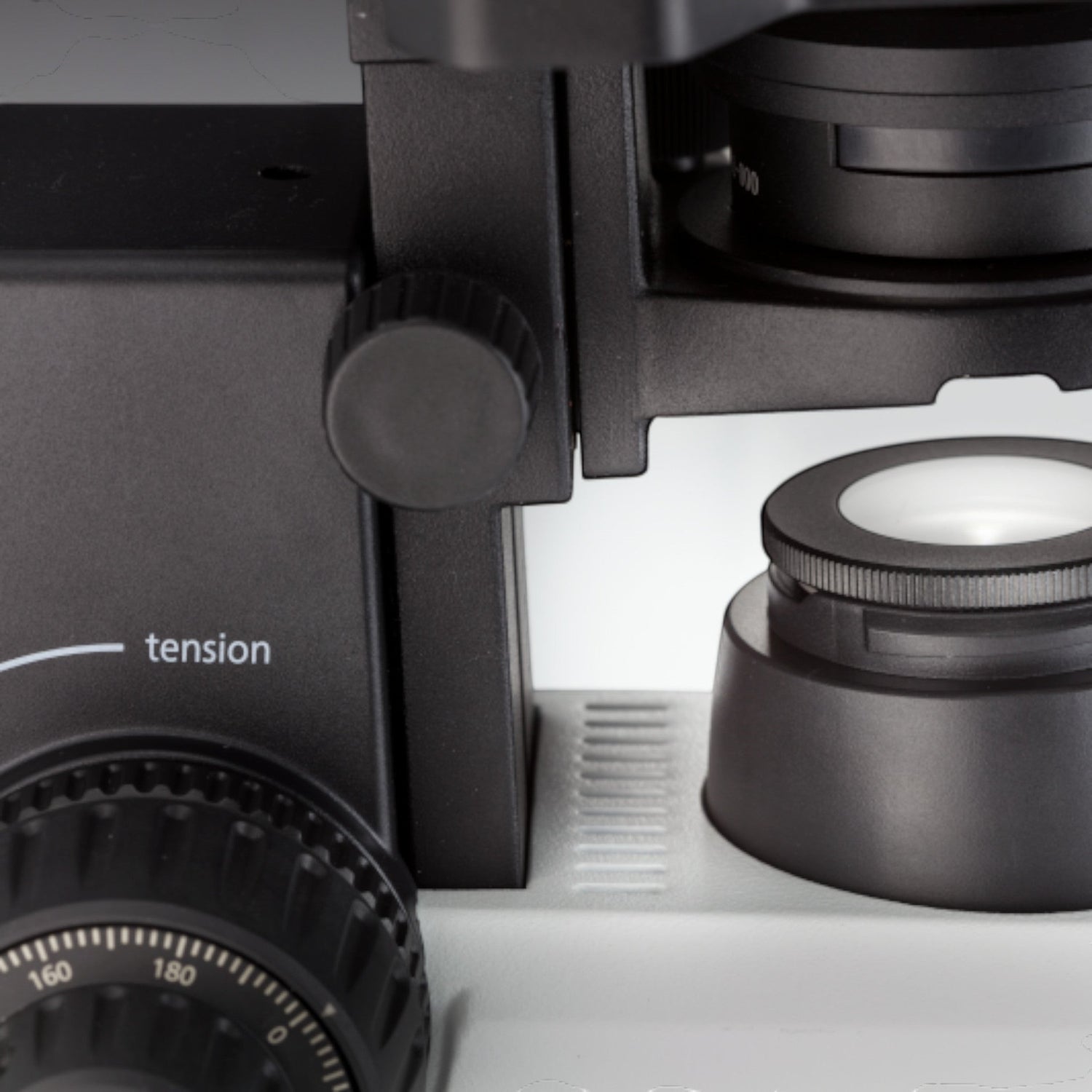

– Abbe condenser 0.9 / 1.25 with slot

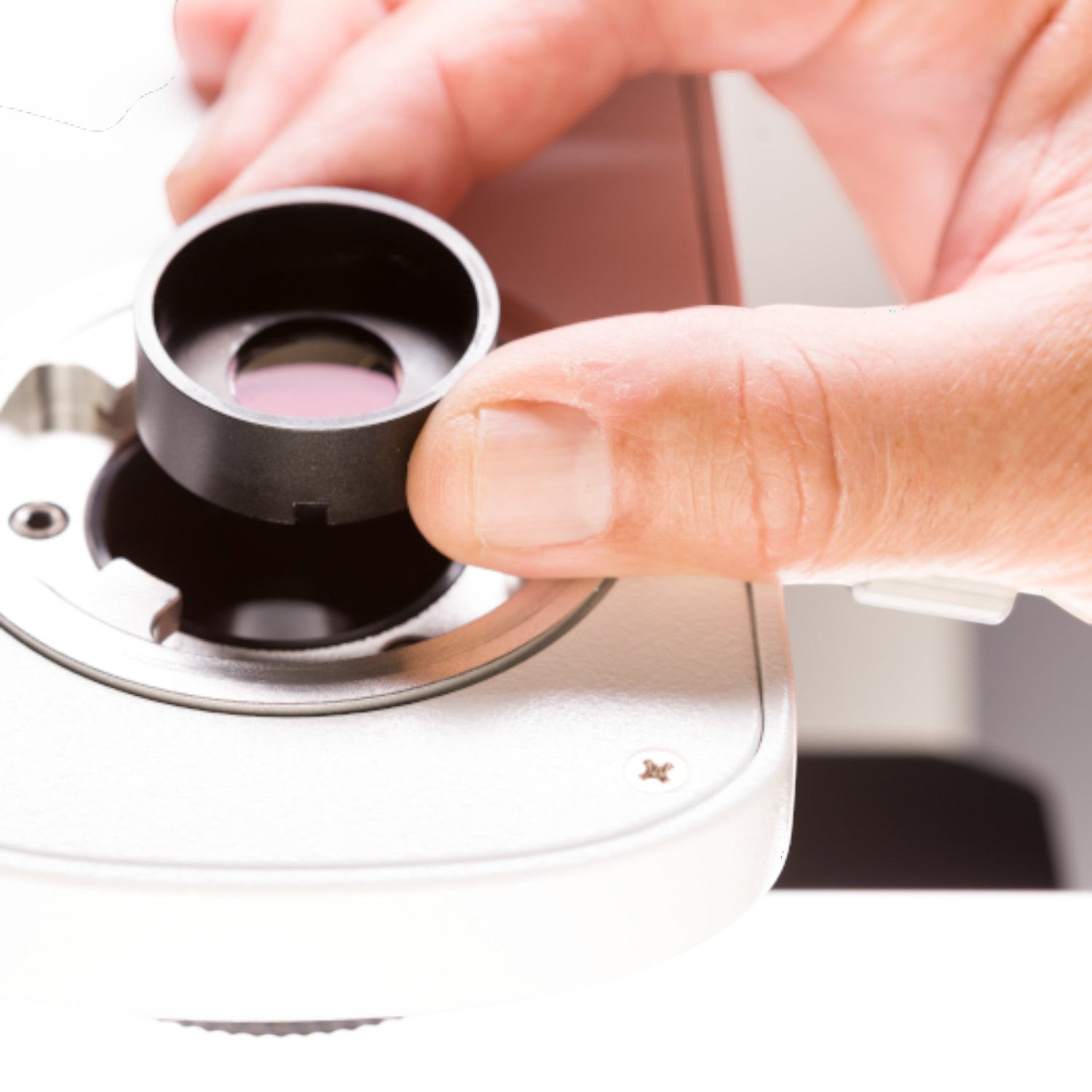

– Phase shifter H / Ph2
