Zeiss SKU: 490705-0005-000

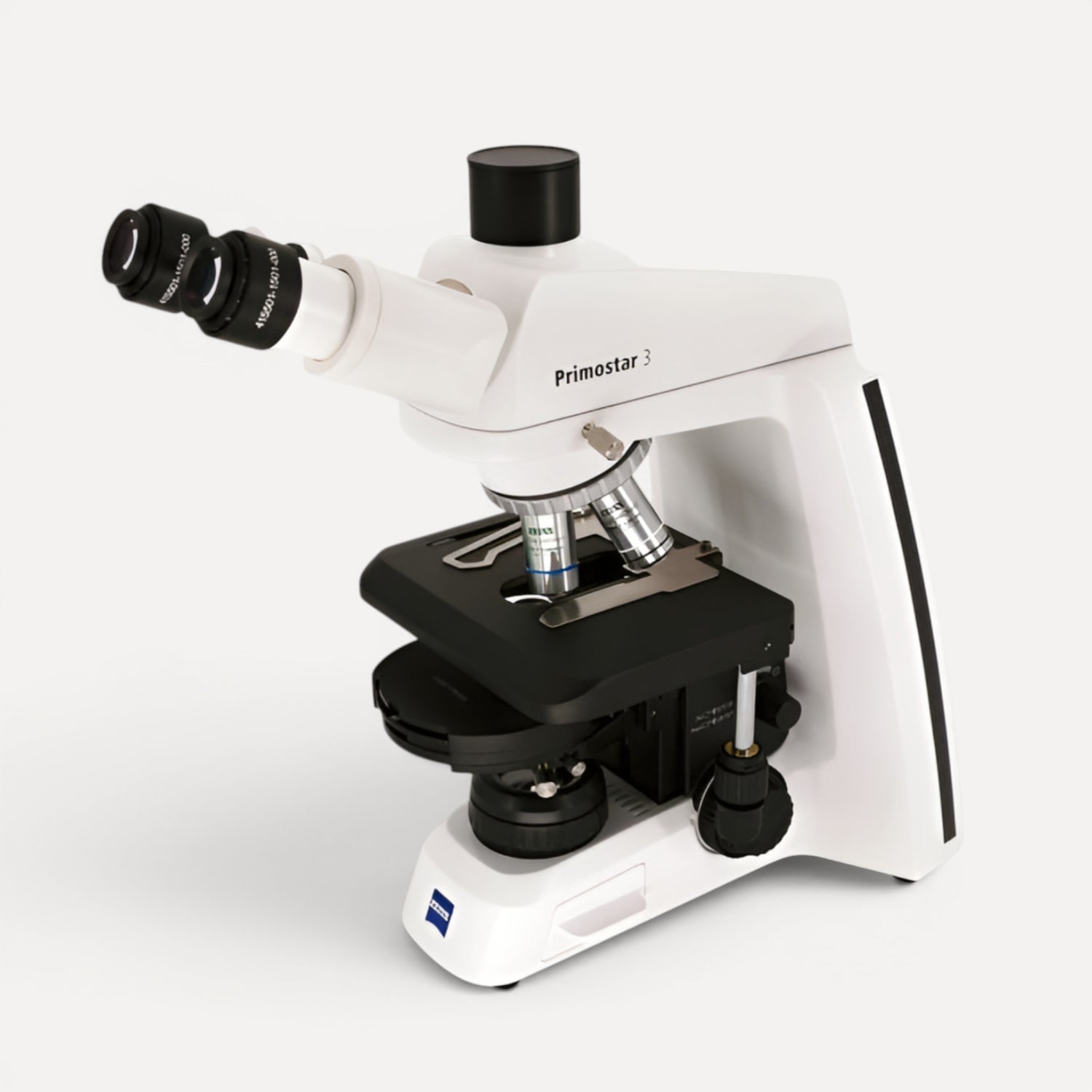

ZEISS Primostar 3 Trino Phase Contrast with 100x Oil – Transmitted Light Microscope

€3.357,00 €3.731,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Advanced Phase Contrast Microscopy with Oil Immersion

The ZEISS Primostar 3 Full-Köhler Trino is designed for demanding educational and laboratory applications where phase contrast and 100× oil immersion are required.
With a trinocular photo tube, Full-Köhler illumination, and LED and halogen transmitted light, the system allows precise observation of transparent samples while also being prepared for documentation solutions.

The coded 5-fold nosepiece, the stable mechanical stage, and the Abbe condenser with modulator disc ensure reproducible results and high ease of use.

Key Features

  • Full-Köhler transmitted light microscope

  • Trinocular photo tube (50:50)

  • Phase contrast HF / DF / Ph1–Ph3

  • LED and halogen transmitted light illumination

  • Coded 5-fold nosepiece

  • Mechanical stage 75 × 50 mm

  • 100× oil objective included

Ideal for

  • Biology and medical education

  • Cell and tissue culture

  • Phase contrast examinations

  • Routine laboratories

  • Users with camera and documentation needs

Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Trinocular full Köhler transmitted light microscope for phase contrast and oil immersion

System Features

– Full-Köhler stand
– Transmitted light modules with
– 3 W white LED light, approx. 5600 K
– 6 V / 30 W halogen lamp
– Halogen lamp 6 V / 30 W (replacement)
– Color filter set: blue, green, yellow
– LightManager
– ECO-Mode
– Country-specific power cable
– Dust cover

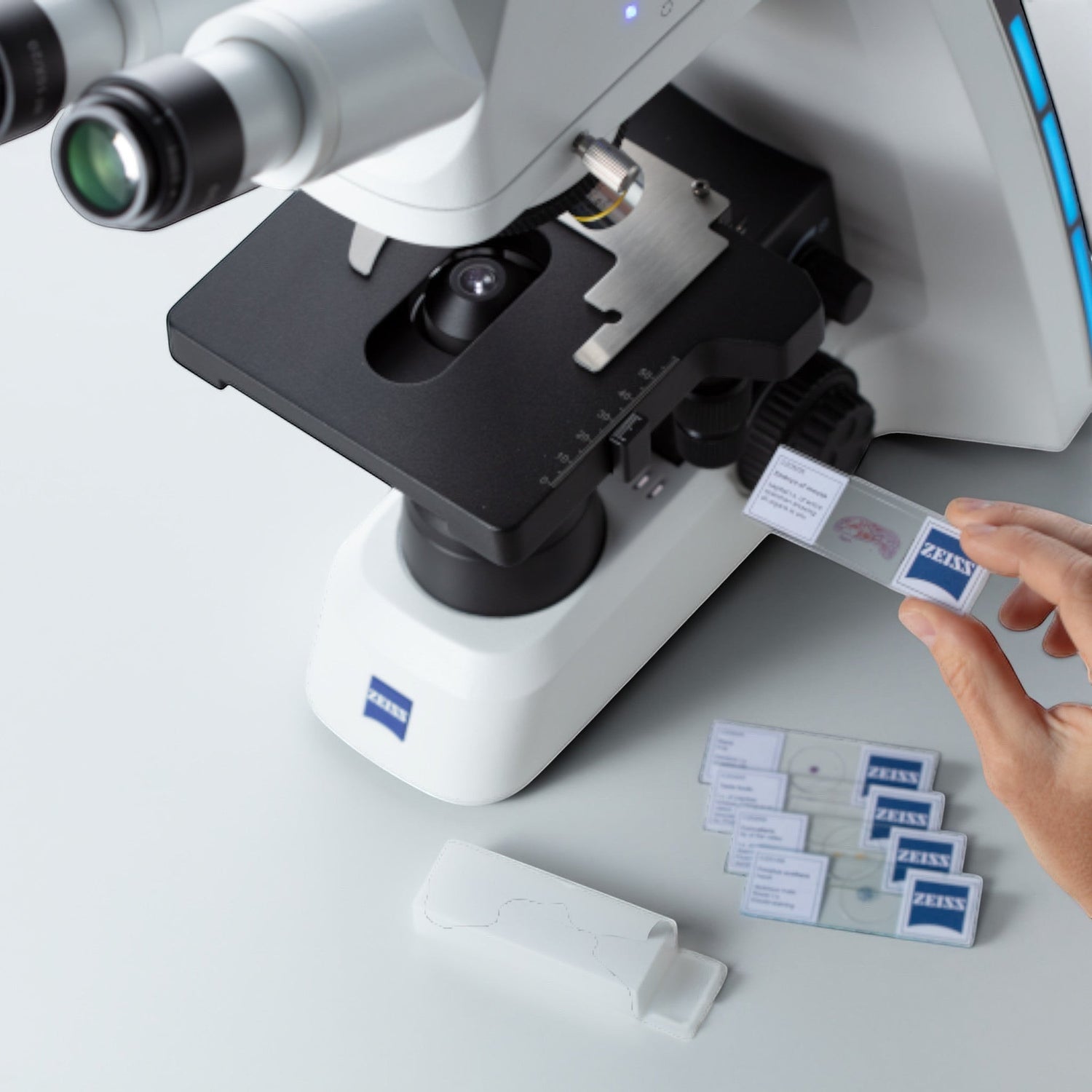

Stage and Mechanics

– Cross stage 75 × 50 mm

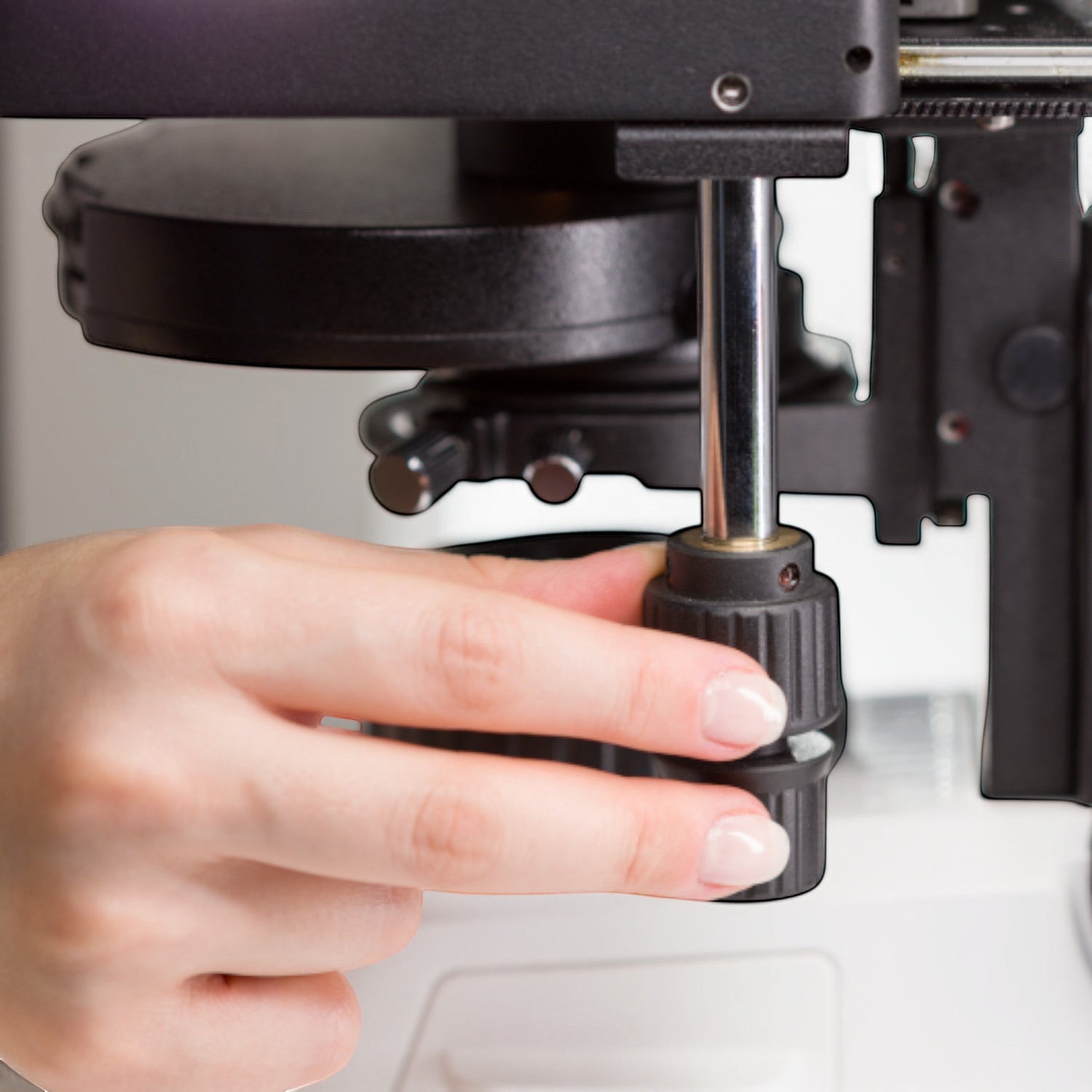

– Right-hand stage drive
– Specimen holder for two slides
– Left-hand spring lever

Tube

– Trinocular photo tube 25° / field of view 22
– Splitting ratio 50 % visual / 50 % camera
– Camera connection prepared (C-mount)

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Nosepiece and Objectives

– 5-position nosepiece, coded, rear-facing

Objectives:
– iPlan-Achromat 40× Ph2
– iPlan-Achromat 100× / 1.25 Oil Ph3

Objective Accessories

– Immersion oil, 5 ml

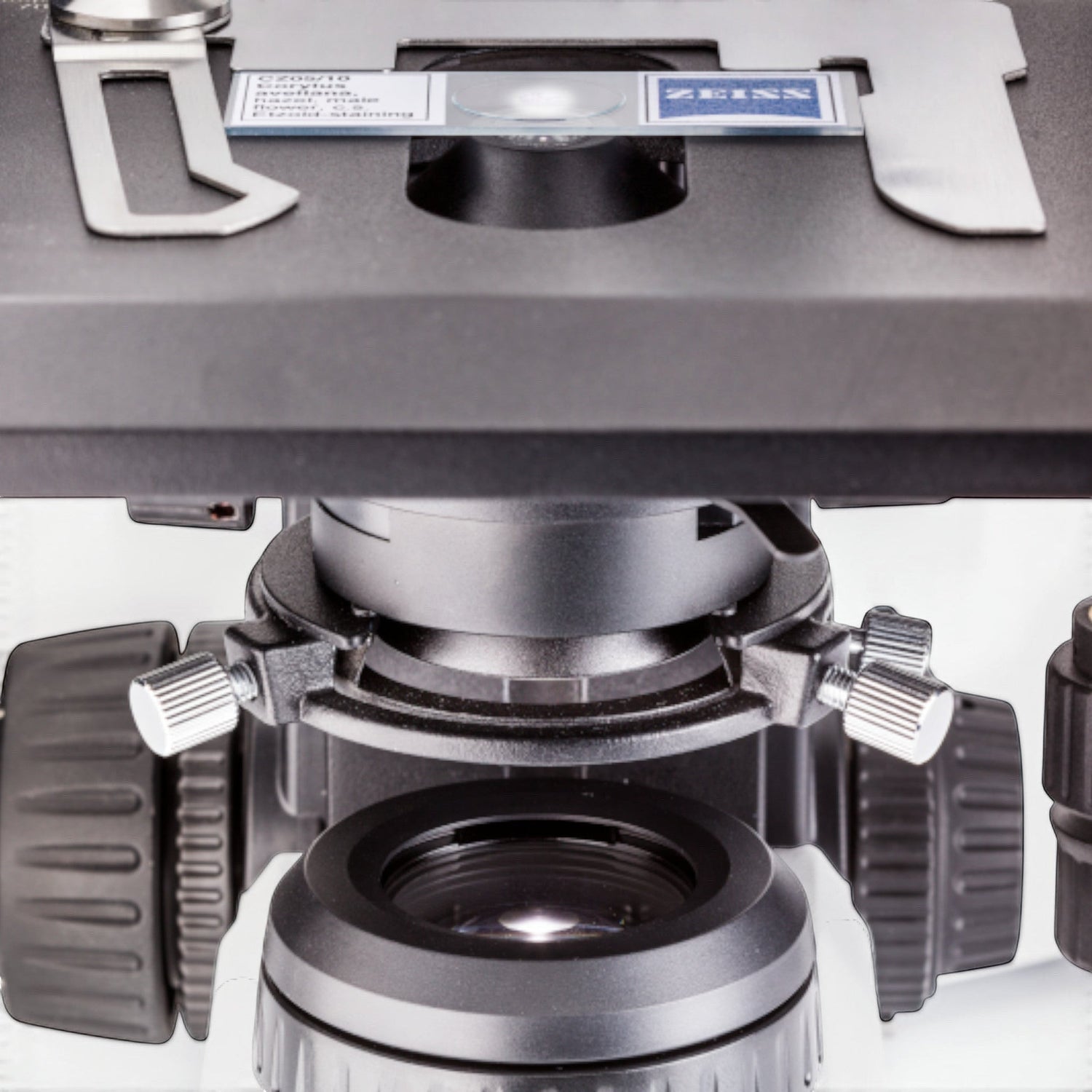

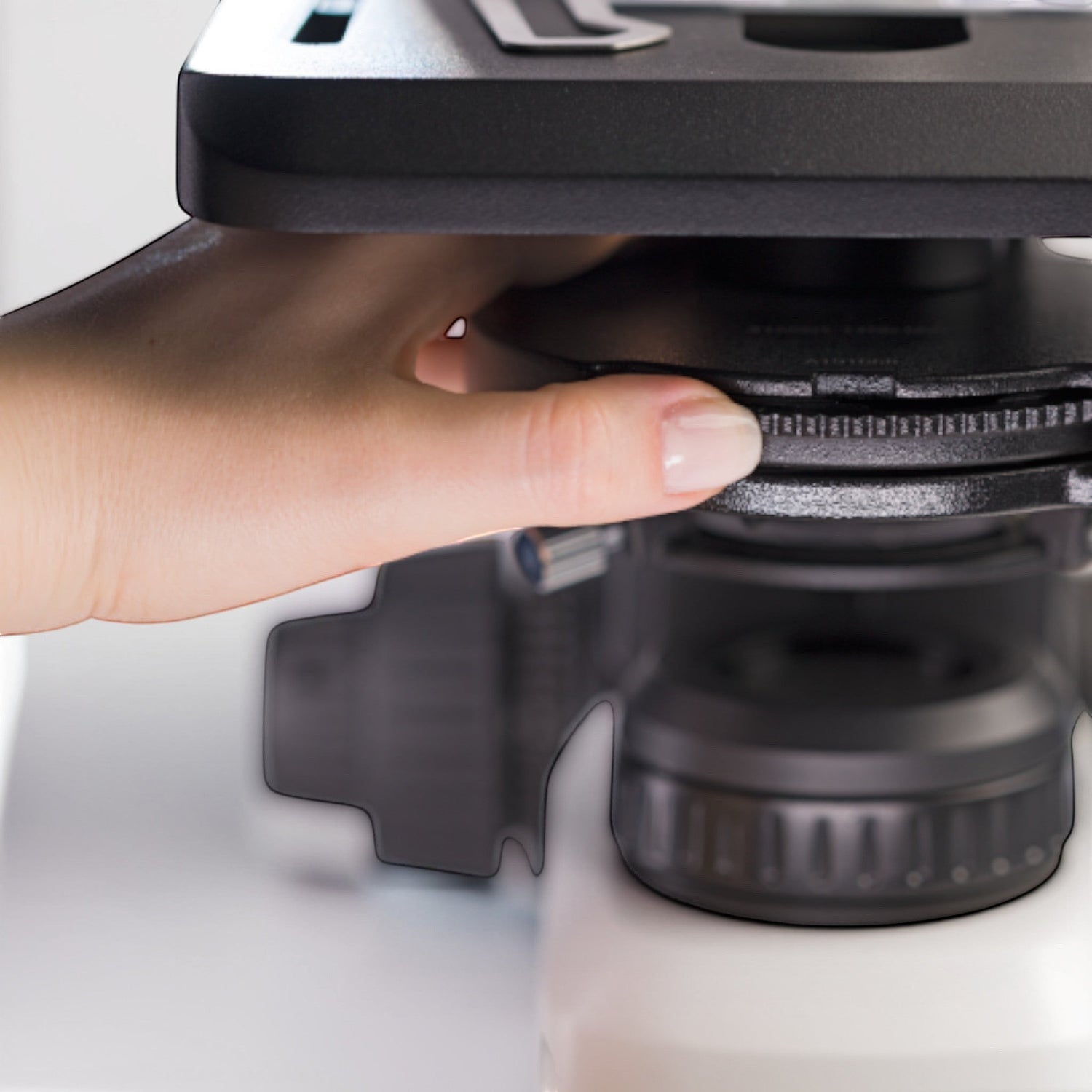

Condenser

– Abbe condenser 0.9
– Modulator disk for
– Brightfield
– Darkfield
– Ph1
– Ph2
– Ph3
