Zeiss SKU: 490705-0004-000

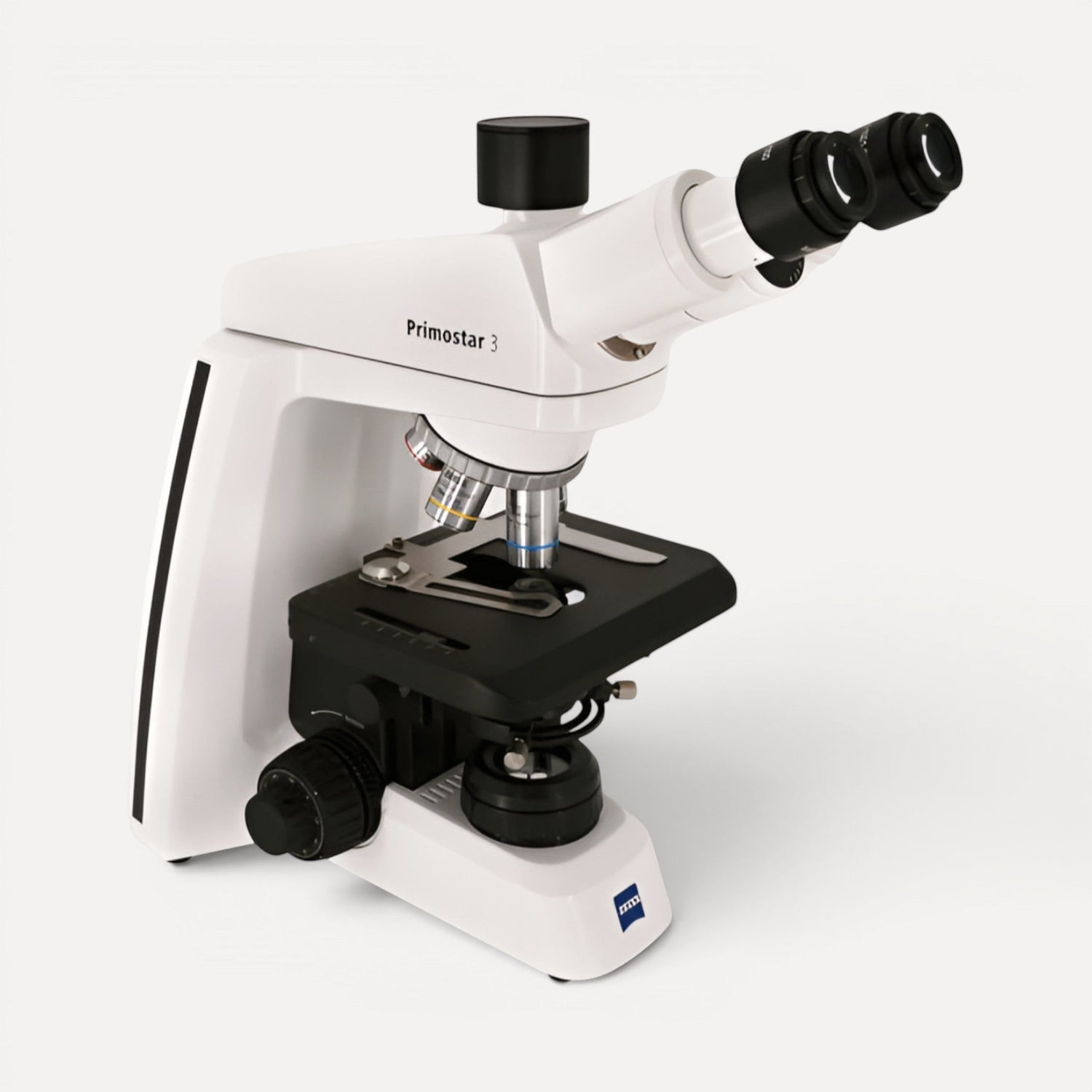

ZEISS Primostar 3 Trino with 100x Oil – Transmitted Light Microscope

€2.380,00 €2.645,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Universal Full-Köhler Microscope with Oil Immersion

The ZEISS Primostar 3 Full-Köhler Trino is a versatile transmitted light microscope for education, routine work, and laboratory applications.
The combination of a trinocular photo tube, Full-Köhler illumination, and LED and halogen transmitted light enables precise, high-contrast observations and easy connection of camera systems.

Thanks to the 100× iPlan Achromat oil immersion objective, this system is particularly suitable for higher magnifications in biology, medicine, and education. The Fast-Delivery configuration ensures short-term availability.

Key Features

  • Full-Köhler transmitted light microscope

  • Trinocular photo tube (50:50)

  • LED and halogen transmitted light illumination

  • 5-position objective nosepiece

  • Mechanical stage 75 × 50 mm

  • 100× oil immersion objective

  • Quickly deliverable configuration

Ideal for

  • Education and teaching

  • Medical and biological laboratories

  • Routine microscopy

  • Users with documentation requirements

  • Applications with 100× oil immersion

Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Trinocular Full-Köhler Transmitted Light Microscope with 100x Oil Immersion – immediately available

System Features

– Full Köhler Stand
– Transmitted-light Modules with
– 3 W LED white light, approx. 5600 K
– 6 V / 30 W halogen lamp
– Halogen lamp 6 V / 30 W (replacement)
– Color filter set: blue, green, yellow
– LightManager
– ECO-Mode
– Country-specific power cable
– Dust cover

Stage and Mechanics

– Cross stage 75 × 50 mm
– Right-hand stage drive
– Specimen holder for two slides
– Left-hand spring lever

Tube

– Trinocular photo tube 25° / field of view 22
– Splitting ratio 50 % visual / 50 % camera

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Revolving Nosepiece and Objectives

– 5-fold revolving nosepiece, backward-inclined

Objectives:
– iPlan Achromat 4×
– iPlan Achromat 10×
– iPlan Achromat 40×
– iPlan Achromat 100× / 1.25 Oil

Objective Accessories

– Immersion oil, 5 ml

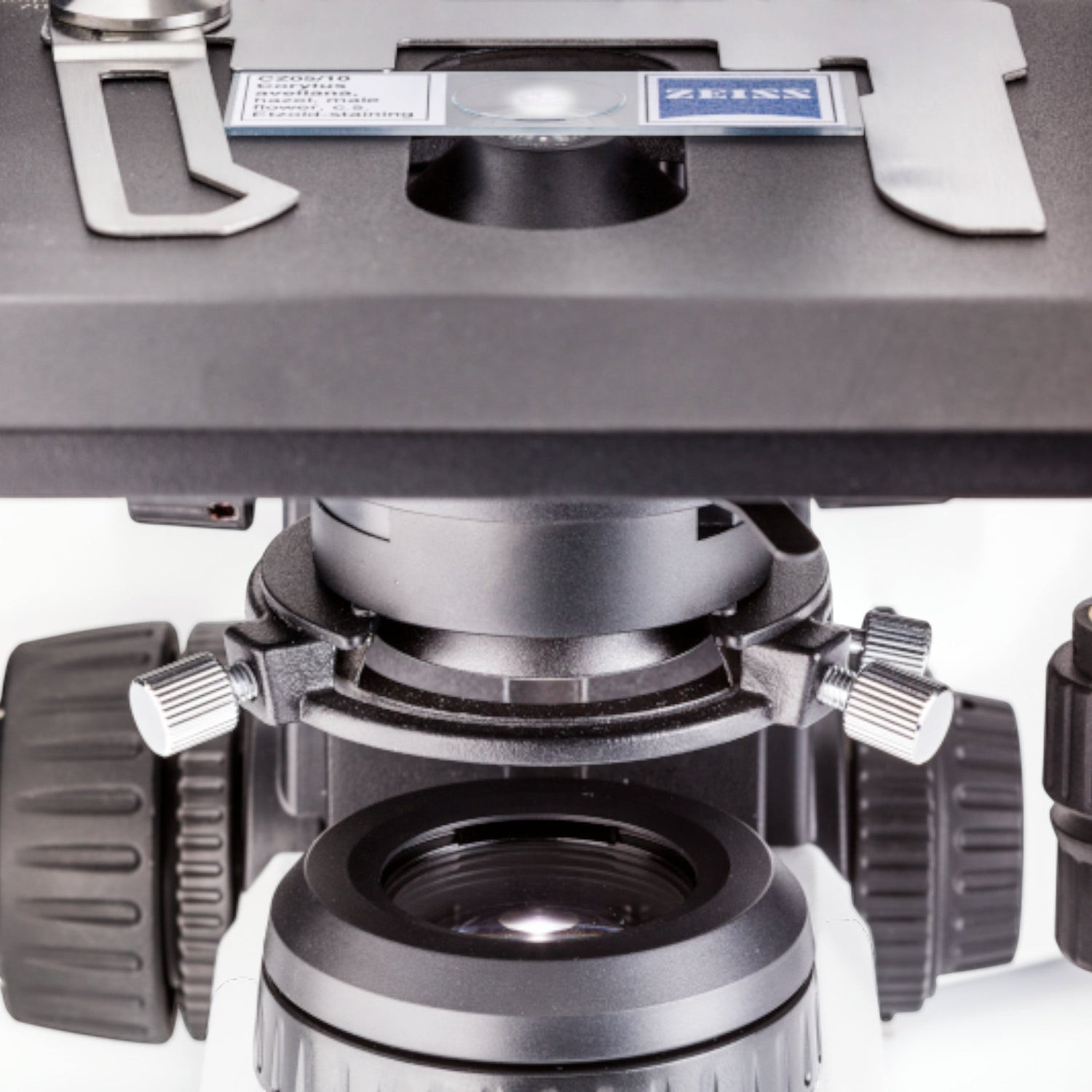

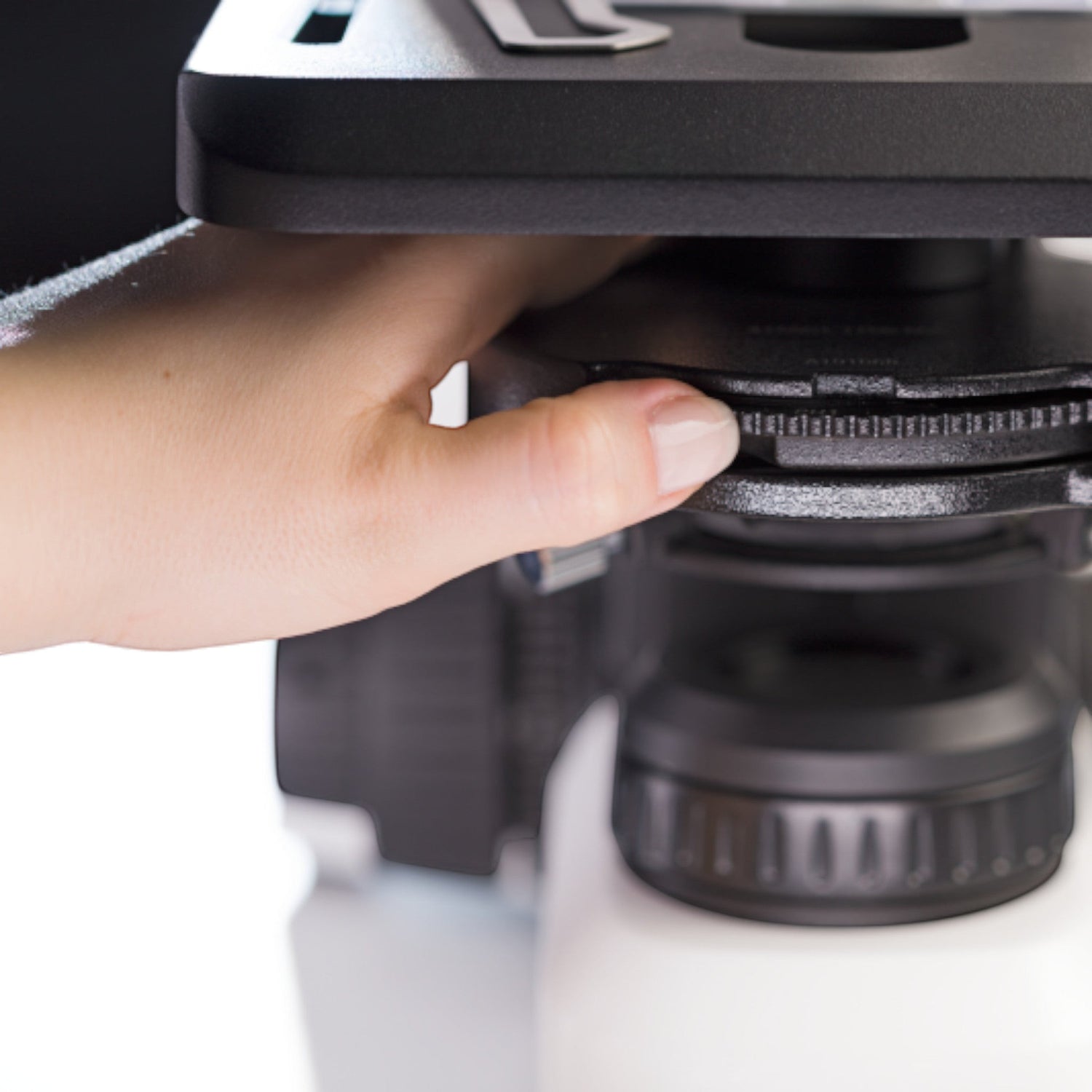

Condenser

– Abbe Condenser 0.9 / 1.25 with Slot
