Zeiss SKU: 490705-0007-000

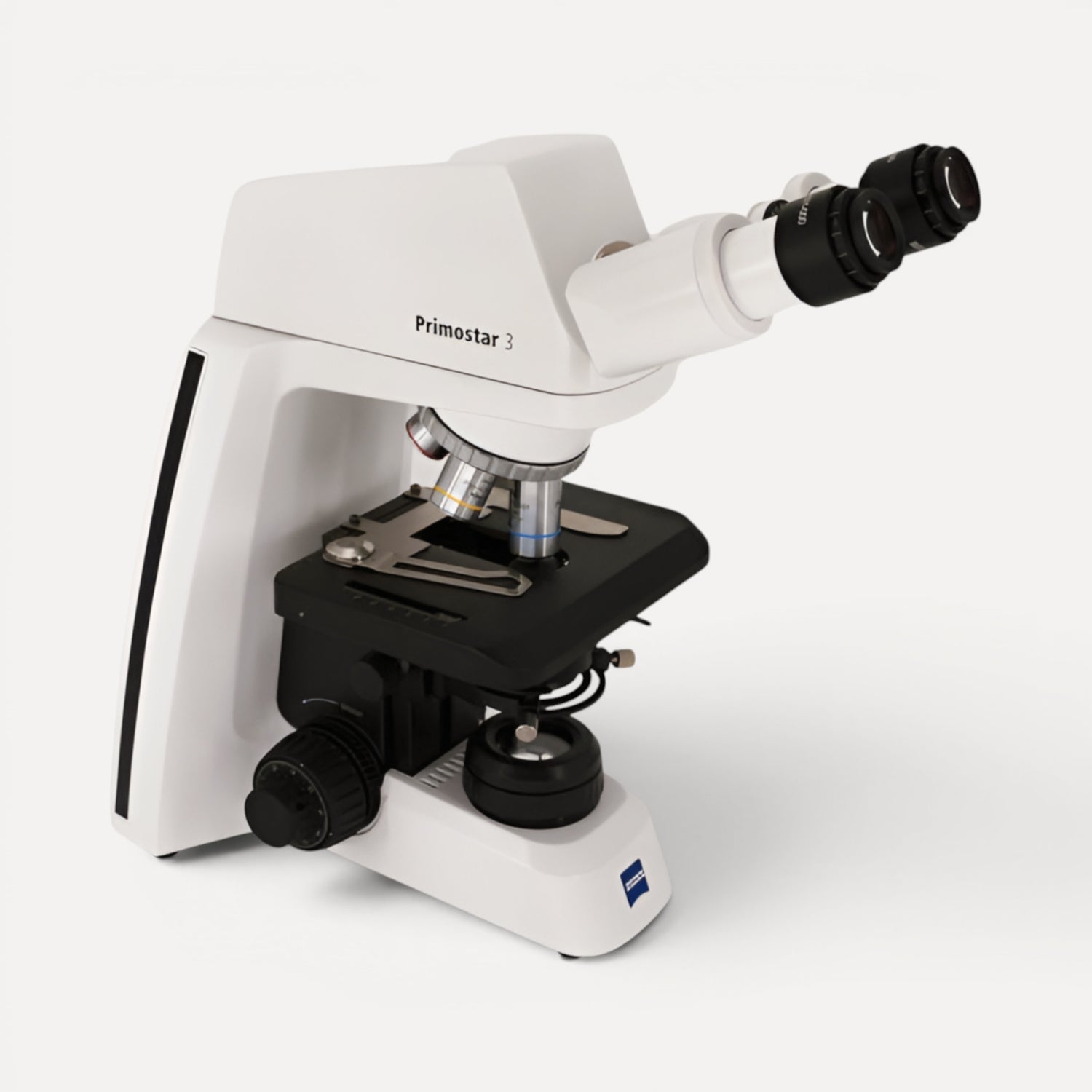

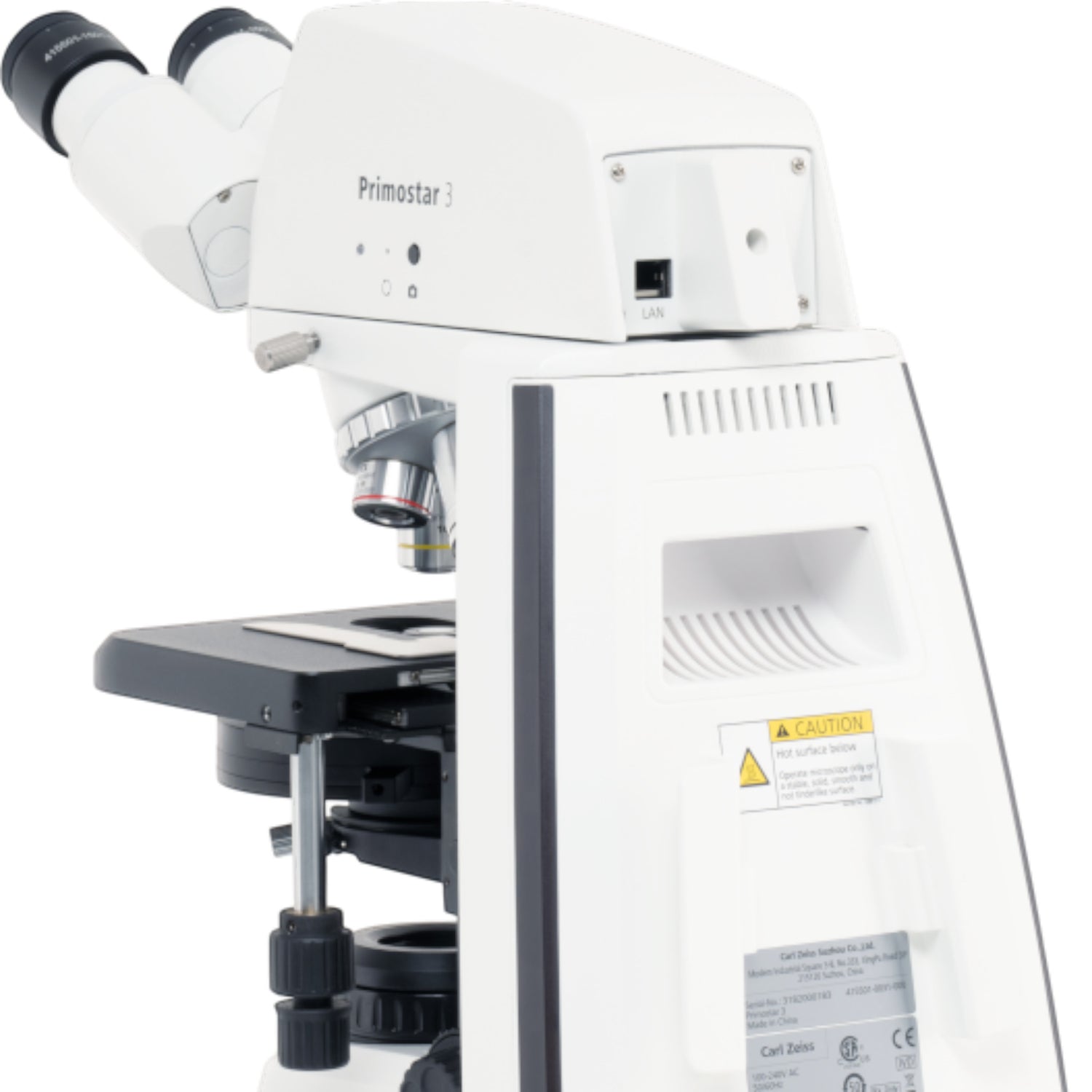

ZEISS Primostar 3 Cam Full-Köhler with integrated 5 MP camera – Transmitted light microscope

€3.821,00 €4.246,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Professional Training Microscopy with Full-Köhler Illumination

The ZEISS Primostar 3 in the Full-Köhler version is a powerful transmitted light microscope for demanding training, laboratory routine, and digital documentation.
The combination of 3W LED illumination, 100× oil immersion objective, and integrated 5 MP camera enables even illumination, high image quality, and efficient digital microscopy.

Key Features

  • Full-Köhler stand with 3 W LED transmitted light illumination

  • Integrated 5 MP camera for digital microscopy

  • 5-position revolving nosepiece

  • Mechanical stage 75 × 50 mm for two slides

  • iPlan-Achromat objectives including 100× oil immersion

  • Abbe condenser 0.9 / 1.25

  • Color filter set (blue, green, yellow)

  • ECO mode and intelligent LightManager

Ideal for

  • Universities and training laboratories

  • Biological and medical training

  • Routine and advanced microscopy

  • Digital documentation and teaching

  • Applications with oil immersion


Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Transmitted light microscope with full Koehler illumination, oil immersion and integrated camera

System overview

– Full Köhler stand

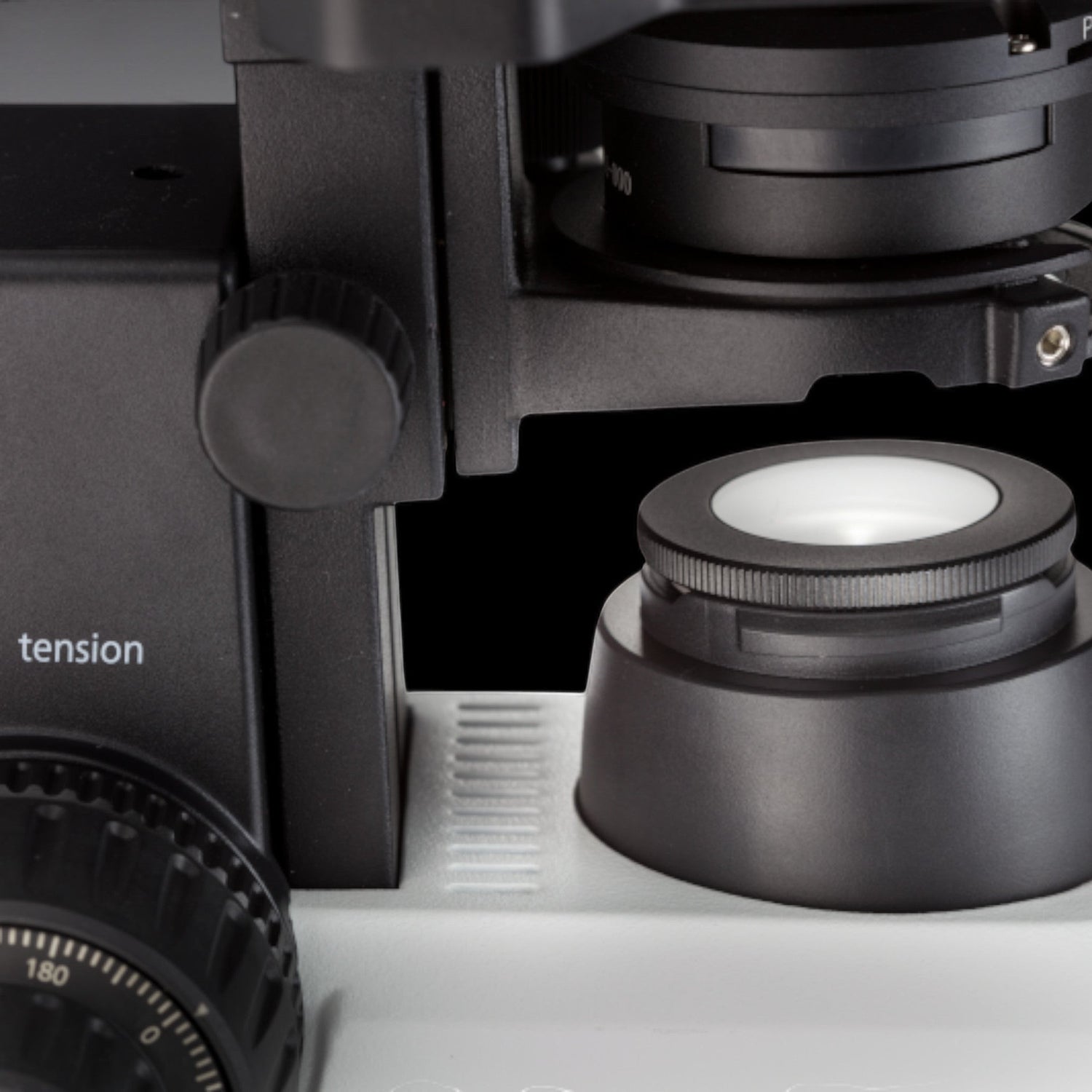

– Transmitted light modules with 3 W LED, white light approx. 5600 K
– Color filter set: blue, green, yellow
– LightManager
– ECO mode

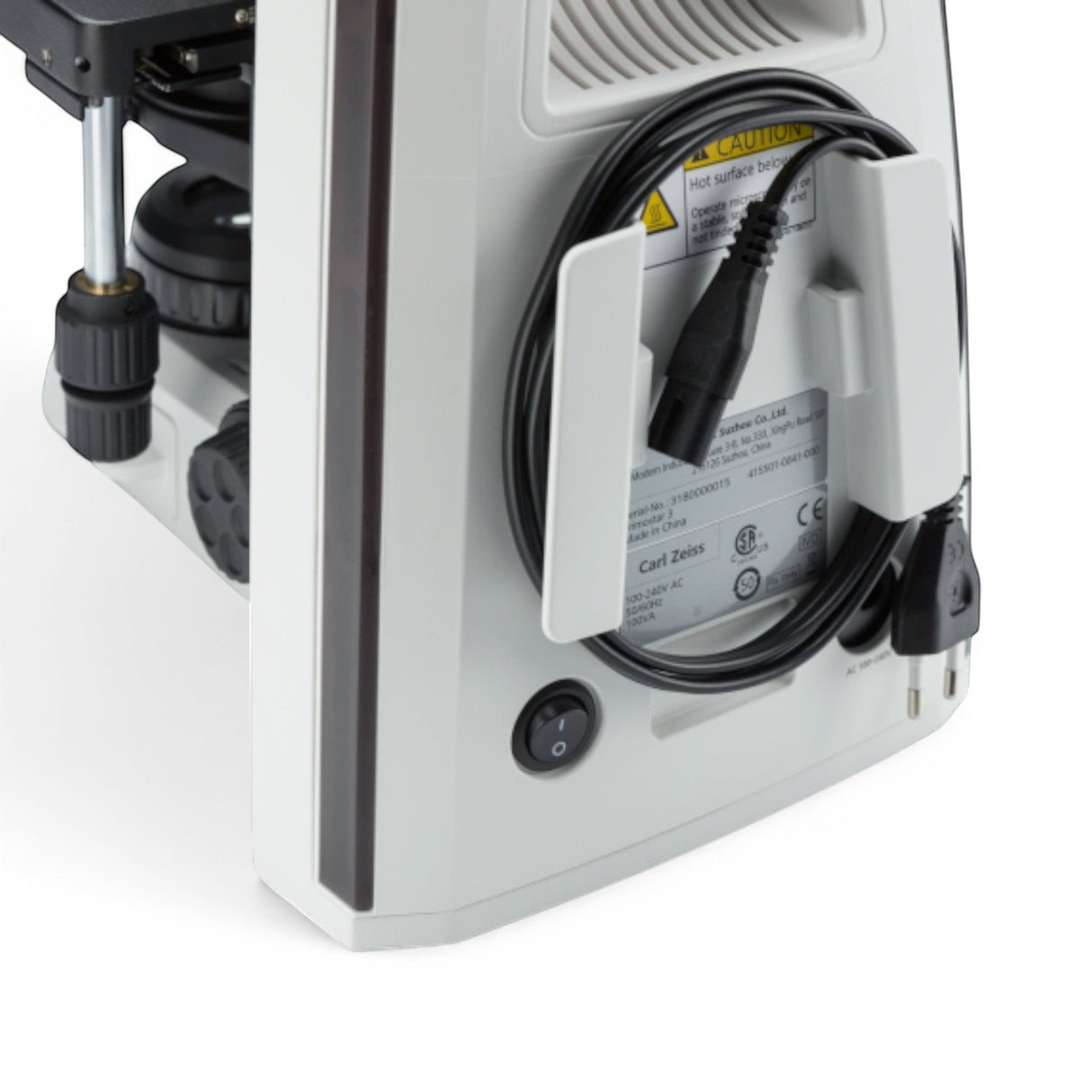

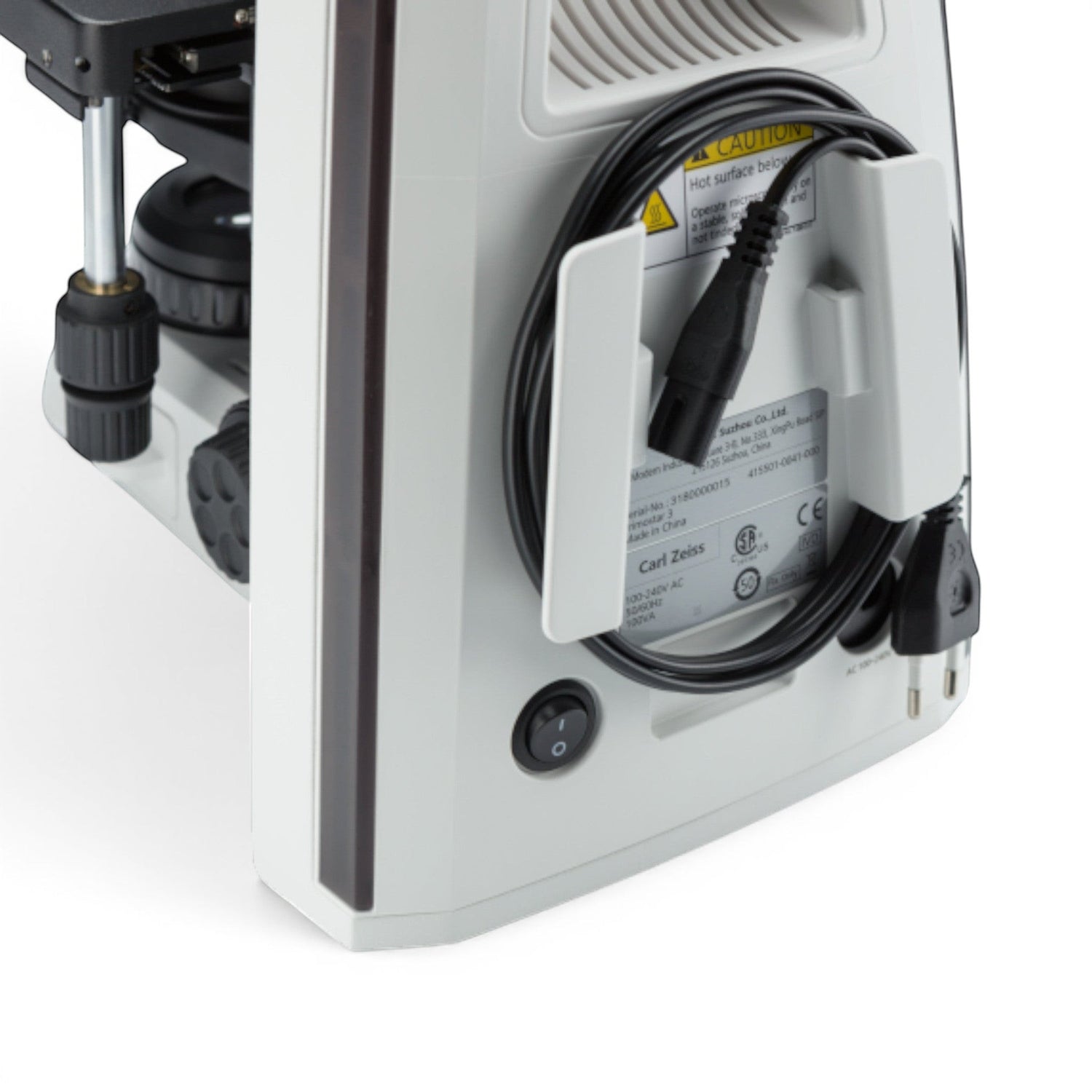

– Country-specific power cord
– Dust cover

Stage and Mechanics

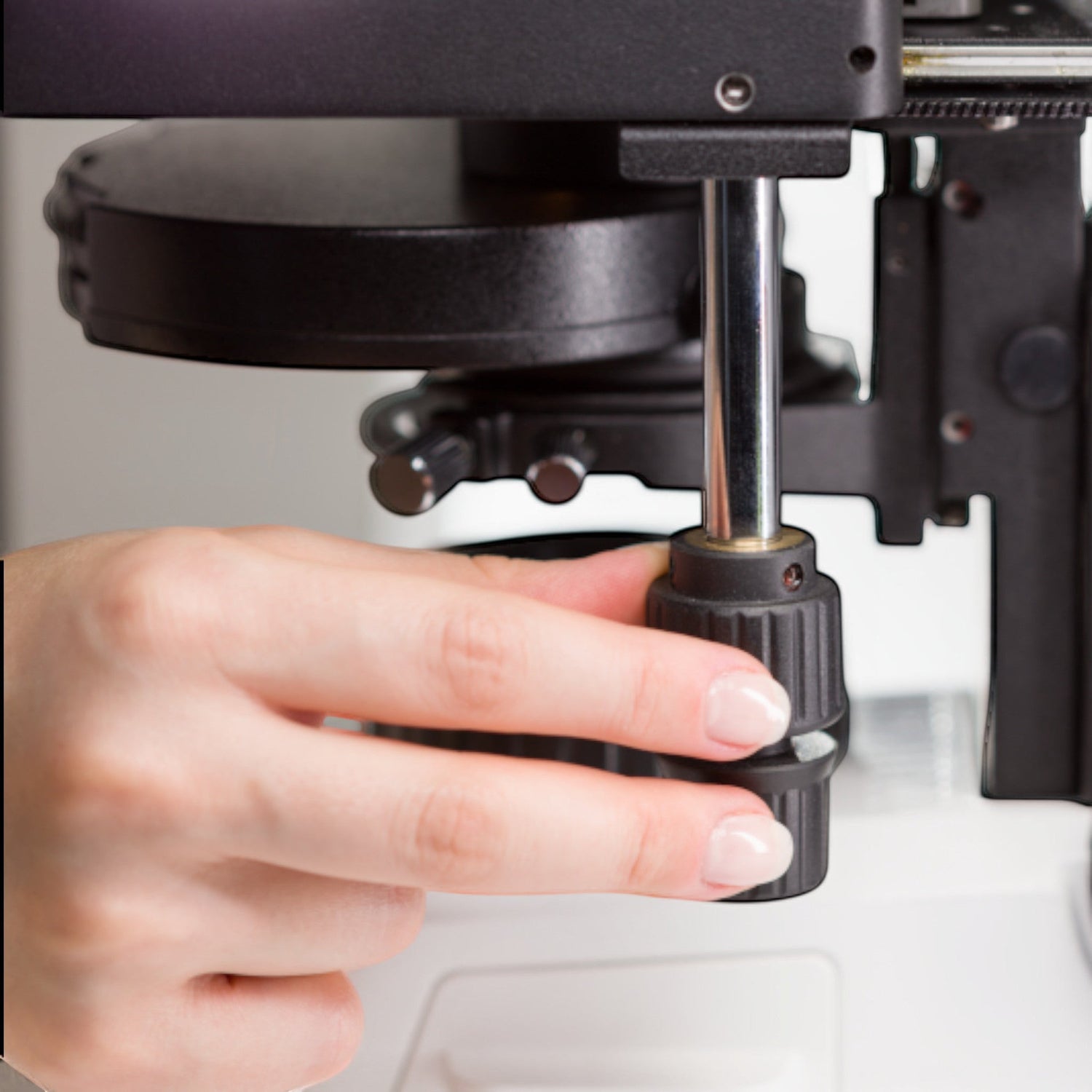

– Cross stage 75 × 50 mm
– Right-hand stage drive

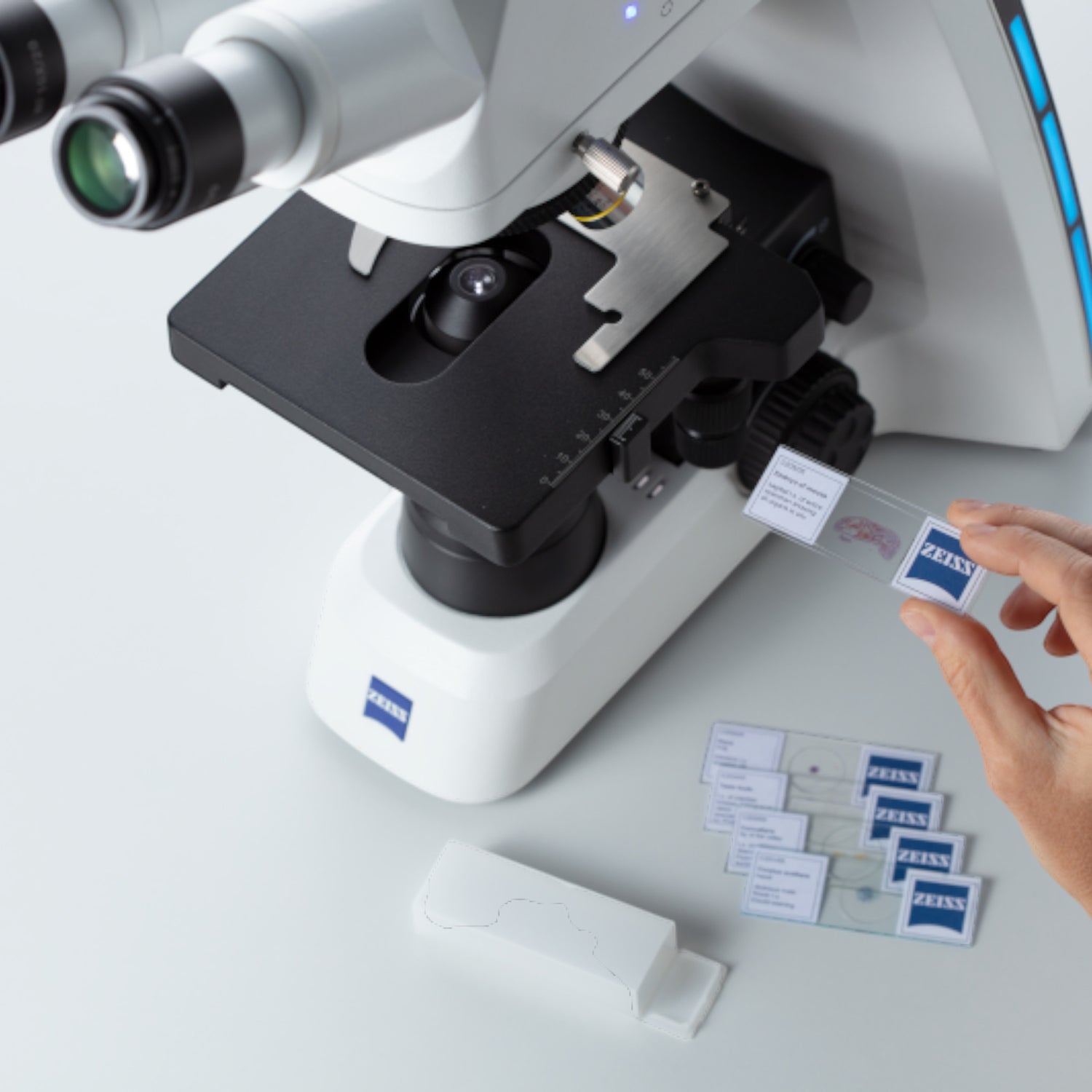

– Specimen holder for two slides
– Left-hand spring lever

Tube

– Binocular tube 25° / field of view 22
– Split ratio 50% visual / 50% documentation
– Integrated camera

Eyepieces

– Eyepieces 10× / 22 Br. foc.
– Eyecups

Objective Revolver and Objectives

– 5-position objective turret, backward-facing

Objectives:
– iPlan-Achromat 4×
– iPlan-Achromat 10×
– iPlan-Achromat 40×
– iPlan-Achromat 100× / 1.25 Oil

Objective Accessories

– Immersion oil, 5 ml

Condenser

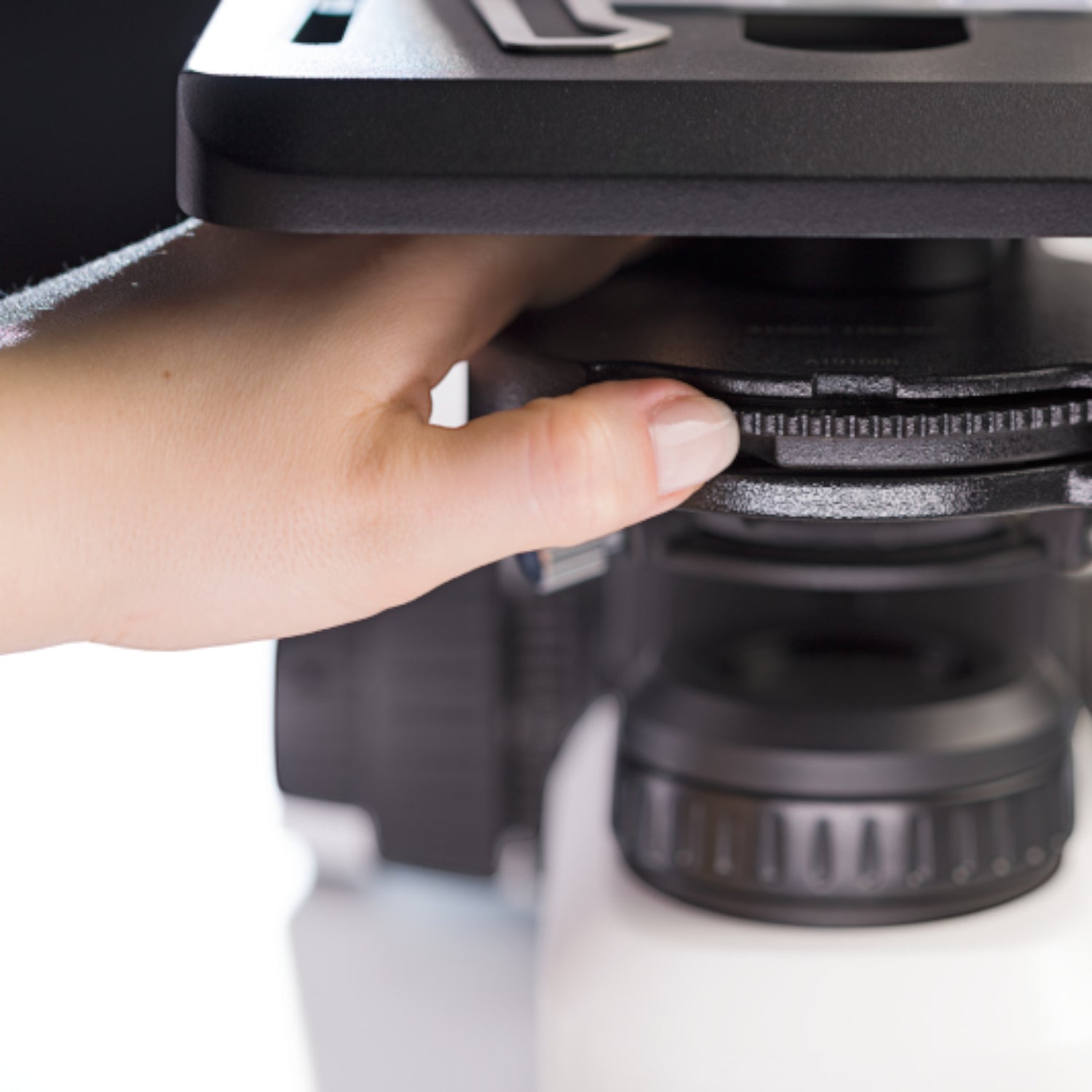

– Abbe condenser 0.9 / 1.25 with slot

Integrated Camera – Technical Data

– Resolution: 5.04 MP (2592 × 1944)
– Live resolution: Full HD (1920 × 1080)
– Sensor: CMOS color sensor with rolling shutter
– Frame rate: up to 30 fps (Labscope)
– Digitization: 24 Bit (RGB)

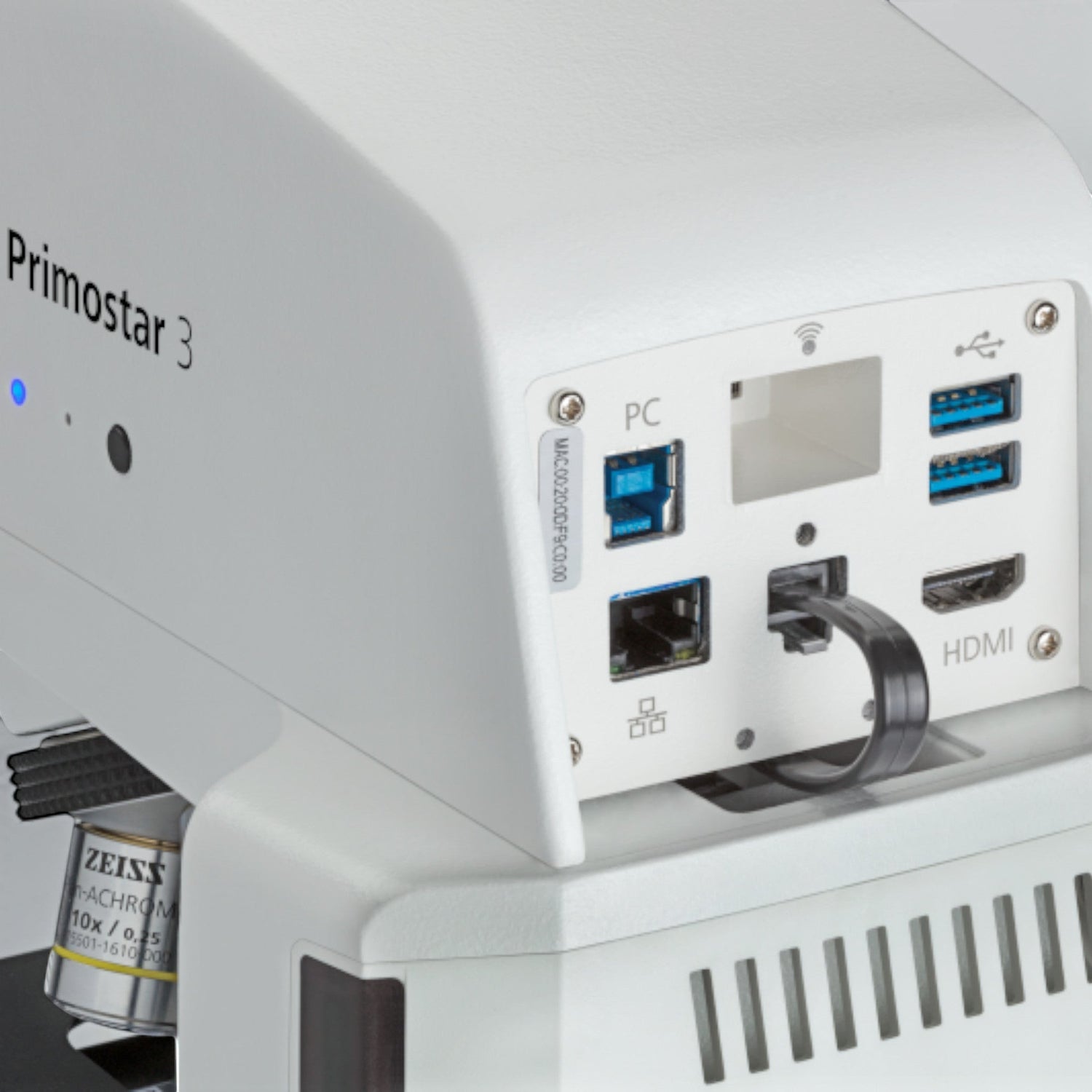

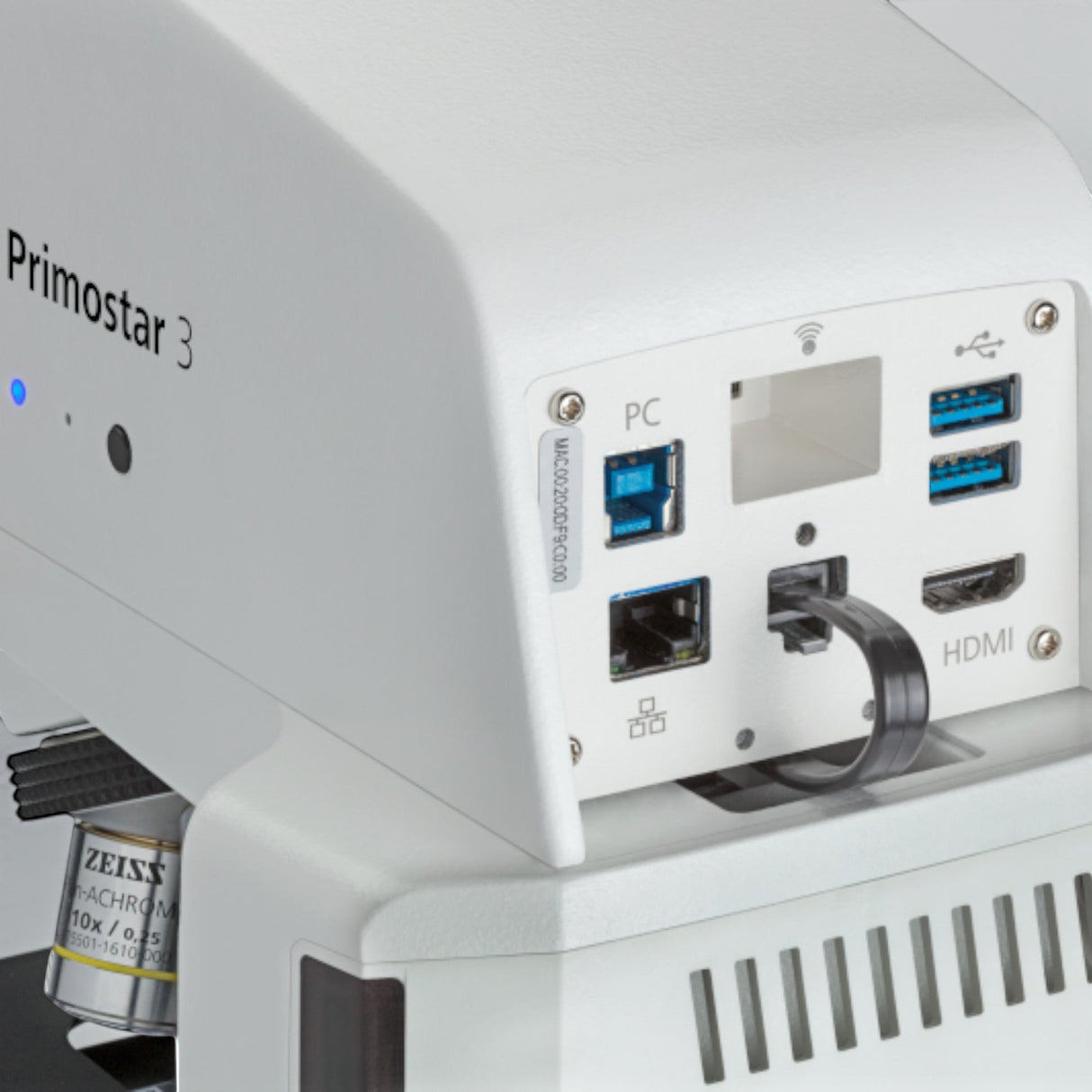

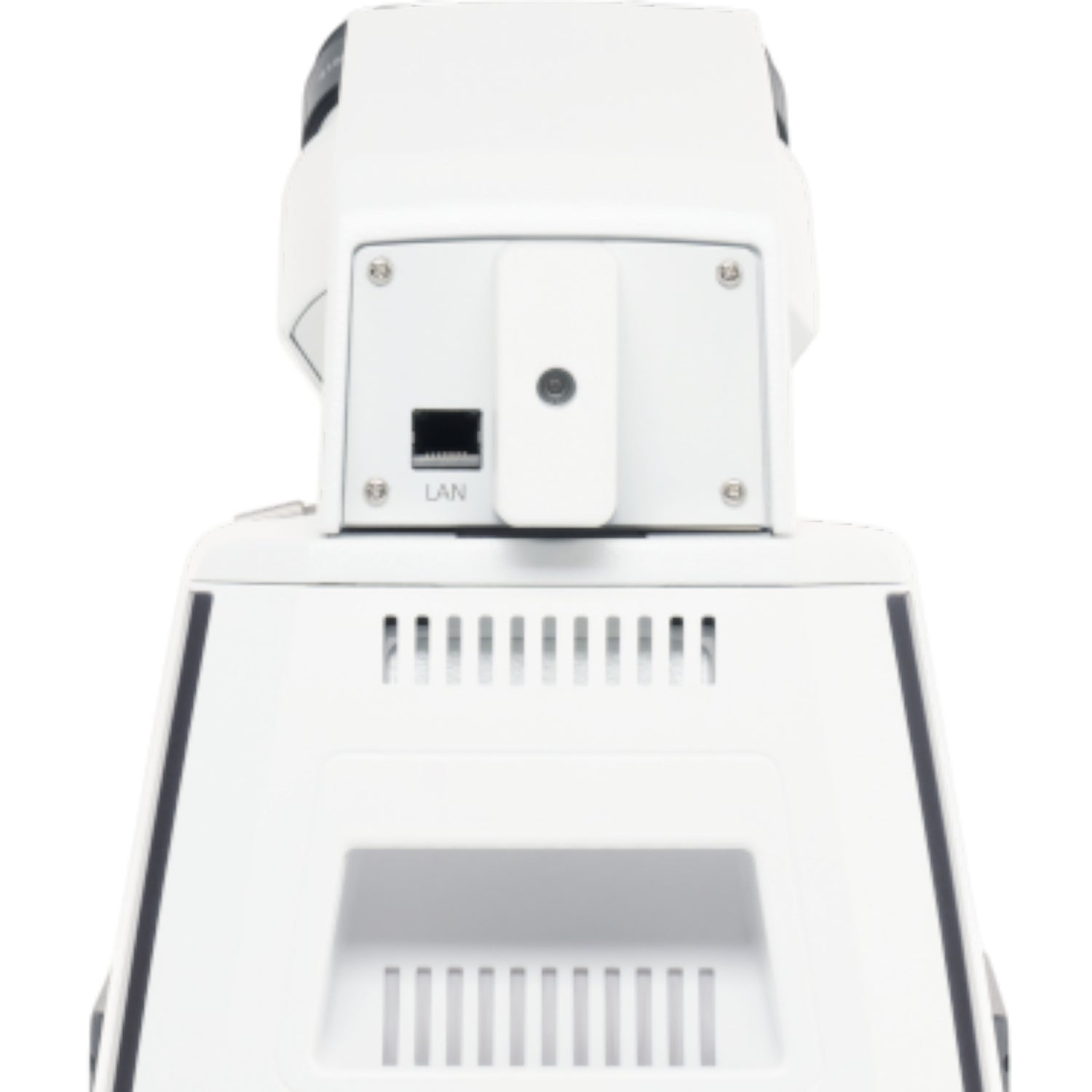

– Interfaces: USB 3.0, Ethernet (RJ45)

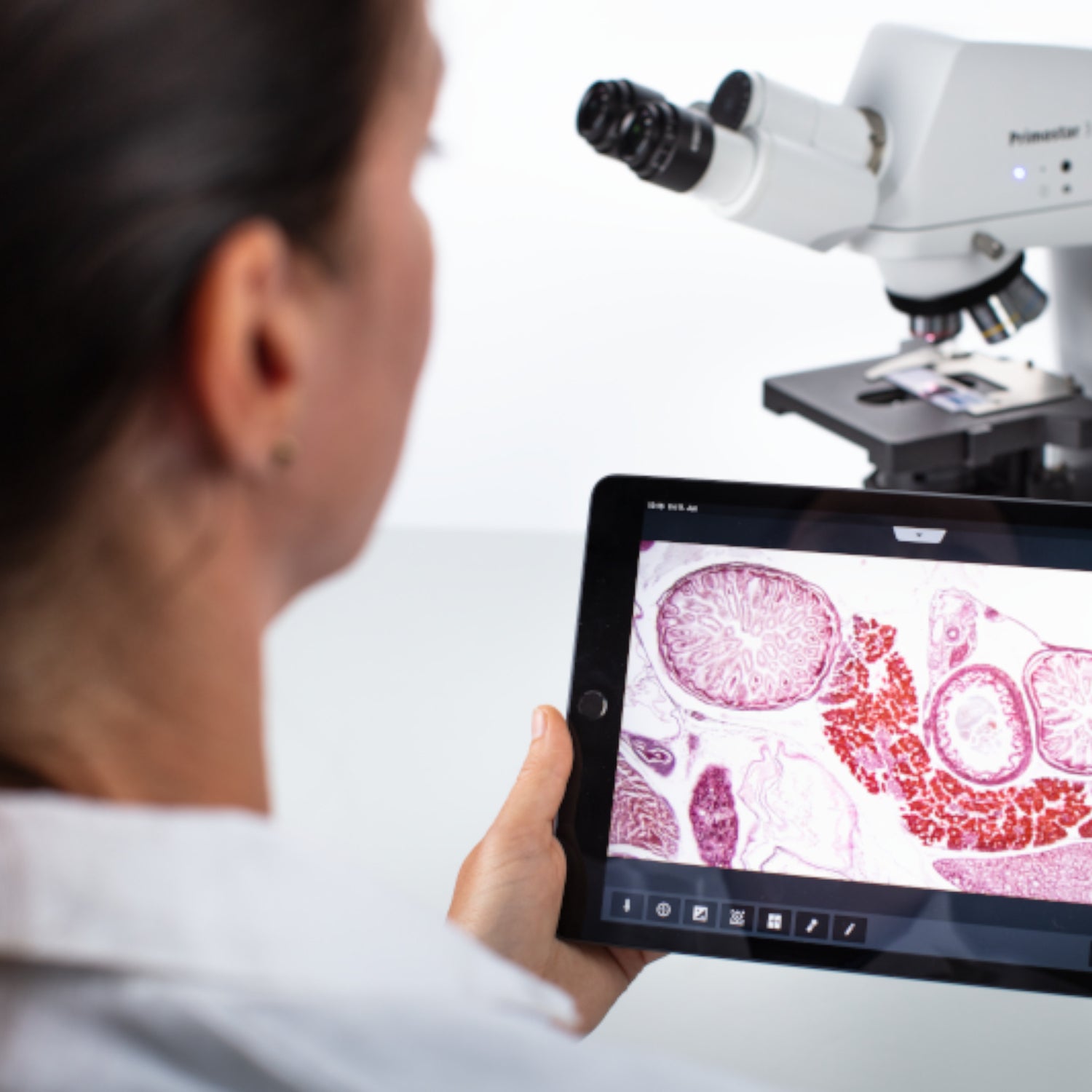

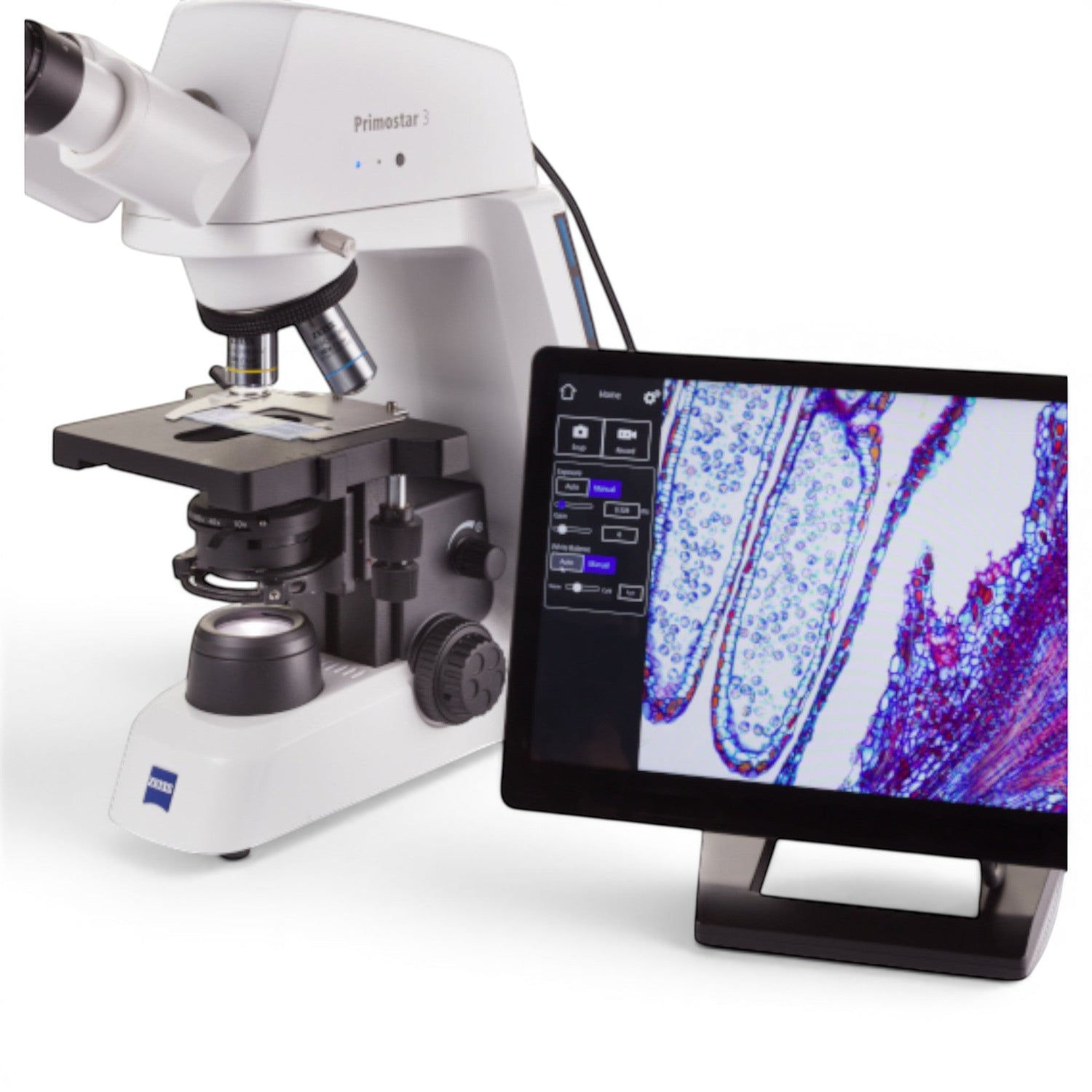

– Software: ZEISS Labscope (Windows, iOS, Android)
– Network capable for digital teaching
