Zeiss SKU: 415501-0271-000

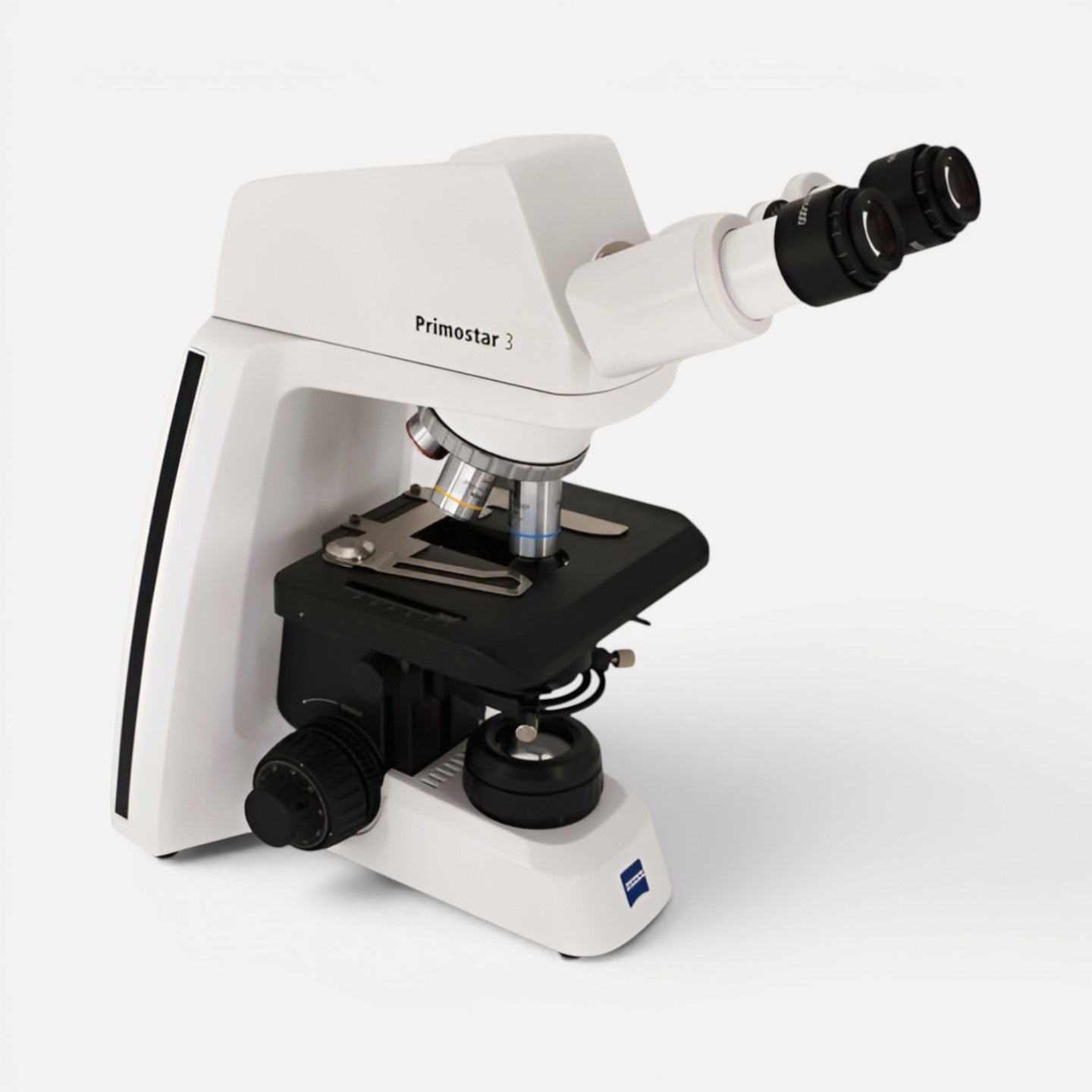

ZEISS Primostar 3 Cam Transmitted Light Microscope with Integrated Camera and Plan-Achromat 4x, 10x, 40x Objectives

€3.460,00 €3.845,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Reliable Transmitted Light Microscopy for Education and the Laboratory

The ZEISS Primostar 3 Full-Köhler is a robust transmitted light microscope for education, training, and routine laboratory work.
With 3W LED illumination, Full-Köhler optics, and an integrated 5 MP camera, it offers a balanced combination of optical quality, ergonomics, and digital documentation.

Its intuitive operation, the mechanical stage for two slides, and seamless integration with ZEISS Labscope make this system ideal for teaching environments and standardized workflows.

Key Features

  • Full-Köhler transmitted light microscope

  • Integrated 5 MP camera (Live & Snapshot)

  • 3 W LED transmitted light illumination (5600 K)

  • 5-position objective nosepiece

  • Mechanical stage 75 × 50 mm

  • Color filter set (blue, green, yellow)

  • ECO mode and Light Manager

Ideal for

  • Biology and medical education

  • School and university laboratories

  • Routine transmitted light microscopy

  • Digital documentation and teaching

  • Multi-user and course operation


Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Transmitted light microscope with full Koehler illumination for training and routine use

System Features

– Full Köhler Stand
– Transmitted light modules with LED 3 W, white light approx. 5600 K
– Color filter set: blue, green, yellow
– LightManager
– ECO-Mode

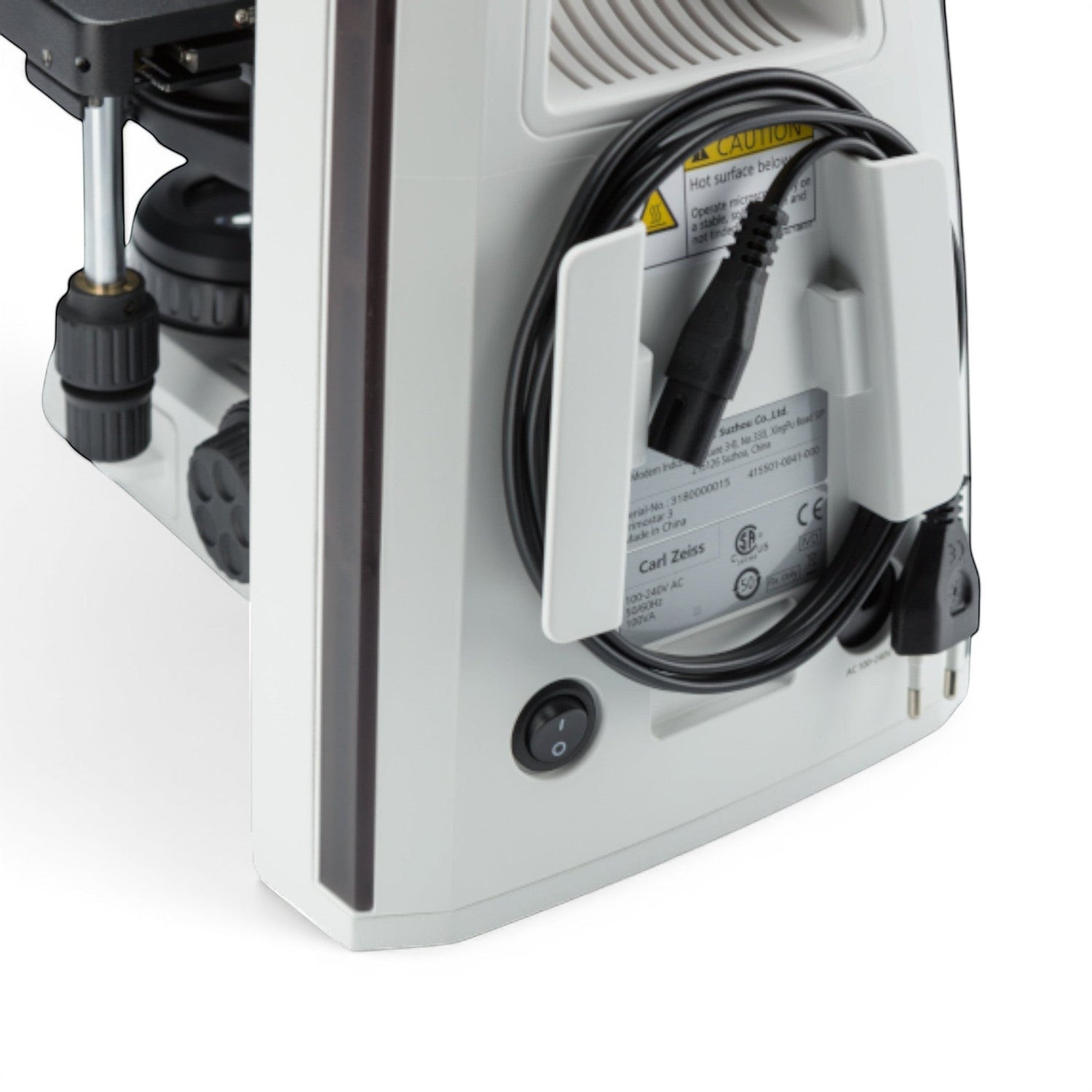

– Country-specific power cable
– Dust cover

Stage and Mechanics

– Cross table 75 × 50 mm
– Right-hand stage drive

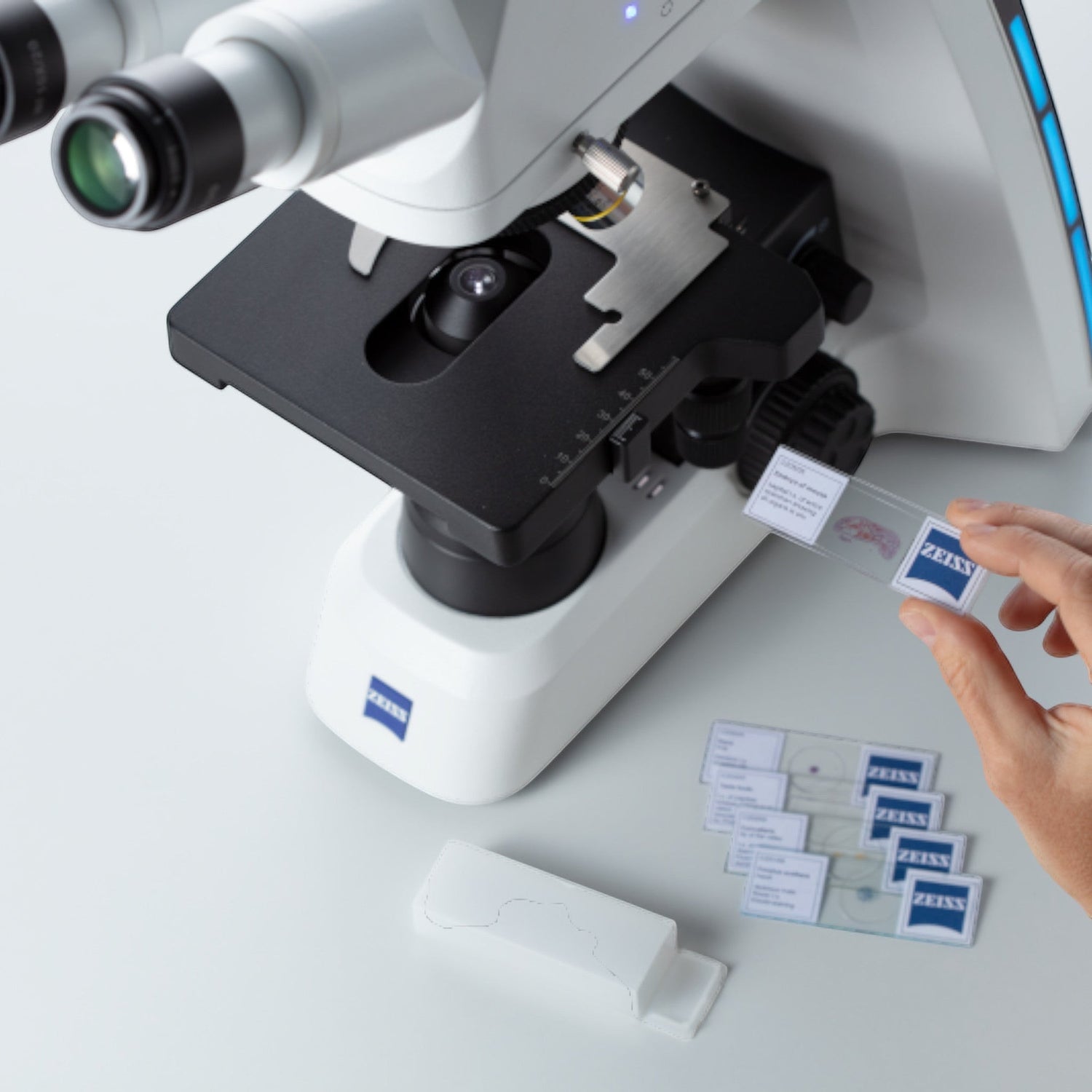

– Specimen holder for two slides
– Left-hand spring lever

Tube

– Binocular tube 25° / Field of view 22
– Split ratio 50% visual / 50% camera
– Integrated camera

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups

Objective Revolver and Objectives

– 5-position objective revolver, rear-facing

Objectives:
– iPlan-Achromat 4×
– iPlan-Achromat 10×
– iPlan-Achromat 40×

Condenser

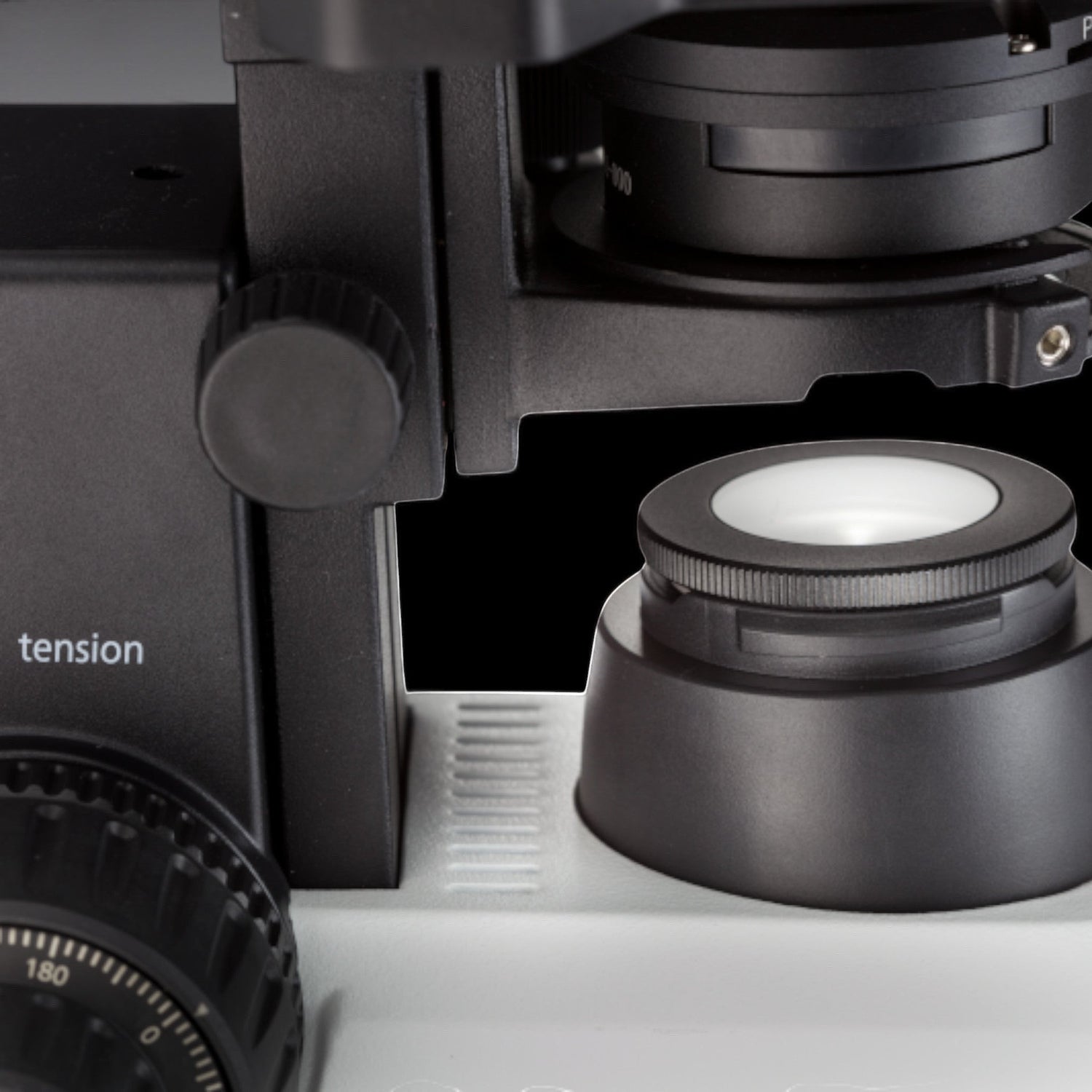

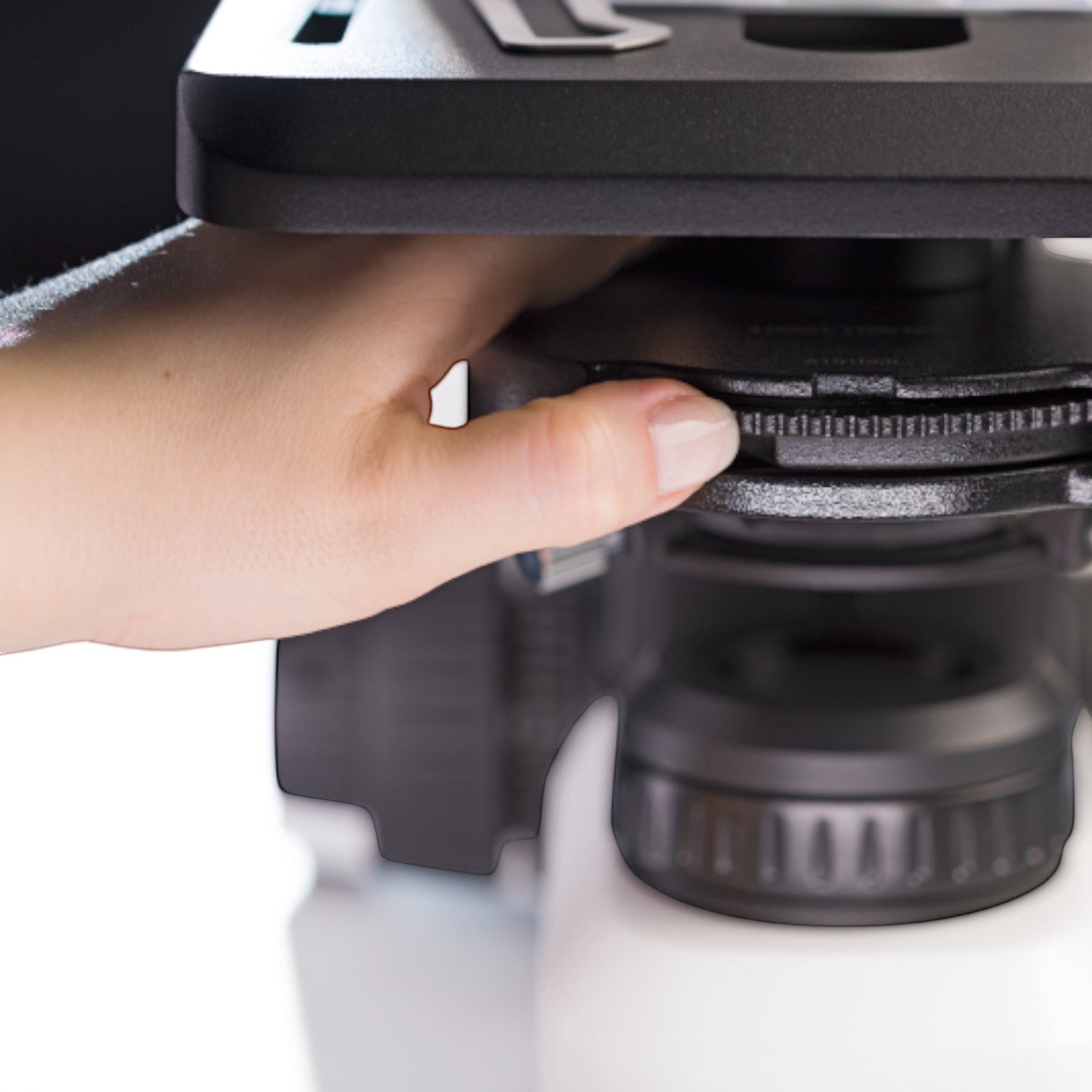

– Abbe condenser 0.9 / 1.25 with slot

Integrated Camera – Technical Data

– Resolution: 5.04 MP (2592 × 1944)
– Live resolution: Full HD (1920 × 1080)
– Sensor: CMOS color sensor with rolling shutter
– Frame rate: up to 30 fps (Labscope)
– Digitization: 24 Bit (RGB)
– Exposure time: 0.03 ms to 1 s

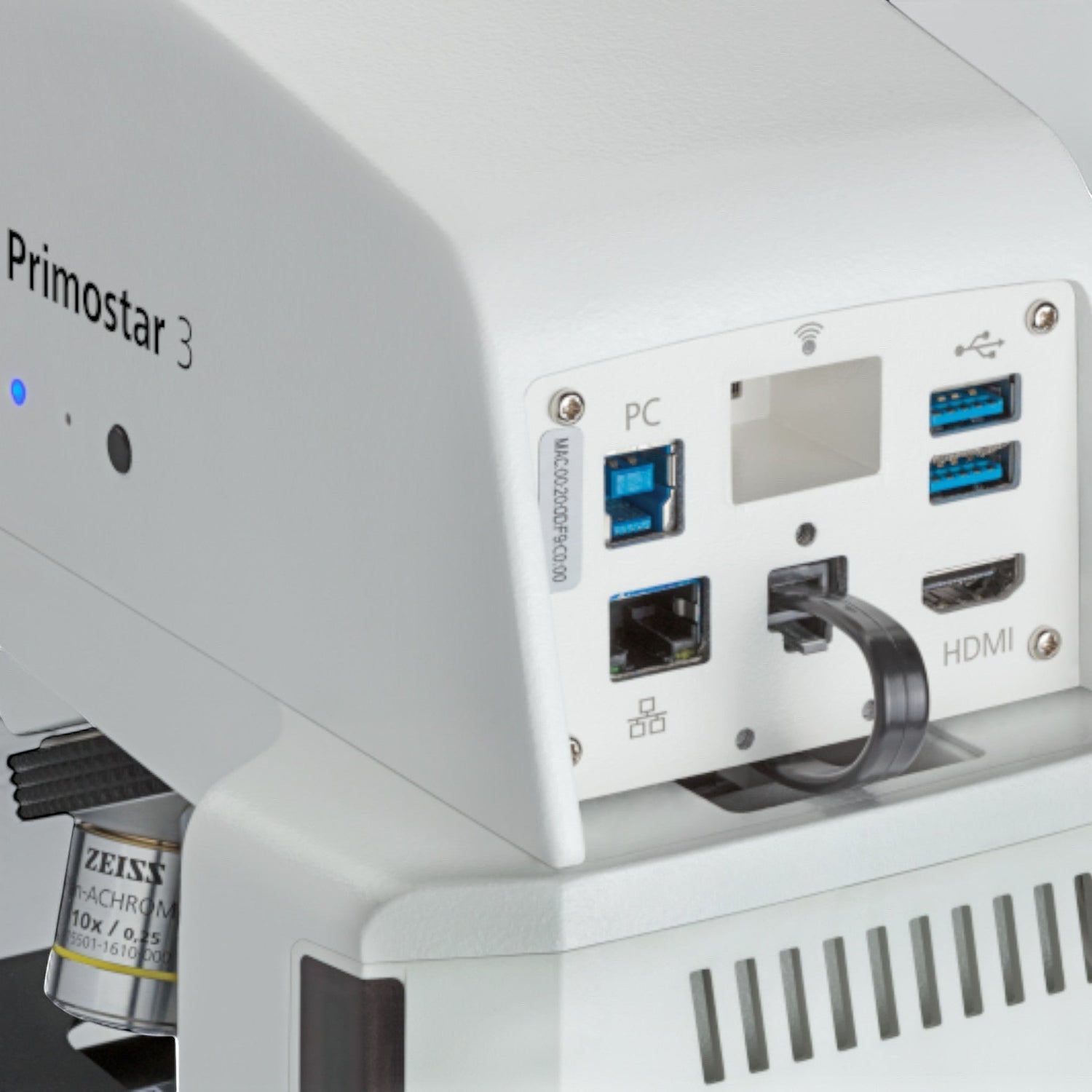

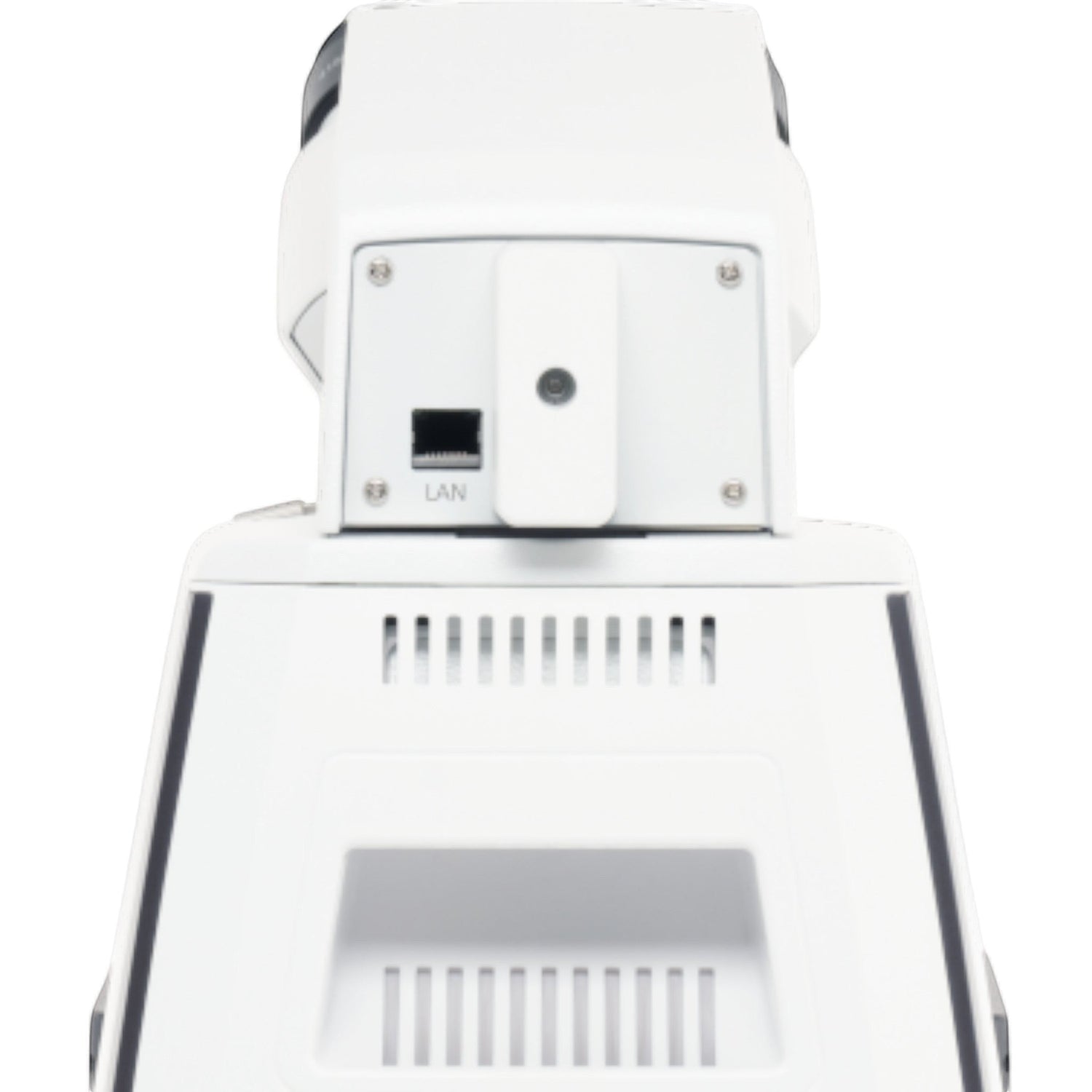

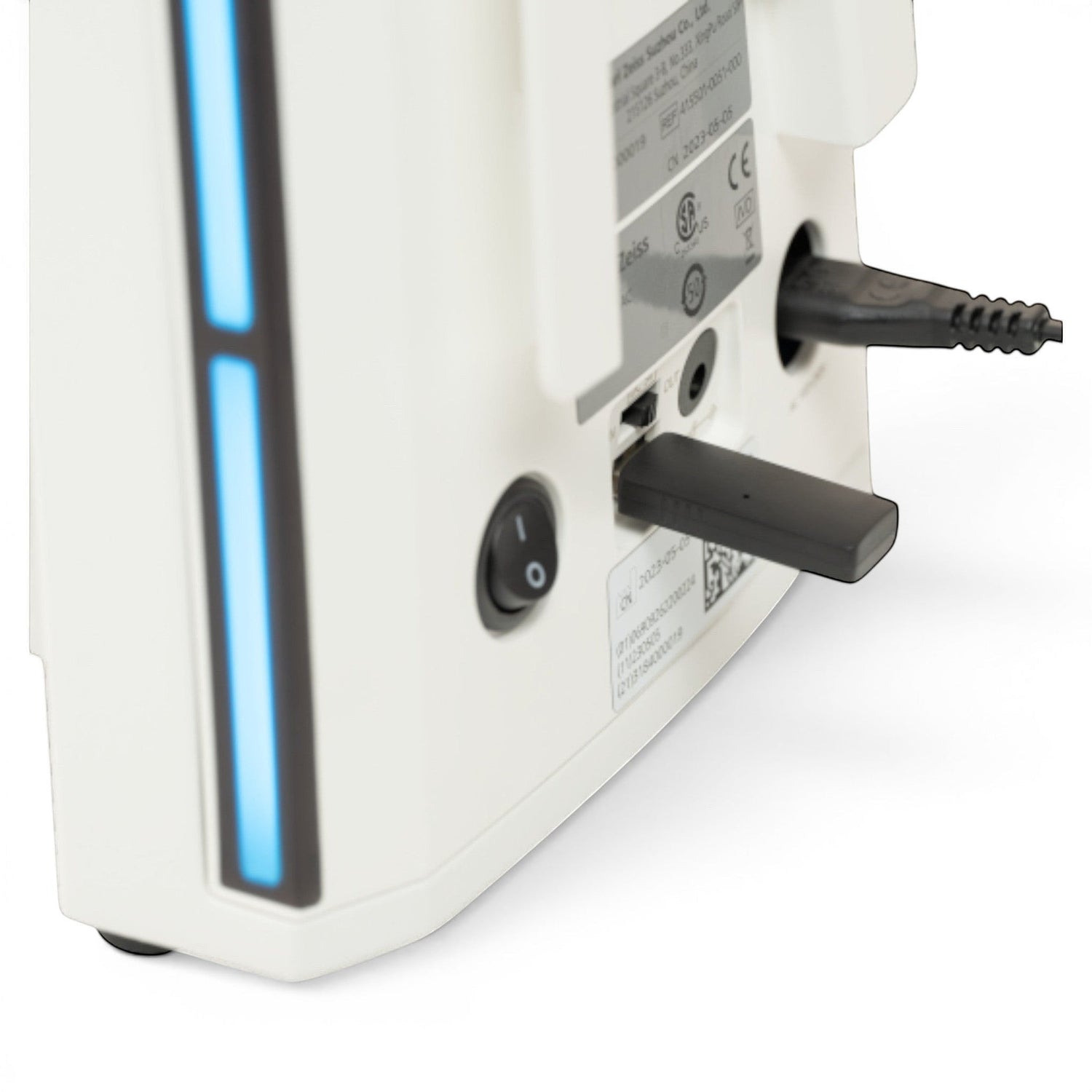

– Interfaces: USB 3.0, Ethernet (RJ45)
– Optical interface: C-Mount

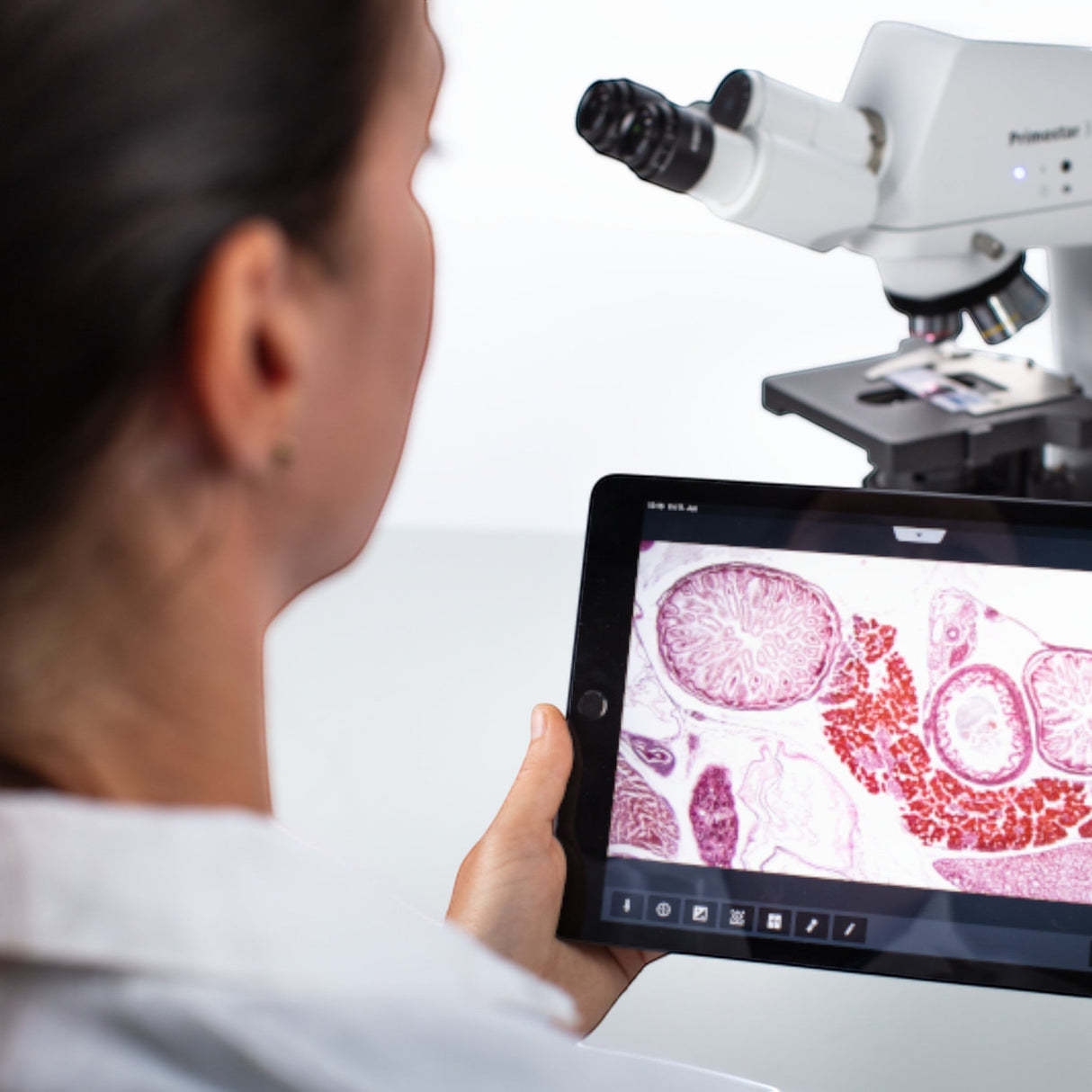

– Software: ZEISS Labscope (Windows, iOS, Android)
– Network capable for digital teaching and documentation
