Zeiss SKU: 415501-0091-000

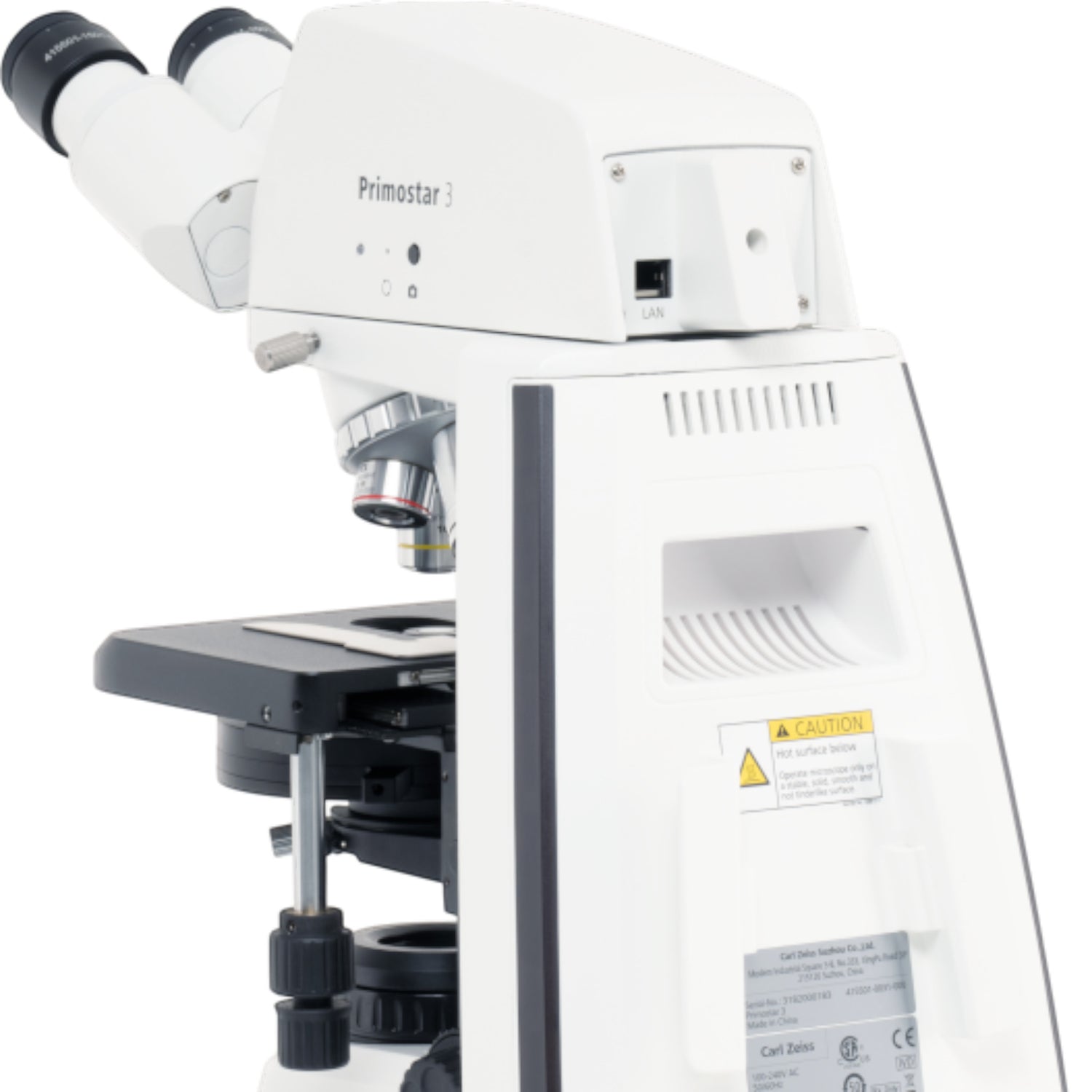

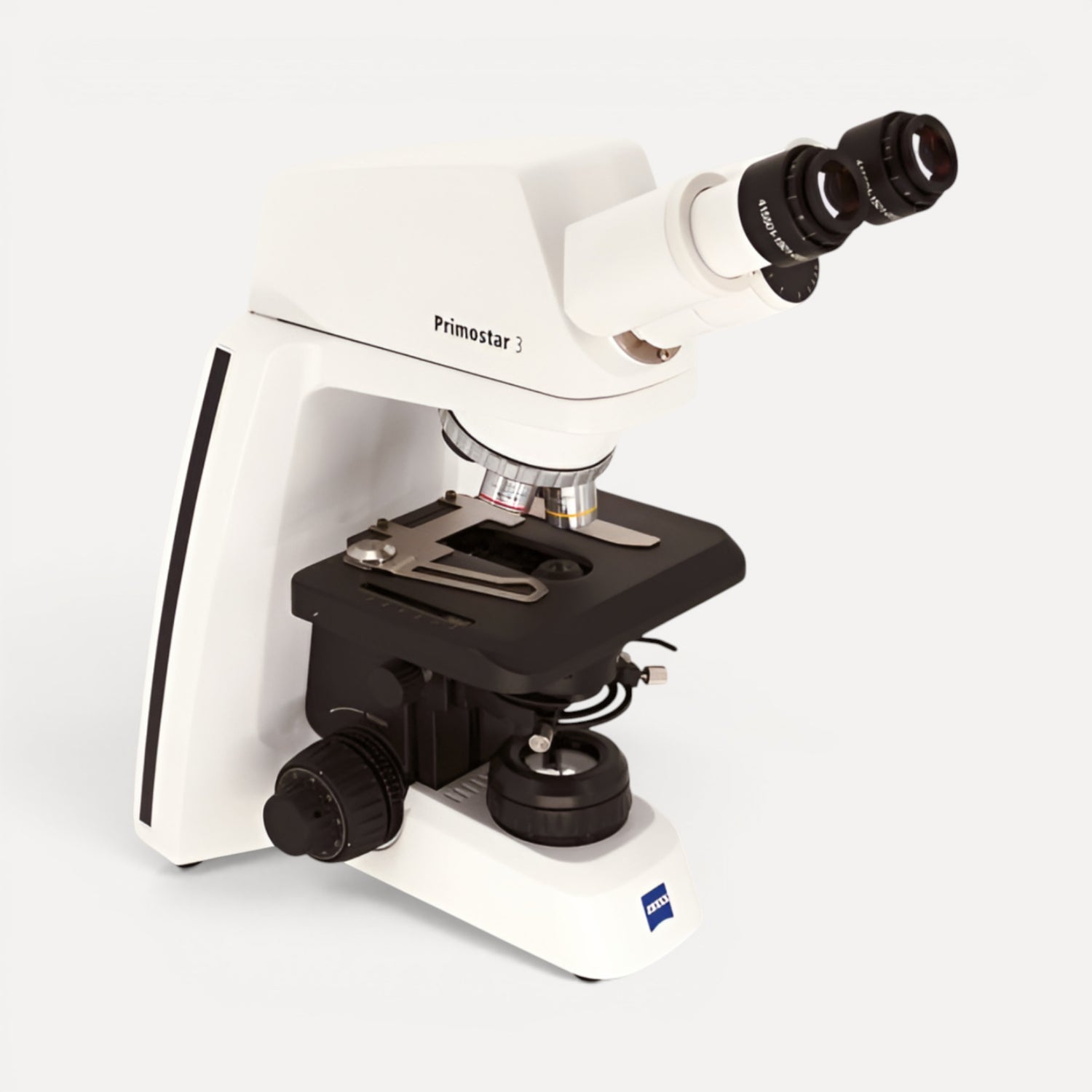

ZEISS Primostar 3 Cam with integrated 8 MP camera – Transmitted light microscope with iPlan-Achromat 4x, 10x, 40x objectives

€4.416,00 €4.907,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Versatile Transmitted Light Microscopy with 4K Documentation

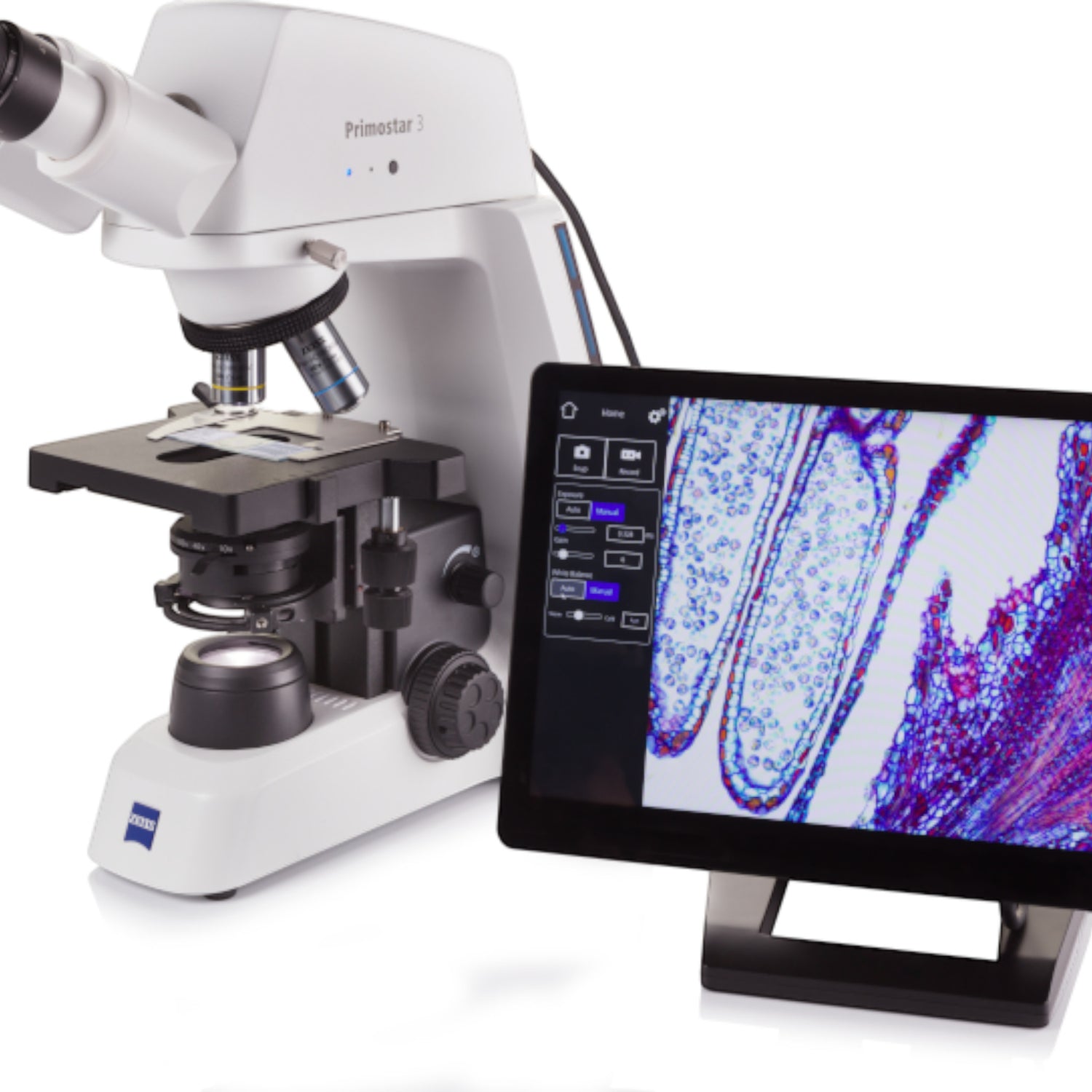

The ZEISS Primostar 3 Full-Köhler with an integrated 8 MP Ultra-HD camera is a powerful transmitted light microscope for education, teaching, and routine laboratory work.
The combination of Full-Köhler illumination, switchable LED and halogen transmitted light illumination, and modern 4K imaging allows for precise observation and professional digital documentation.

Thanks to its HDMI output, network capability, and software connectivity, the system is ideal for instruction, demonstrations, and multi-user applications.

Key Features

  • Full-Köhler transmitted light microscope

  • Integrated 8 MP Ultra-HD camera (4K)

  • LED and halogen transmitted light illumination

  • 5-position revolving nosepiece

  • Mechanical stage 75 × 50 mm

  • Color filter set (blue, green, yellow)

  • HDMI, USB, and network-enabled

Ideal for

  • Biology and medical education

  • School and university laboratories

  • Routine transmitted light microscopy

  • Digital documentation & live presentation

  • Demonstrations and course operations


Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Full-Köhler Transmitted Light Microscope with 8 MP Camera for Training and Routine Use

System Features

– Full Köhler Stand
– Transmitted light modules with
– 3 W white LED, approx. 5600 K
– 6 V / 30 W halogen lamp
– Color filter set: blue, green, yellow
– LightManager
– ECO mode

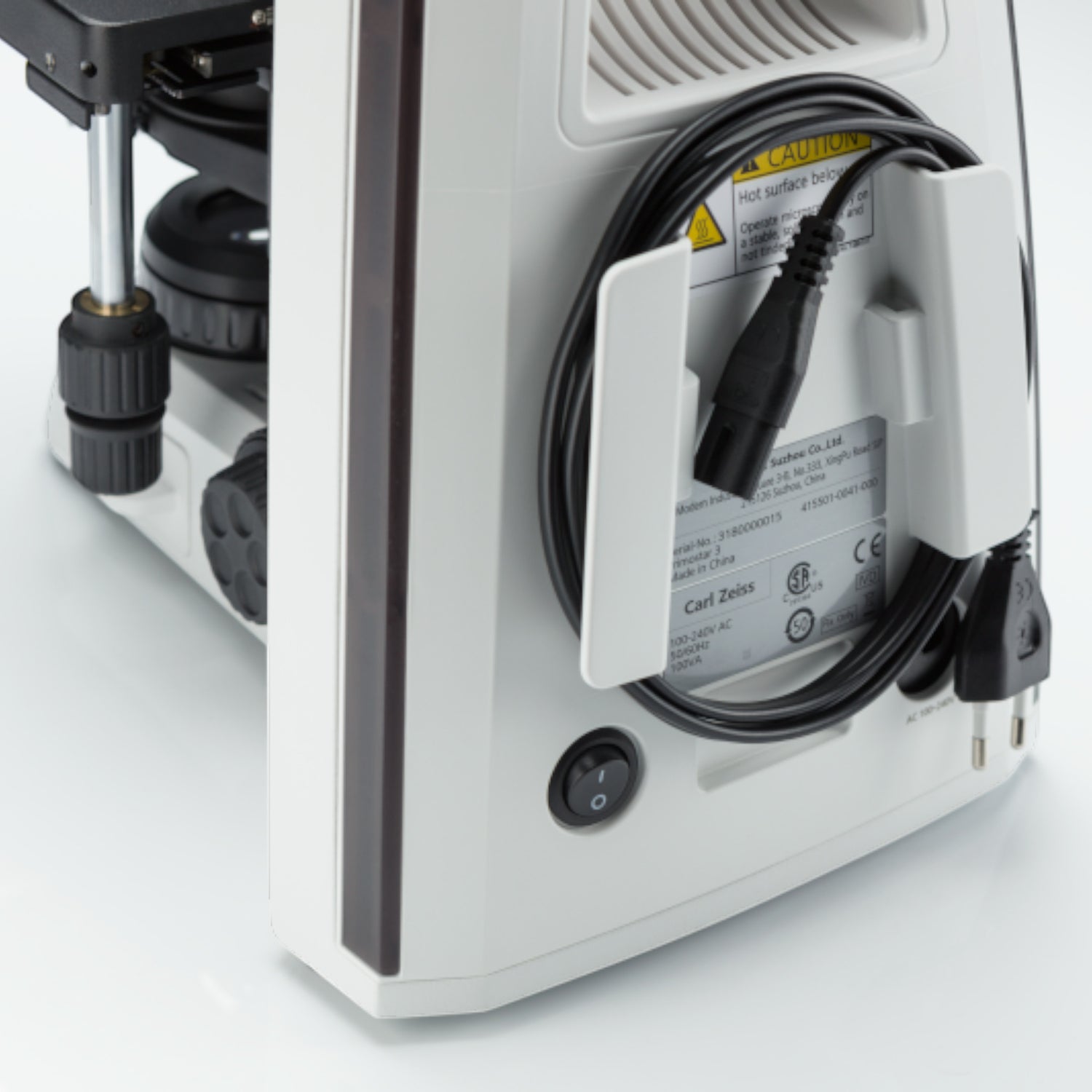

– Country-specific power cord
– Dust cover

Stage and Mechanics

– Mechanical stage 75 × 50 mm

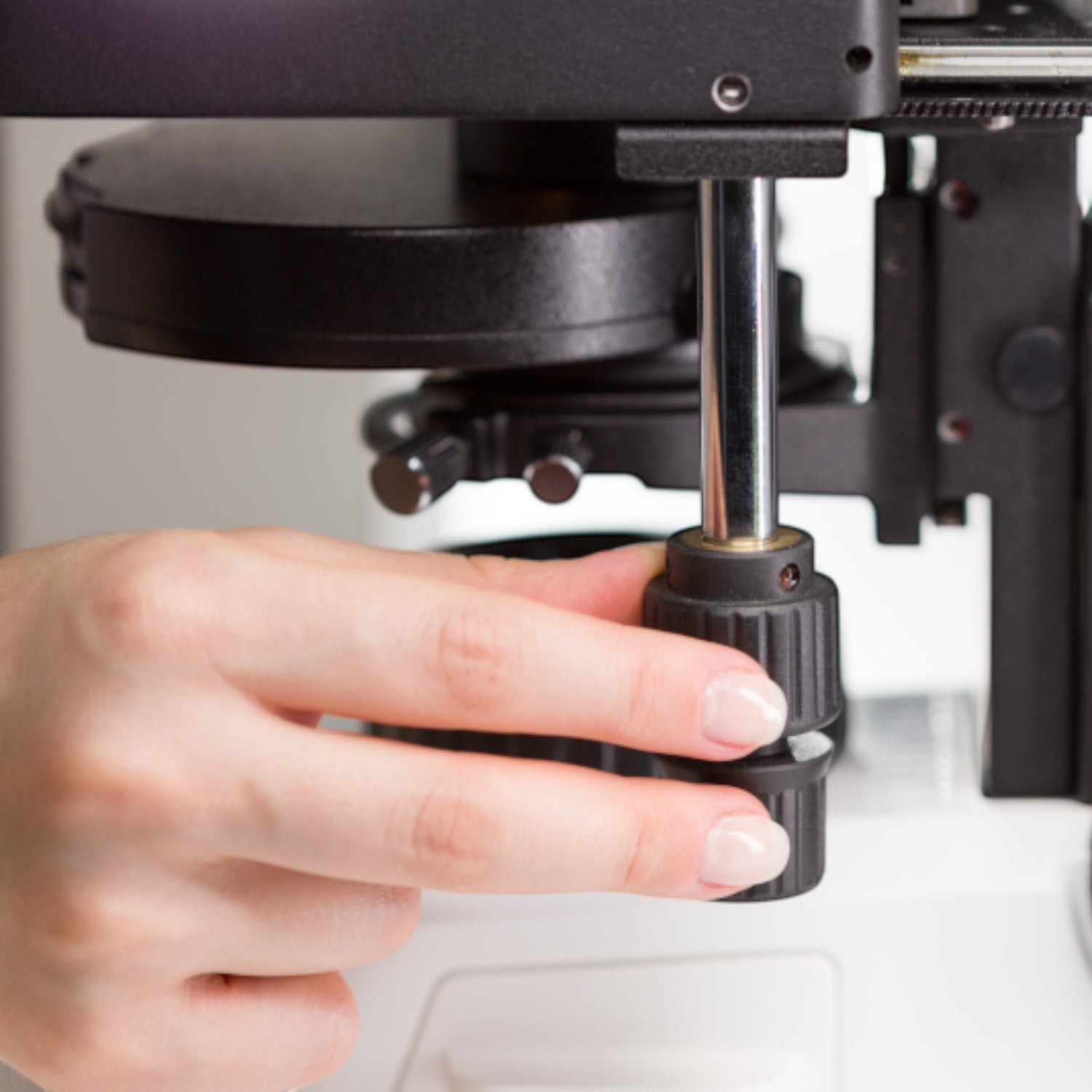

– Right-hand stage drive
– Specimen holder for two slides
– Left-hand spring lever

Tube

– Binocular phototube 25° / Field of view 22
– Split ratio 50% visual / 50% camera
– Integrated 8 MP camera

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Nosepiece and Objectives

– 5-position nosepiece, backward-facing

Objectives:
– iPlan-Achromat 4×
– iPlan-Achromat 10×
– iPlan-Achromat 40×

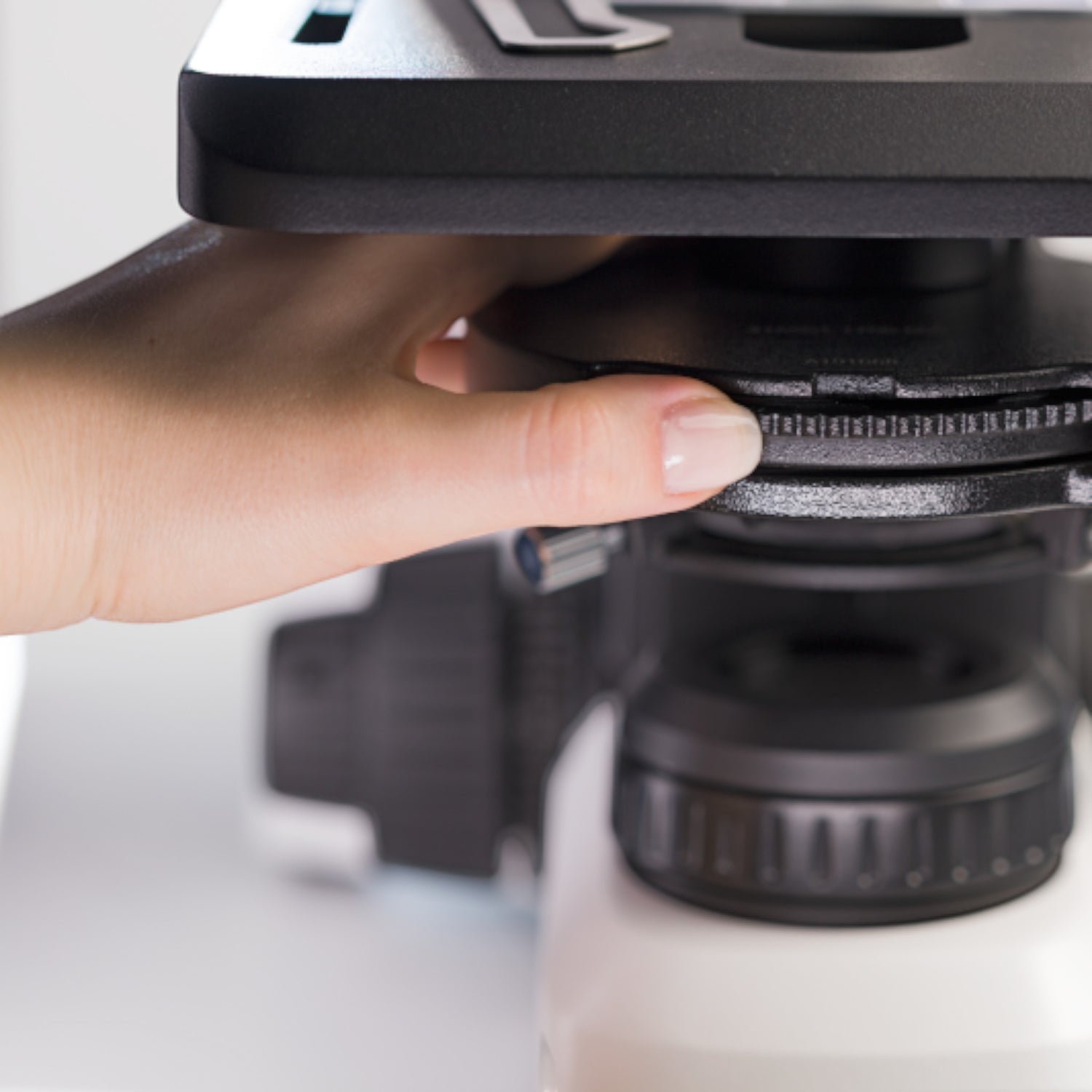

Condenser

– Abbe condenser 0.9 with slot

Integrated Camera – Technical Data

– Resolution: 8.3 MP (3840 × 2160, Ultra HD 4K)
– Live resolutions:
– 3840 × 2160 (4K)
– 1920 × 1080 (Full HD)
– Sensor: Sony CMOS color sensor, rolling shutter
– Pixel size: 1.85 µm × 1.85 µm
– Frame rates:
– up to 15 fps @ 4K (software)
– up to 30 fps @ Full HD (Labscope)
– 30 fps @ 4K / Full HD via HDMI
– Exposure time: 0.06 ms to 1 s
– Digitization: 8 Bit / pixel

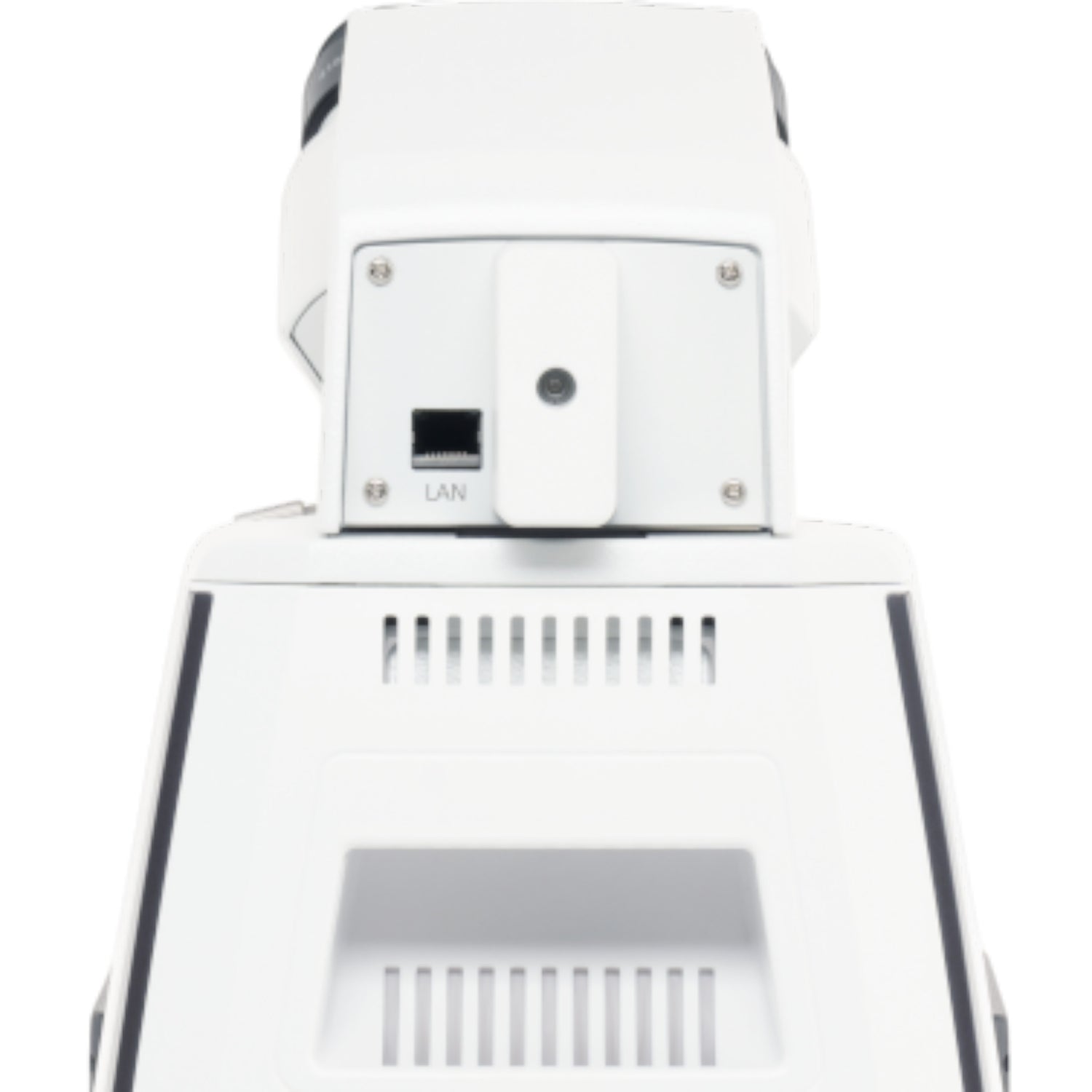

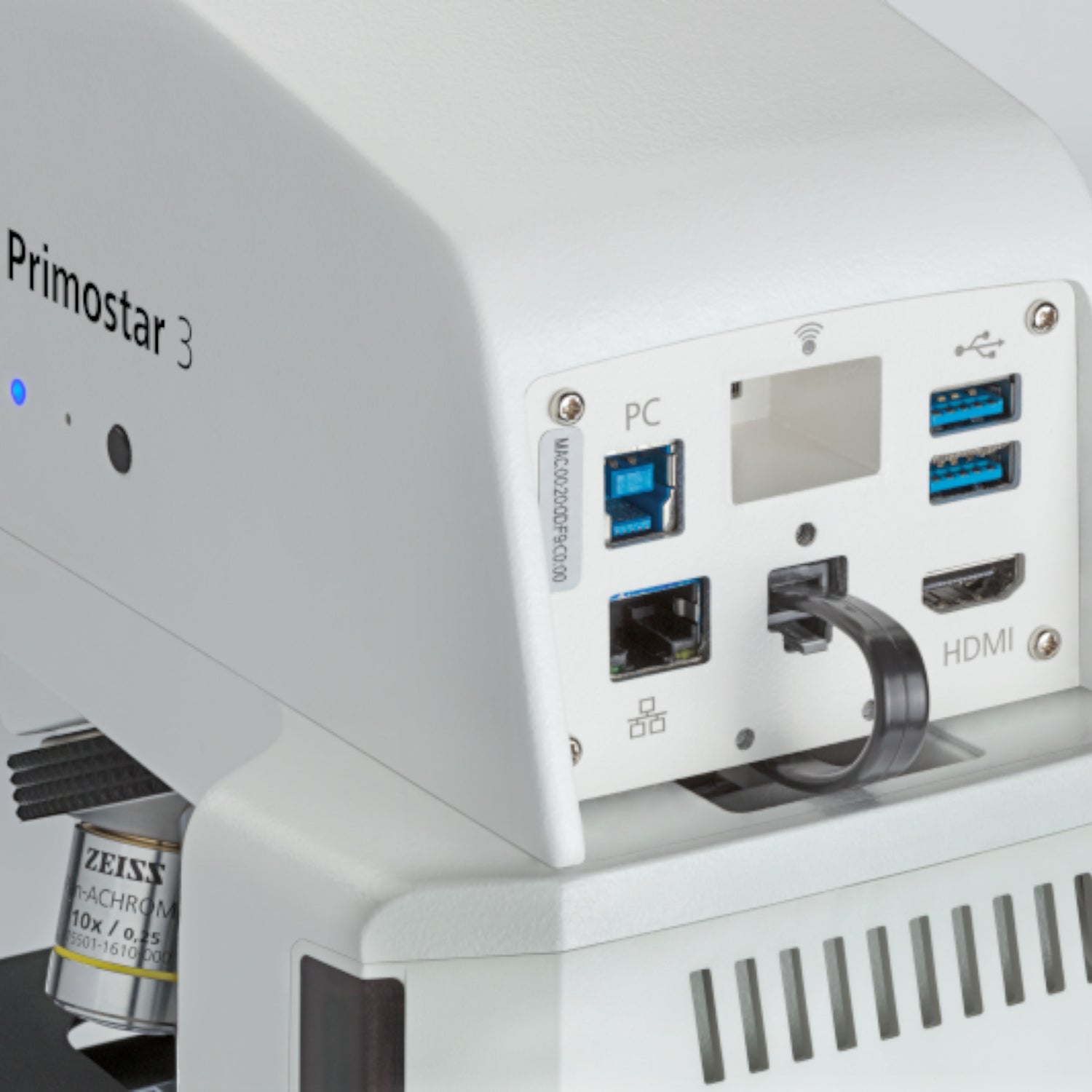

– Interfaces: HDMI, USB 3.0, Ethernet (RJ45)
– File formats: TIFF, JPG, MP4
– Networkable for teaching and multi-user operation
