Zeiss SKU: 490705-0008-000

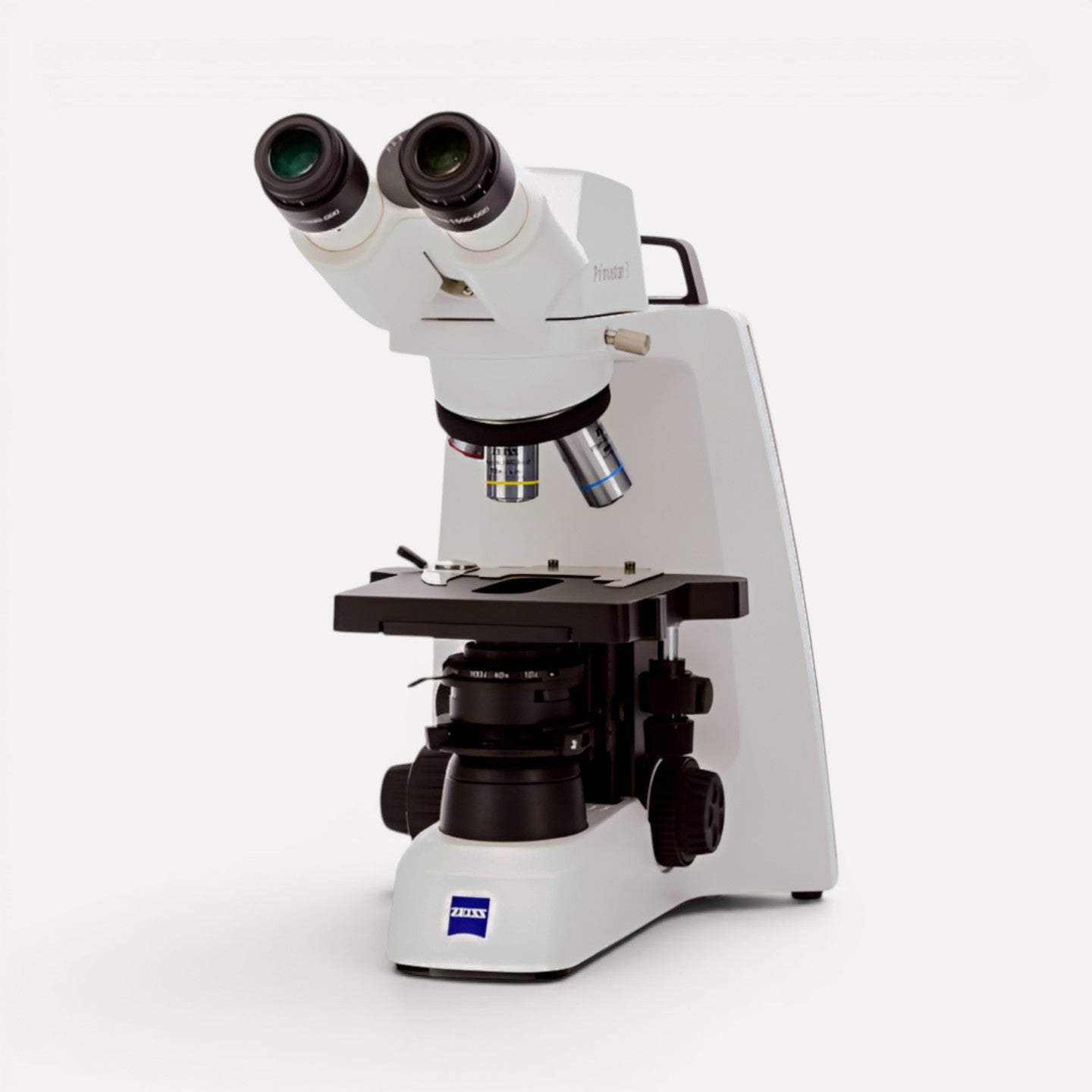

ZEISS Primostar 3 Cam Phase Contrast – Transmitted Light Microscope with Integrated Camera

€4.867,00 €5.408,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Advanced Training Microscopy with Phase Contrast

The ZEISS Primostar 3 in the Full-Köhler version with phase contrast is a powerful transmitted light microscope for demanding training, research beginners, and laboratory routine.
Thanks to phase contrast objectives, a revolving Abbe condenser, and an integrated 5 MP camera, even unstained, transparent samples can be documented digitally and with high contrast.

Key Features

  • Full-Köhler stand with 3 W LED transmitted light illumination

  • Integrated 5 MP camera for digital microscopy

  • Coded 5-position objective nosepiece

  • Phase contrast objectives (Ph1, Ph2, Ph3)

  • Revolving Abbe condenser with BF, DF and phase rings

  • Mechanical stage 75 × 50 mm for two slides

  • Color filter set (blue, green, yellow)

  • ECO mode and intelligent Light Manager

Ideal for

  • Biological and medical education

  • Cell biology and microbiology

  • Phase contrast microscopy

  • Unstained and transparent samples

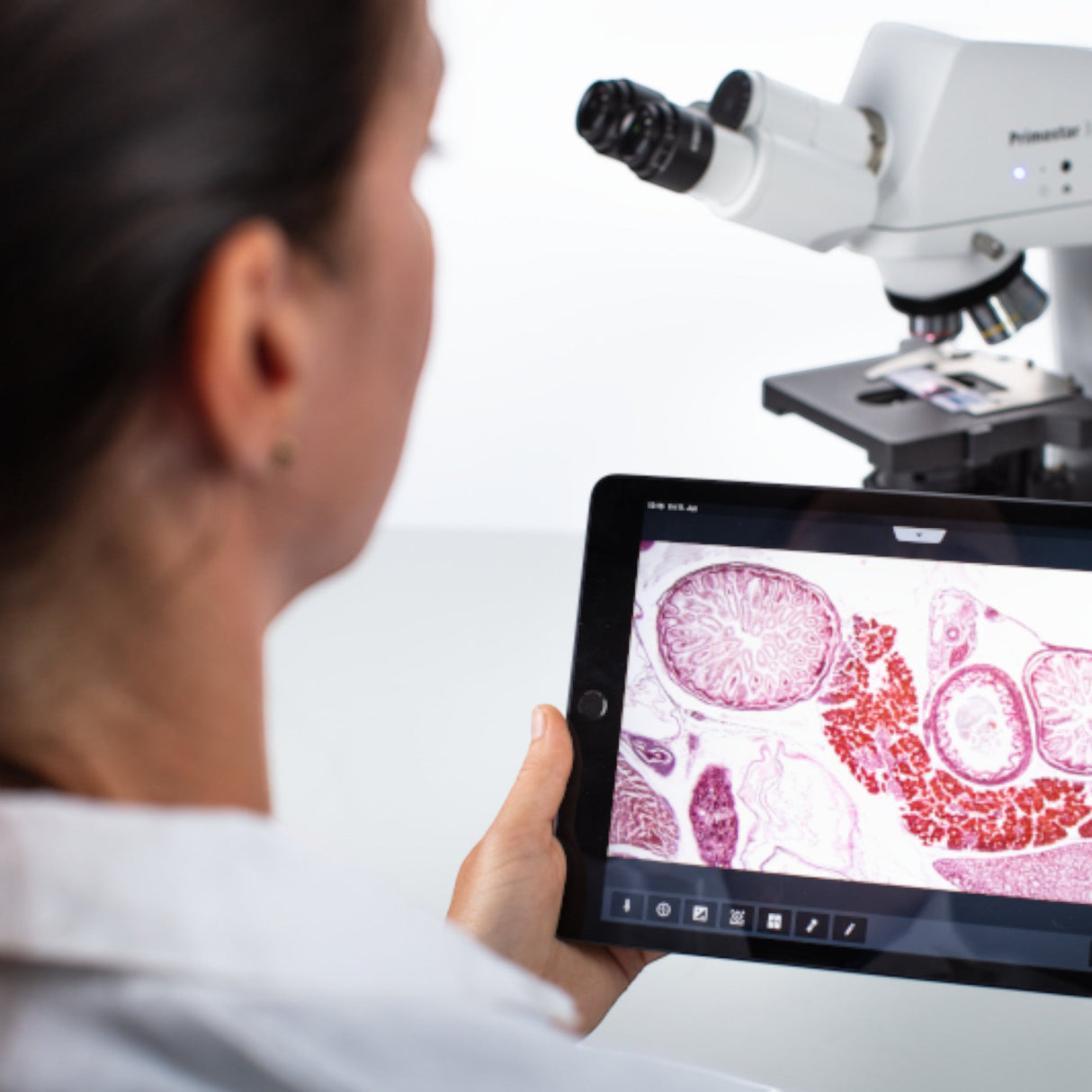

  • Digital documentation and teaching


Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Transmitted light microscope with full Koehler illumination, phase contrast and integrated camera

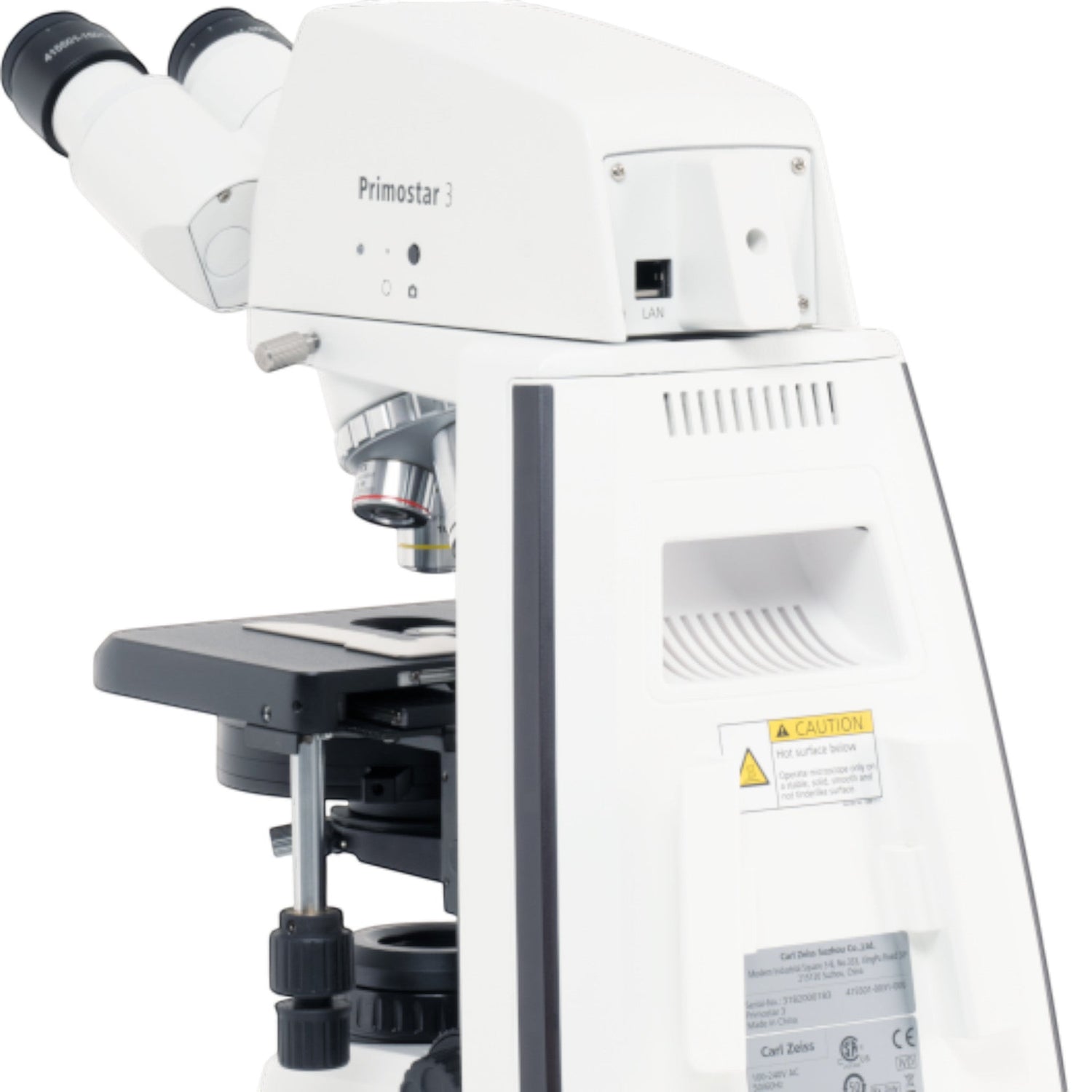

System Overview

– Full-Köhler stand

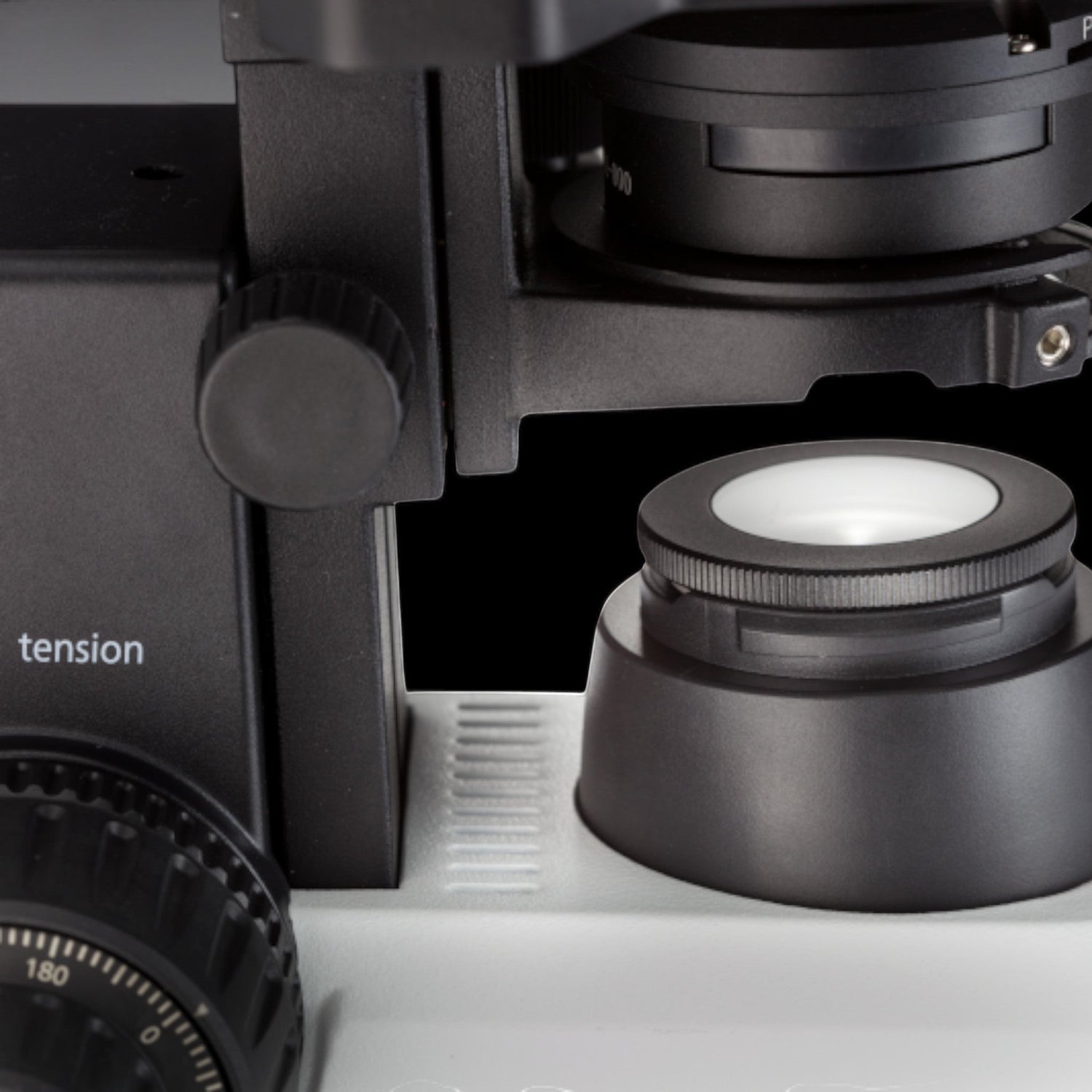

– Transmitted light module with 3 W LED, white light approx. 5600 K
– Color filter set: blue, green, yellow
– LightManager
– ECO mode

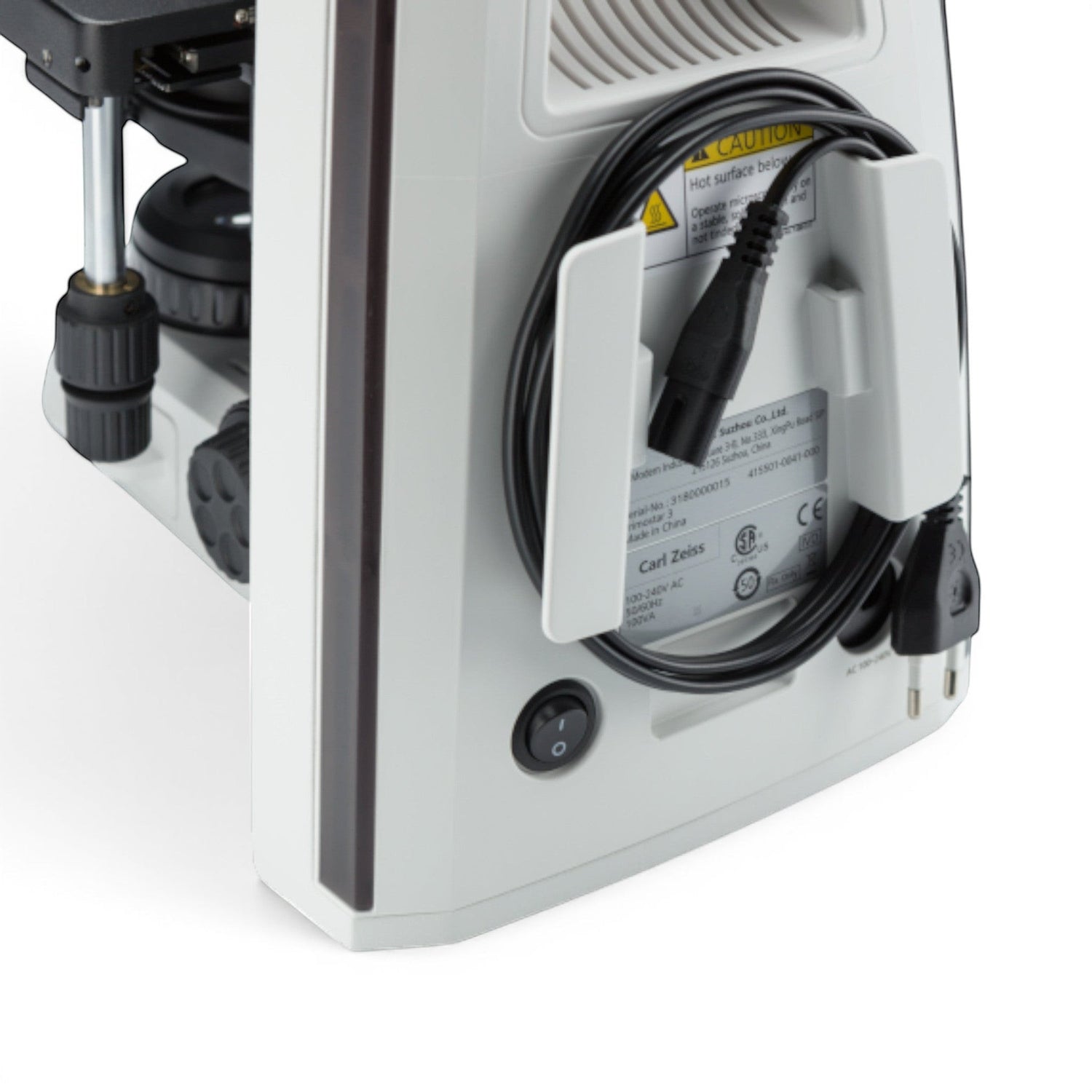

– Country-specific power cable
– Dust cover

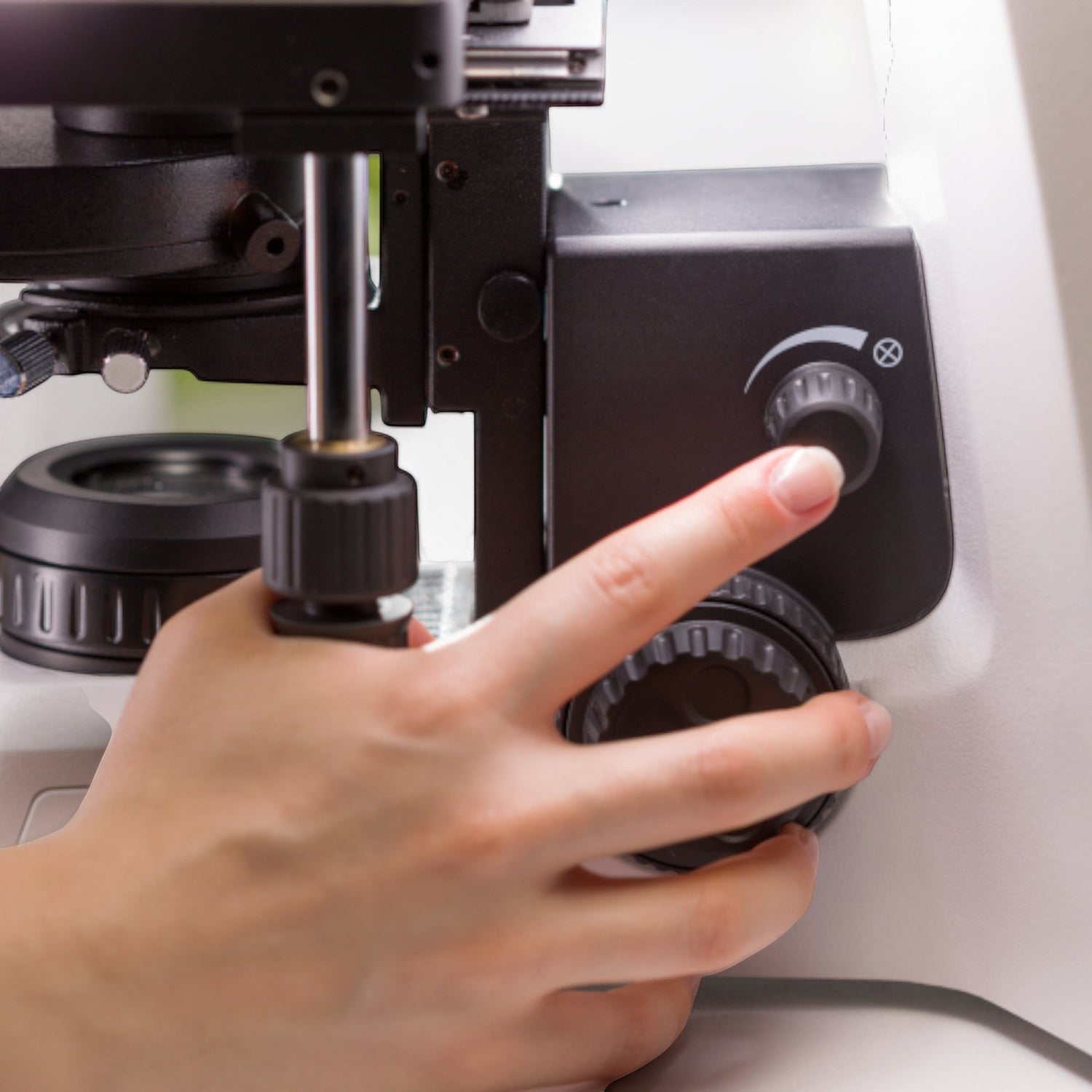

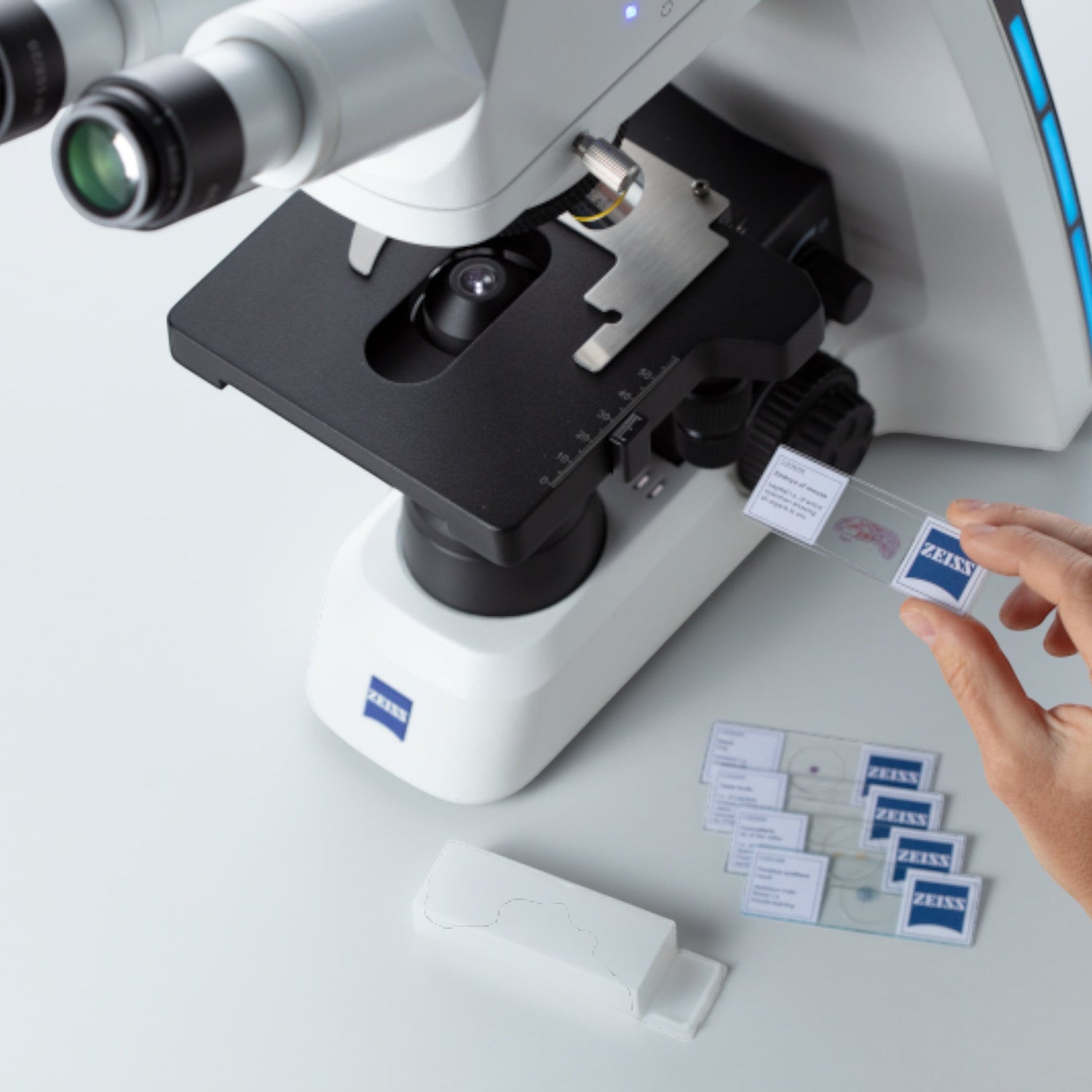

Stage and Mechanics

– Cross stage 75 × 50 mm
– Right-hand stage drive
– Specimen holder for two slides
– Left-hand spring lever

Tube

– Binocular tube 25° / field of view 22
– Splitting ratio 50% visual / 50% documentation
– Integrated camera

Eyepieces

– Eyepieces 10× / 22 Br. foc.
– Eyecups

Nosepiece and Objectives

– 5-position nosepiece, coded, backward-inclined

Objectives:
– iPlan-Achromat 10× / 0.25 Ph1
– iPlan-Achromat 40× Ph2
– iPlan-Achromat 100× / 1.25 Oil Ph3

Objective Accessories

– Diopter d = 30 mm
– Immersion oil, 5 ml

Condenser

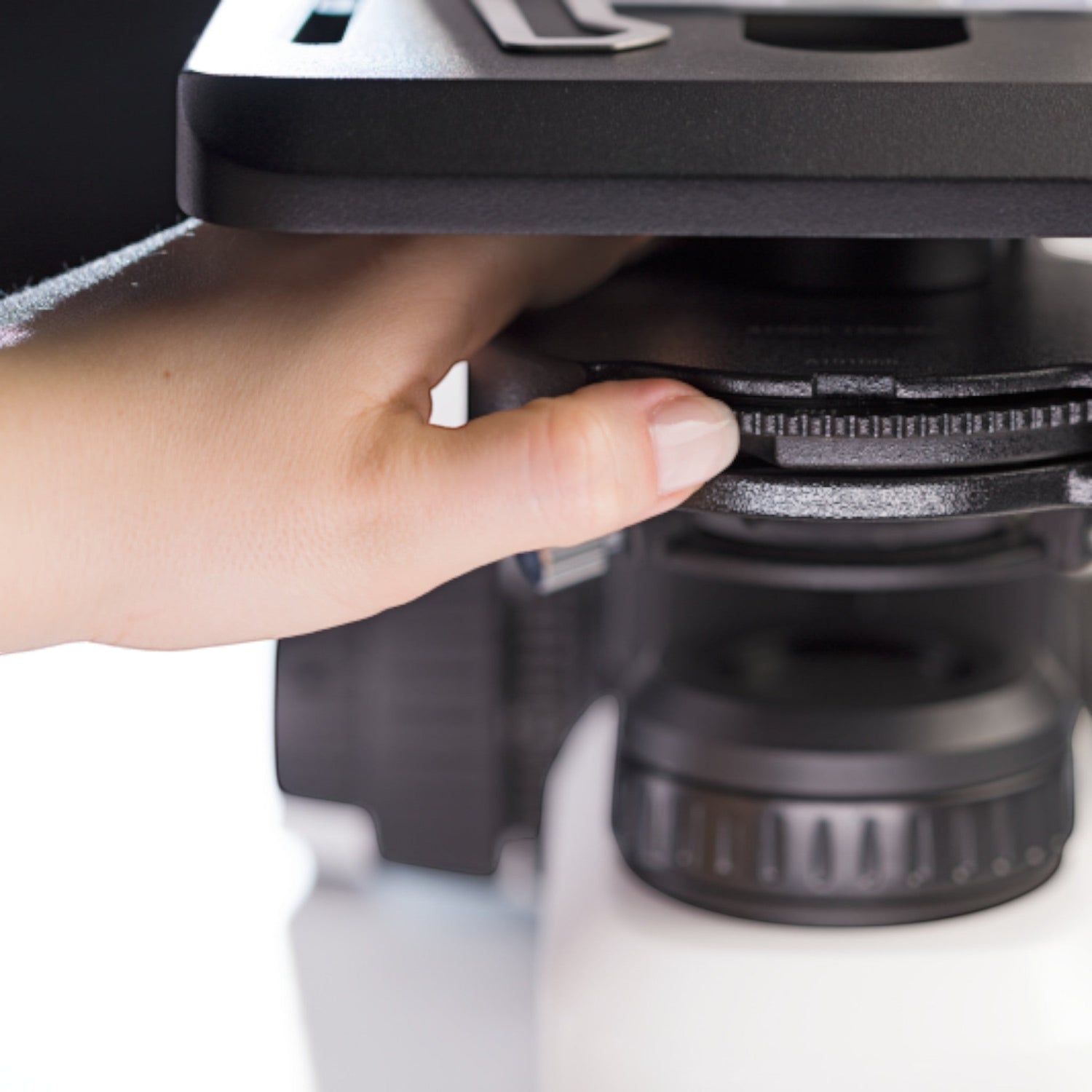

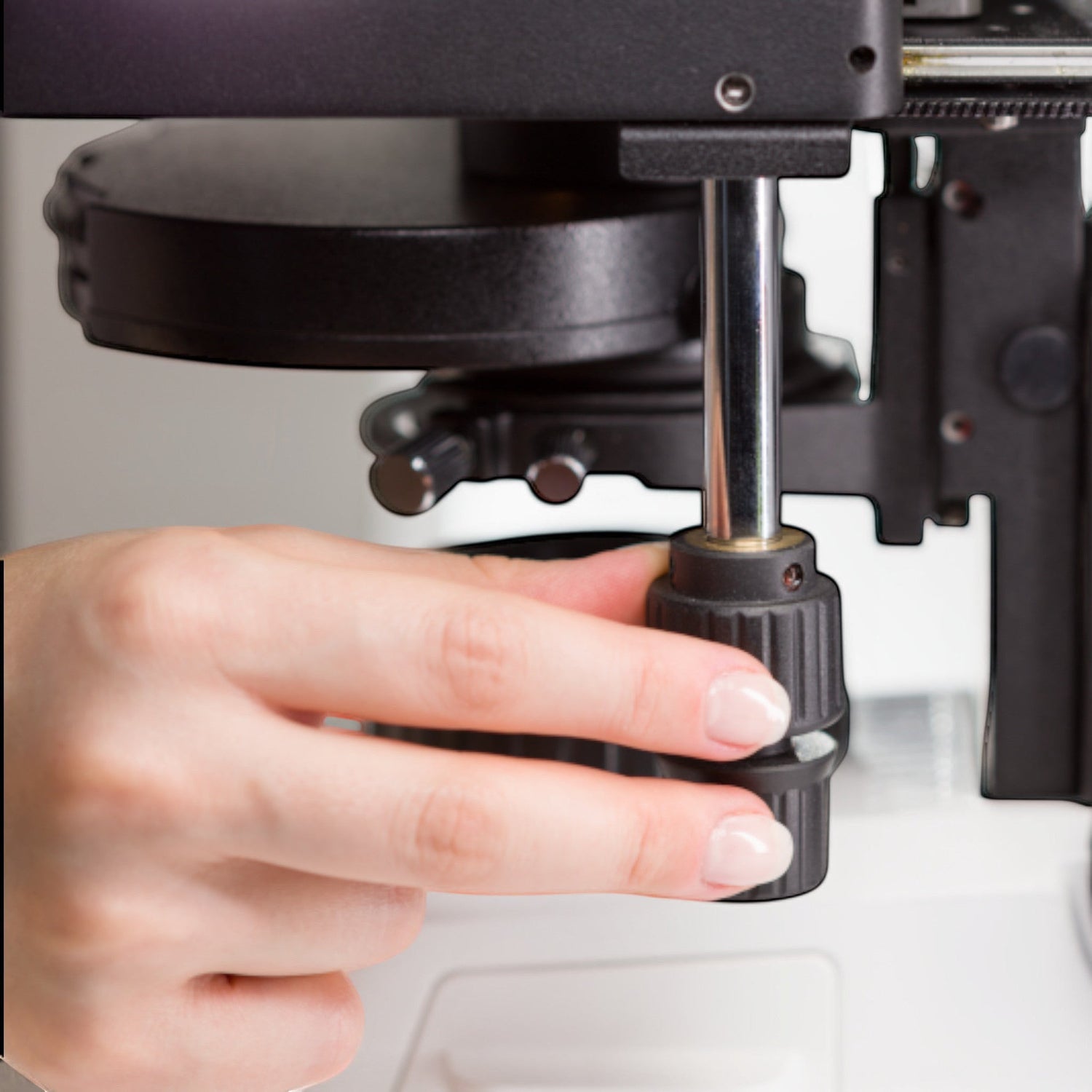

– Abbe condenser 0.9 with modulator disk
– Brightfield (BF)
– Darkfield (DF)
– Phase contrast Ph1, Ph2, Ph3

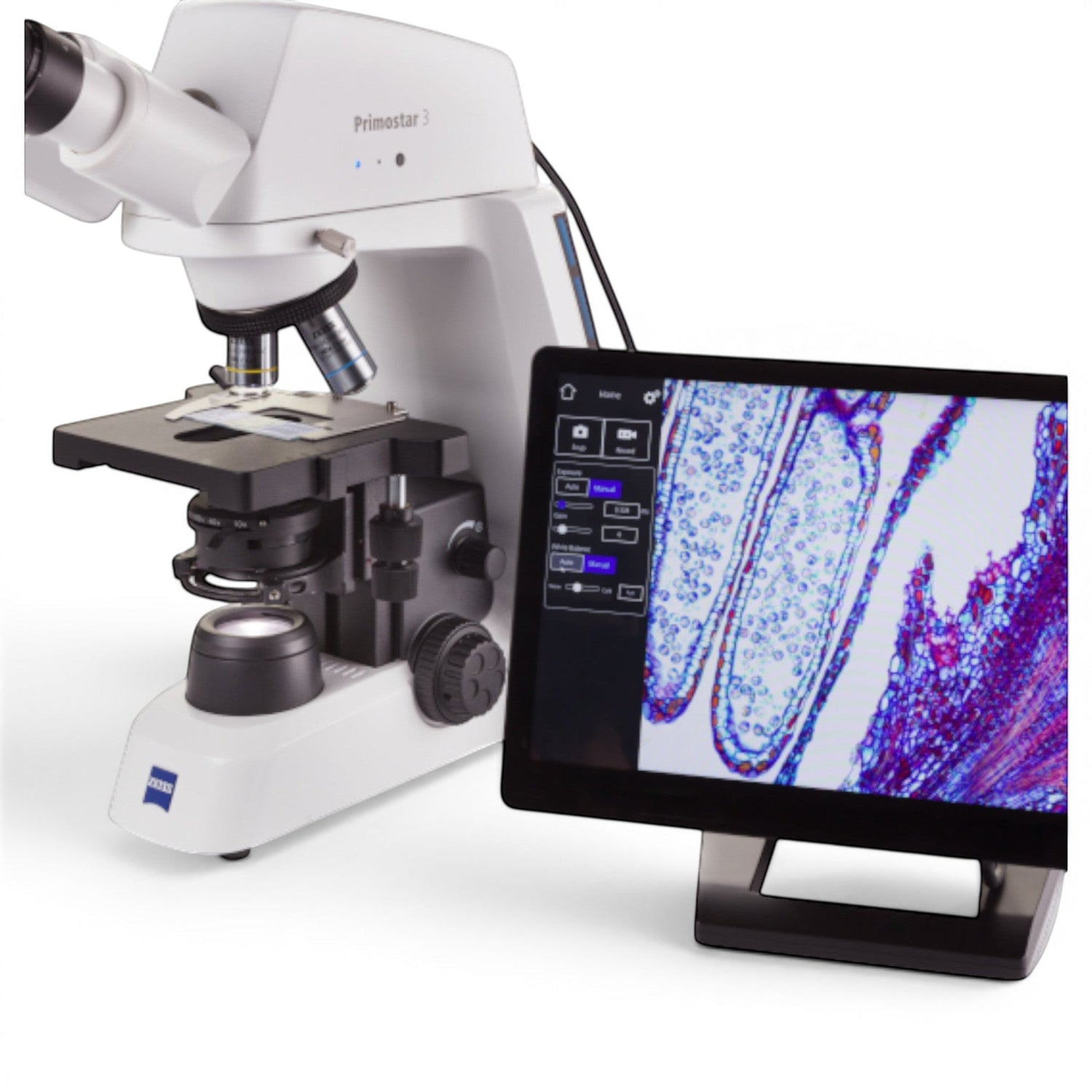

Integrated Camera – Technical Data

– Resolution: 5.04 MP (2592 × 1944)
– Live resolution: Full HD (1920 × 1080)
– Sensor: CMOS color sensor with rolling shutter
– Frame rate: up to 30 fps (Labscope)
– Digitization: 24 Bit (RGB)

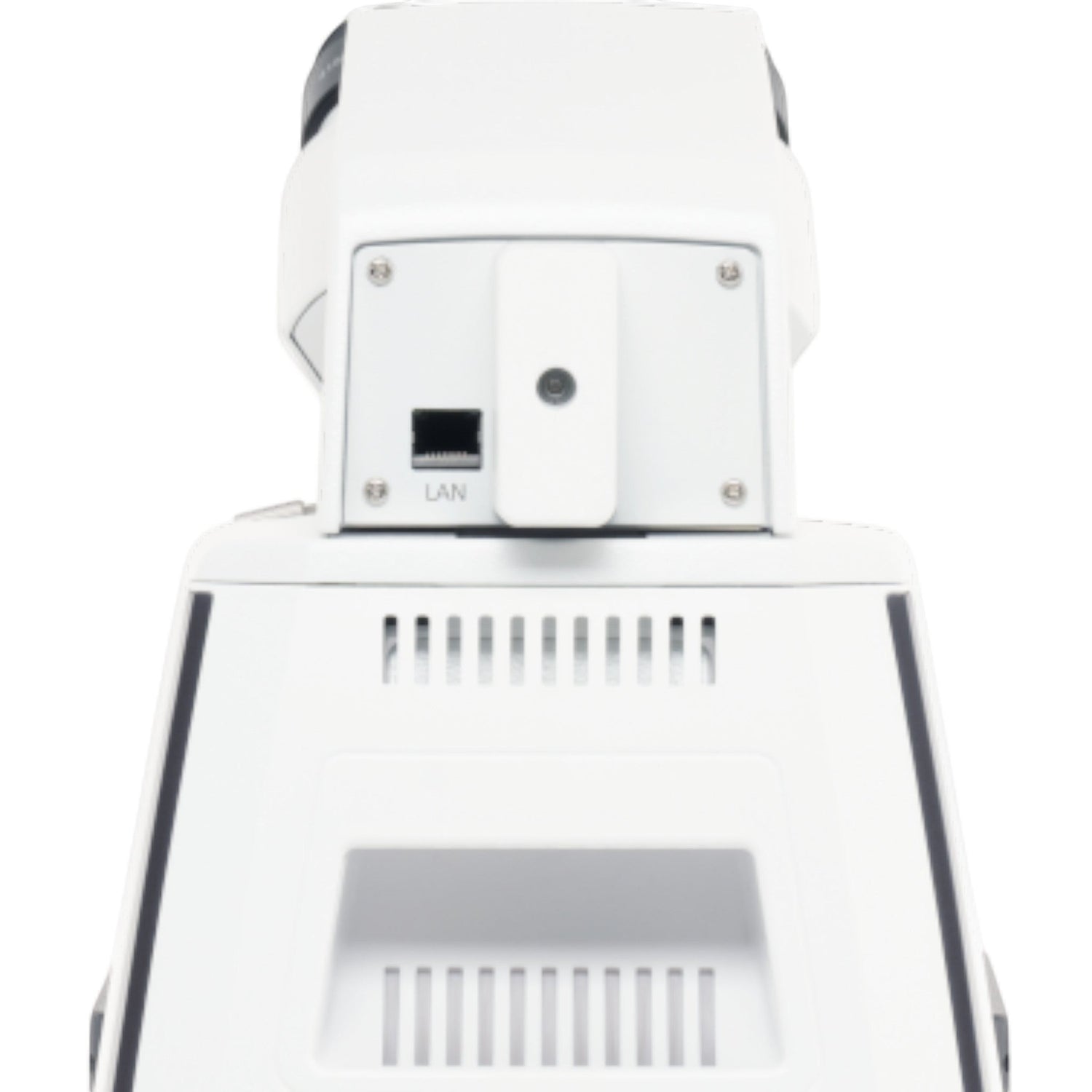

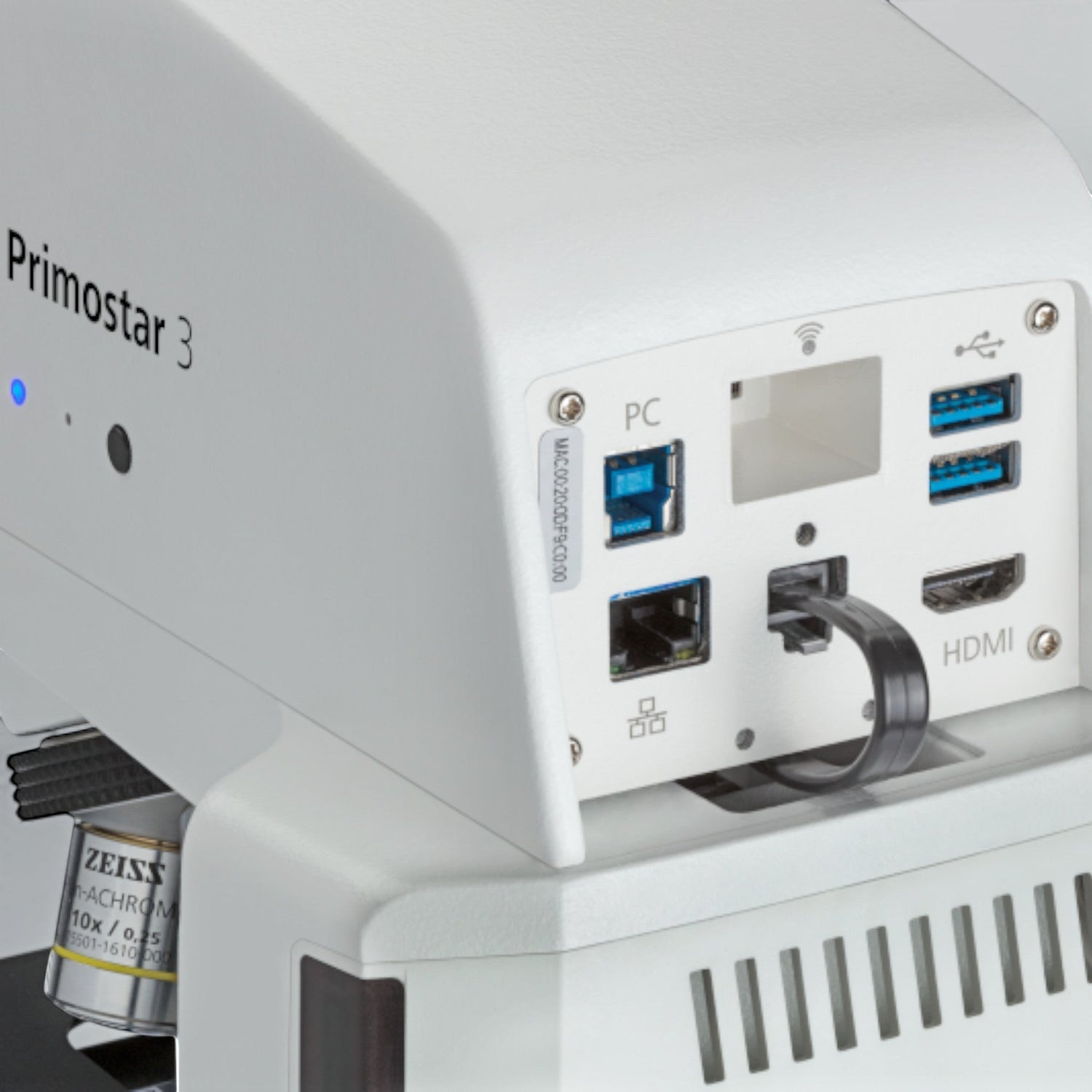

– Interfaces: USB 3.0, Ethernet (RJ45)

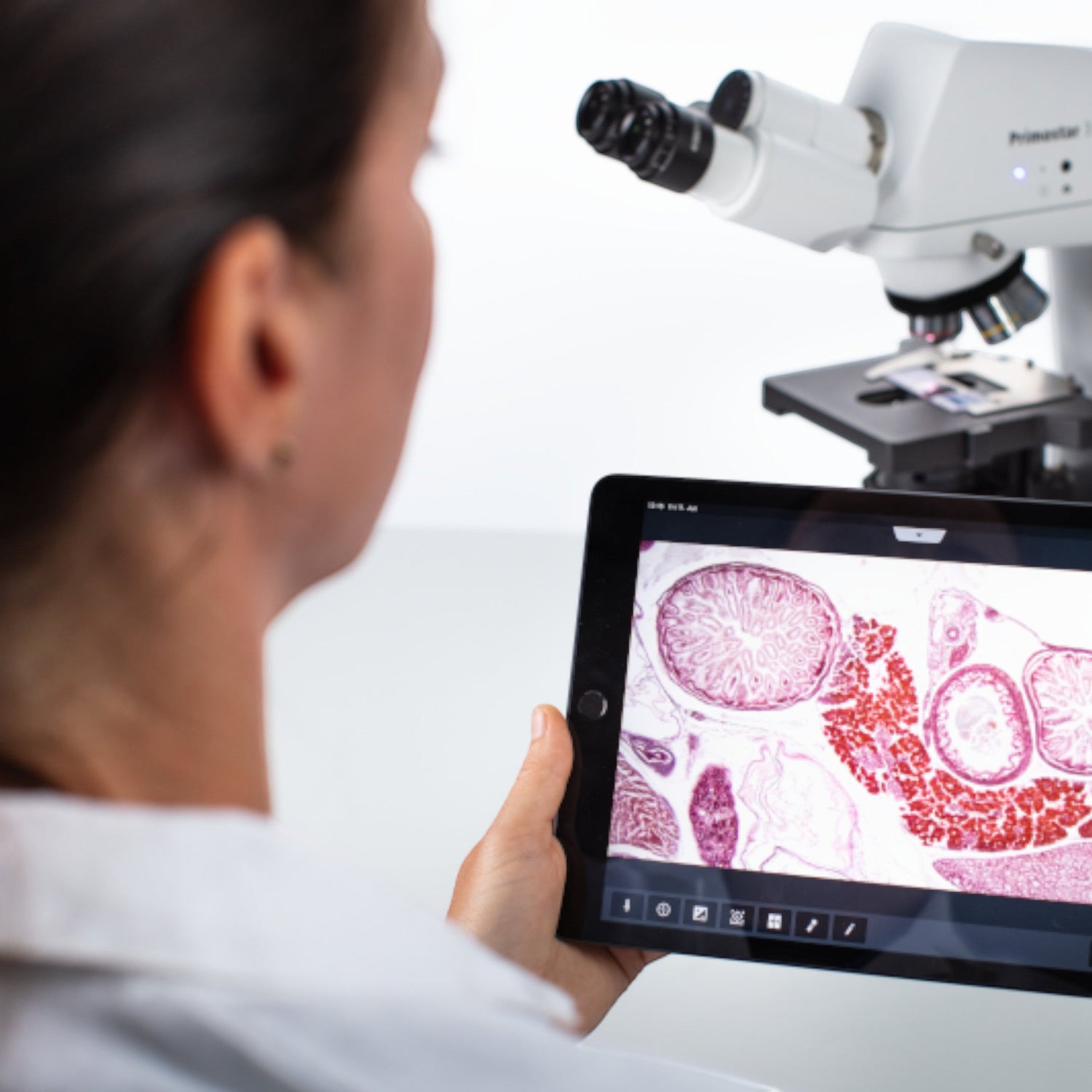

– Software: ZEISS Labscope (Windows, iOS, Android)
– Network-compatible for digital teaching
