Zeiss SKU: 415501-0281-000

ZEISS Primostar 3 Phase Contrast – Transmitted Light Microscope Full-Köhler with Modulator Disk

€4.158,00 €4.621,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

High-contrast Training Microscopy with Full-Köhler Optics

The ZEISS Primostar 3 in the Full-Köhler version with phase contrast is a powerful transmitted light microscope for training, teaching, and routine laboratory work.

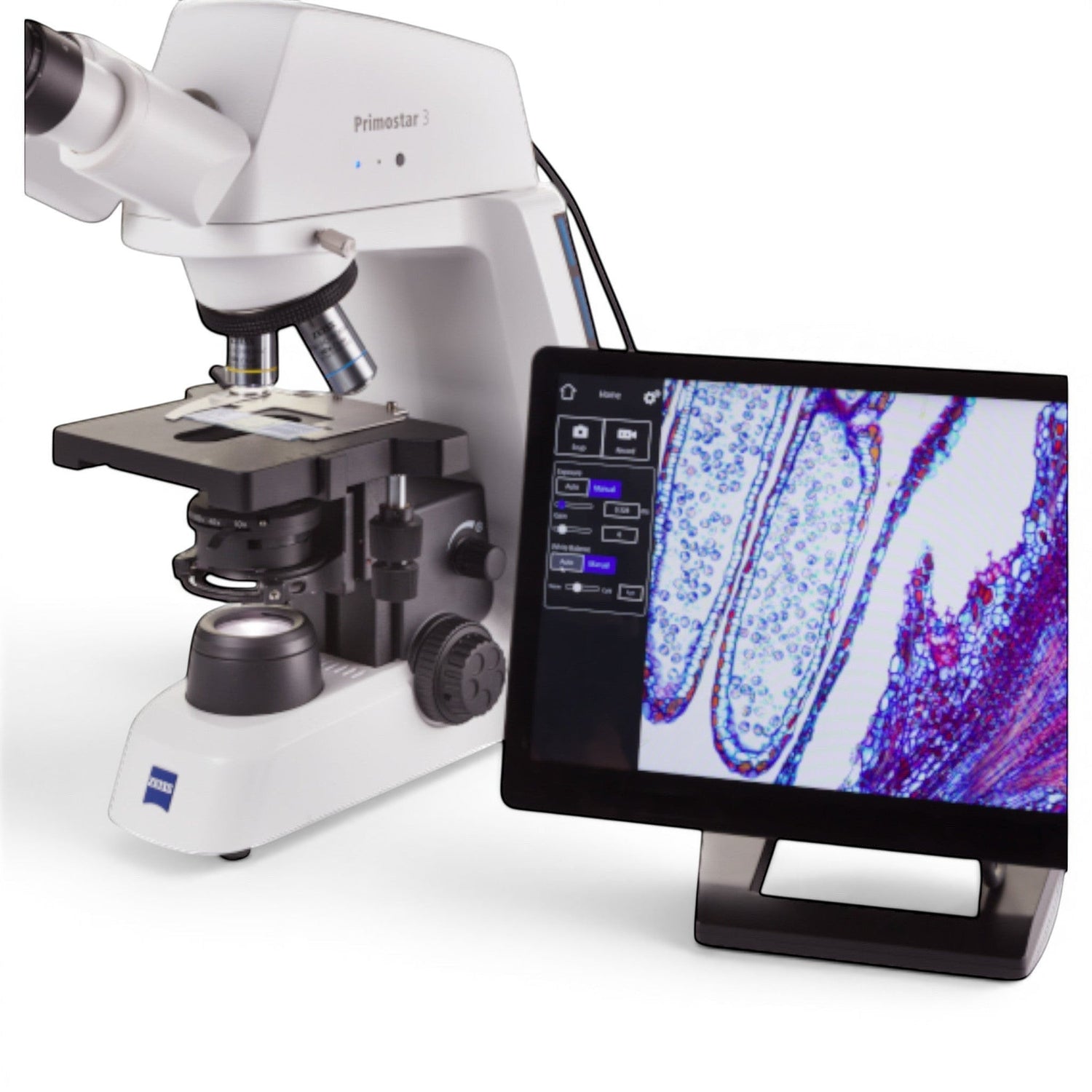

The combination of 3W LED illumination, revolving Abbe condenser, and integrated 5 MP camera enables high-contrast observations of transparent samples as well as easy digital documentation.

Key Features

  • Full-Köhler stand with 3 W LED transmitted light illumination

  • Integrated 5 MP camera for digital microscopy

  • Coded 5-position objective nosepiece

  • Phase contrast objective 40× Ph2

  • Revolving Abbe condenser with HF, DF and phase rings

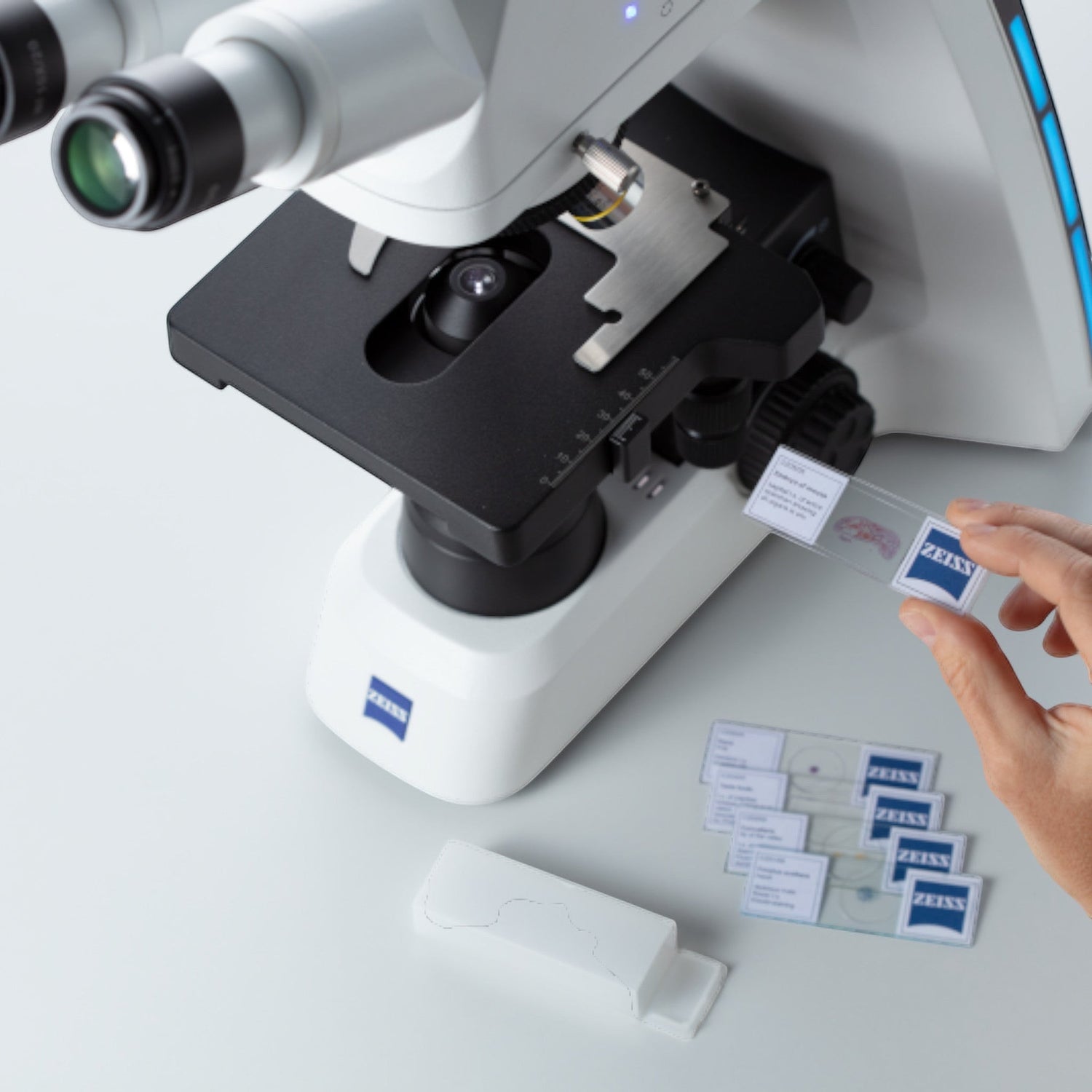

  • Mechanical stage 75 × 50 mm for two slides

  • Color filter set (blue, green, yellow)

  • ECO mode and intelligent LightManager

Ideal for

  • Biological and medical training

  • Cell biology and microbiology

  • Phase contrast microscopy

  • Unstained and transparent samples

  • Digital documentation and teaching


Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Transmitted Light Microscope with Full Köhler Illumination and Phase Contrast for Education and Routine Laboratory Work

System Overview

– Full-Köhler stand
– Transmitted light modules with 3 W LED, white light approx. 5600 K
– Color filter set: blue, green, yellow
– Light Manager
– ECO-mode

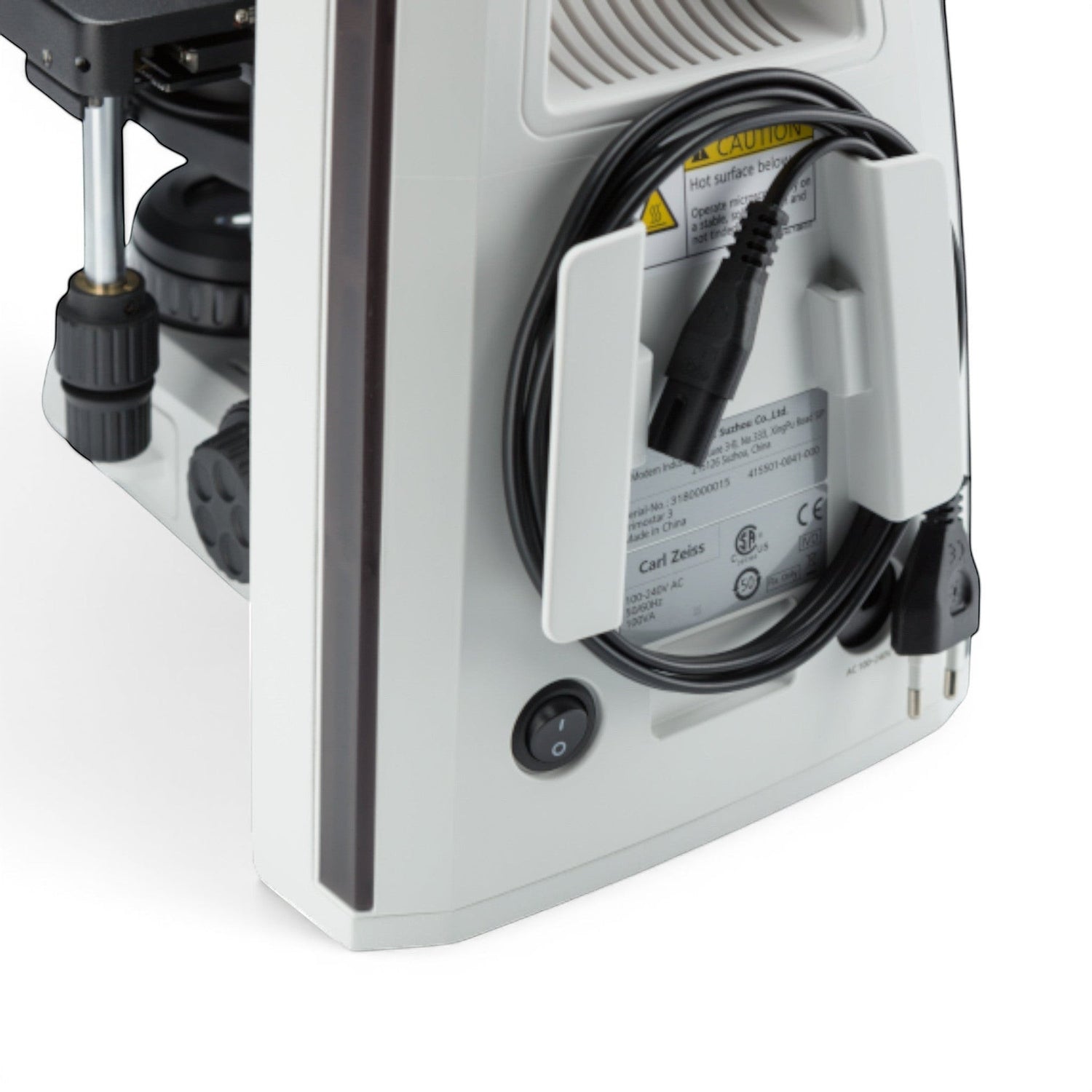

– Country-specific power cable
– Dust cover

Stage and Mechanics

– Cross stage 75 × 50 mm

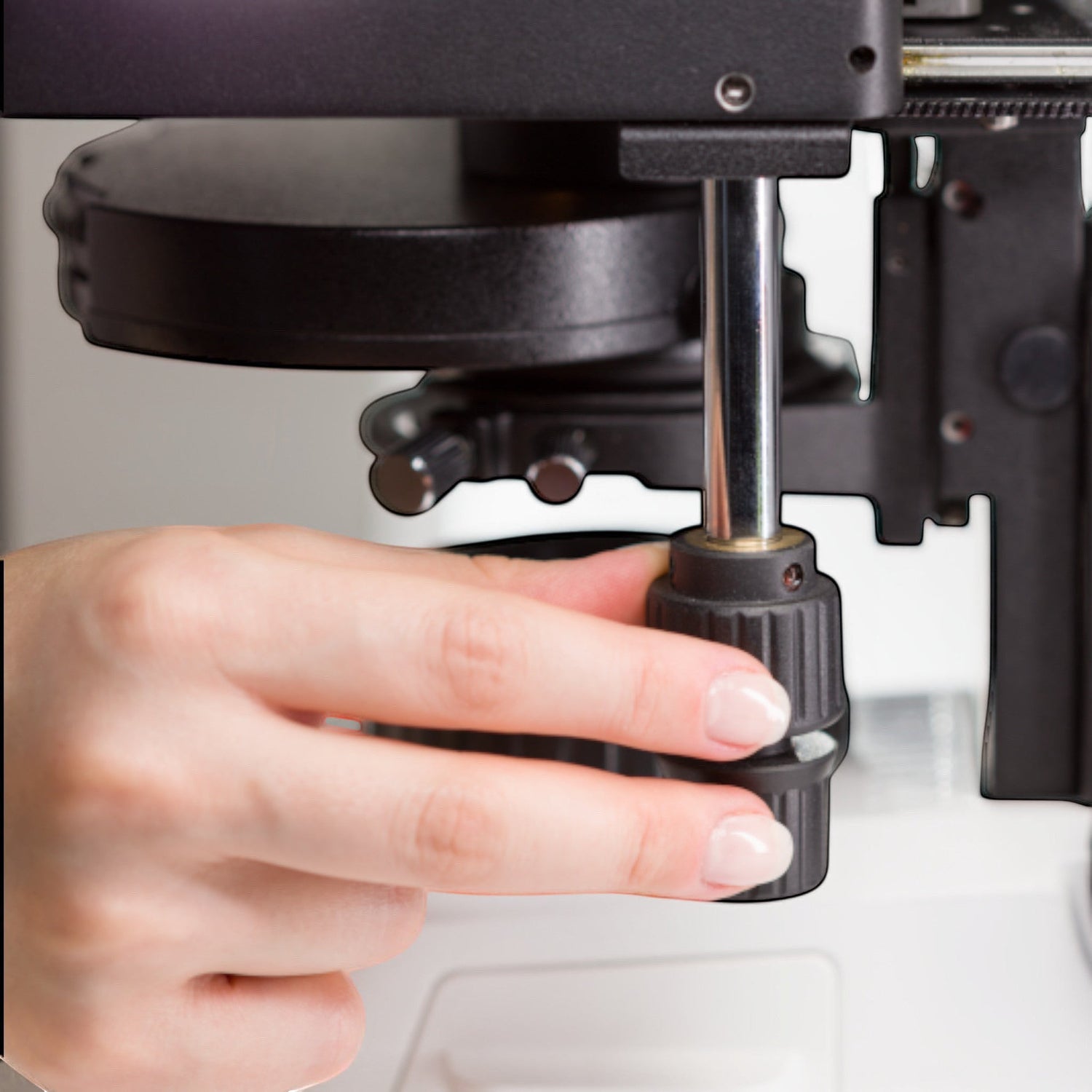

– Right-hand stage drive
– Specimen holder for two slides
– Left-hand spring lever

Tube

– Binocular tube 25° / field of view 22
– Split ratio 50% visual / 50% documentation
– Integrated camera

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Nosepiece and Objectives

– 5-position nosepiece, coded, backward-facing

Objectives:
– iPlan-Achromat 40× Ph2

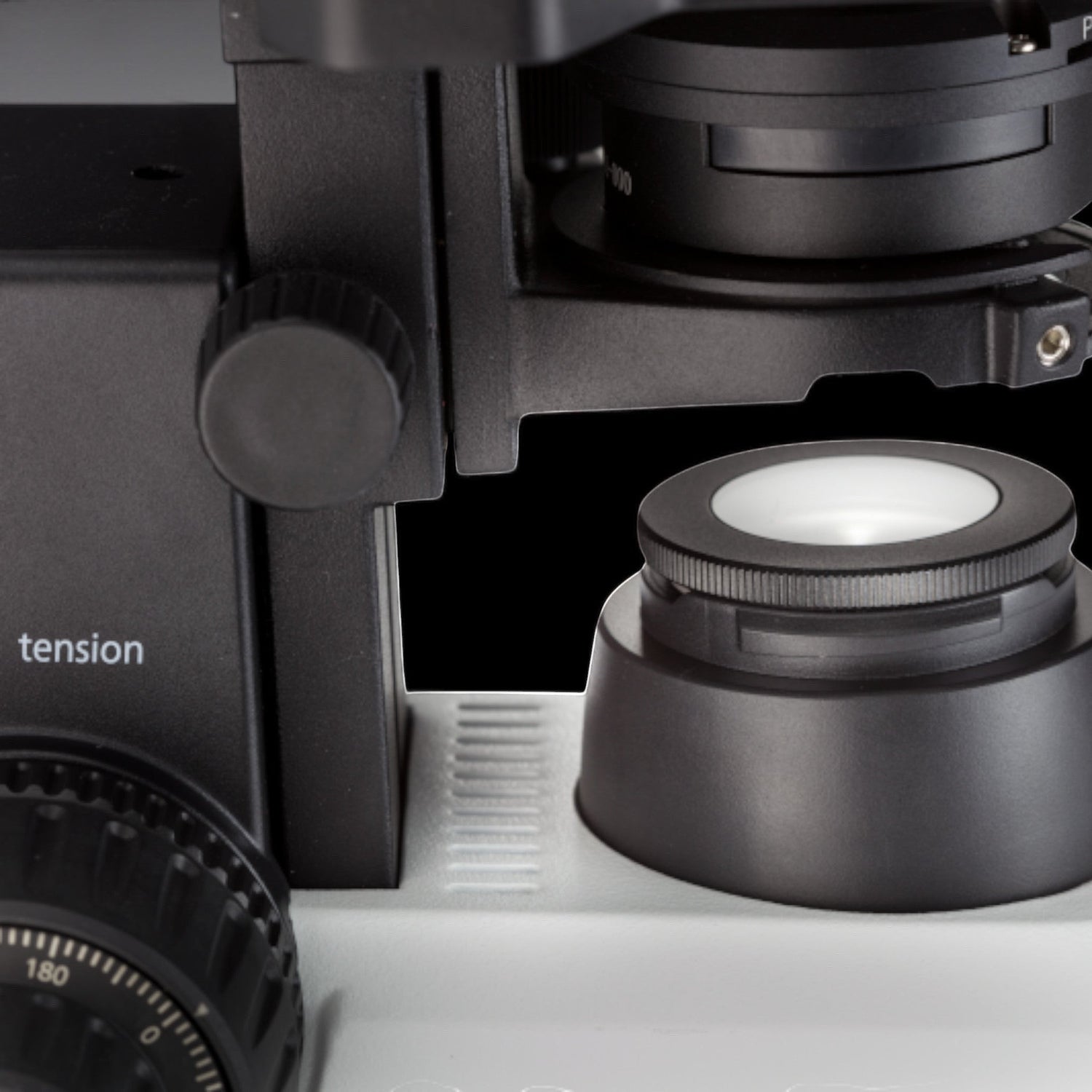

Condenser

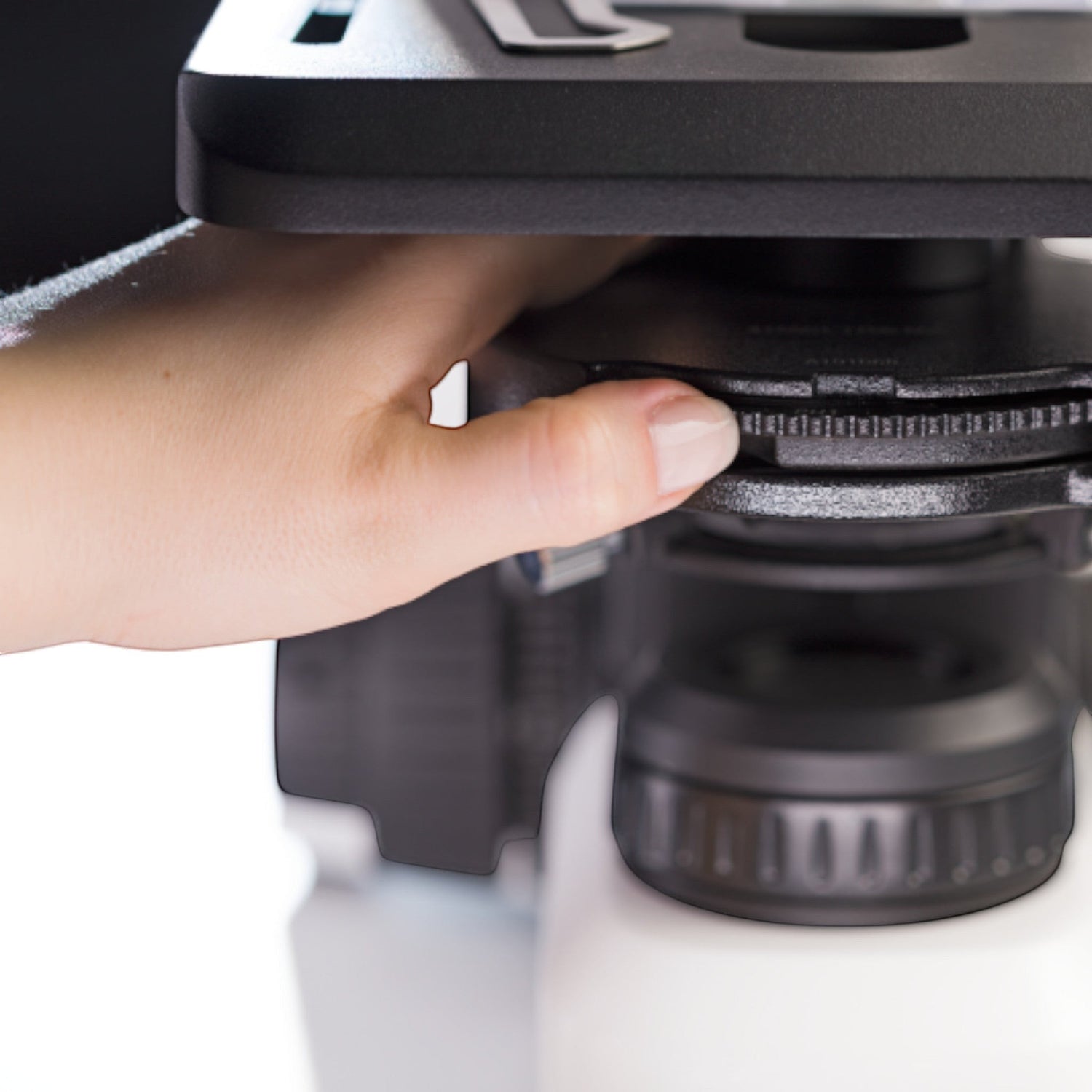

– Abbe condenser 0.9 with modulator disk
– Brightfield (BF)
– Darkfield (DF)
– Phase contrast Ph1, Ph2, Ph3

Integrated Camera – Technical Data

– Resolution: 5.04 MP (2592 × 1944)
– Live resolution: Full HD (1920 × 1080)
– Sensor: CMOS color sensor with rolling shutter
– Frame rate: up to 30 fps (Labscope)
– Digitization: 24 Bit (RGB)

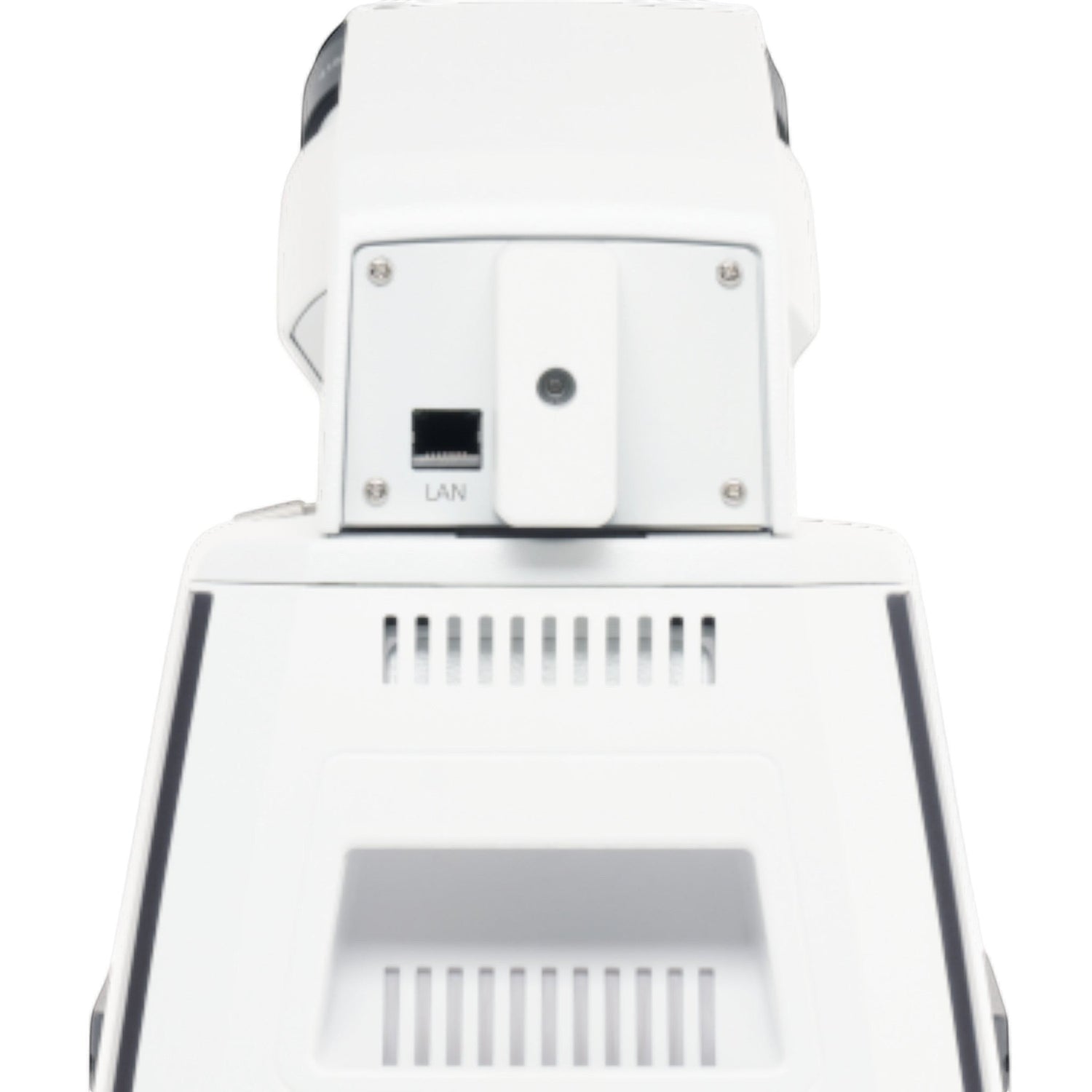

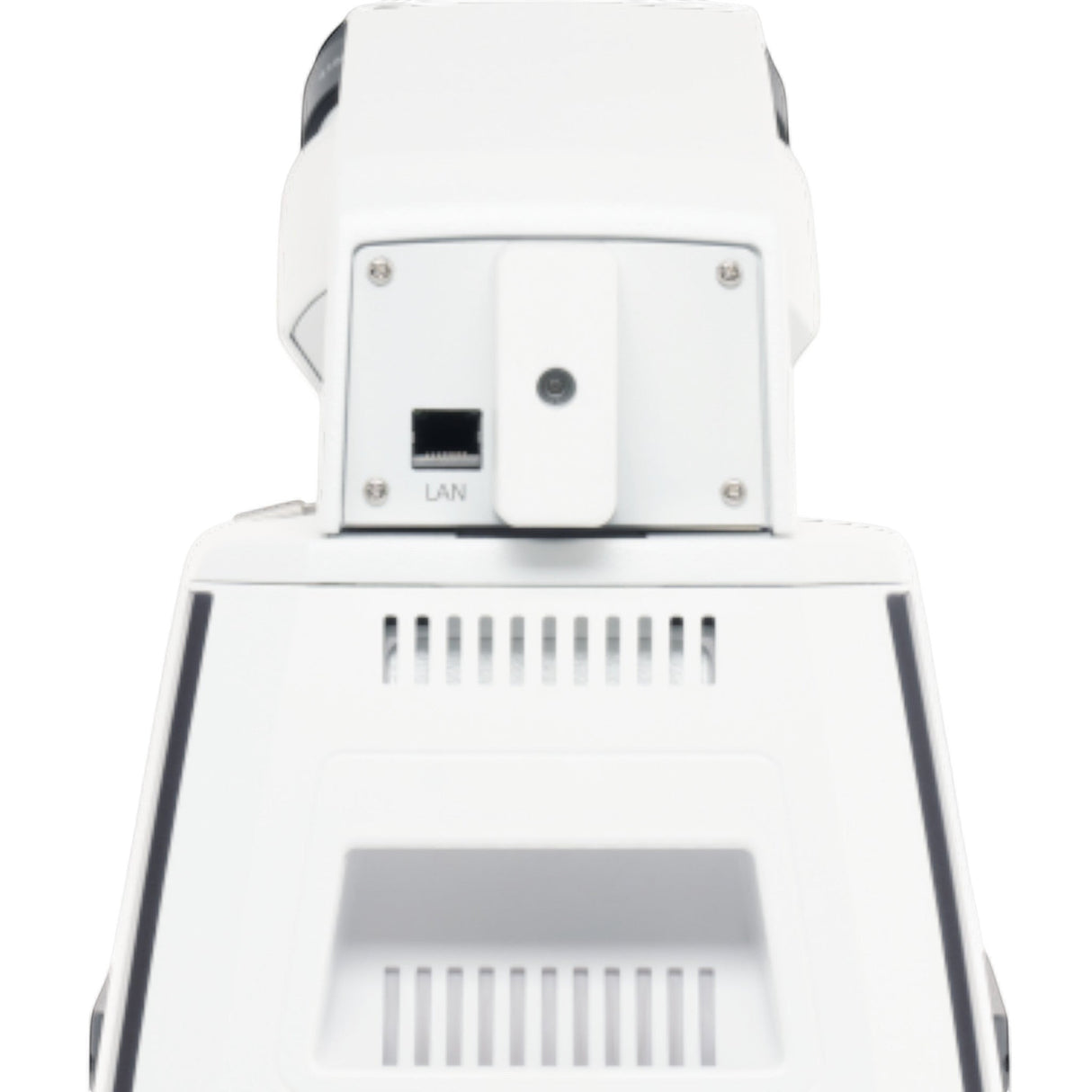

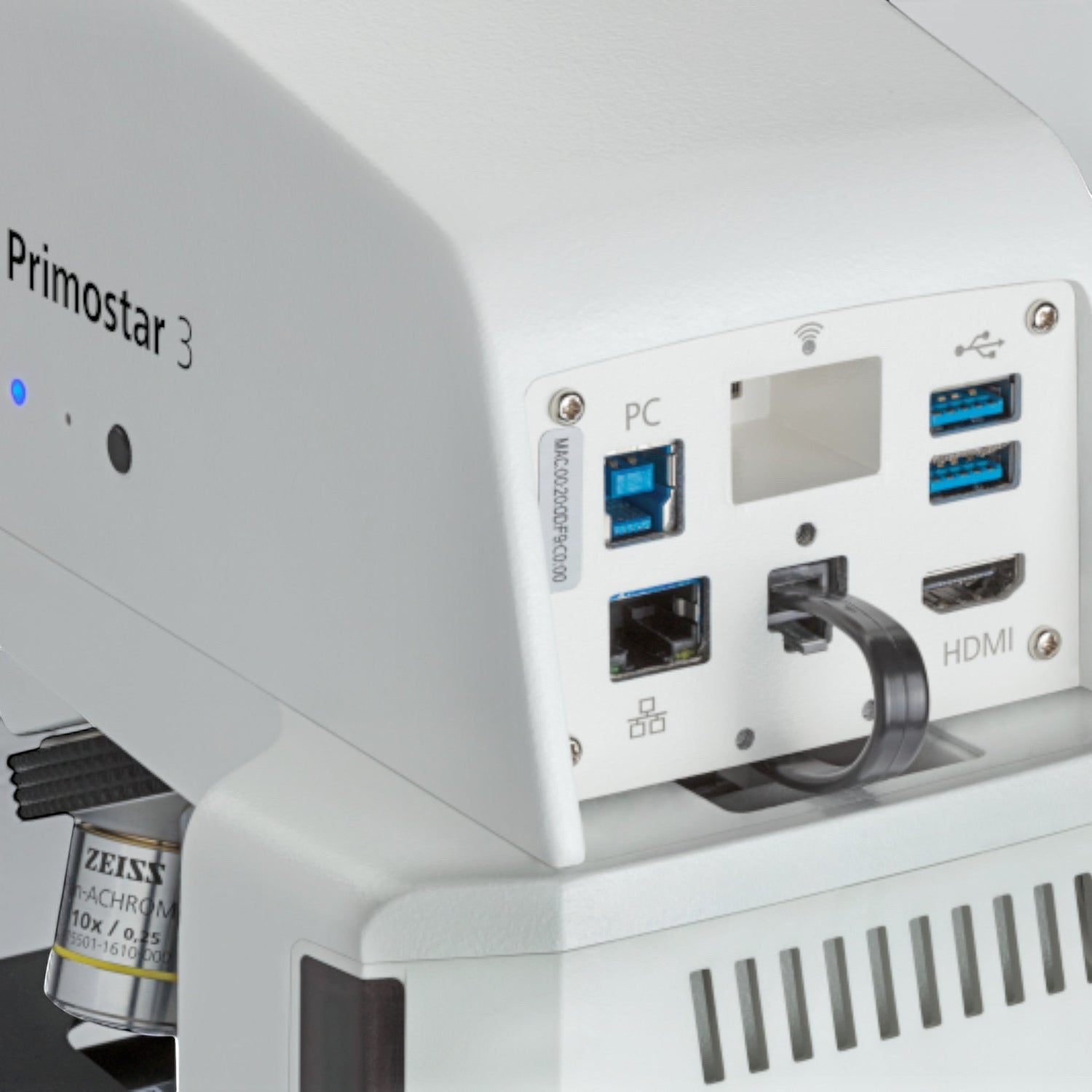

– Interfaces: USB 3.0, Ethernet (RJ45)
– Optical interface: C-Mount

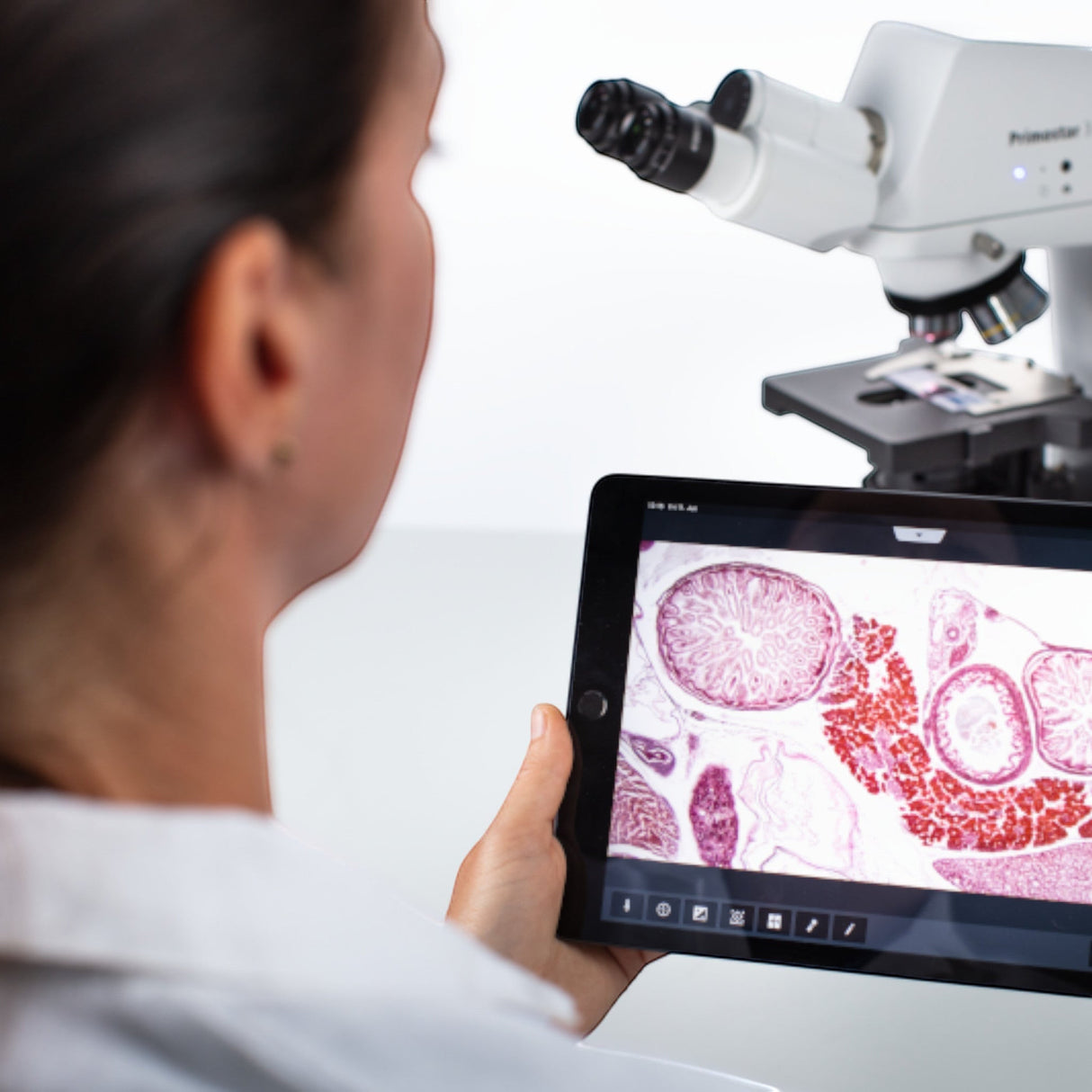

– Software: ZEISS Labscope (Windows, iOS, Android)
– Network compatible for digital teaching and documentation
