Zeiss SKU: 415501-0231-000

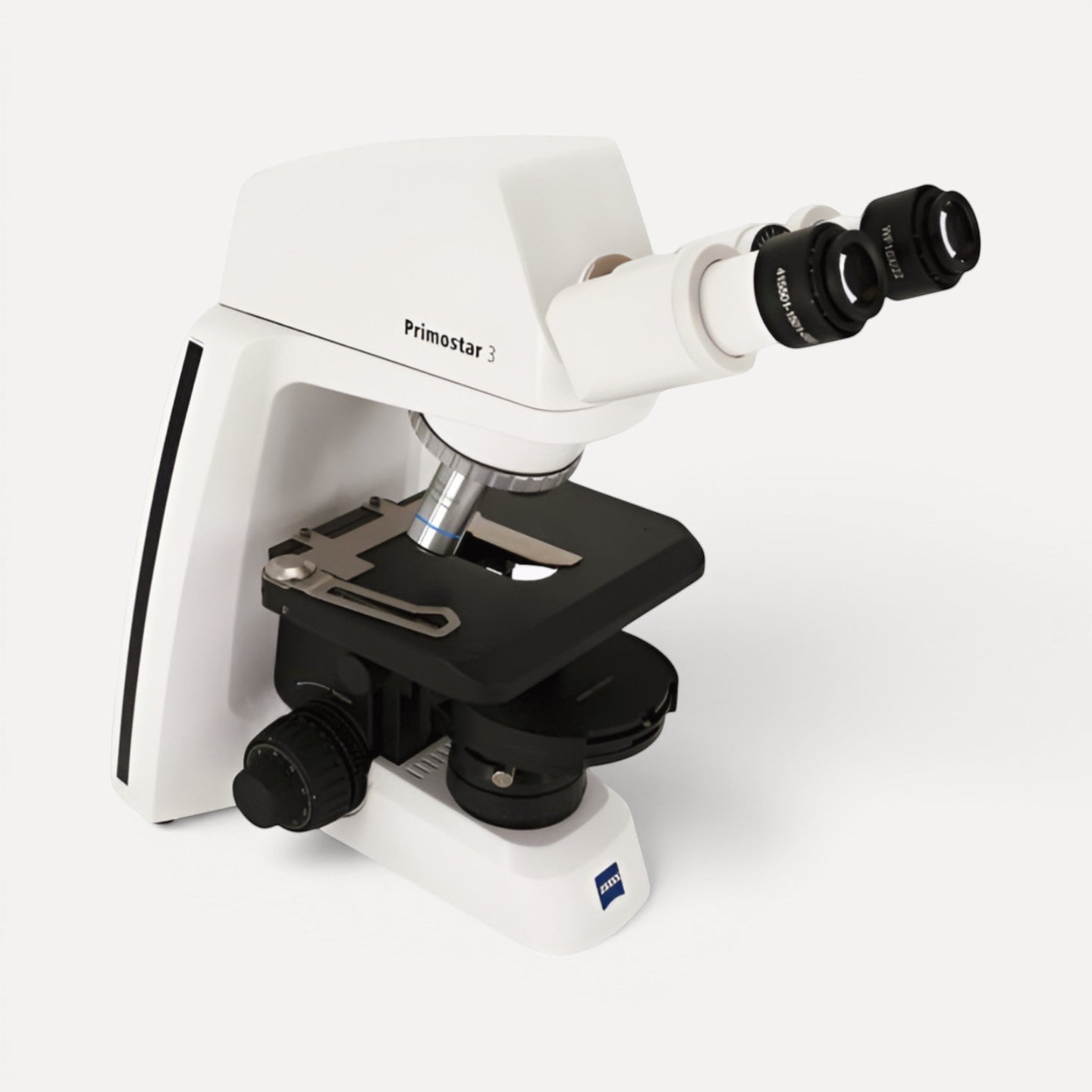

ZEISS Primostar 3 HD Cam with integrated 8 MP Camera & Phase Contrast – Transmitted-light Microscope

€5.261,00 €5.846,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

High-quality brightfield and phase contrast microscopy with 4K documentation

The ZEISS Primostar 3 Full-Köhler with integrated 8 MP HD camera is designed for demanding training, routine, and laboratory applications.
The combination of full-Köhler illumination, phase contrast optics, flexible LED and halogen transmitted light, and modern 4K imaging enables precise observation and professional documentation.

Thanks to its network-compatible camera, HDMI output, and software integration, this system is ideal for teaching, training, laboratory routines, and live demonstrations.

Key features

  • Full-Köhler transmitted light microscope

  • Integrated 8 MP Ultra-HD camera (4K)

  • Phase contrast equipment (Ph1–Ph3)

  • LED and halogen transmitted light illumination

  • 5-position objective nosepiece

  • Cross table 75 × 50 mm

  • Network, HDMI, and software compatible

Ideal for

  • Biology and medical education

  • Cell and tissue culture

  • Phase contrast microscopy

  • Digital documentation & live transmission

  • Universities, schools and routine laboratories


Application examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Full-Köhler Transmitted Light Microscope with 8 MP Camera for Phase Contrast and Documentation

System Configuration

– Full Köhler stand
– Transmitted light drawer modules with
– 3 W white light LED, approx. 5600 K
– 6 V / 30 W halogen lamp
– Color filter set: blue, green, yellow
– LightManager
– ECO mode
– Country-specific power cord
– Dust cover

Stage and Mechanics

– Mechanical stage 75 × 50 mm

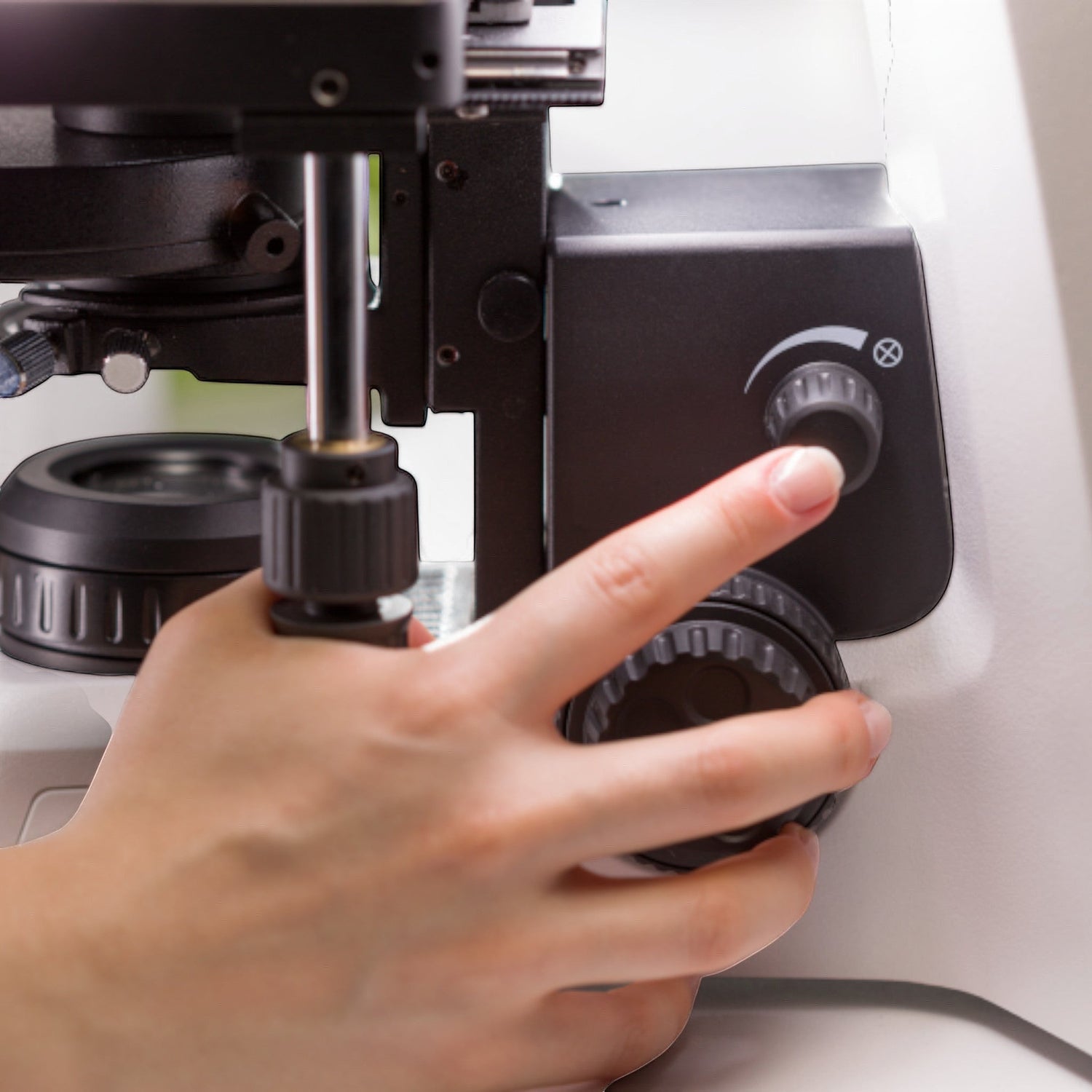

– Right-hand stage drive
– Specimen holder for two slides
– Spring lever left

Tube

– Binocular phototube 25° / field of view 22
– Splitting ratio 50 % visual / 50 % camera
– Integrated 8-MP camera

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Nosepiece and Objectives

– 5-position nosepiece, rearward-facing

Objectives:
– iPlan-Achromat 40× Ph2

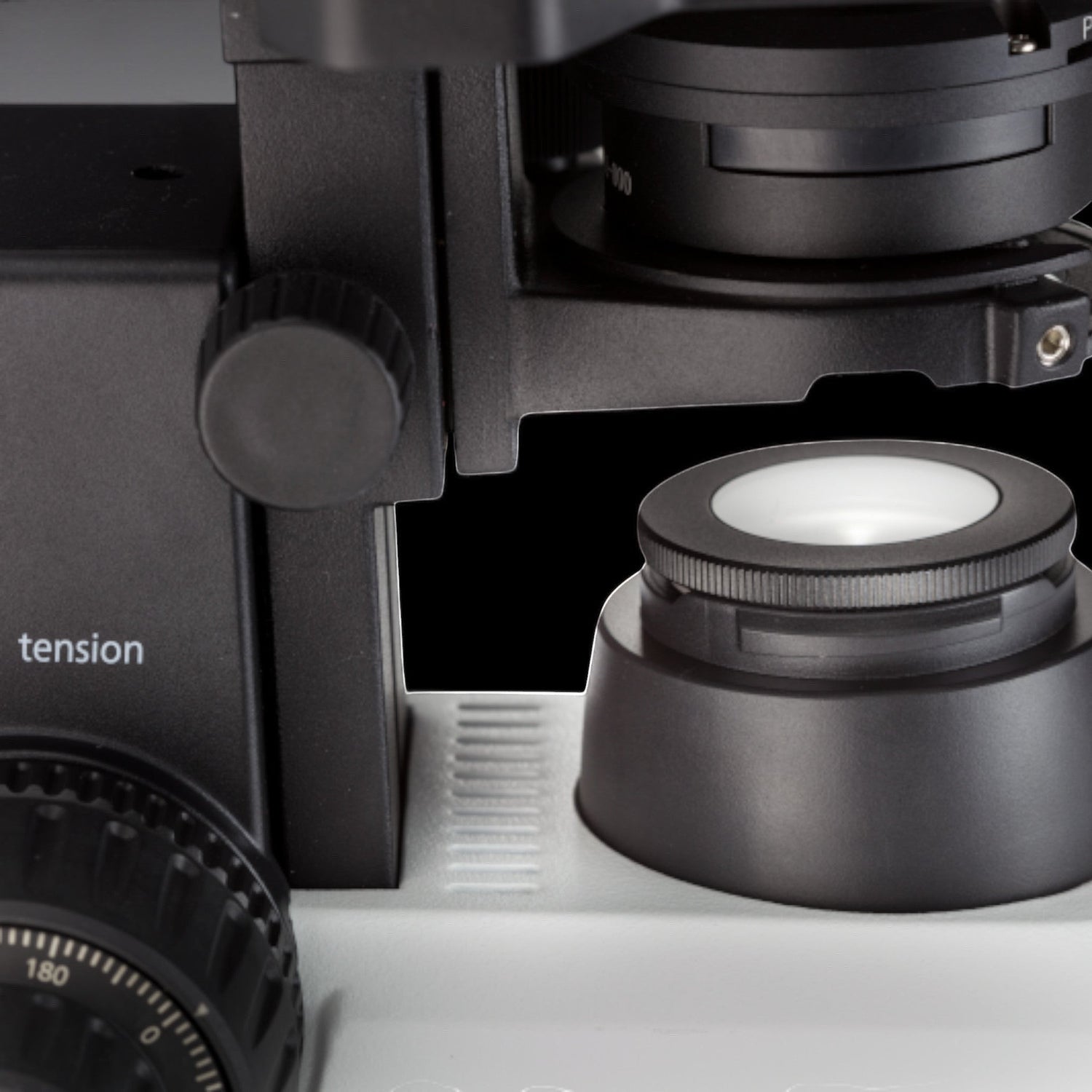

Condenser

– Abbe condenser 0.9

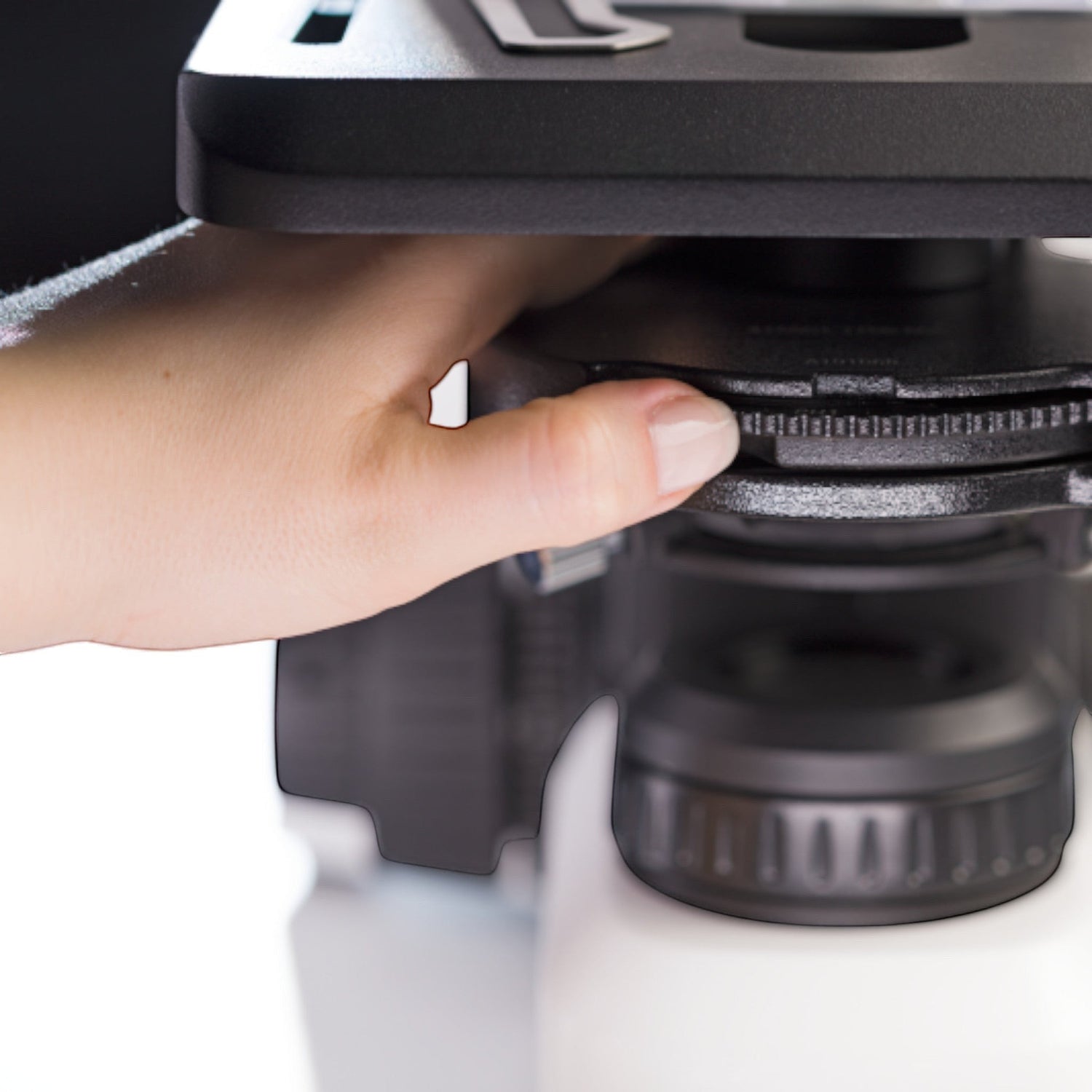

– Modulator disk for
– Brightfield
– Darkfield
– Ph1
– Ph2
– Ph3

Integrated Camera – Technical Data

– Resolution: 8.3 MP (3840 × 2160, Ultra HD 4K)
– Live resolutions:
– 3840 × 2160 (4K)
– 1920 × 1080 (Full HD)
– Sensor: Sony CMOS color sensor, rolling shutter
– Pixel size: 1.85 µm × 1.85 µm
– Frame rate:
– HDMI: 30 fps @ 4K / Full HD
– Software: up to 30 fps (Labscope)
– Exposure time: 0.06 ms to 1 s
– Digitization: 8 bit / pixel

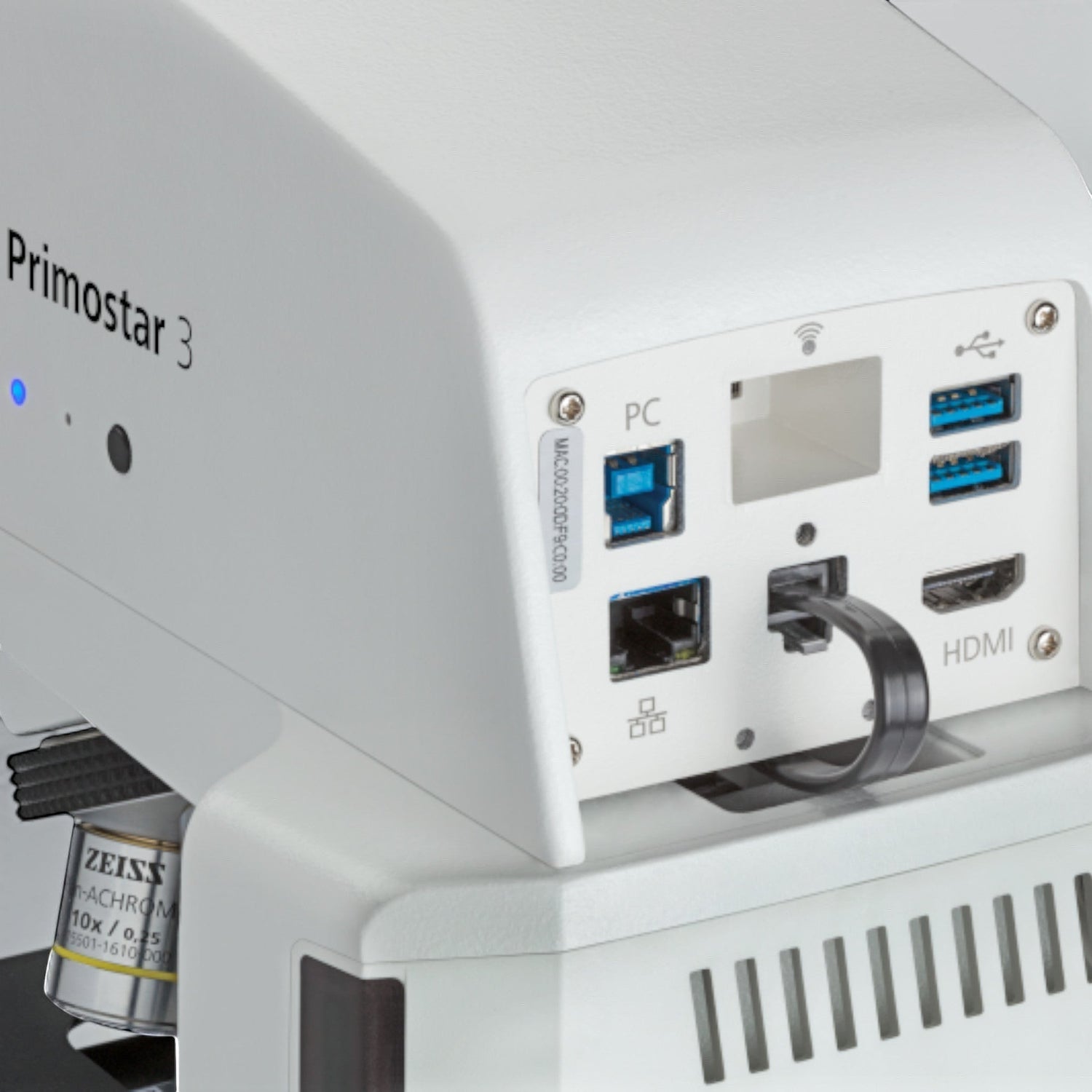

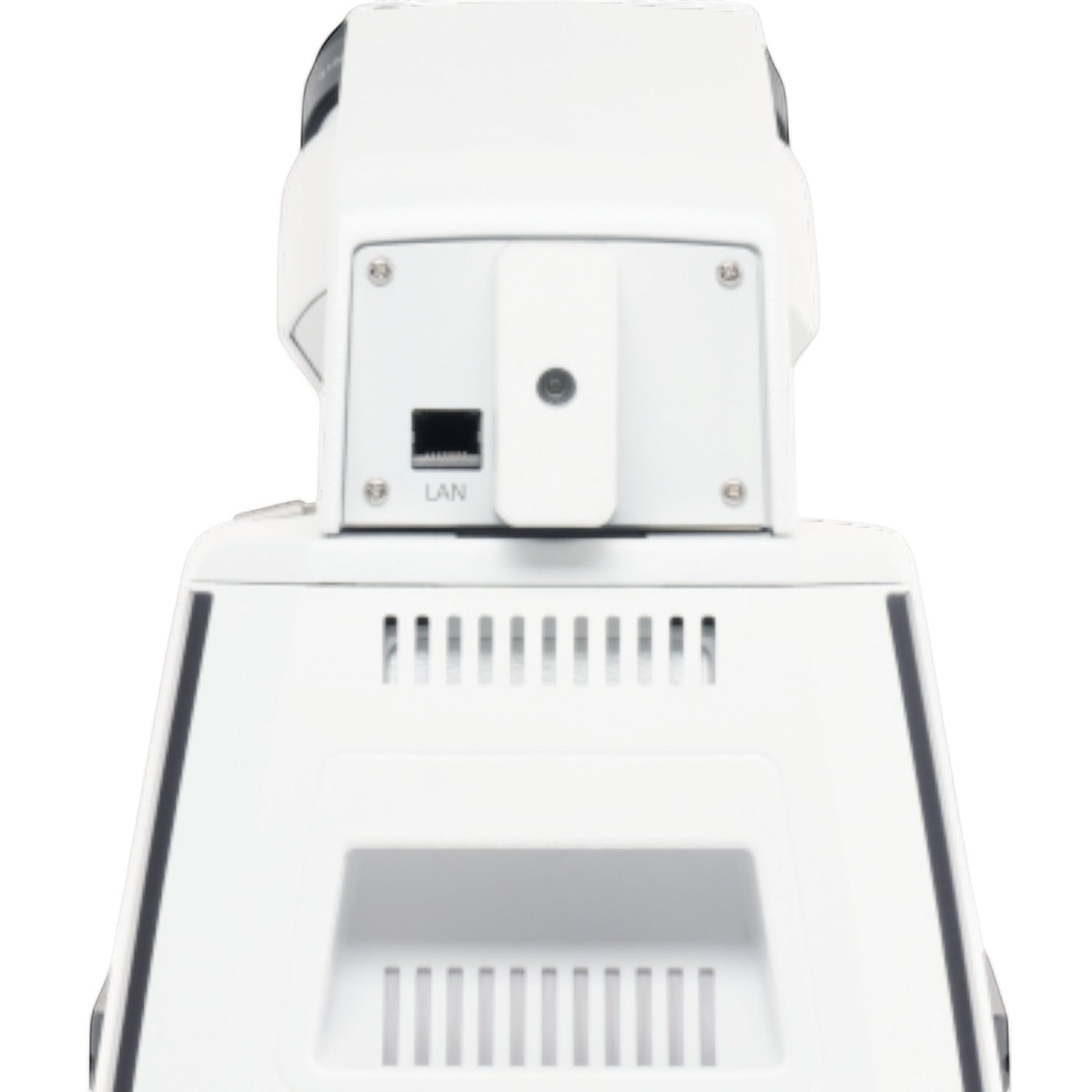

– Interfaces: HDMI, USB 3.0, Ethernet (RJ45)
– File formats: TIFF, JPG, MP4

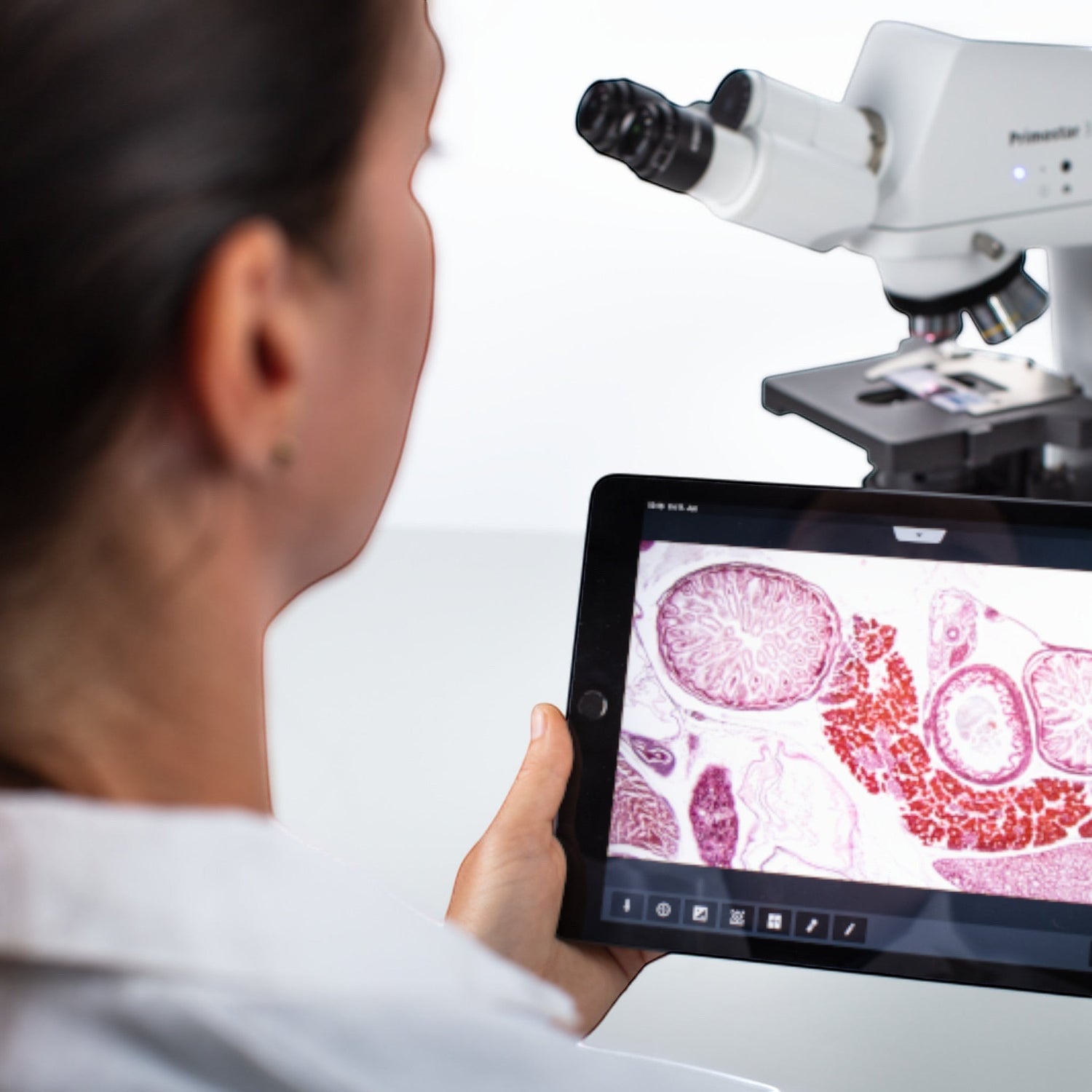

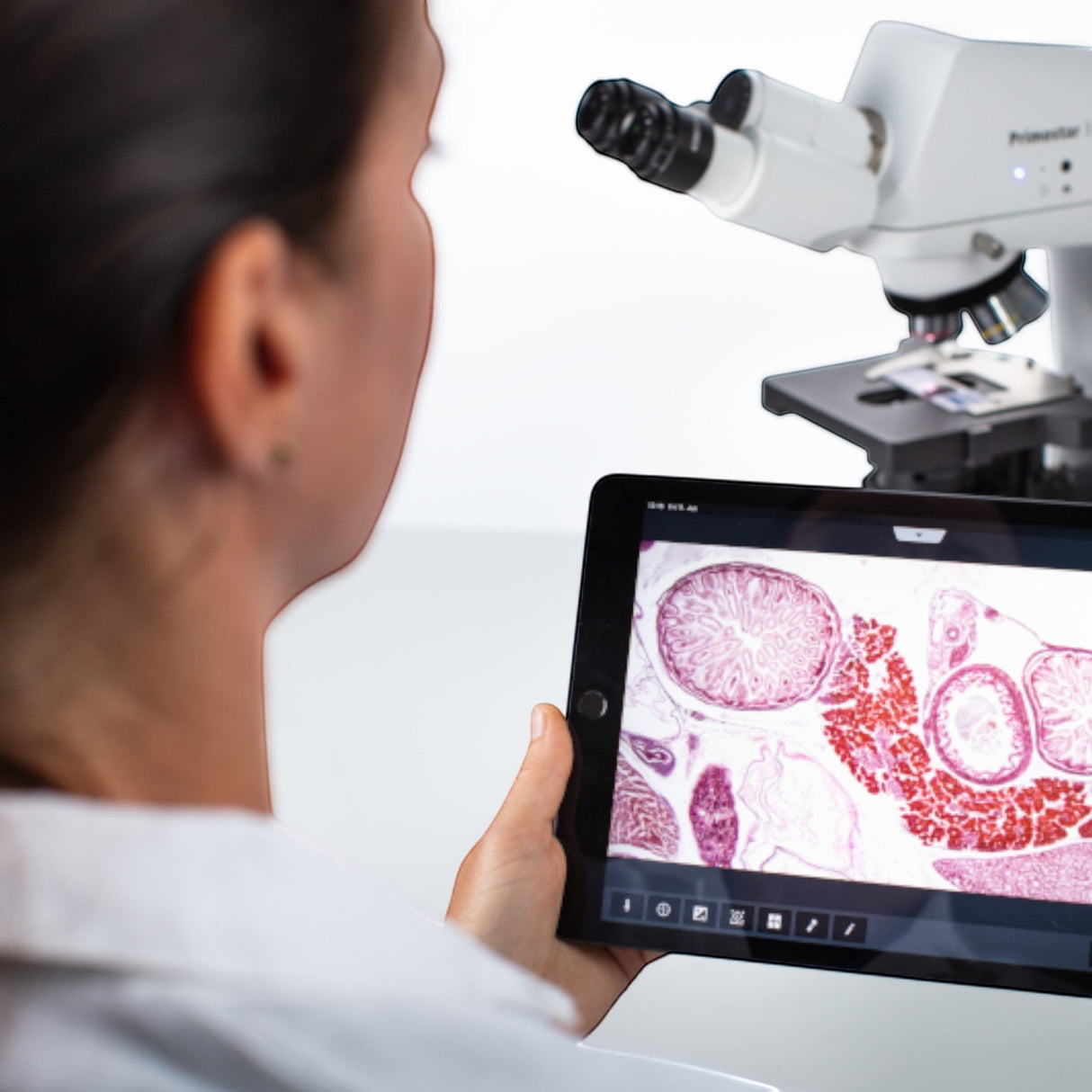

– Network capable for multi-user and teaching operation
