Zeiss SKU: 415501-0011-000

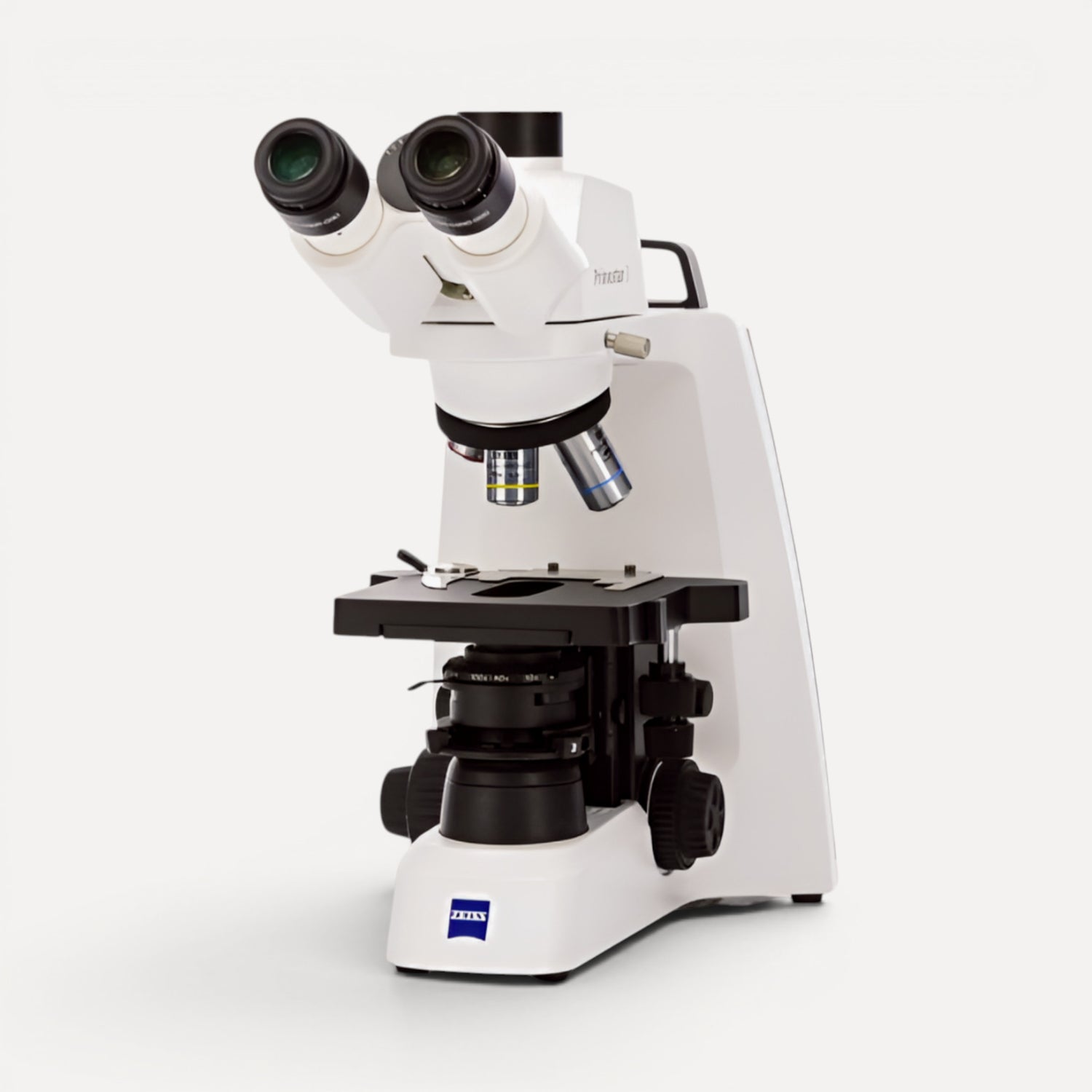

ZEISS Primostar 3 Trino – Transmitted Light Microscope for Labs with iPlan-Achromat 4x, 10x, 40x Objectives

€1.412,00 €1.569,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Compact Transmitted Light Microscopy with Trinocular Design

The ZEISS Primostar 3 Fix-Köhler Trino is a robust transmitted light microscope for training, teaching, and routine use.
With Fix-Köhler illumination, a trinocular photo tube, and energy-efficient LED transmitted light illumination, the system provides a reliable foundation for visual observation and optional camera documentation.

The integrated carrying handle, the mechanical stage, and the proven iPlan-Achromat objectives ensure easy handling and reproducible results in daily operation.

Key Features

  • Fixed-Köhler transmitted light microscope

  • Trinocular photo tube (50:50)

  • LED transmitted light illumination 1 W

  • 4-position objective revolver

  • Stage 75 × 40 mm

  • iPlan-Achromat objectives

  • Carrying handle for mobile use

Ideal for

  • Biology and medical training

  • Schools and universities

  • Course and multi-user operation

  • Routine transmitted light microscopy

  • Users with an external camera option

Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Fix-Köhler transmitted light microscope with trinocular phototube for education

System Features

– Fixed Koehler stand with carrying handle
– Transmitted light illumination LED 1 W, white light approx. 5600 K

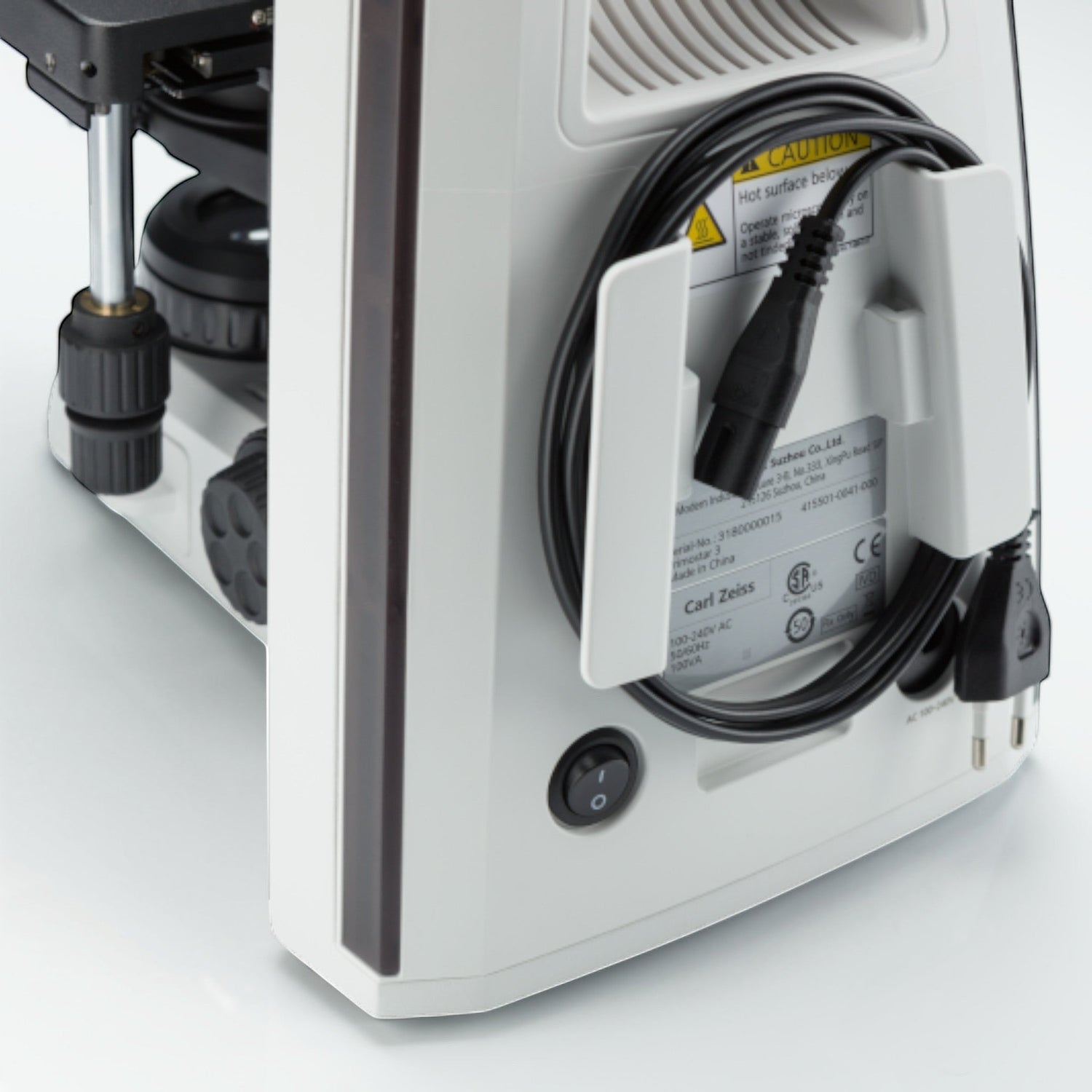

– 5V USB port
– Country-specific power cord
– Dust cover

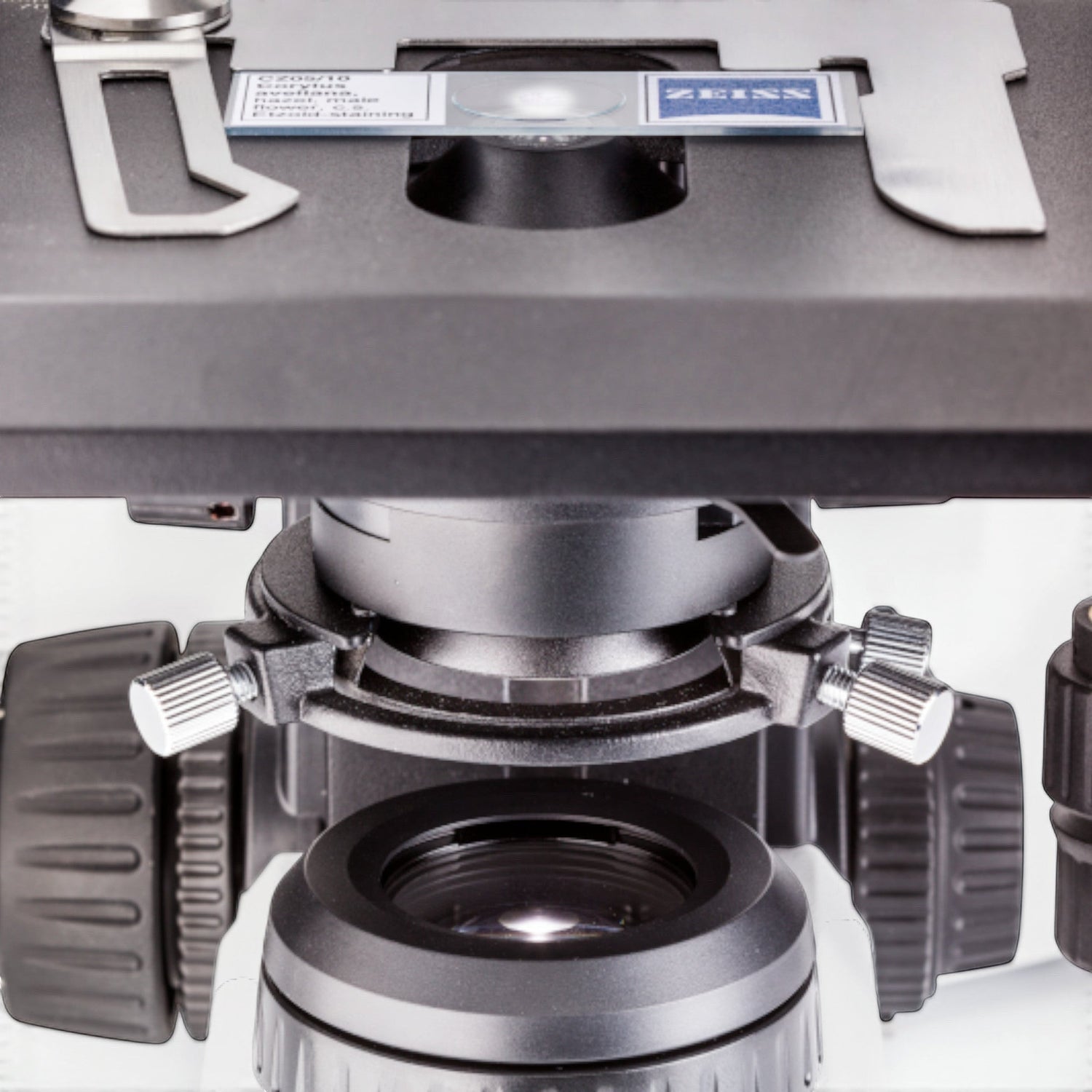

Stage and Mechanics

– Mechanical stage 75 × 40 mm
– Right-hand stage drive

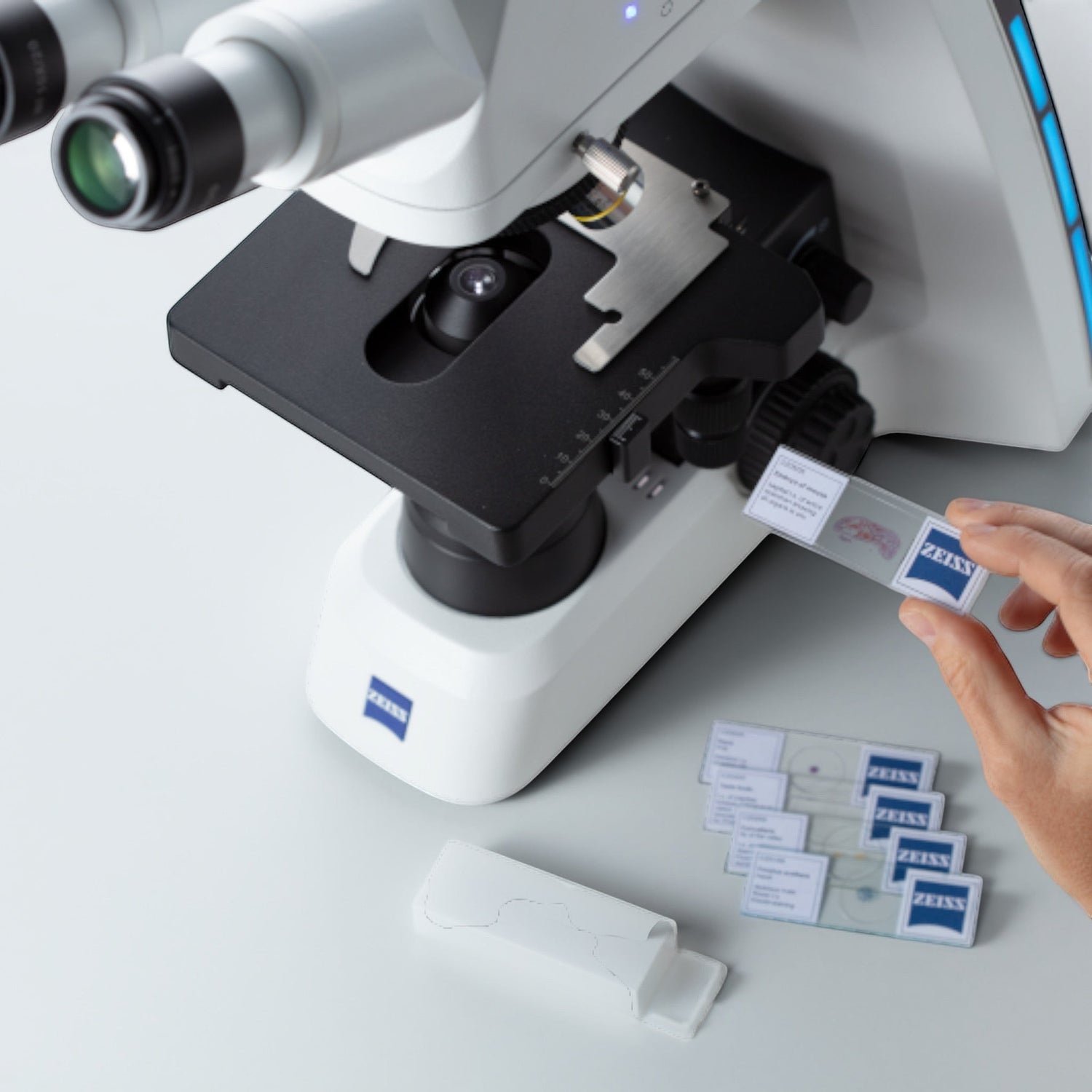

– Specimen holder for one slide
– Left-hand spring lever

Tube

– Trinocular photo tube 25° / field of view 20
– Beam split ratio 50 % visual / 50 % camera
– Camera port prepared (C-Mount)

Eyepieces and Accessories

– Eyepiece 10× / 20 Br. foc., 1× with pointer
– Eyecups

Nosepiece and Objectives

– 4-position nosepiece, backward inclined

Objectives:
– iPlan Achromat 4×
– iPlan Achromat 10×
– iPlan Achromat 40×

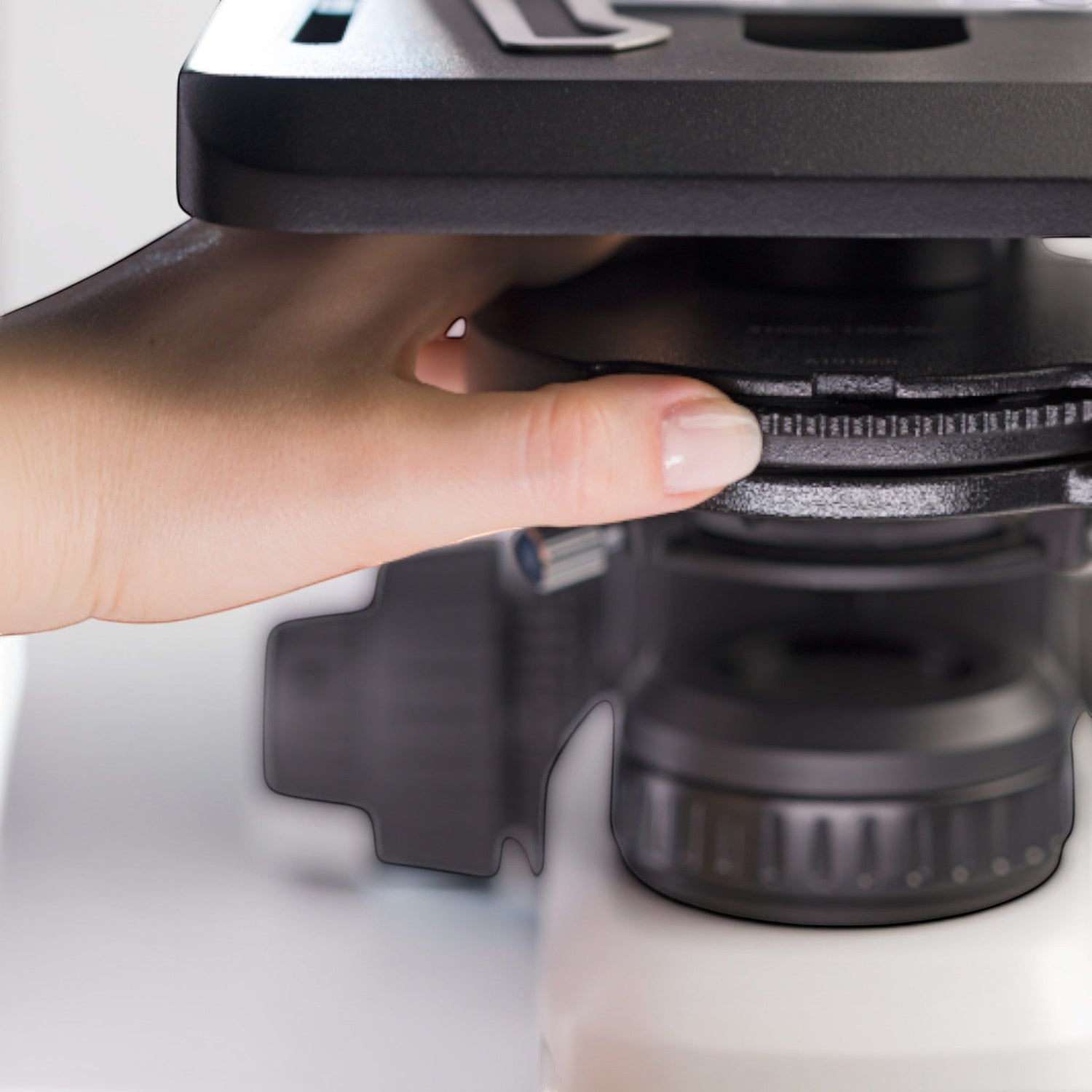

Condenser

– Abbe condenser 0.9 / 1.25 with slot
