Zeiss SKU: 415501-0061-000

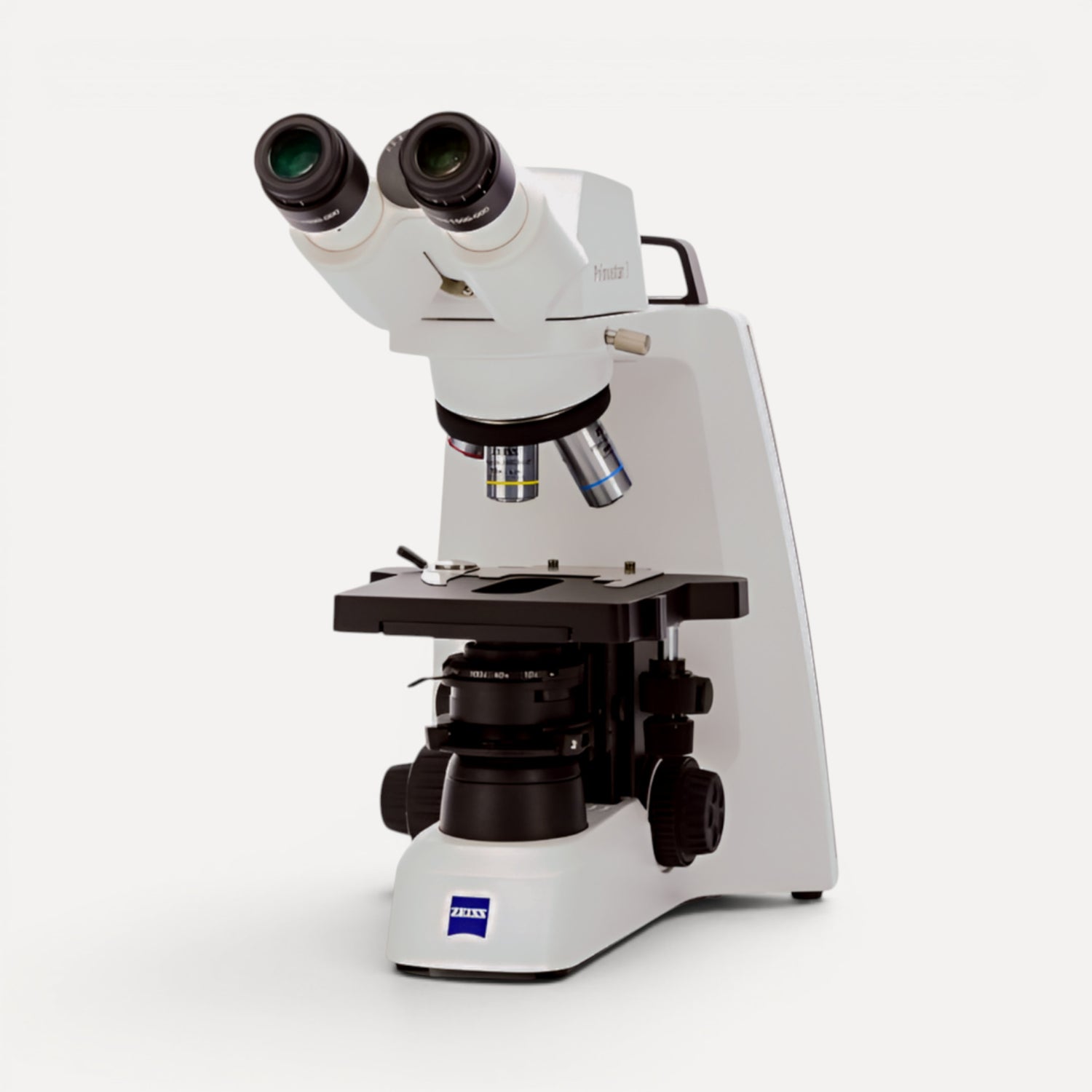

ZEISS Primostar 3 Binocular – Transmitted Light Microscope for Education with 10x, 20x, 40x and 100x Oil Objective

€1.692,00 €1.880,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Robust Transmitted Light Microscopy for Training and Routine Operations

The ZEISS Primostar 3 Fix-Köhler is a reliable transmitted light microscope for training, education, and lab routine.
With Fix-Köhler illumination, a binocular photo tube, and energy-efficient LED transmitted light illumination, it offers a stable and low-maintenance solution for daily use.

The iPlan-Achromat objectives up to 100x oil, the mechanical stage, and its ease of use make this system particularly suitable for beginners, classrooms, and standardized applications.

Key Features

  • Fixed Köhler transmitted light microscope

  • Binocular photo tube (50:50)

  • LED transmitted light illumination 1 W

  • 4-position objective revolver

  • Mechanical stage 75 × 40 mm

  • iPlan-Achromat objectives up to 100x oil

  • Low-maintenance, robust design

Ideal for

  • Biology and medical education

  • Schools and universities

  • Routine transmitted light microscopy

  • Courses and multi-user environments

  • Basic investigations with oil immersion

Application Examples

Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Fix-Köhler Transmitted Light Microscope with Binocular Head for Education and Routine

System Features

– Fixed Koehler stand
– Transmitted light illumination 1W LED, white light approx. 5600K
– 5V USB port
– Country-specific power cable
– Dust cover

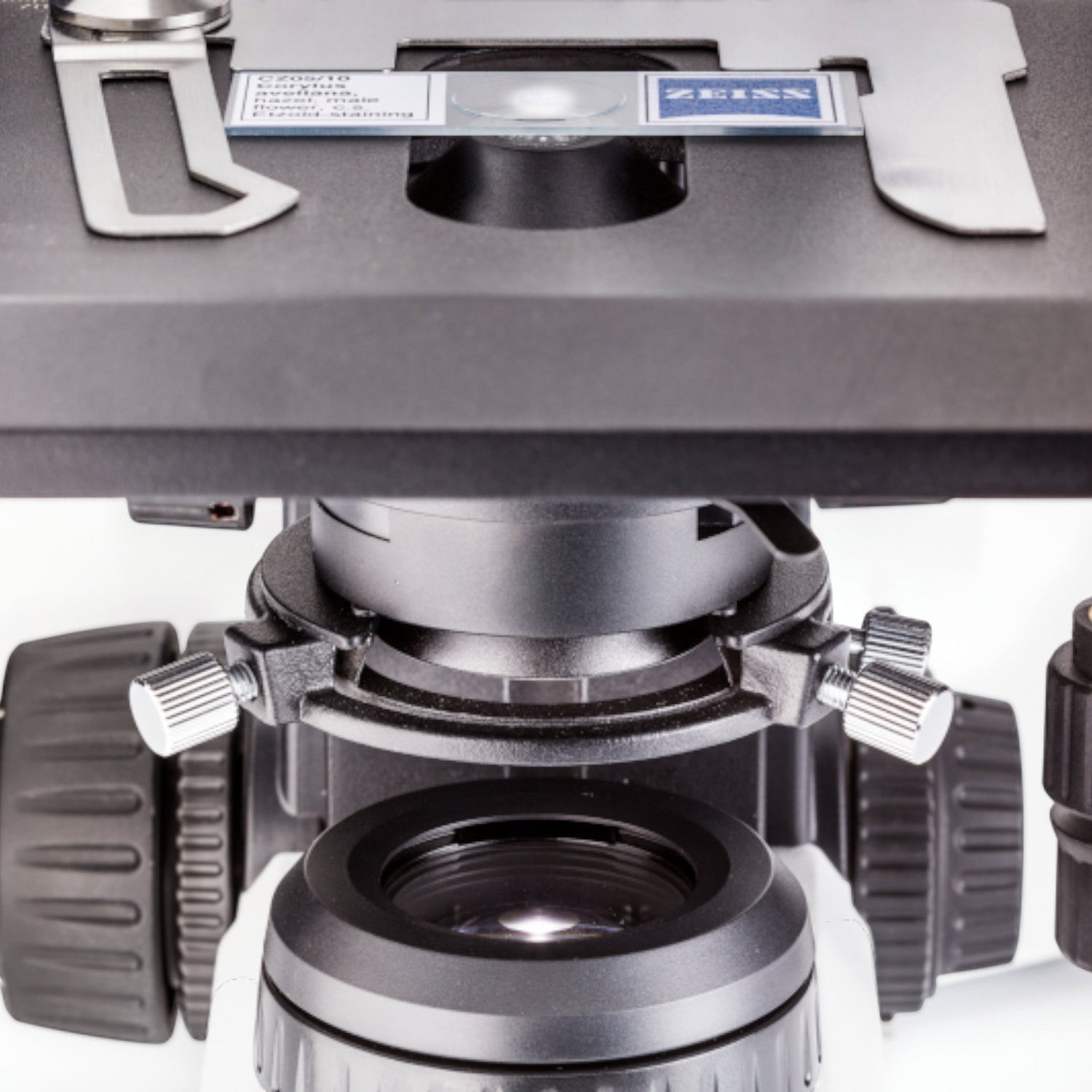

Stage and Mechanics

– Cross stage 75 × 40 mm
– Right-hand stage drive
– Specimen holder for one slide
– Left-hand spring lever

Tube

– Binocular phototube 25° / field of view 20
– Beam splitter 50% visual / 50% camera

Eyepieces and Accessories

– Eyepiece 10× / 20 Br. foc., 1× with pointer
– Eyecups

Nosepiece and Objectives

– 4-position nosepiece, backward-facing

Objectives:
– iPlan Achromat 10× / 0.25 D = 0
– iPlan Achromat 20× / 0.45 D = 0
– iPlan Achromat 40× / 0.65 D = 0
– iPlan Achromat 100× / 1.25 Oil D = 0

Objective Accessories

– Oil dispenser with 5 ml immersion oil

Condenser

– Abbe condenser 0.9 / 1.25 with slot
