Zeiss SKU: 490705-0003-000

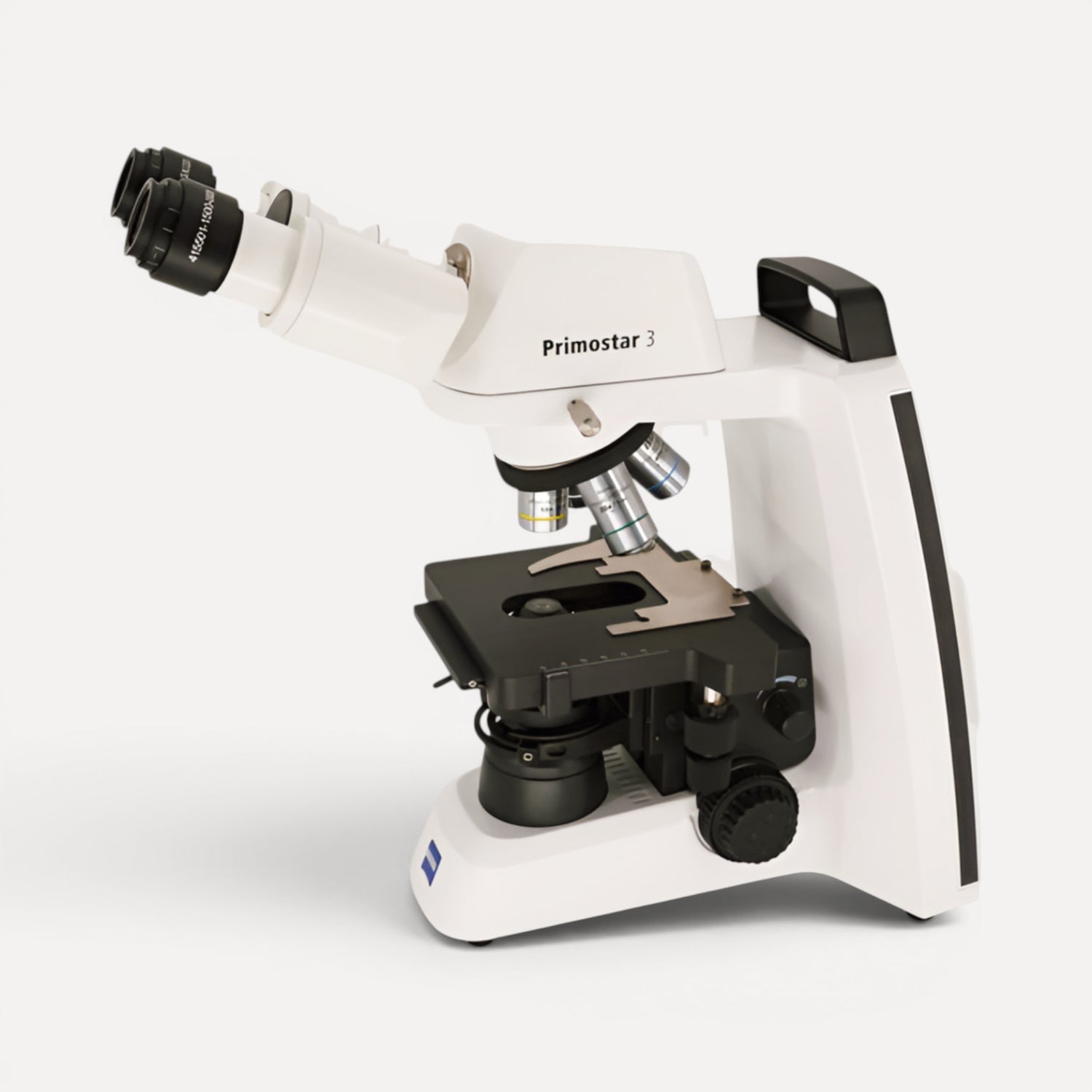

ZEISS Primostar 3 Binocular with 10x, 20x, 40x, and 100x Oil Objectives – Transmitted Light Microscope

€2.052,00 €2.281,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Compact Fixed-Köhler Microscope for Routine and Education

The ZEISS Primostar 3 Fixed-Köhler Binocular is a robust transmitted light microscope for daily use in education, teaching, and routine applications.
Its LED transmitted light illumination, binocular tube, and classic objective set up to 100× oil immersion offer reliable optical performance with easy operation.

Thanks to the Fixed-Köhler stand, the system is particularly low-maintenance and ideal for environments with frequently changing users.

Key Features

  • Fixed-Köhler transmitted light microscope

  • Binocular tube

  • 1 W LED illumination

  • 4-position objective revolver

  • Mechanical stage 75 × 40 mm

  • Objectives up to 100× oil immersion

  • Compact, robust design

Ideal for

  • Education and training

  • Routine laboratories

  • Basic medical work

  • Biology and teaching microscopy

  • Users requiring 100× oil

Application examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Binocular Fix-Köhler Transmitted Light Microscope with 100× Oil Immersion

System Features

– Fixed Koehler stand
– Transmitted light illumination 1 W LED, white light approx. 5600 K

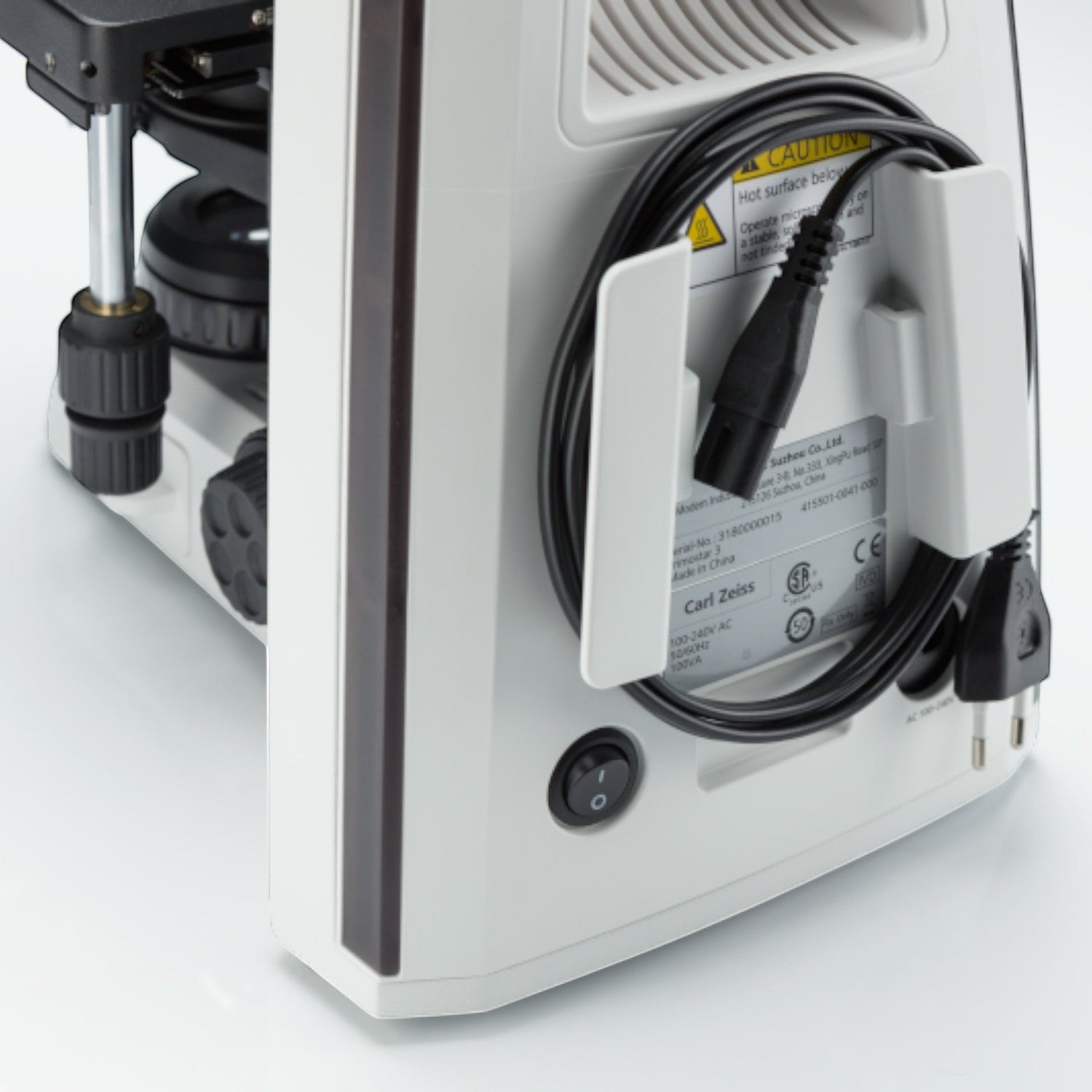

– 5 V USB port
– Country-specific power cord
– Dust cover

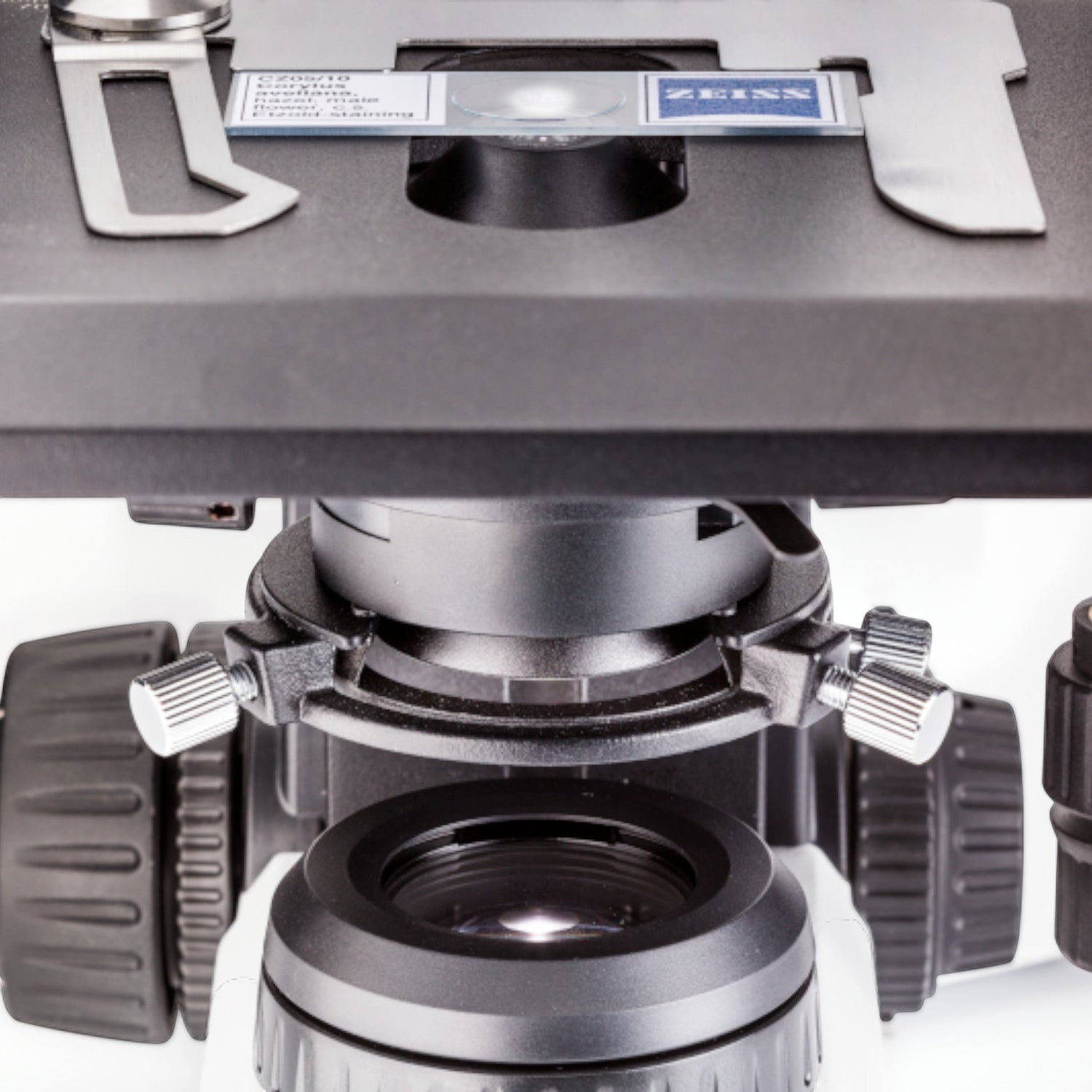

Stage and Mechanics

– Cross stage 75 × 40 mm
– Right-hand stage drive
– Specimen holder for one slide
– Left-hand spring lever

Tube

– Binocular tube 25° / field number 20

Eyepieces and Accessories

– Eyepiece 10× / 20 Br. foc.
– 1× Eyepiece with pointer
– Eyecups

Nosepiece and Objectives

– 4-position nosepiece, backward inclined

Objectives:
– iPlan-Achromat 10× / 0.25 D=0
– iPlan-Achromat 20× / 0.45 D=0
– iPlan-Achromat 40× / 0.65 D=0
– iPlan-Achromat 100× / 1.25 Oil D=0

Objective Accessories

– Oiler with 5 ml immersion oil

Condenser

– Abbe condenser 0.9 / 1.25 with slot
