Zeiss SKU: 415501-0071-000

ZEISS Primostar 3 Cam Transmitted Light Microscope with Integrated Camera

€3.342,00 €3.714,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Reliable microscopy for teaching and routine tasks

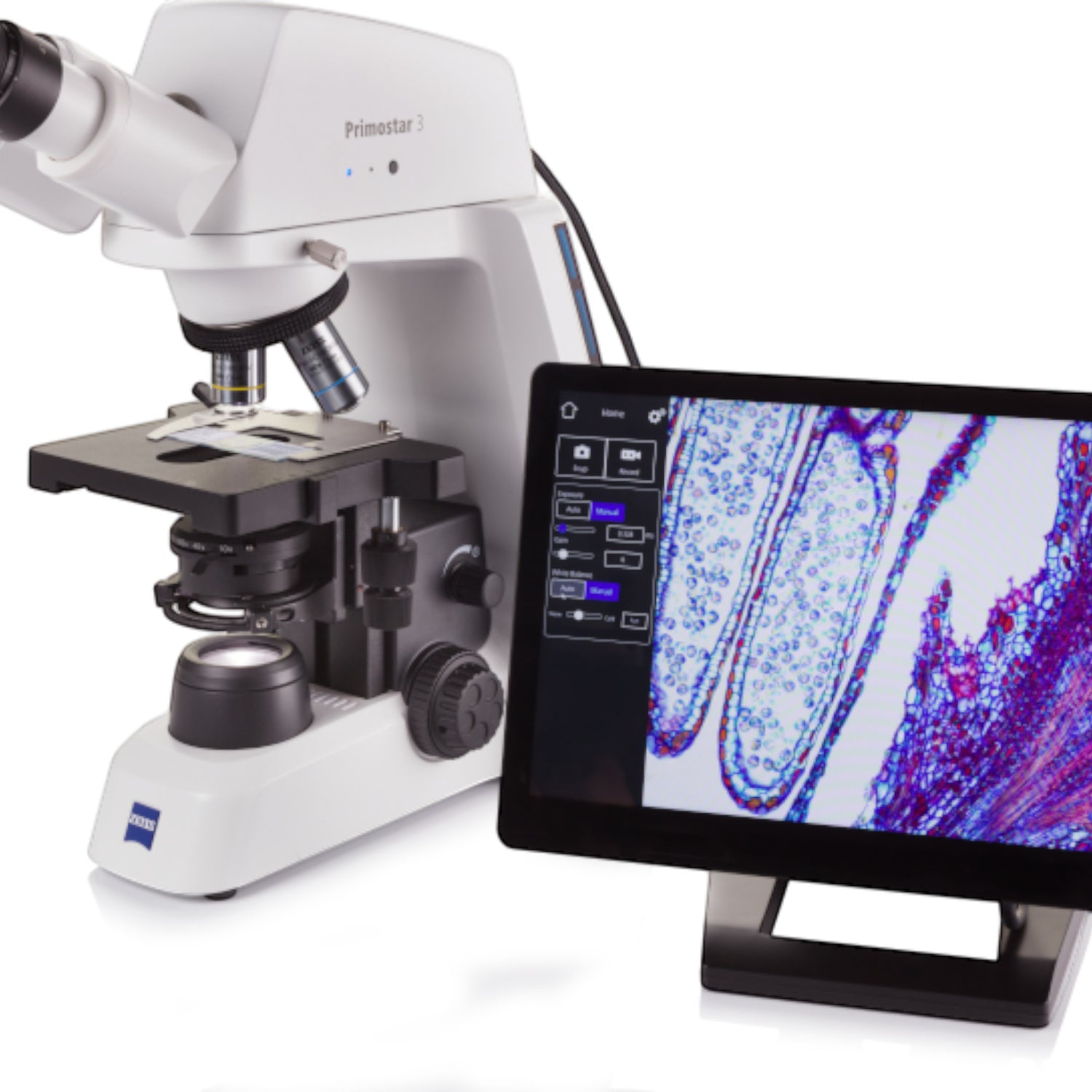

The ZEISS Primostar 3 is a robust transmitted light microscope for training, education, and lab routines.
In this fixed-Köhler configuration with an integrated 8 MP camera, it enables simple visual and digital microscopy in Ultra HD quality (4K) – without complex adjustments.

Key features

  • Fixed-Köhler stand with LED transmitted light illumination

  • Integrated 8 MP camera (Ultra HD / 4K)

  • Binocular tube with 50:50 beam splitter for visual inspection & documentation

  • Mechanical stage 75 × 40 mm

  • iPlan Achromat objectives for routine applications

  • ECO mode and intelligent Light Manager

  • Network-compatible for digital teaching and documentation

Ideal for

  • Training and education

  • Universities and schools

  • Routine lab work

  • Digital microscopy and documentation

  • Networked classrooms and training rooms


Application examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Transmitted light microscope for education and laboratory routine with integrated UHD camera

System Overview

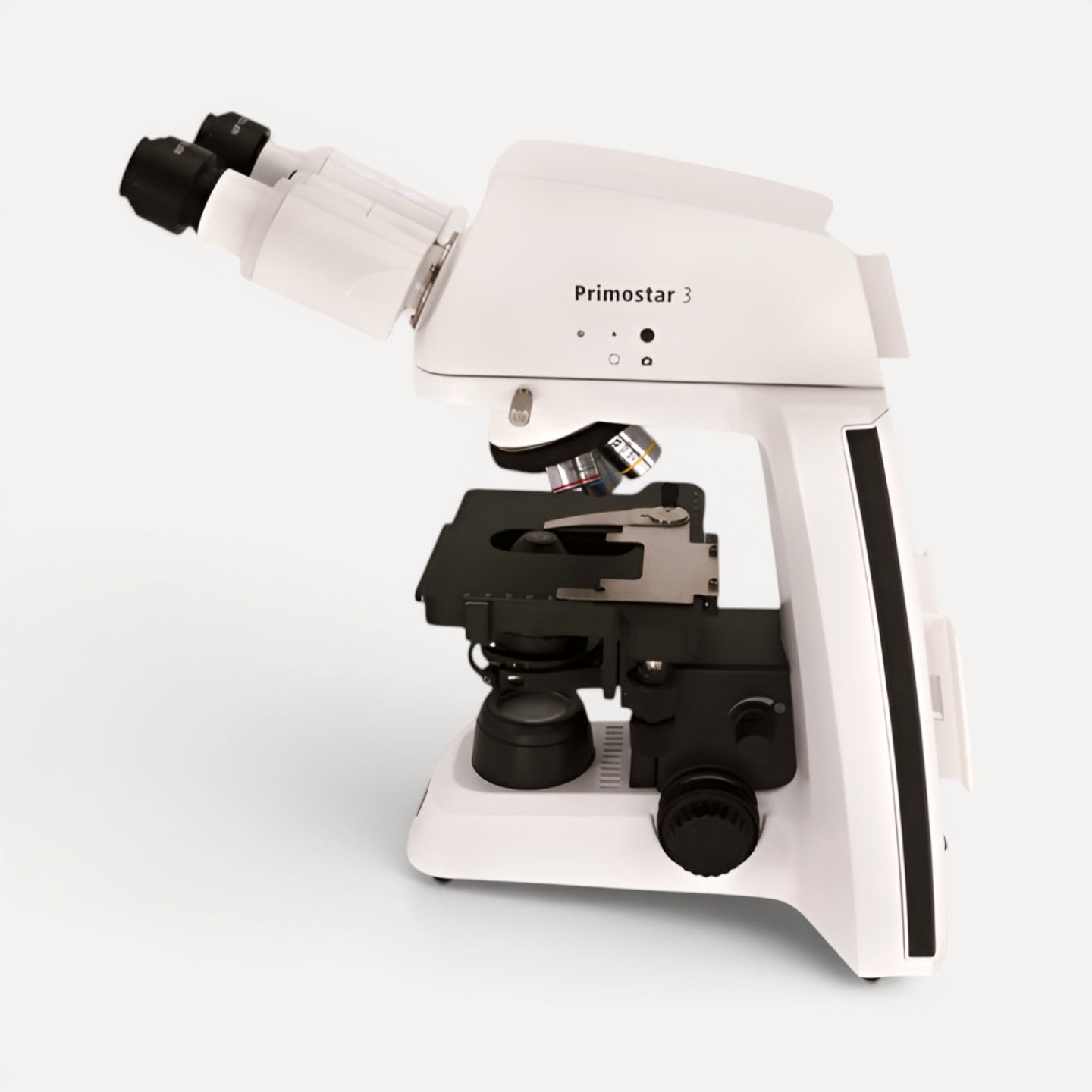

– Fixed Köhler stand with LED transmitted light illumination
– 1 W white LED, color temperature approx. 5600 K

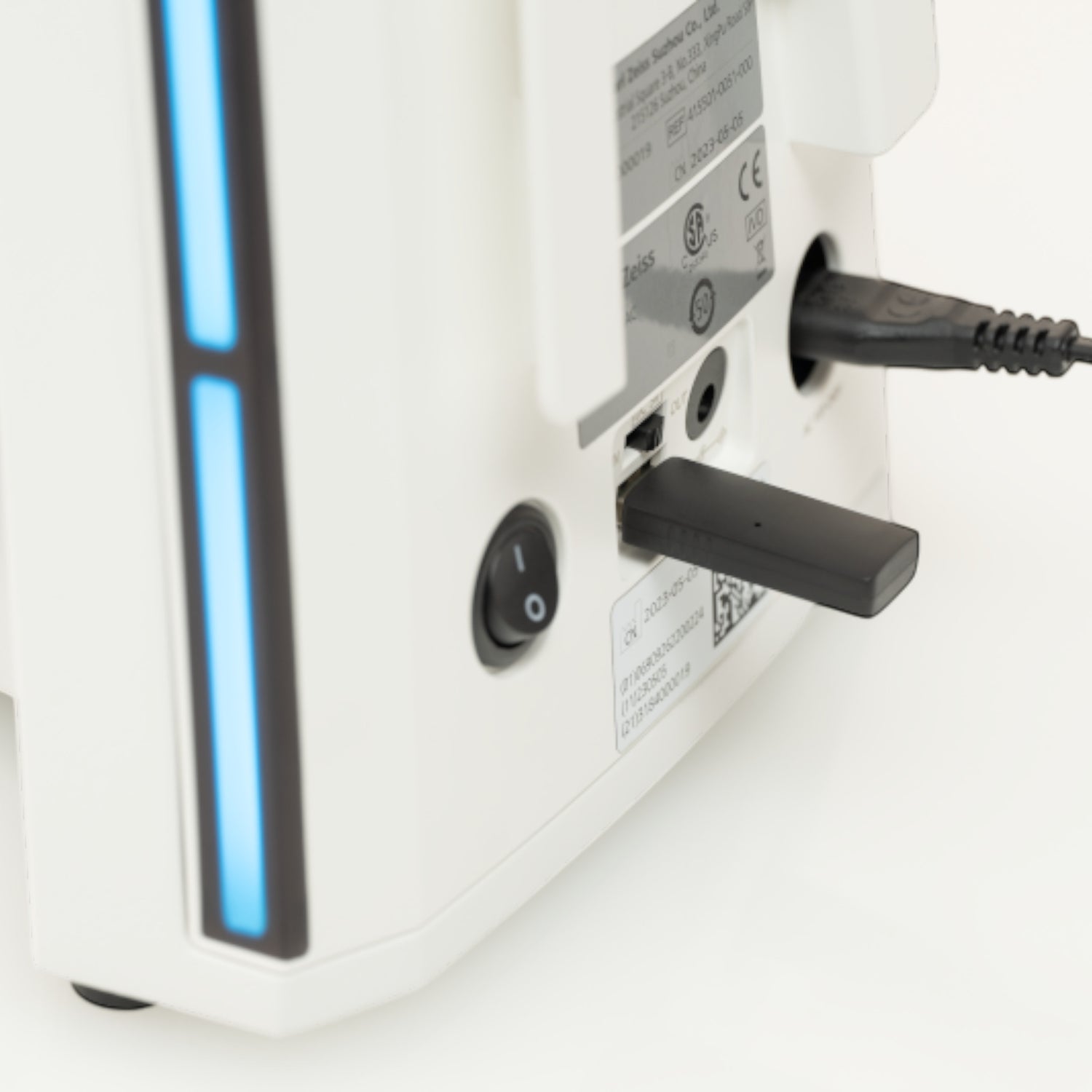

– 5 V USB port
– Light Manager
– ECO mode (automatic shutdown)

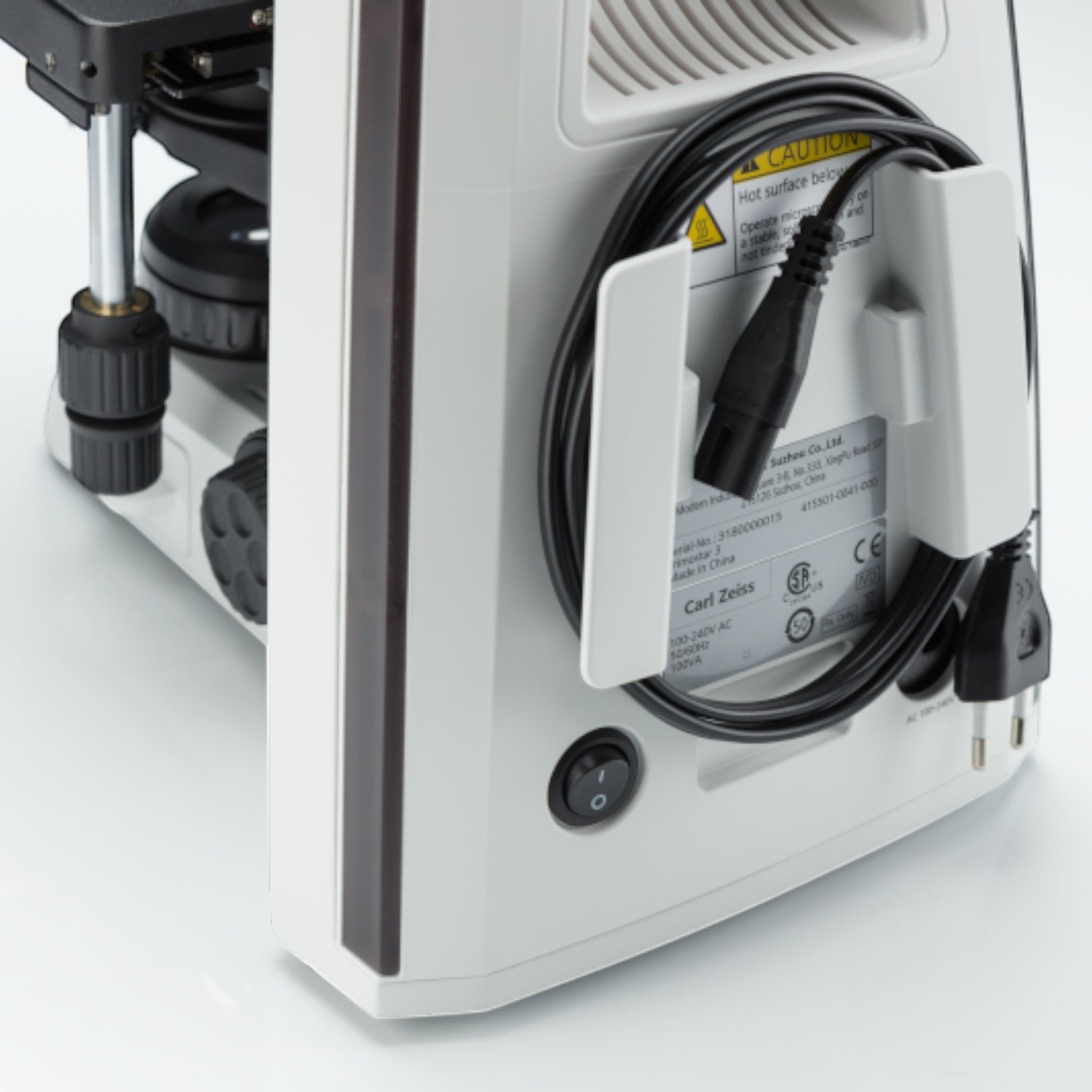

– Country-specific power cable
– Dust cover

Stage and Mechanics

– Cross stage 75 × 40 mm
– Right-hand stage drive
– Specimen holder for one slide
– Left-hand spring lever

Tube

– Binocular tube 25° / field of view 20
– Splitting ratio 50 % visual / 50 % documentation
– Integrated camera

Eyepieces

– Eyepieces 10× / 22 Br. foc.
– Eyecups

Objectives

– iPlan-Achromat 4×
– iPlan-Achromat 10×
– iPlan-Achromat 40×

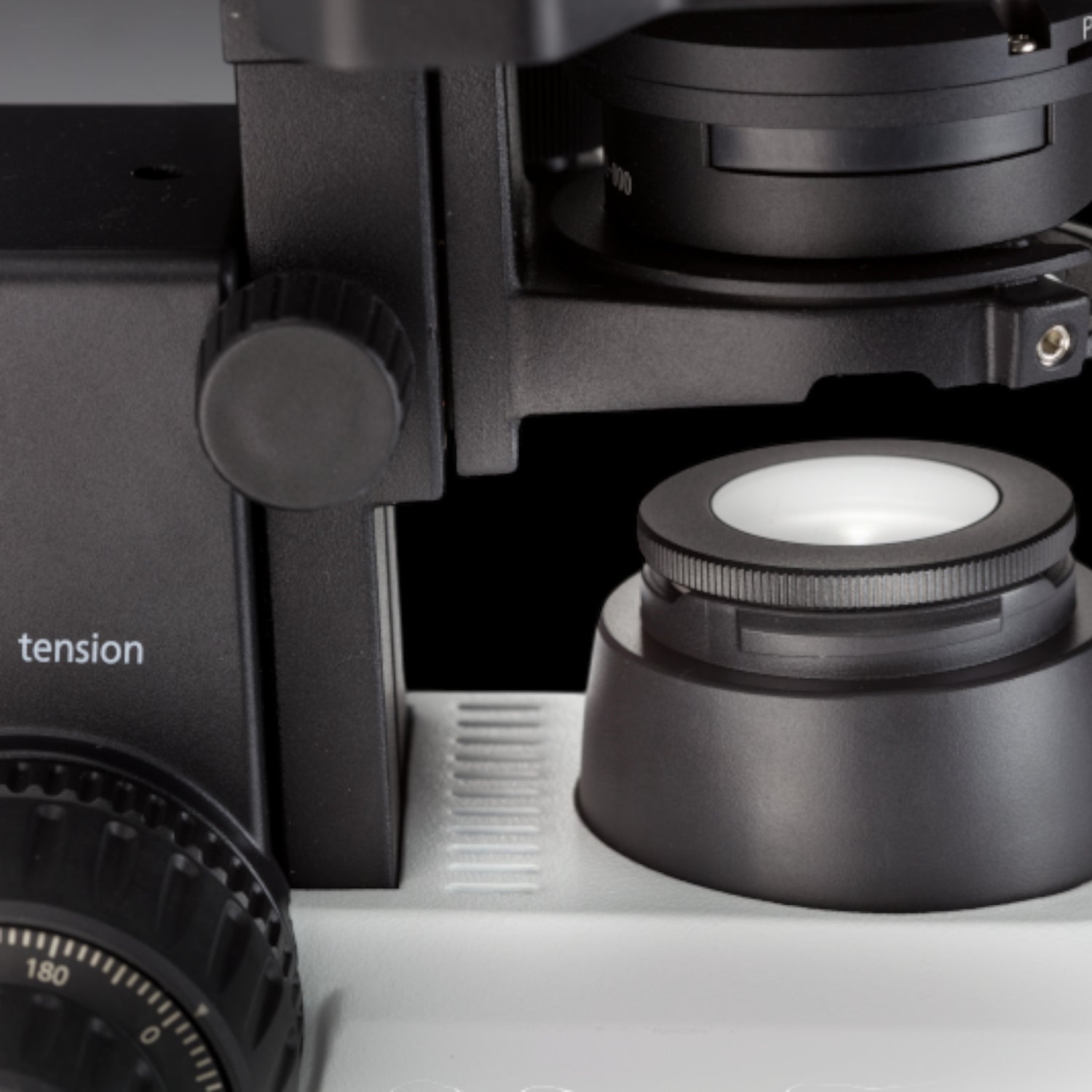

Condenser

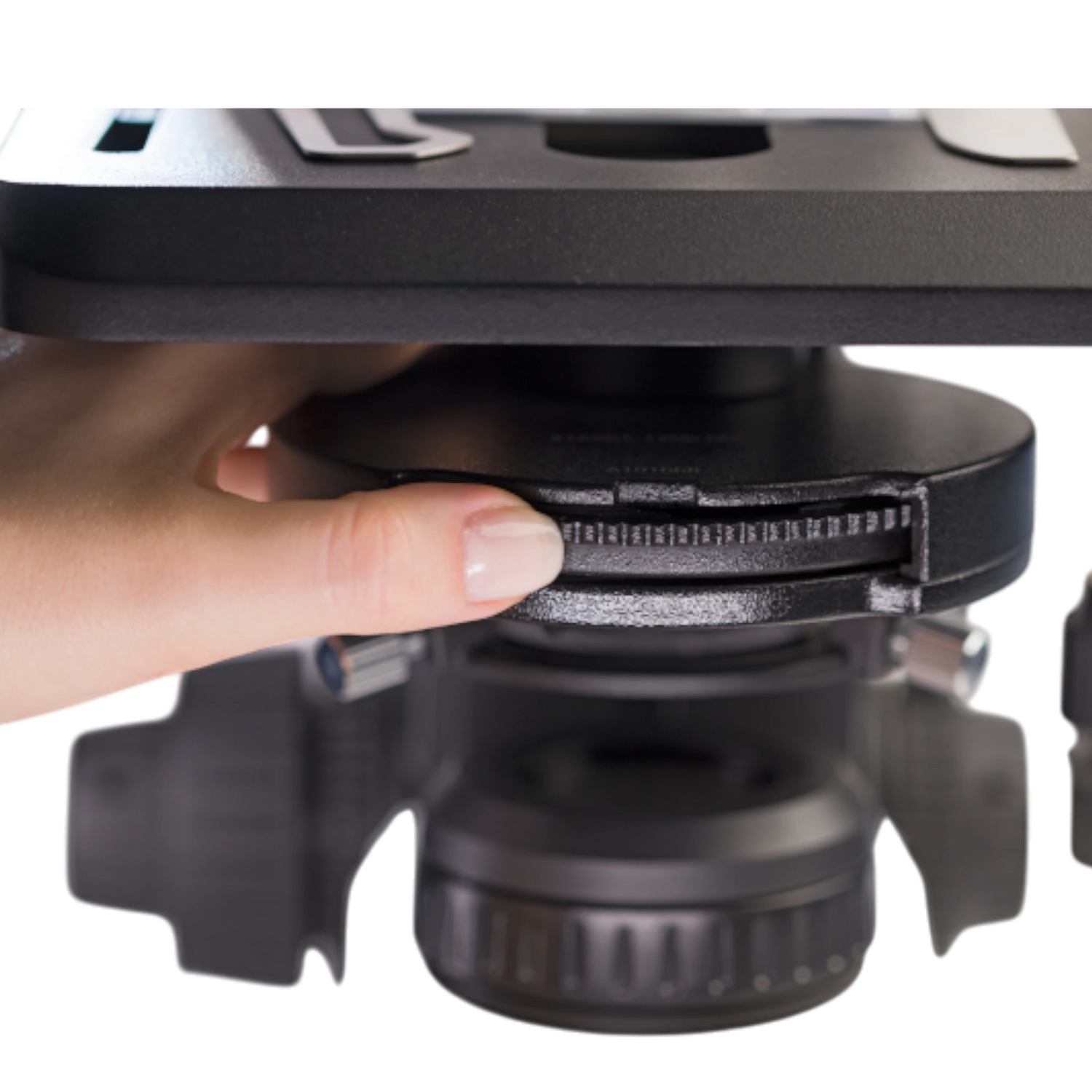

– Abbe condenser 0.9 / 1.25 with slot

Integrated Camera – Technical Data

– Resolution: 3840 × 2160 pixels (8.3 MP, 4K UHD)
– Sensor: Sony CMOS color sensor
– Frame rate HDMI: up to 30 fps @ 4K / Full HD

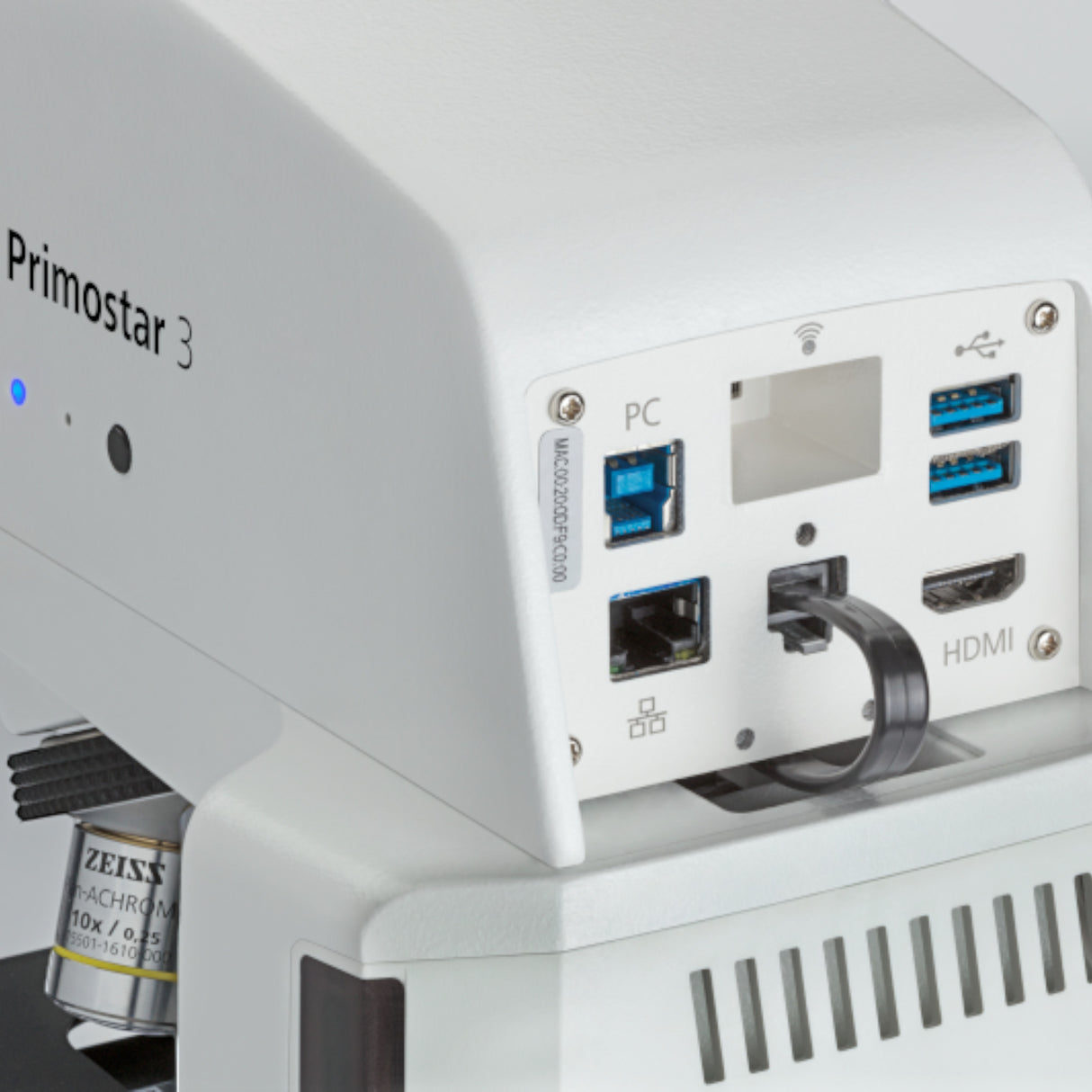

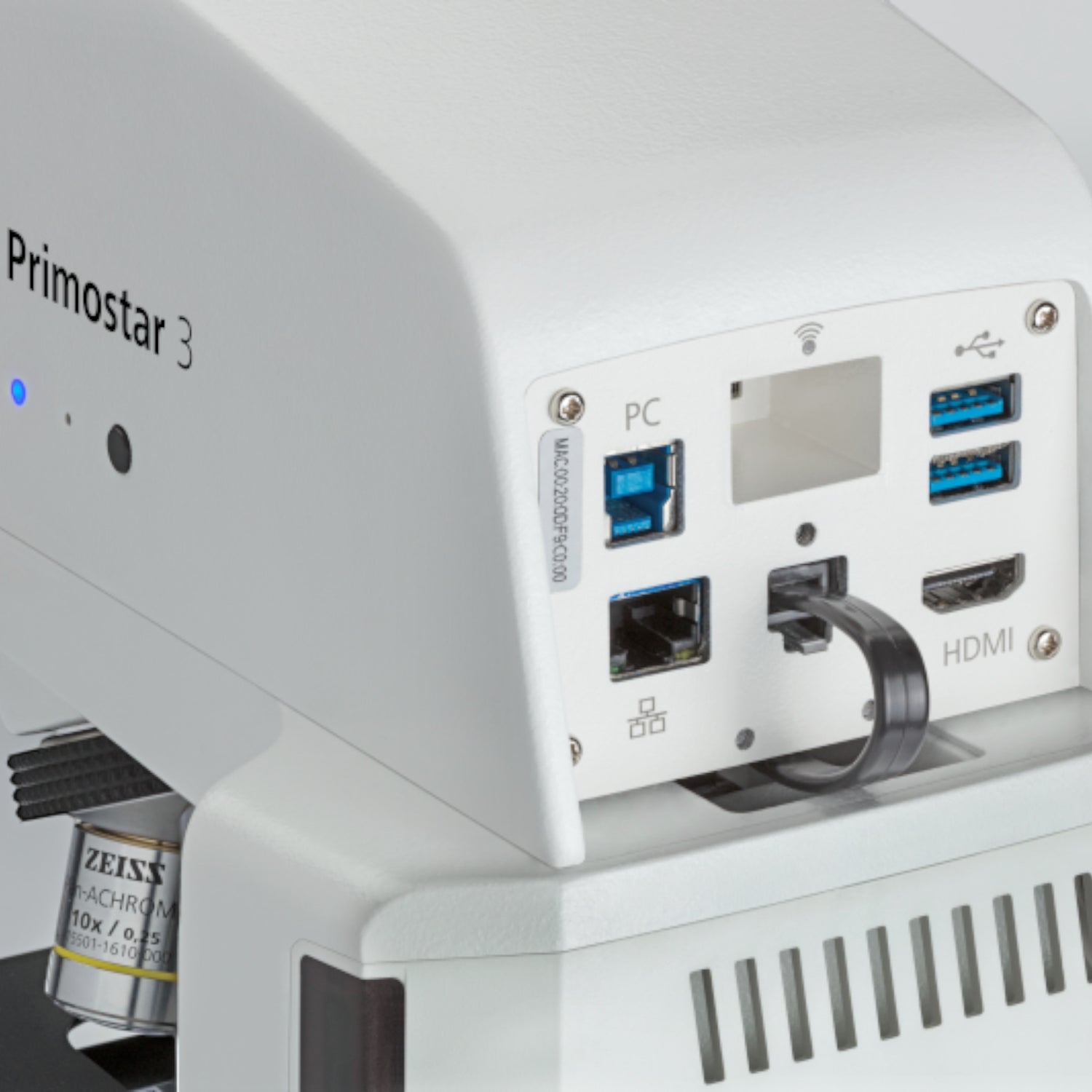

– Interfaces: HDMI, USB 3.0, Ethernet (RJ45)
– File formats: TIFF, JPG, MP4
– Software: ZEN blue, ZEN core, Labscope
– Network-enabled for multi-user and teaching operation
