Zeiss SKU: 490705-0006-000

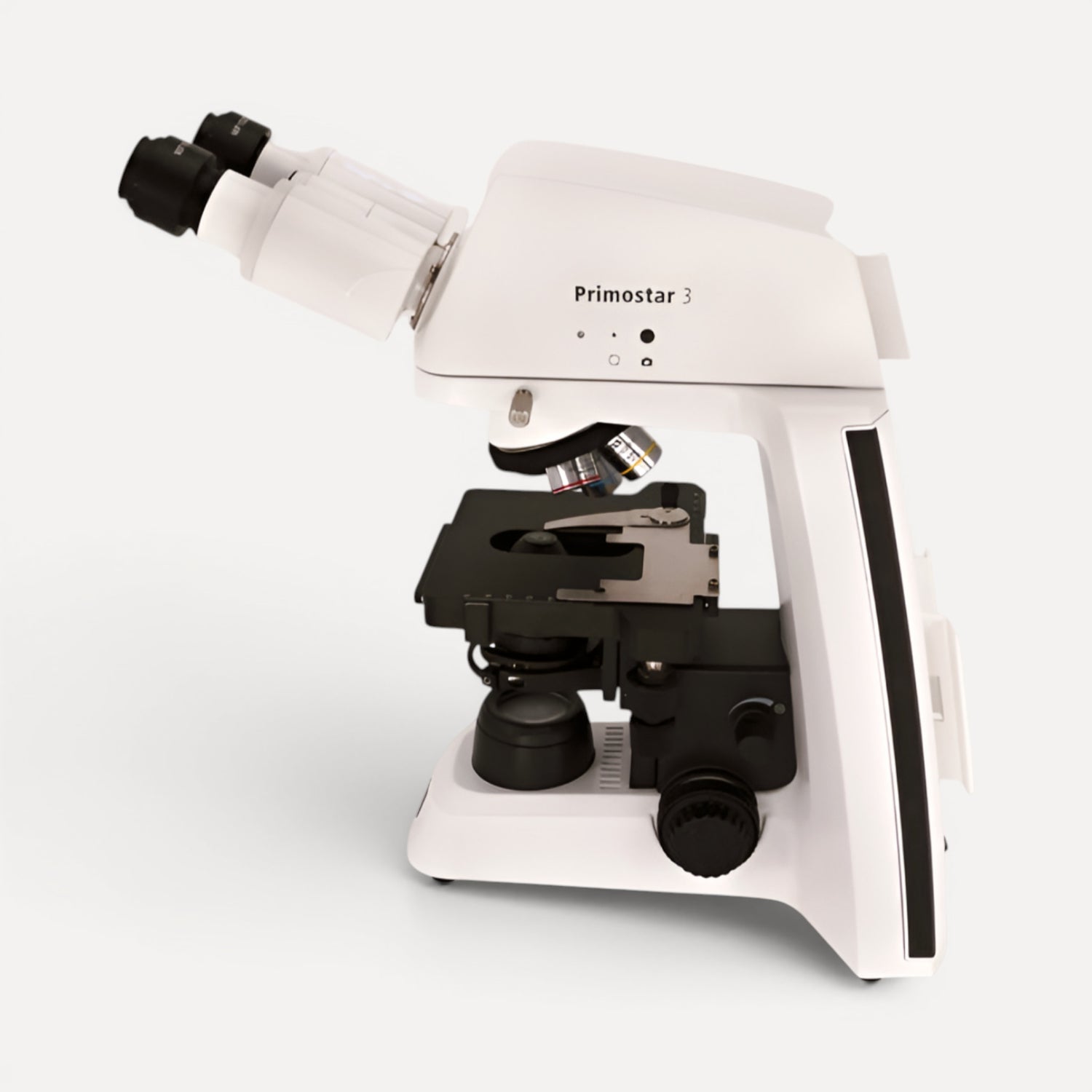

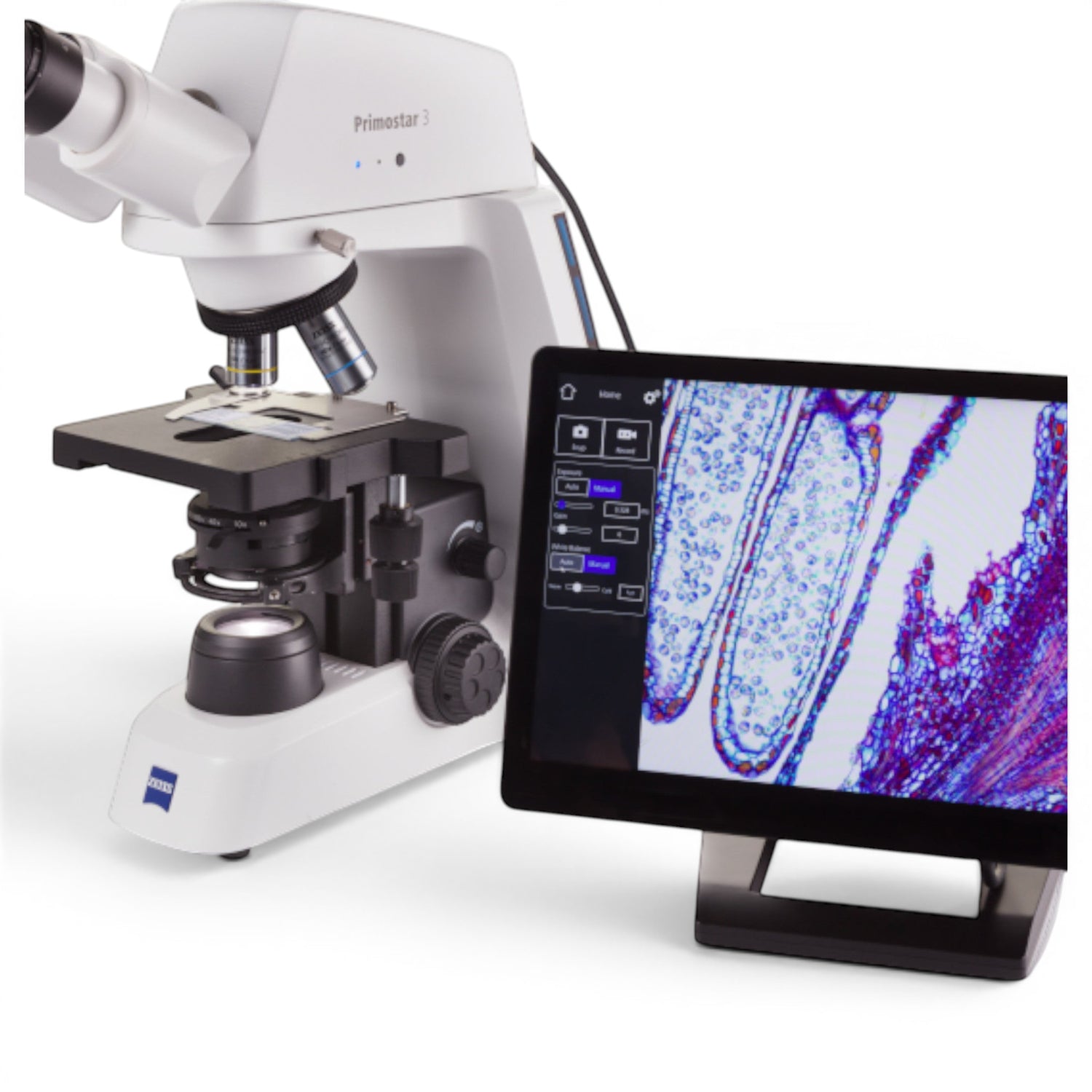

ZEISS Primostar 3 with integrated camera & 100x oil – transmitted light microscope

€2.941,00 €3.268,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Versatile Routine and Educational Microscopy with Oil Immersion

The ZEISS Primostar 3 in this fixed-Köhler configuration is a robust transmitted-light microscope for education, teaching, and laboratory routine.
Thanks to the integrated 100× oil immersion objective and 5 MP camera, the system is ideal for higher magnifications and digital documentation – without complex adjustments.

Key Features

  • Fixed-Köhler stand with LED transmitted light illumination

  • Integrated 5 MP camera for digital microscopy

  • Binocular tube with 50:50 beam splitter

  • Mechanical stage 75 × 40 mm

  • iPlan-Achromat objectives including 100× oil immersion

  • Abbe condenser 0.9 / 1.25

  • ECO mode and intelligent LightManager

Ideal for

  • Education and teaching

  • Routine work in biological and medical laboratories

  • Microscopy with oil immersion

  • Digital documentation and analysis

  • Schools, universities, and laboratories


Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Transmitted light microscope with oil immersion and integrated 5MP camera for training and laboratory routine

System Overview

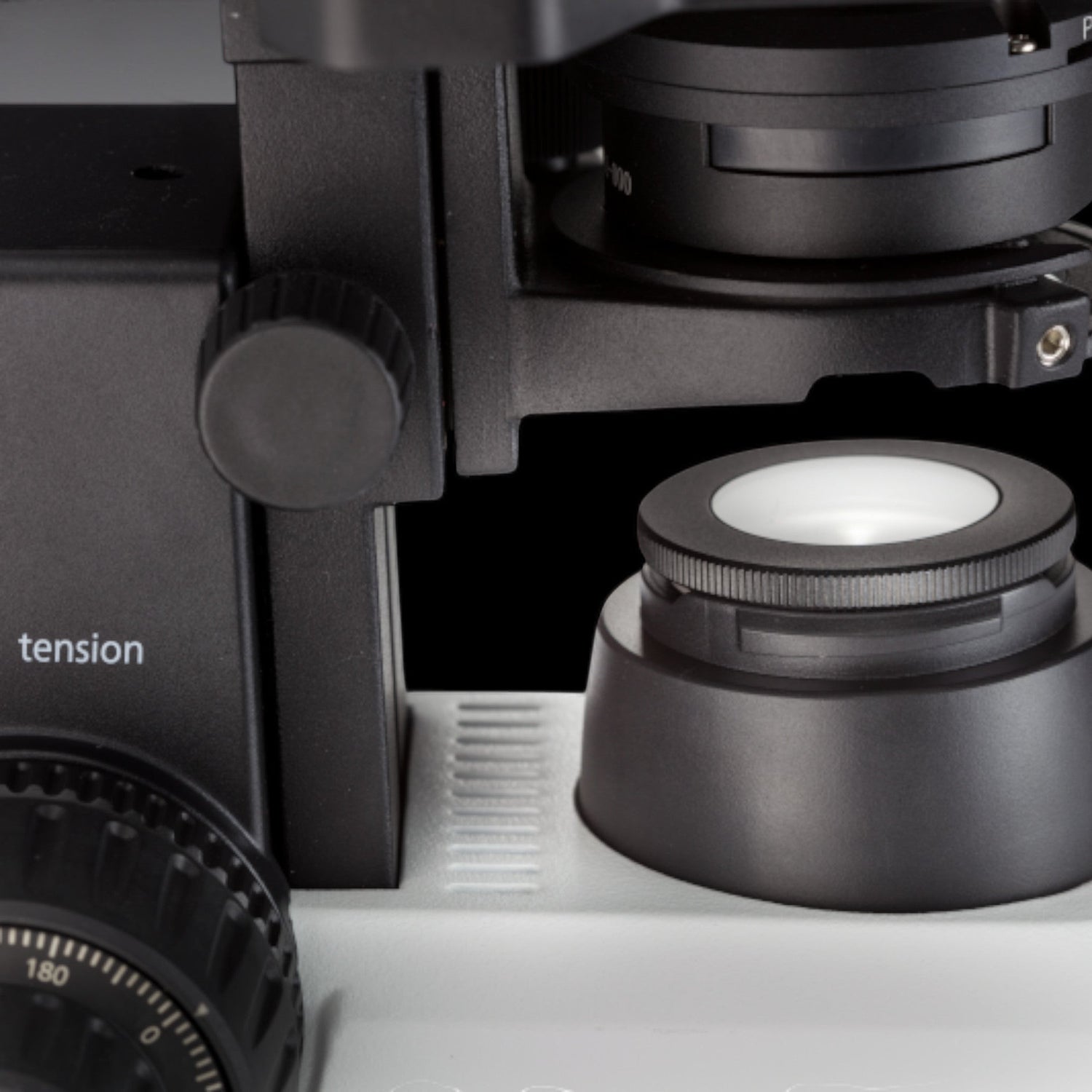

– Fixed-Köhler stand
– LED transmitted light illumination 1 W, white light approx. 5600 K

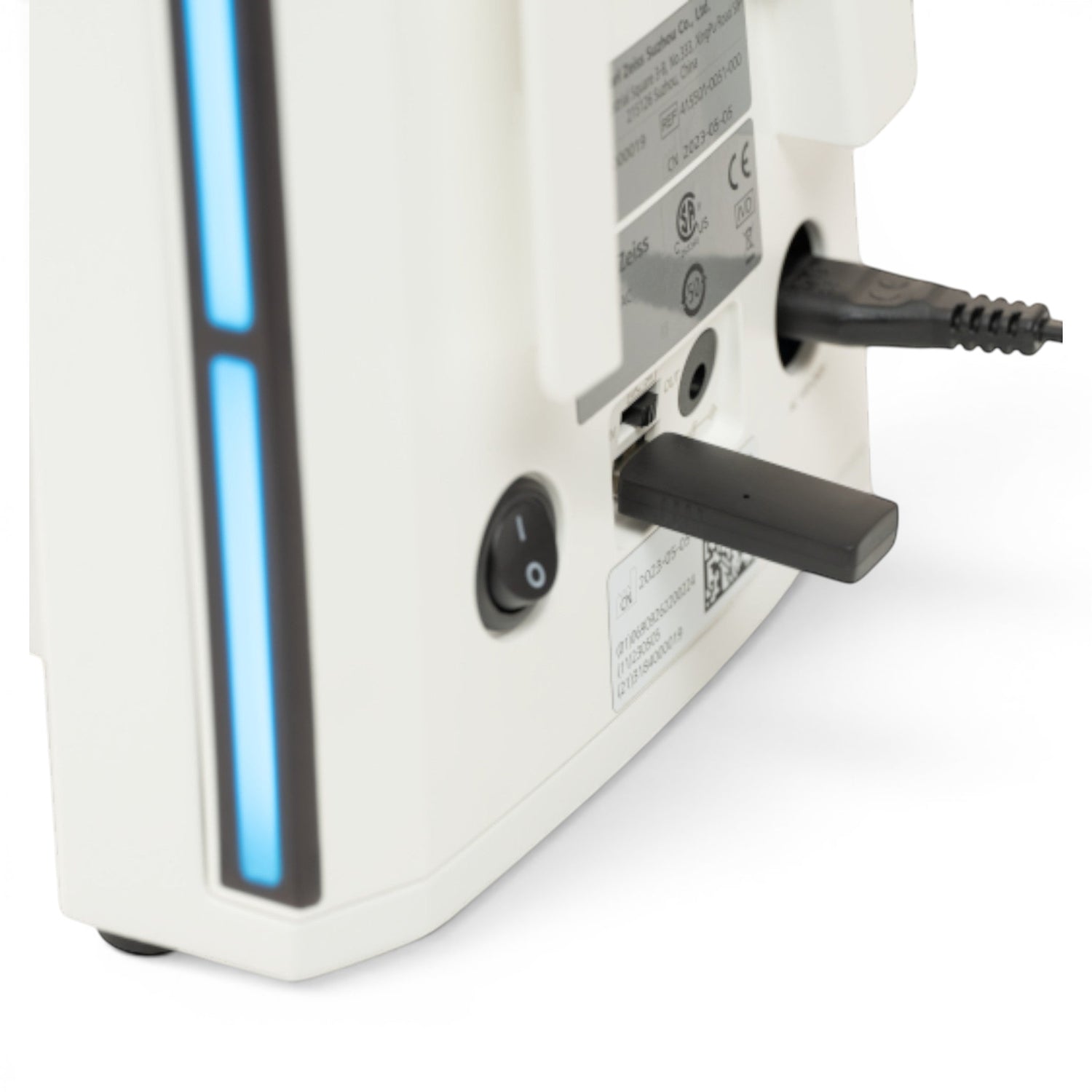

– 5 V USB port
– Light Manager
– ECO mode

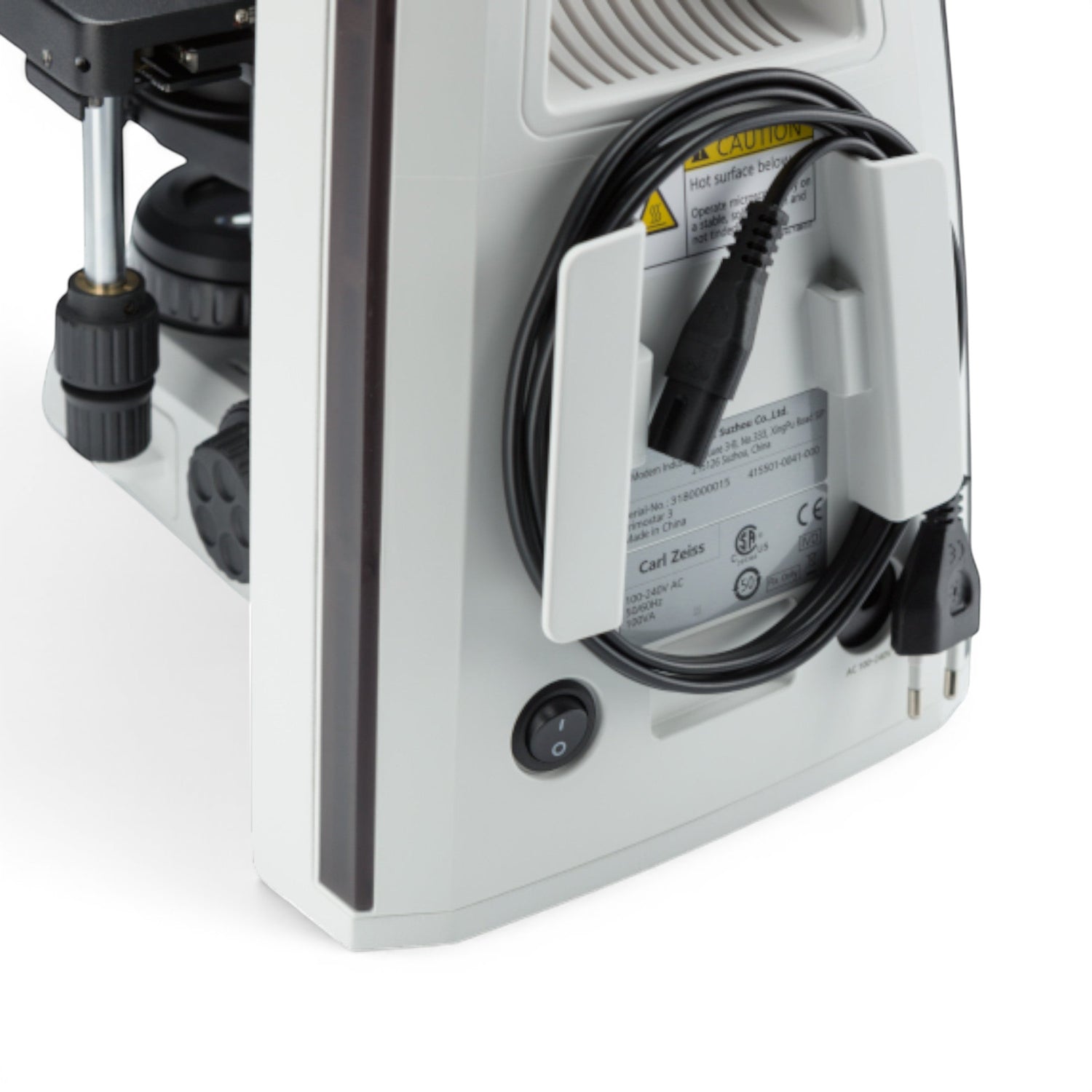

– Country-specific power cord
– Dust cover

Stage and Mechanics

– Mechanical stage 75 × 40 mm
– Right-hand stage drive
– Specimen holder for one slide
– Left-hand spring lever

Tube

– Binocular tube 25° / Field of view 20
– Beam splitter 50 % visual / 50 % documentation
– Integrated camera

Eyepieces

– Eyepieces 10× / 22 Br. foc.
– Eyecups

Nosepiece and Objectives

– 4-position nosepiece, backward-facing

Objectives:
– iPlan-Achromat 4×
– iPlan-Achromat 10×
– iPlan-Achromat 40×
– iPlan-Achromat 100× / 1.25 Oil

Objective Accessories

– Immersion oil, 5 ml

Condenser

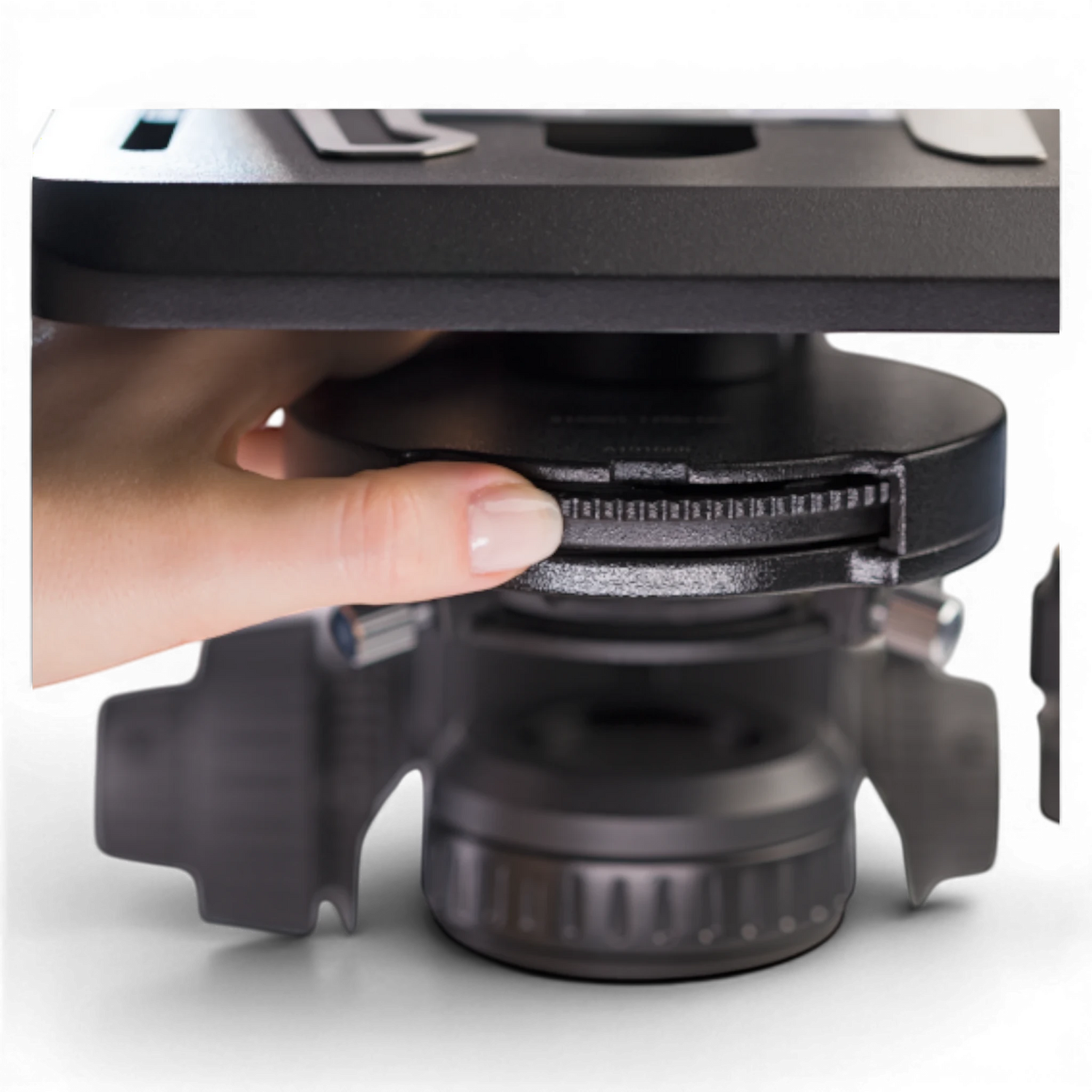

– Abbe condenser 0.9 / 1.25 with slot

Integrated Camera – Technical Data

– Resolution: 5.04 MP (2592 × 1944)
– Live resolution: Full HD (1920 × 1080)
– Sensor: CMOS color sensor with rolling shutter
– Frame rate: up to 30 fps (Labscope)

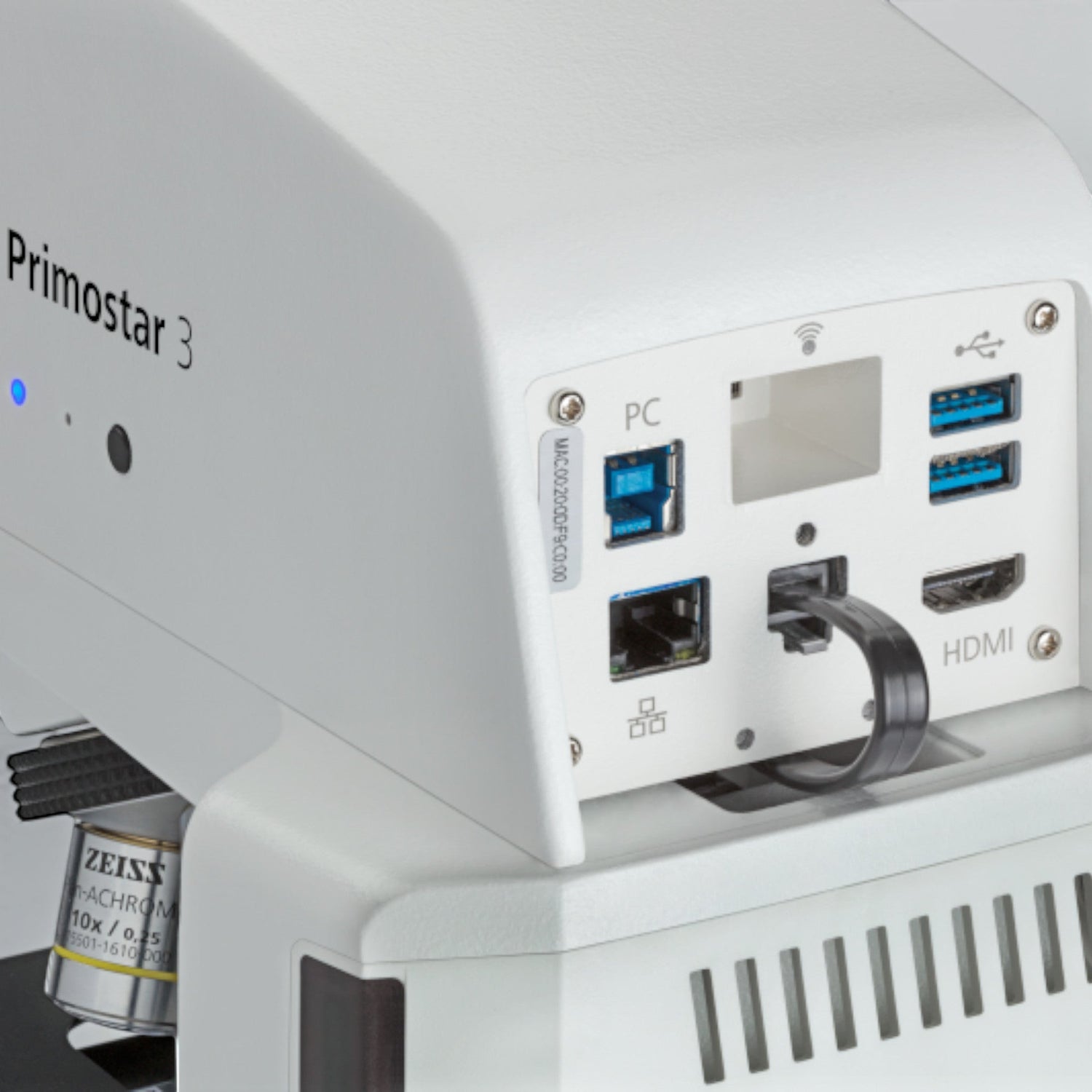

– Interfaces: USB 3.0, Ethernet (RJ45)
– Supported software: ZEISS Labscope (Windows, iOS, Android)
– Network-enabled for digital teaching and documentation
