Zeiss SKU: 415501-0261-000

ZEISS Primostar 3 with integrated camera – transmitted light microscope with iPlan-Achromat 4x, 10x, 40x objectives

€2.580,00 €2.867,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Reliable Educational Microscopy with Digital Documentation

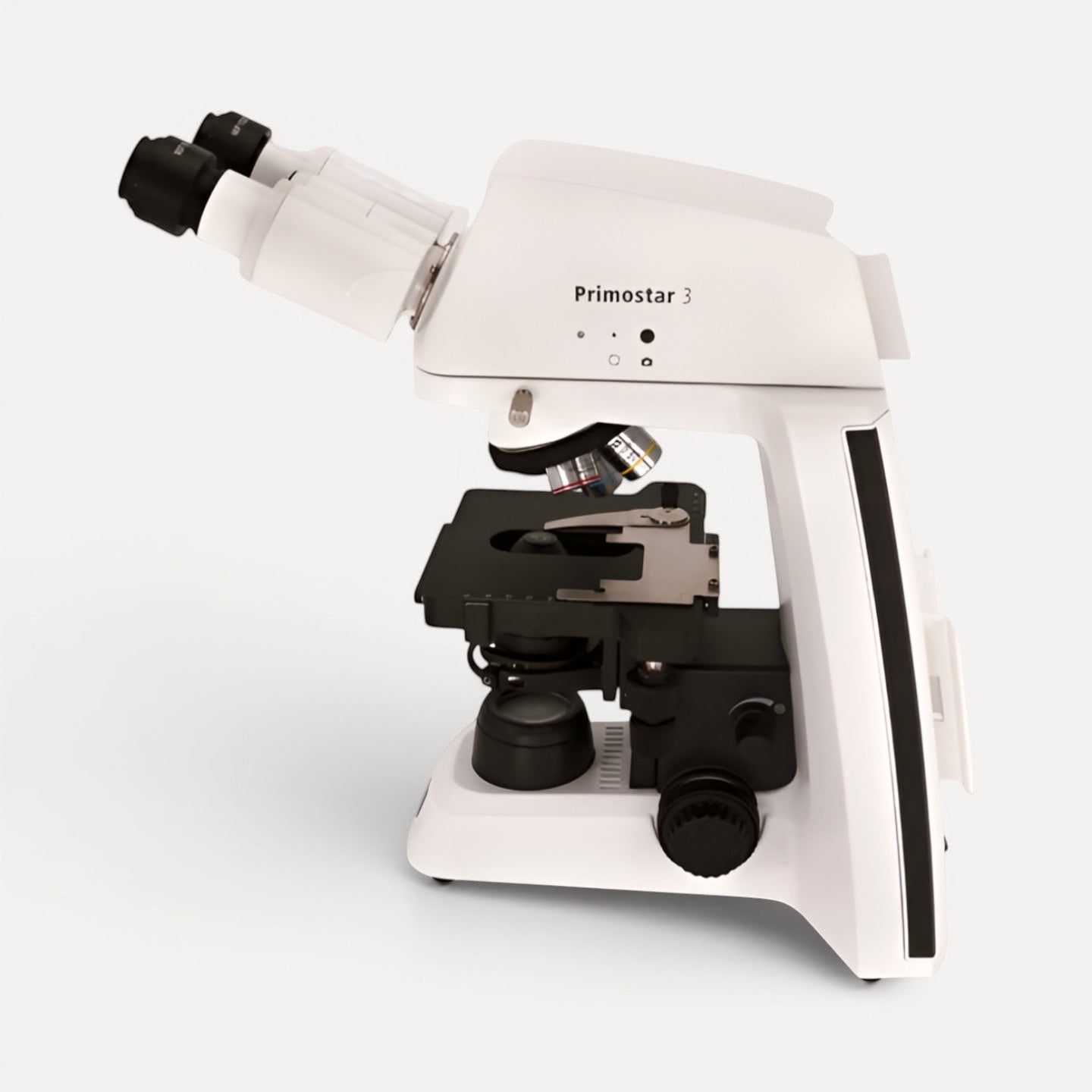

The ZEISS Primostar 3 in the Fixed-Köhler version is a robust transmitted light microscope for education, teaching, and laboratory routine.

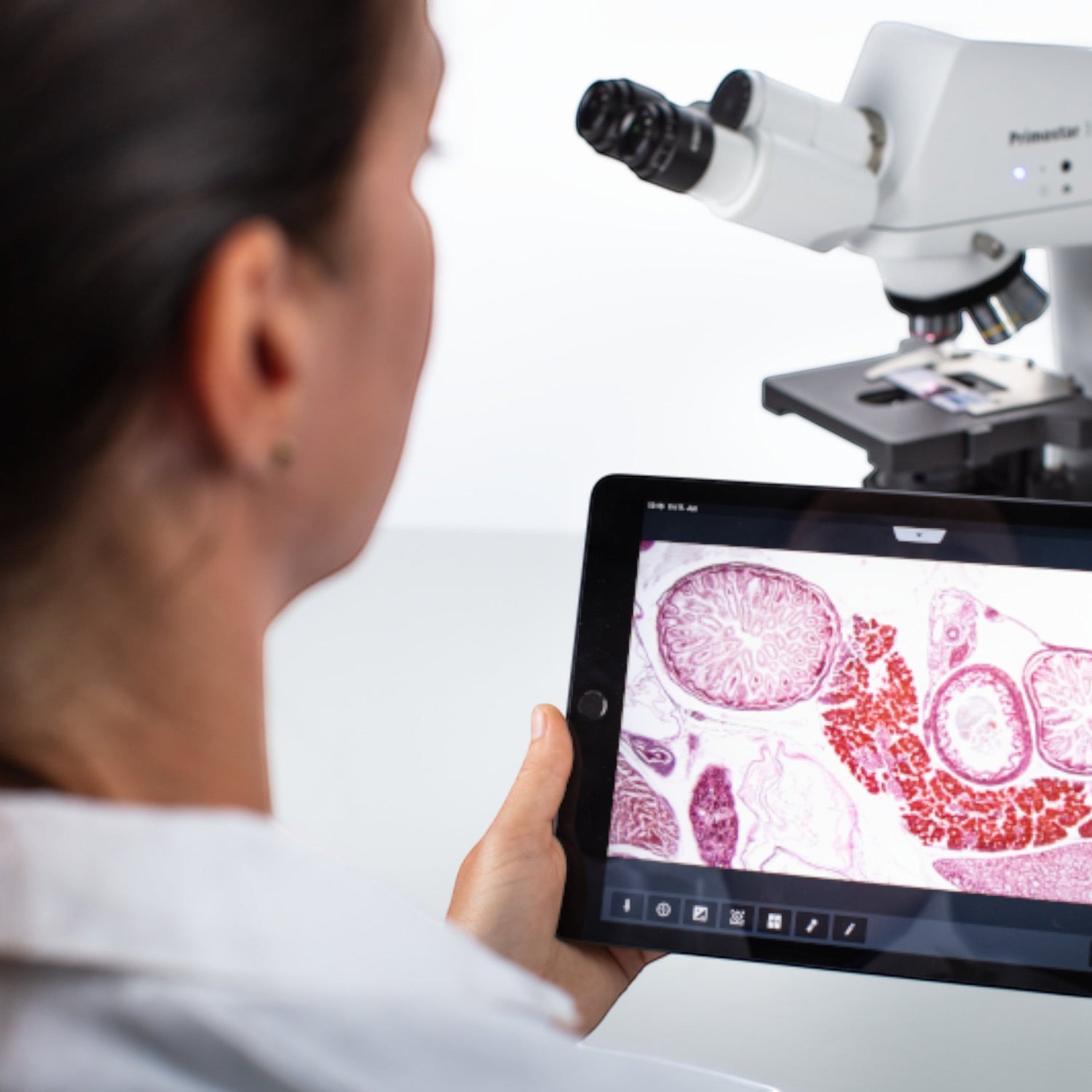

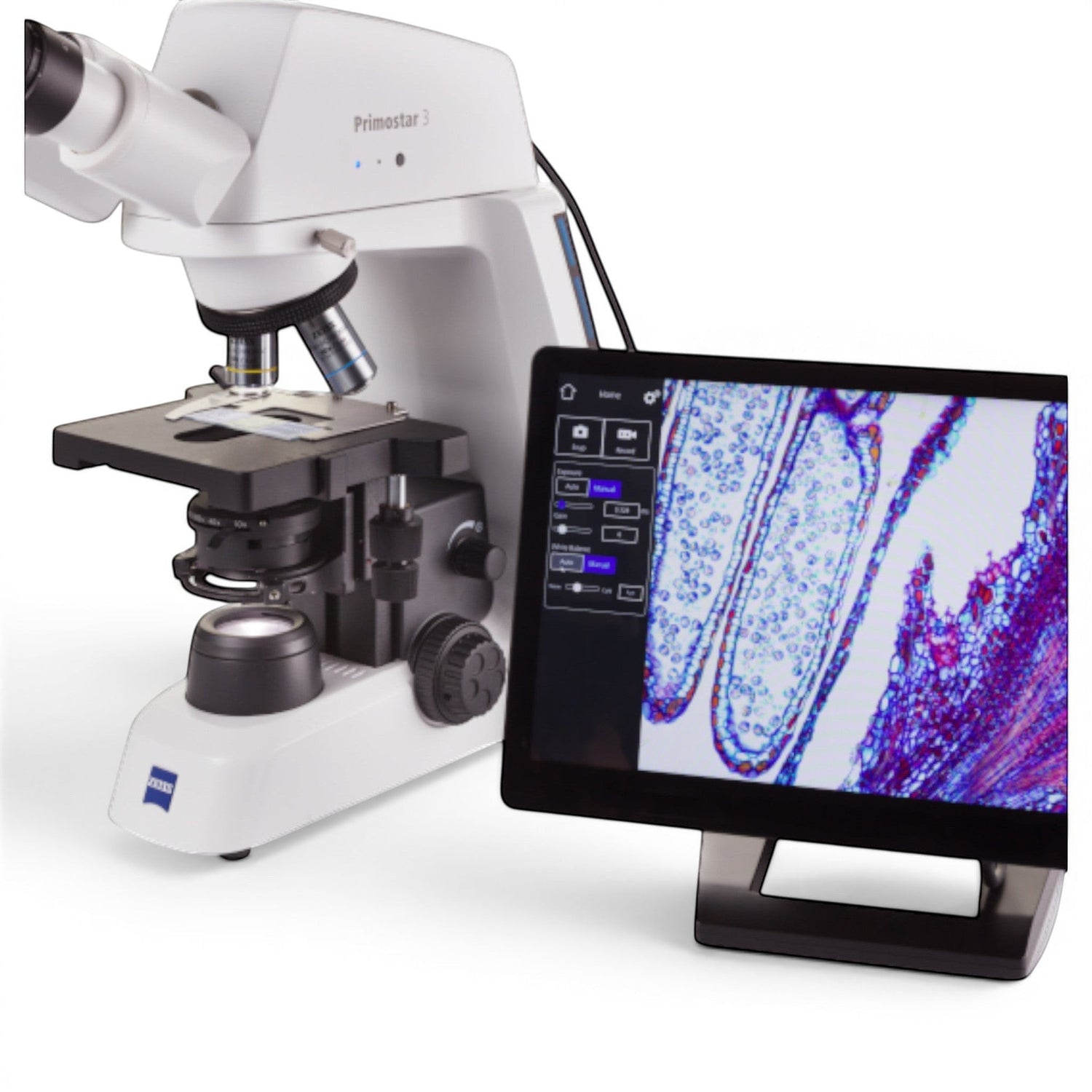

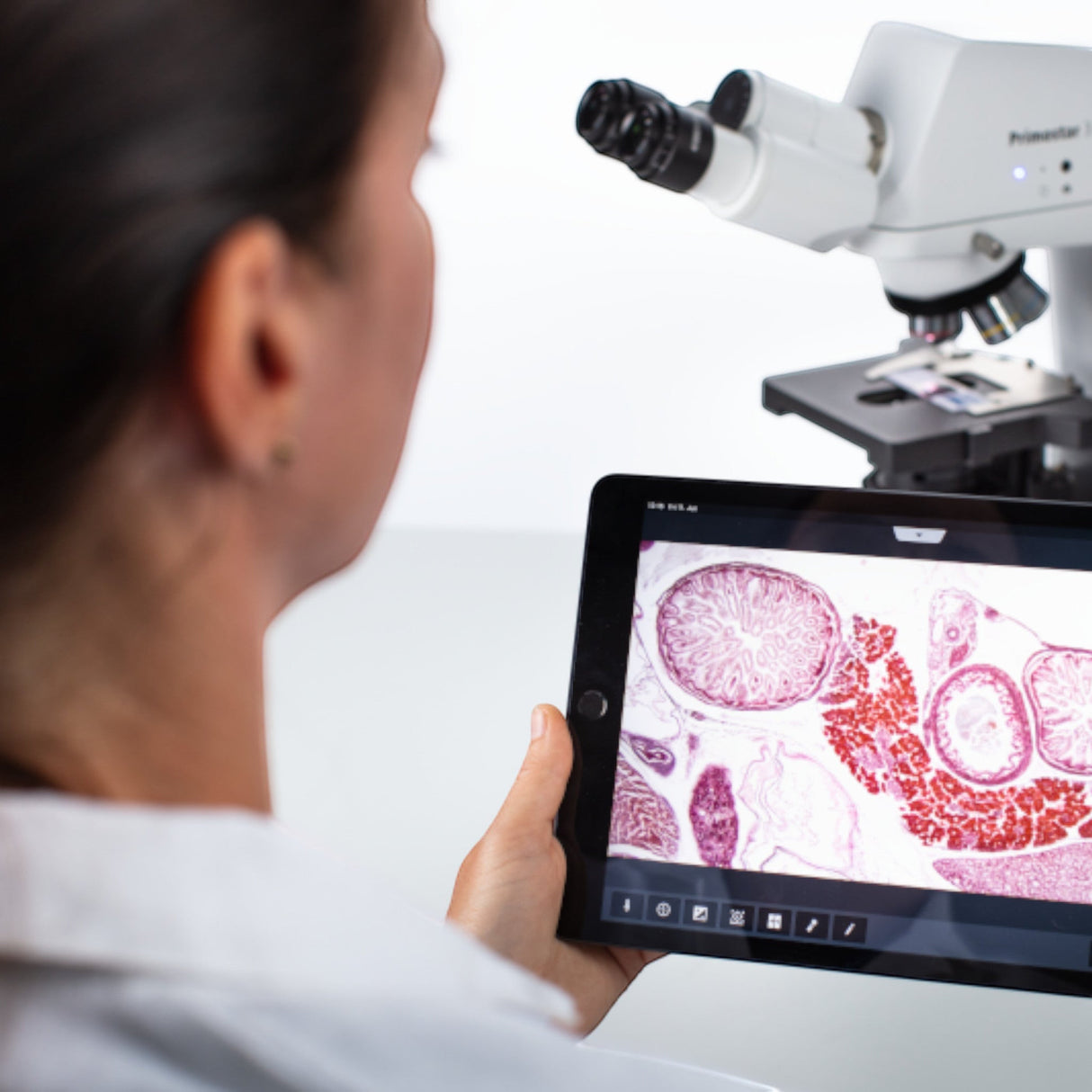

The integrated 5 MP camera enables easy digital image capture and live display – ideal for modern teaching, learning, and documentation without additional camera hardware.

Key Features

  • Fixed-Köhler stand with LED transmitted light illumination

  • Integrated 5 MP camera

  • Binocular tube with 50:50 split

  • Mechanical stage 75 × 40 mm

  • iPlan Achromat objectives for routine applications

  • Abbe condenser 0.9 / 1.25

  • ECO mode and intelligent Light Manager

  • 5-year warranty

Ideal for

  • Schools and universities

  • Training and teaching

  • Basic biological education

  • Routine laboratory work

  • Digital documentation and presentation


Application Examples



Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Transmitted light microscope for education and routine with integrated 5 MP camera

System Overview

– Fixed Köhler stand

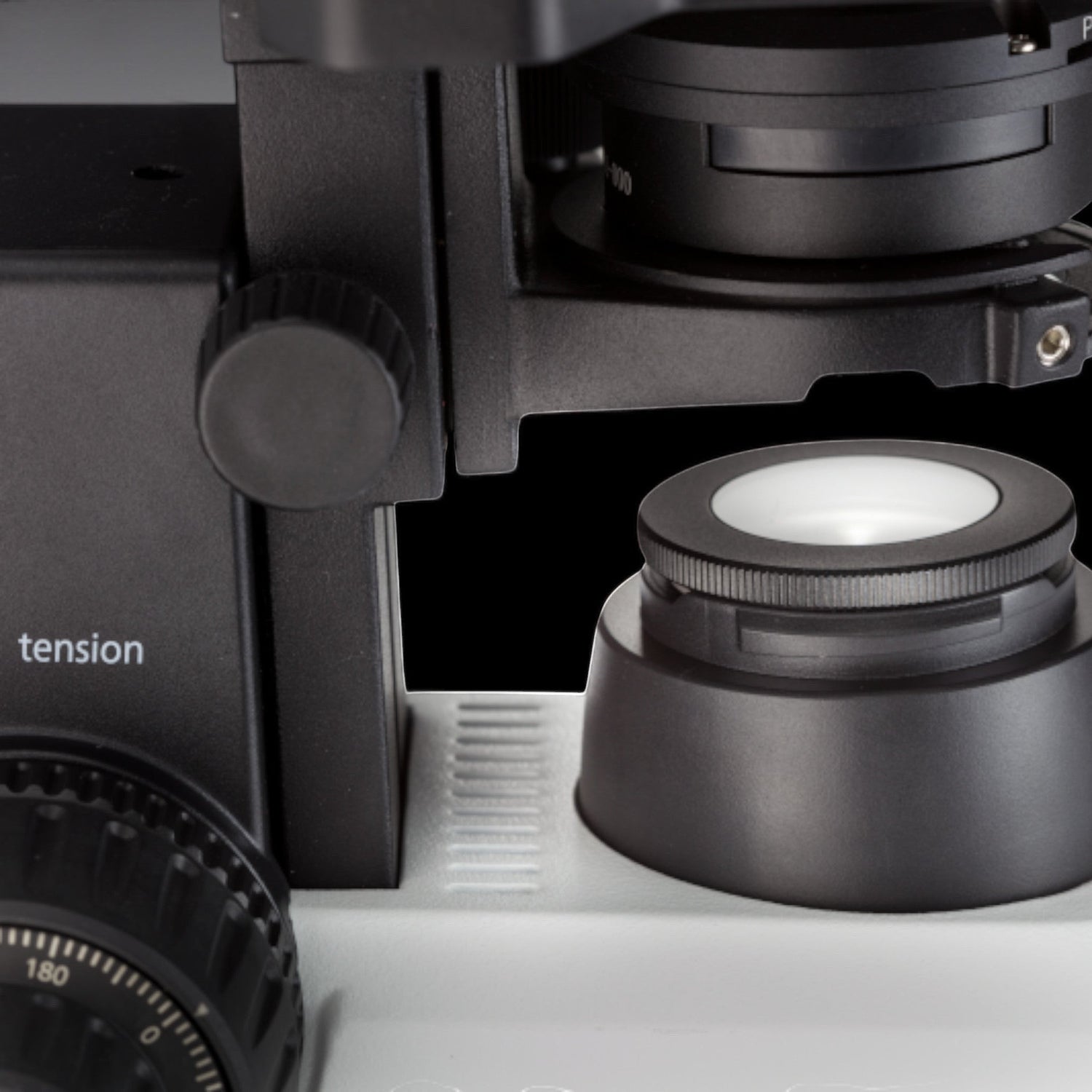

– LED transmitted light illumination 1 W, white light approx. 5600 K

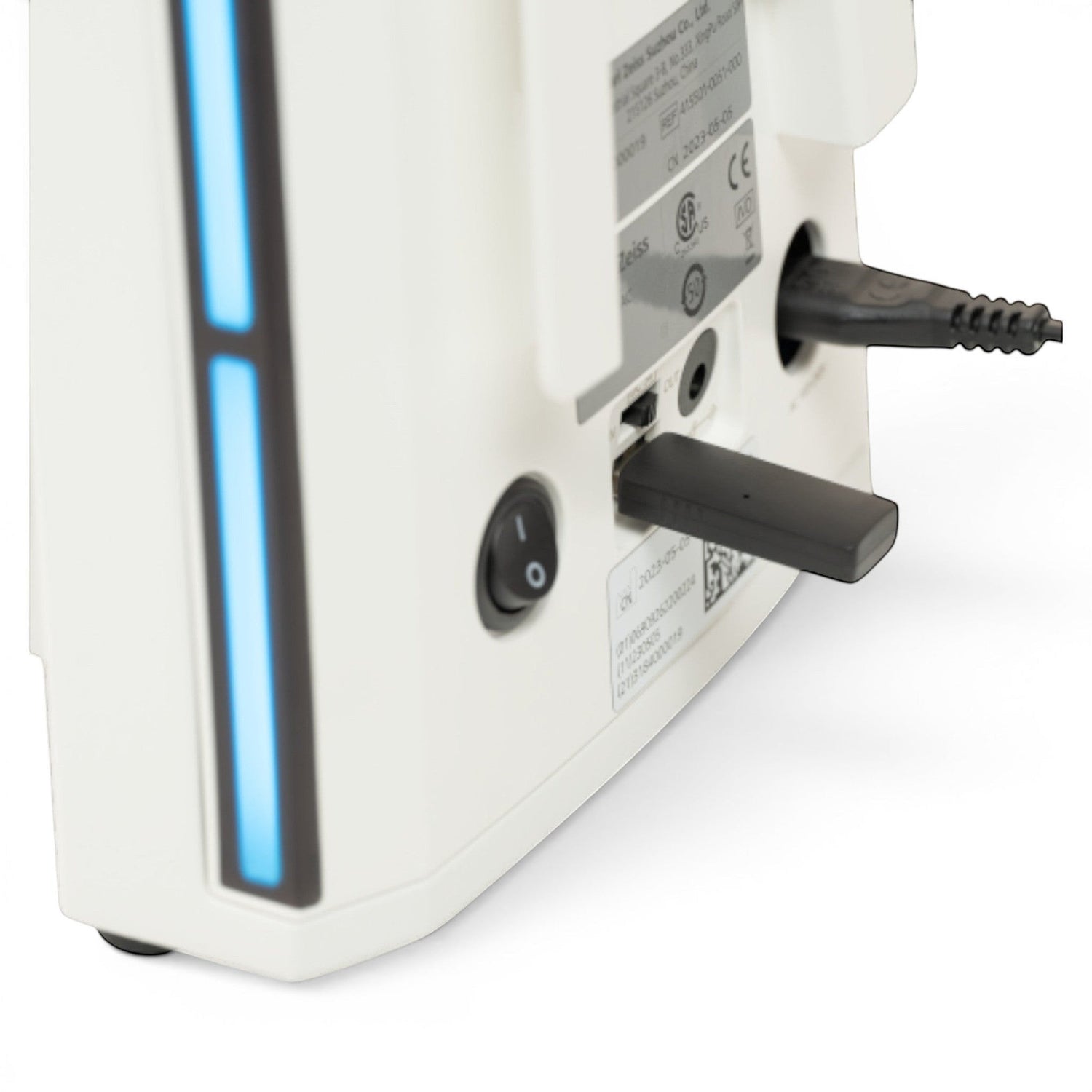

– 5 V USB port
– Light Manager
– ECO mode

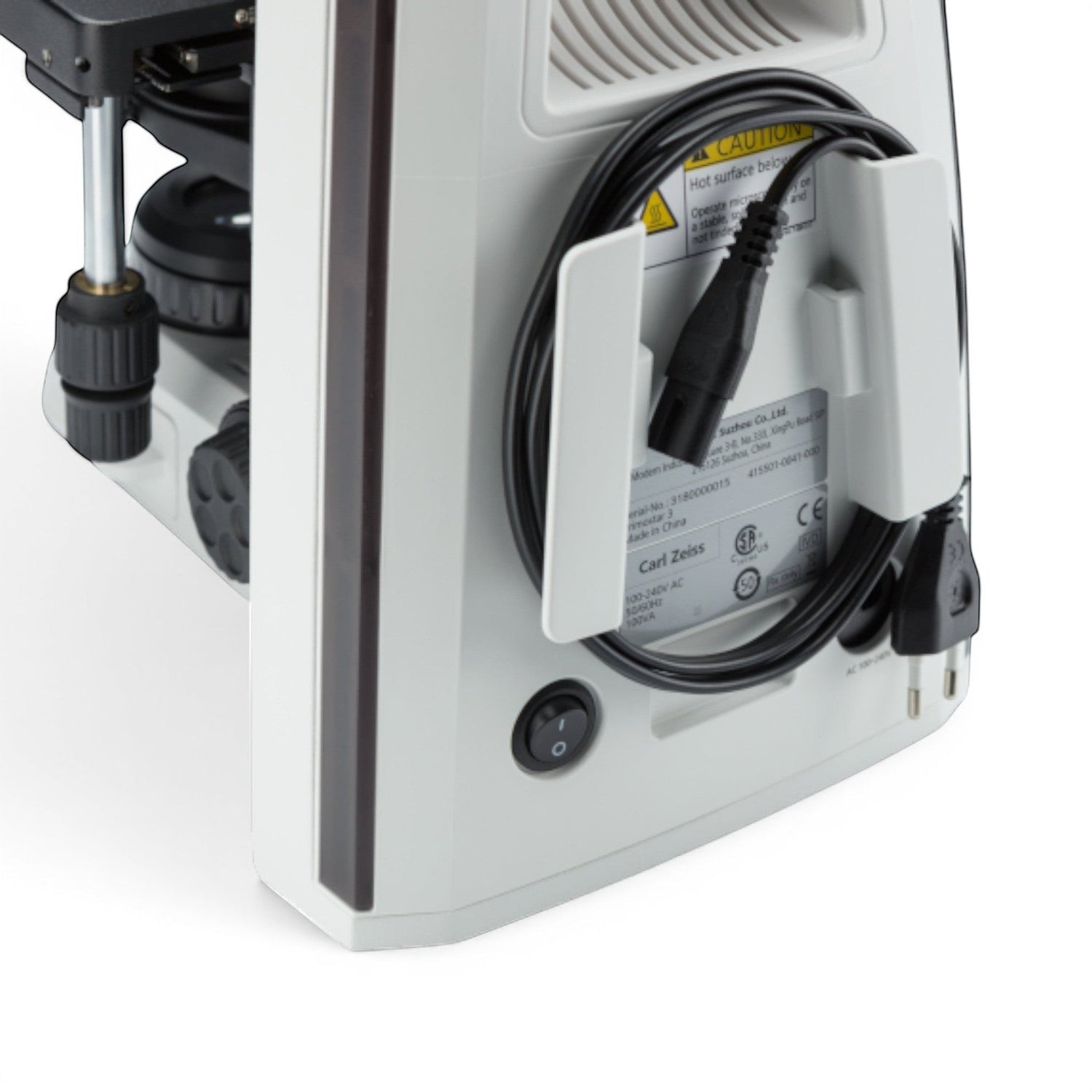

– Country-specific power cable
– Dust cover

Stage and Mechanics

– Cross stage 75 × 40 mm

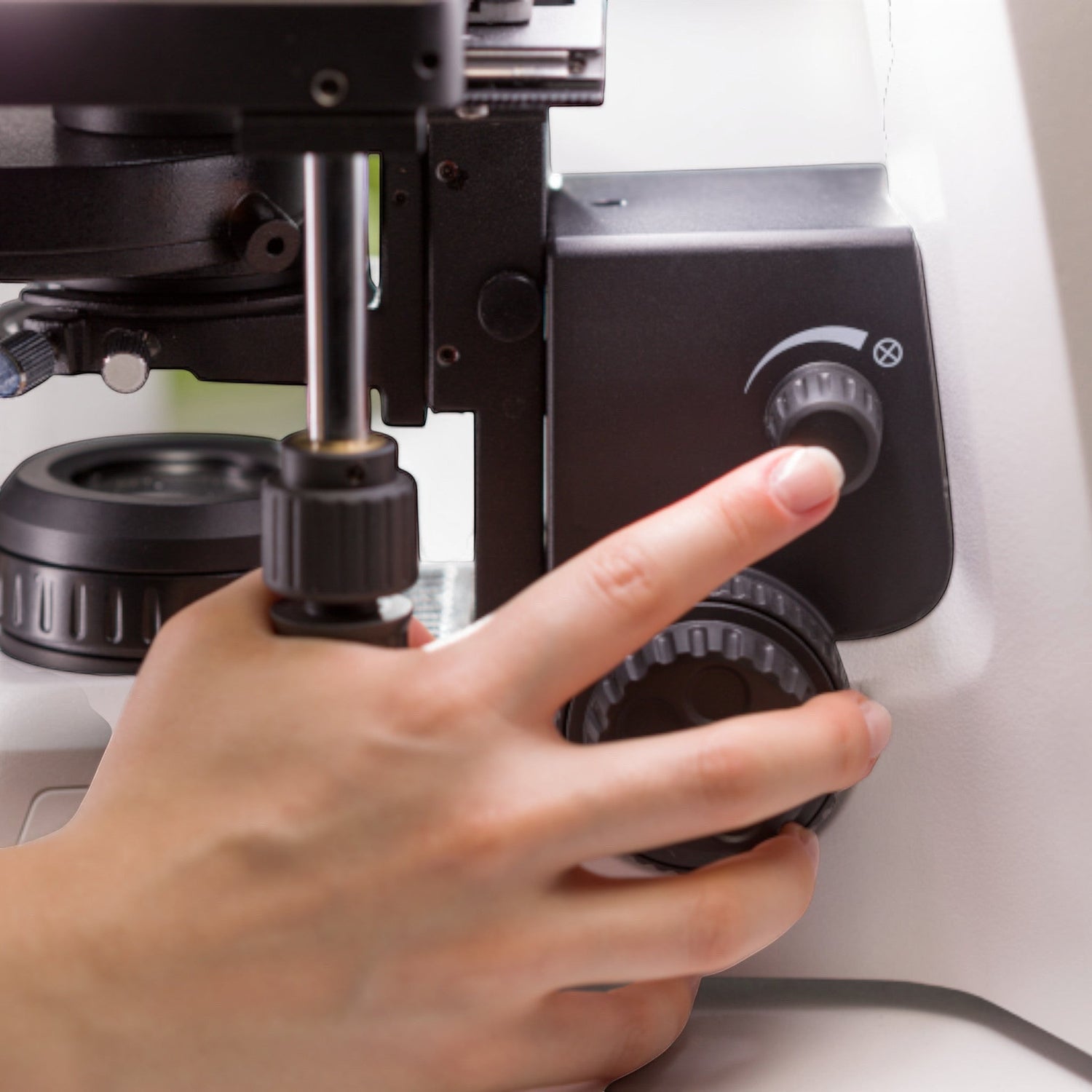

– Right-hand stage drive

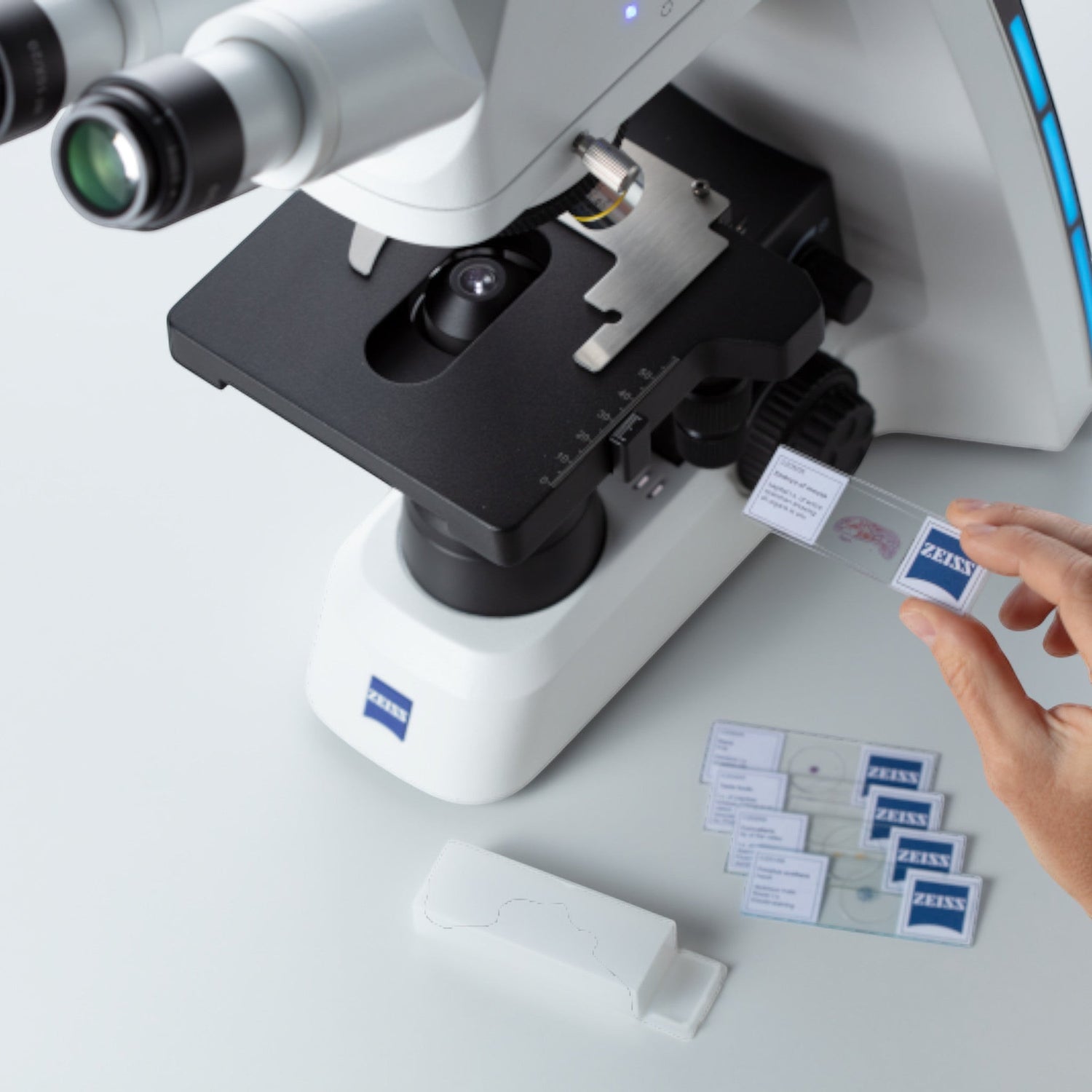

– Specimen holder for one slide
– Left-hand spring lever

Tube

– Binocular tube 25° / field of view 20
– Splitting ratio 50 % visual / 50 % documentation
– Integrated camera

Eyepieces

– Eyepieces 10× / 22 Br. foc.
– Eyecups

Revolving Nosepiece and Objectives

– 4-position revolving nosepiece, backward-facing

Objectives:
– iPlan Achromat 4×
– iPlan Achromat 10×
– iPlan Achromat 40×

Condenser

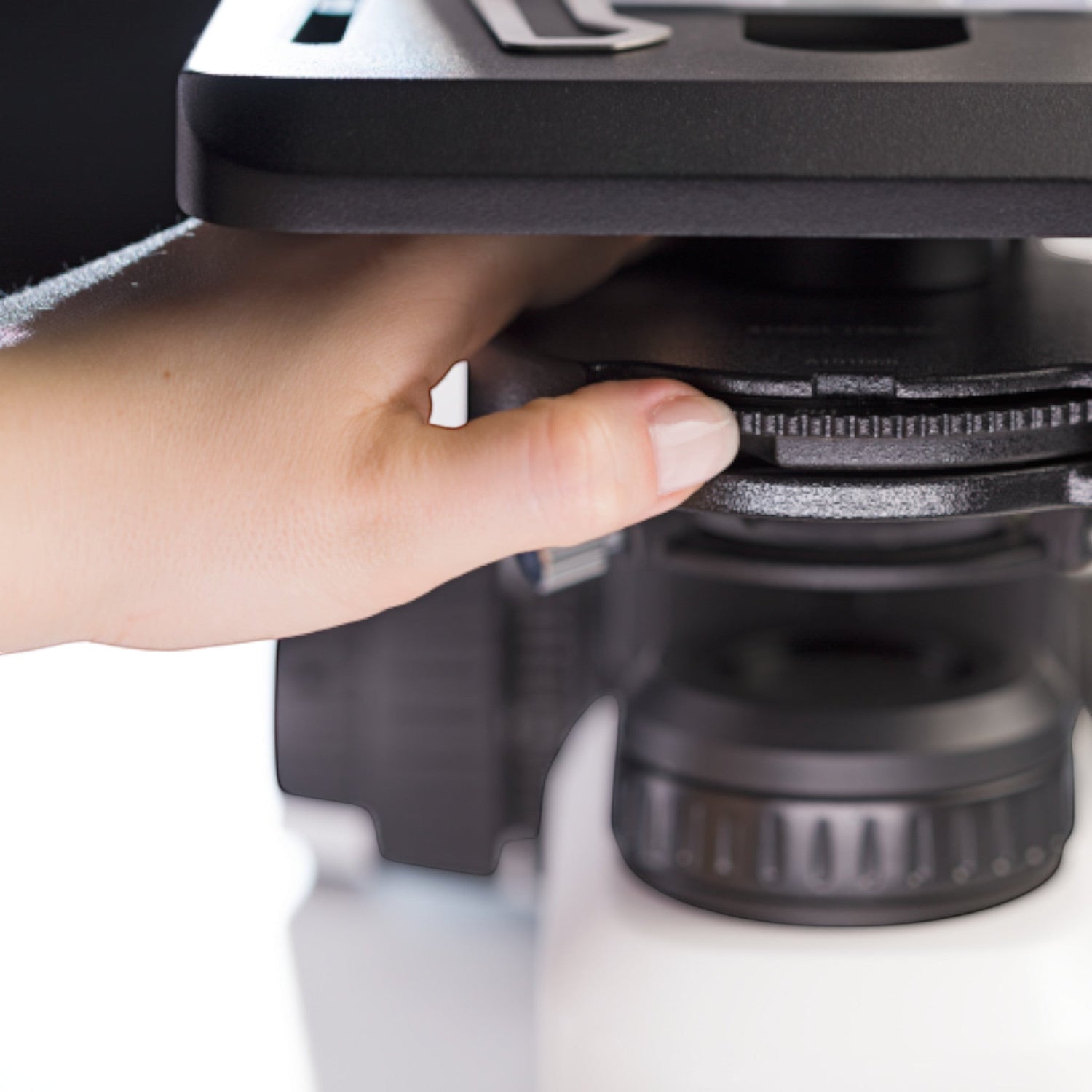

– Abbe condenser 0.9 / 1.25 with slot

Integrated Camera – Technical Data

– Resolution: 5.04 MP (2592 × 1944)
– Live resolution: Full HD (1920 × 1080)
– Sensor: CMOS color sensor with rolling shutter
– Frame rate: up to 30 fps (Labscope)
– Digitization: 24 bit (RGB)

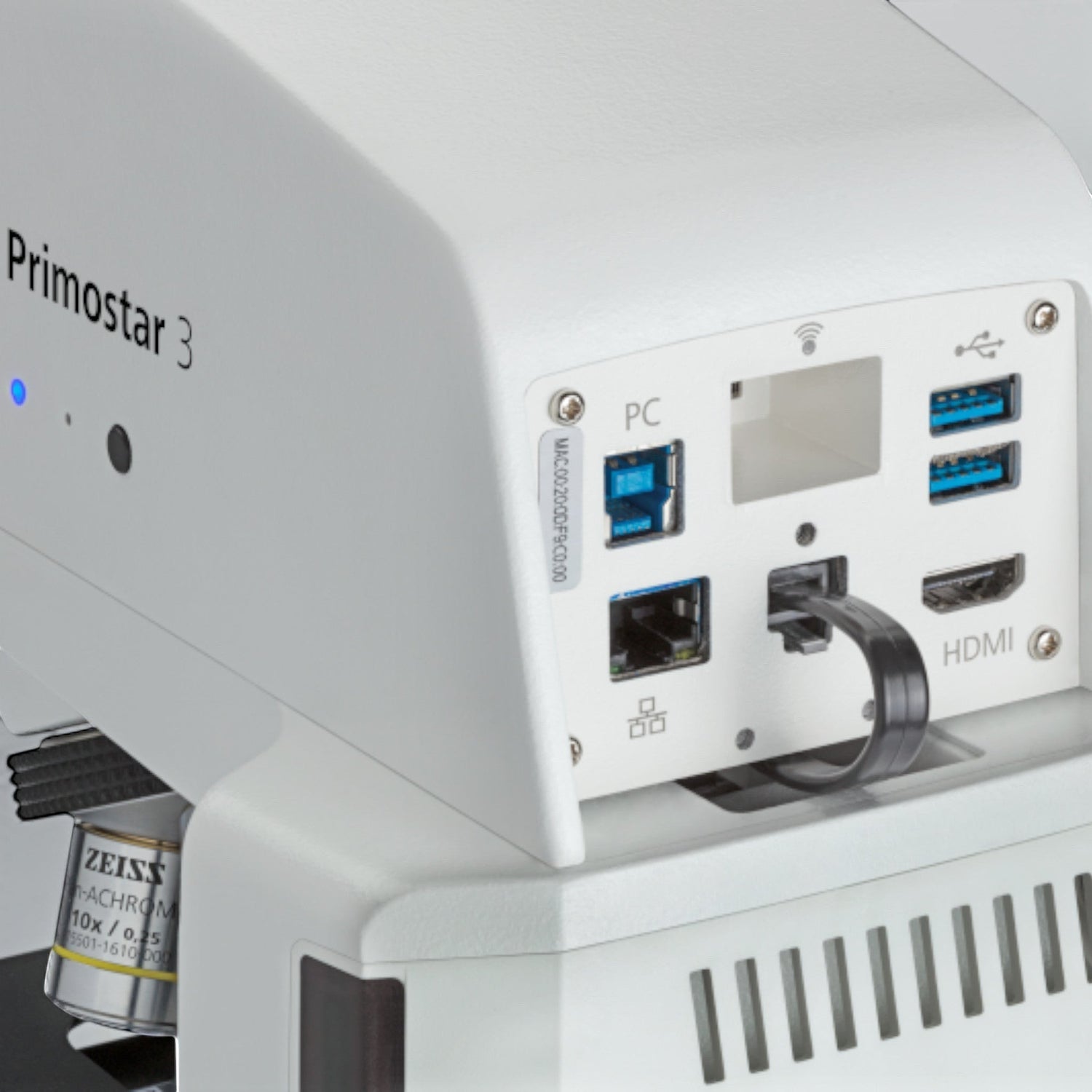

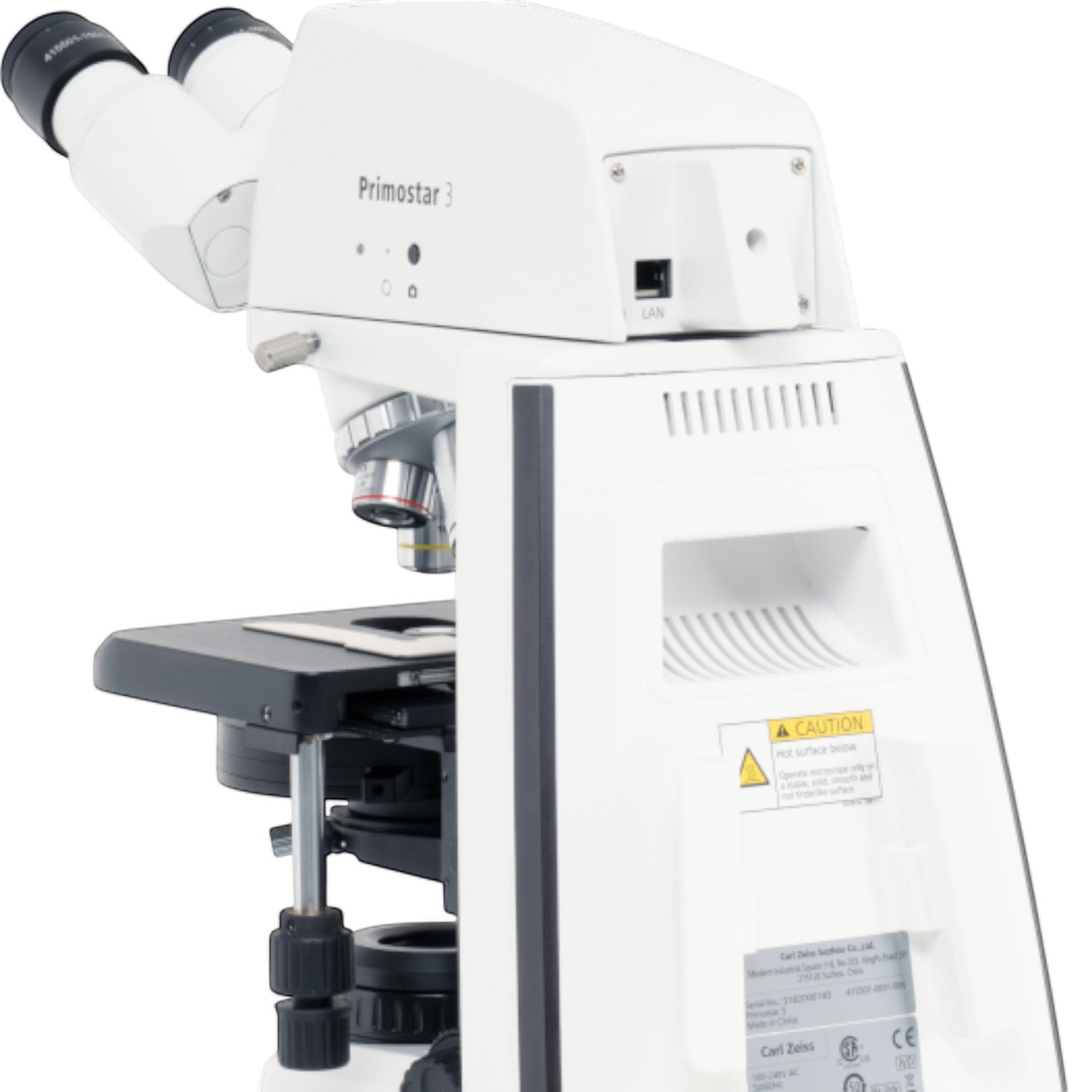

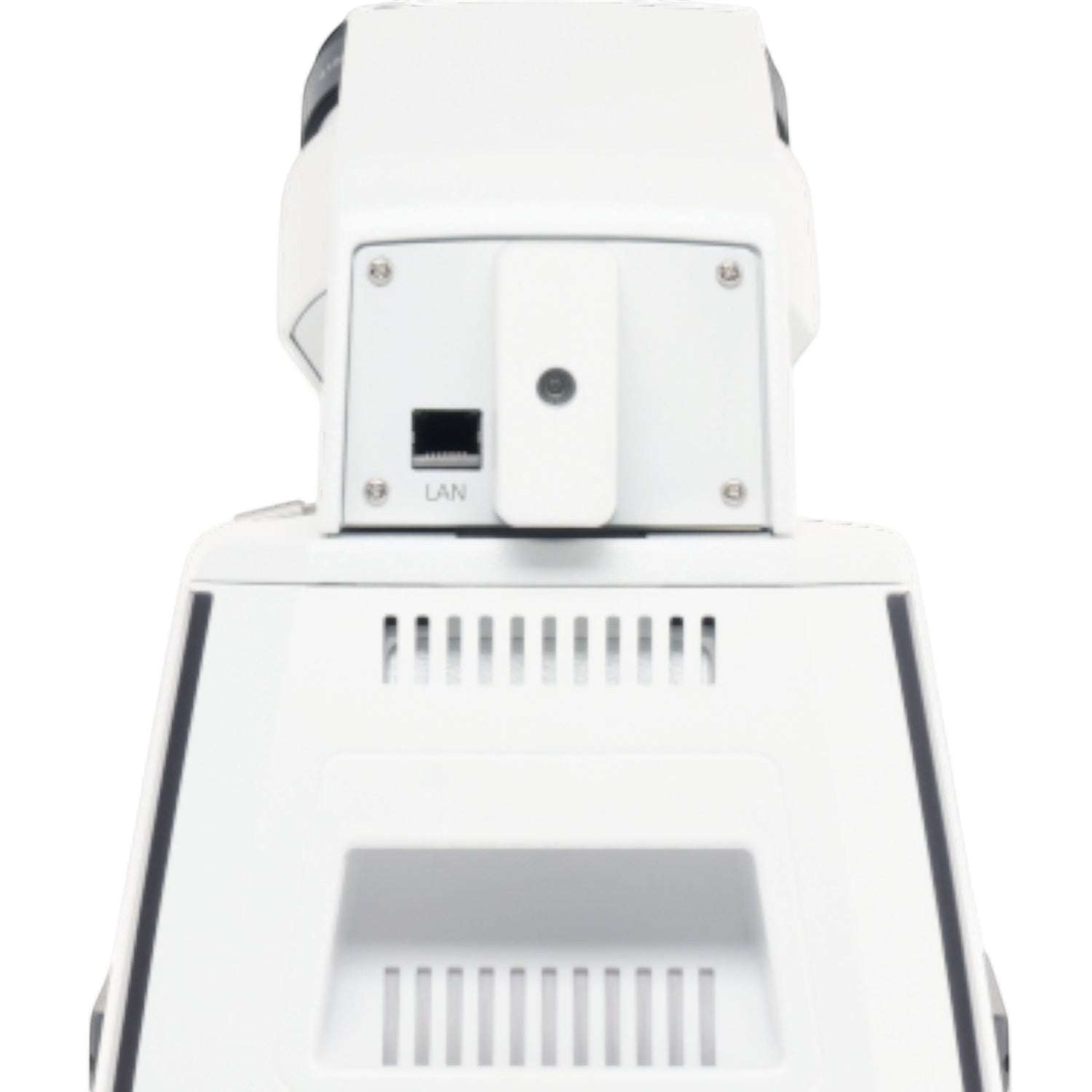

– Interfaces: USB 3.0, Ethernet (RJ45)
– Optical interface: C-mount
– Software: ZEISS Labscope (Windows, iOS, Android)
– Network-enabled for teaching and documentation
