Zeiss SKU: 415501-0031-000

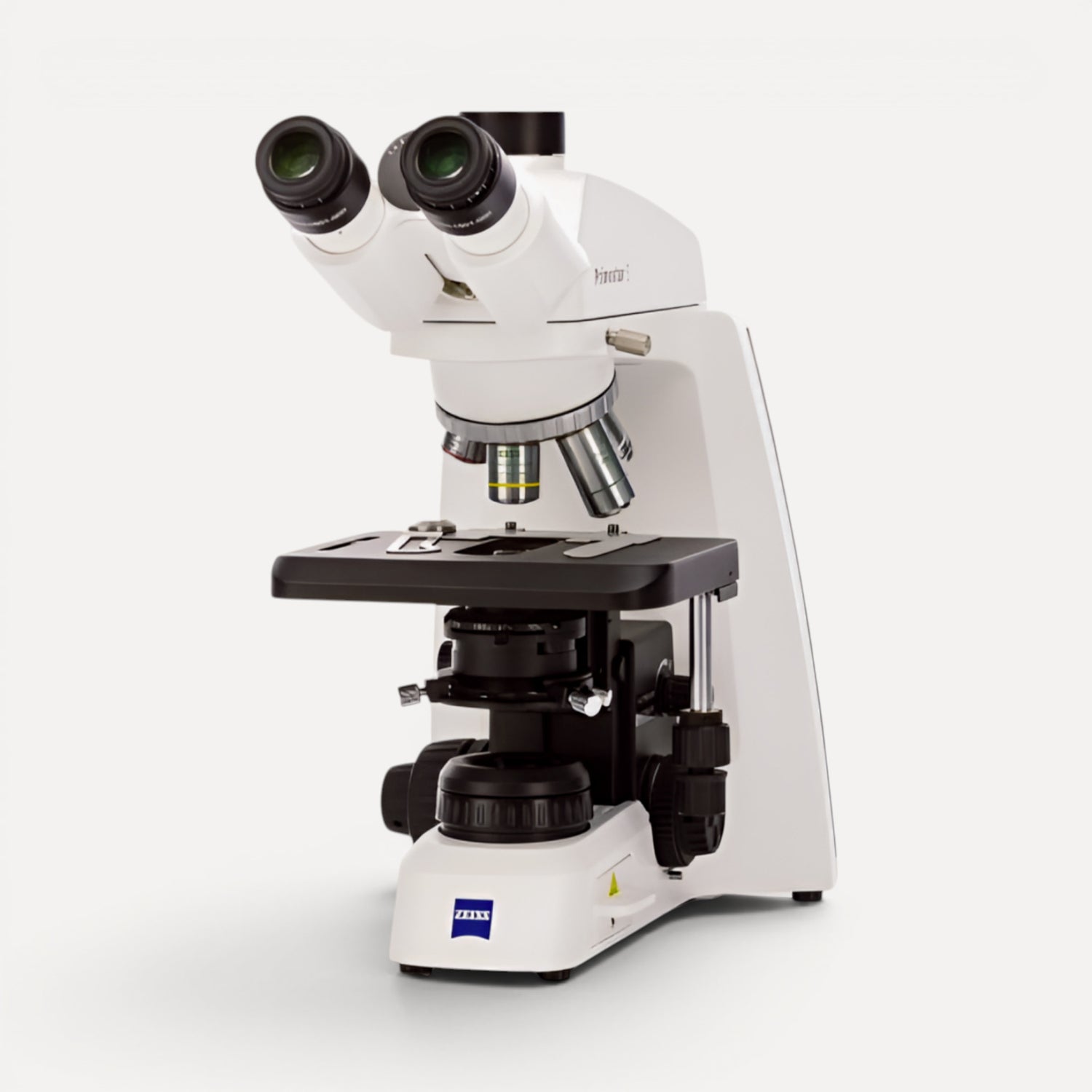

ZEISS Primostar 3 Trino – Transmitted Light Microscope for the Lab

€2.903,00 €3.226,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

Professional Transmitted Light and Phase Contrast Microscopy with Trinocular Setup

The ZEISS Primostar 3 Full-Köhler Trino is a powerful transmitted light microscope for education, lab routines, and documentation.
Thanks to its trinocular phototube, full Köhler illumination, and phase contrast equipment, this system is ideal for visual observation and simultaneous camera connection.

The combination of LED and halogen transmitted light, an ergonomic mechanical stage, and comprehensive objective equipment up to 100× oil offers maximum flexibility for a wide variety of applications.

Key Features

  • Full Köhler transmitted light microscope

  • Trinocular phototube (50:50)

  • Phase contrast HF / DF / Ph1–Ph3

  • LED and halogen transmitted light illumination

  • 5-position objective nosepiece

  • Mechanical stage 75 × 50 mm

  • Prepared for camera documentation

Ideal for

  • Education in biology and medicine

  • Cell and tissue culture

  • Phase contrast microscopy

  • Routine laboratories

  • Users with external camera connection


Application Examples





Downloads

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

Zeiss

Trinocular full-Köhler transmitted light microscope for phase contrast and documentation

System Configuration

– Full-Köhler stand
– Transmitted light modules with
– 3 W LED white light, approx. 5600 K
– 6 V / 30 W halogen lamp
– Halogen lamp 6 V / 30 W (replacement)
– Color filter set: blue, green, yellow
– LightManager
– ECO-Mode

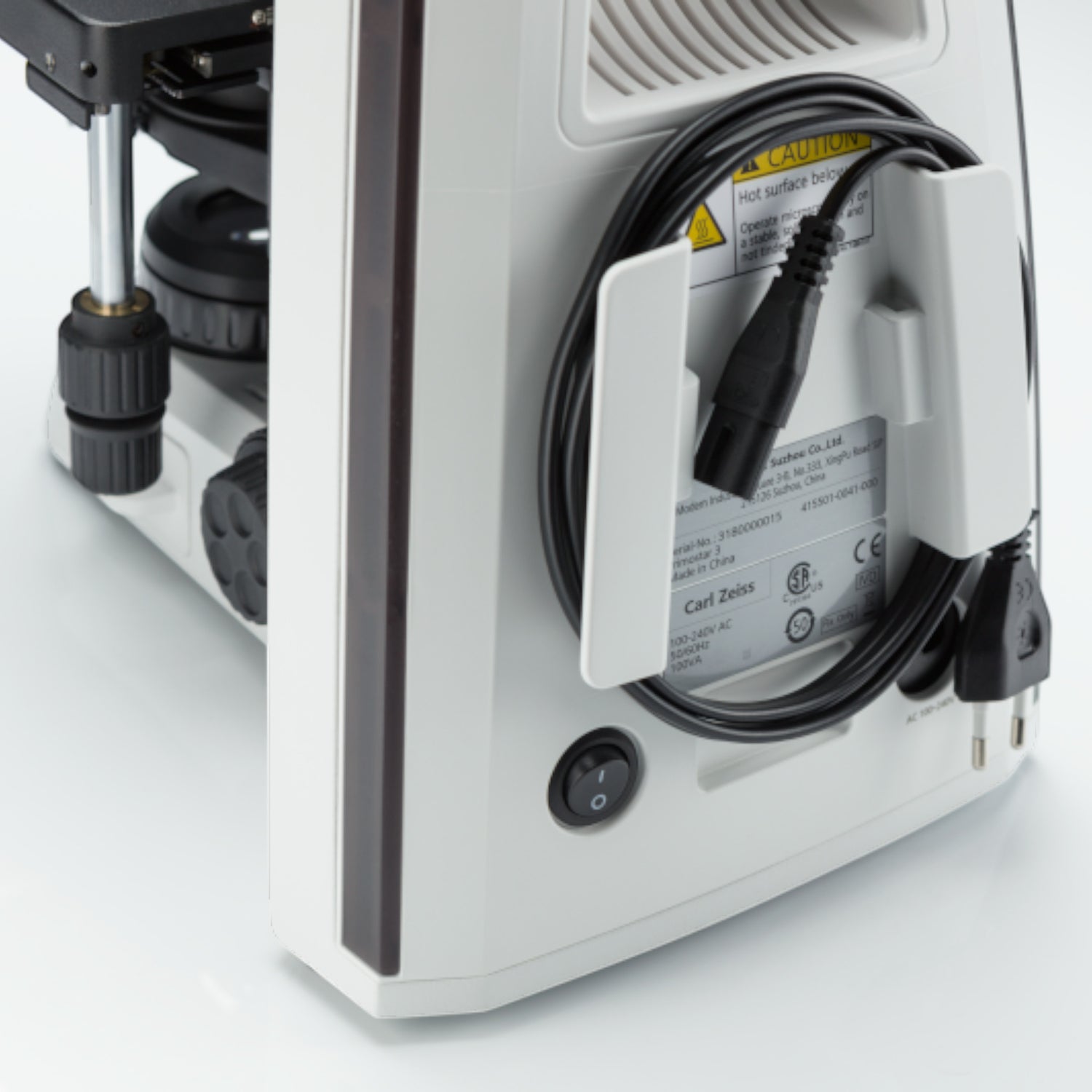

– Country-specific power cable
– Dust cover

Stage and Mechanics

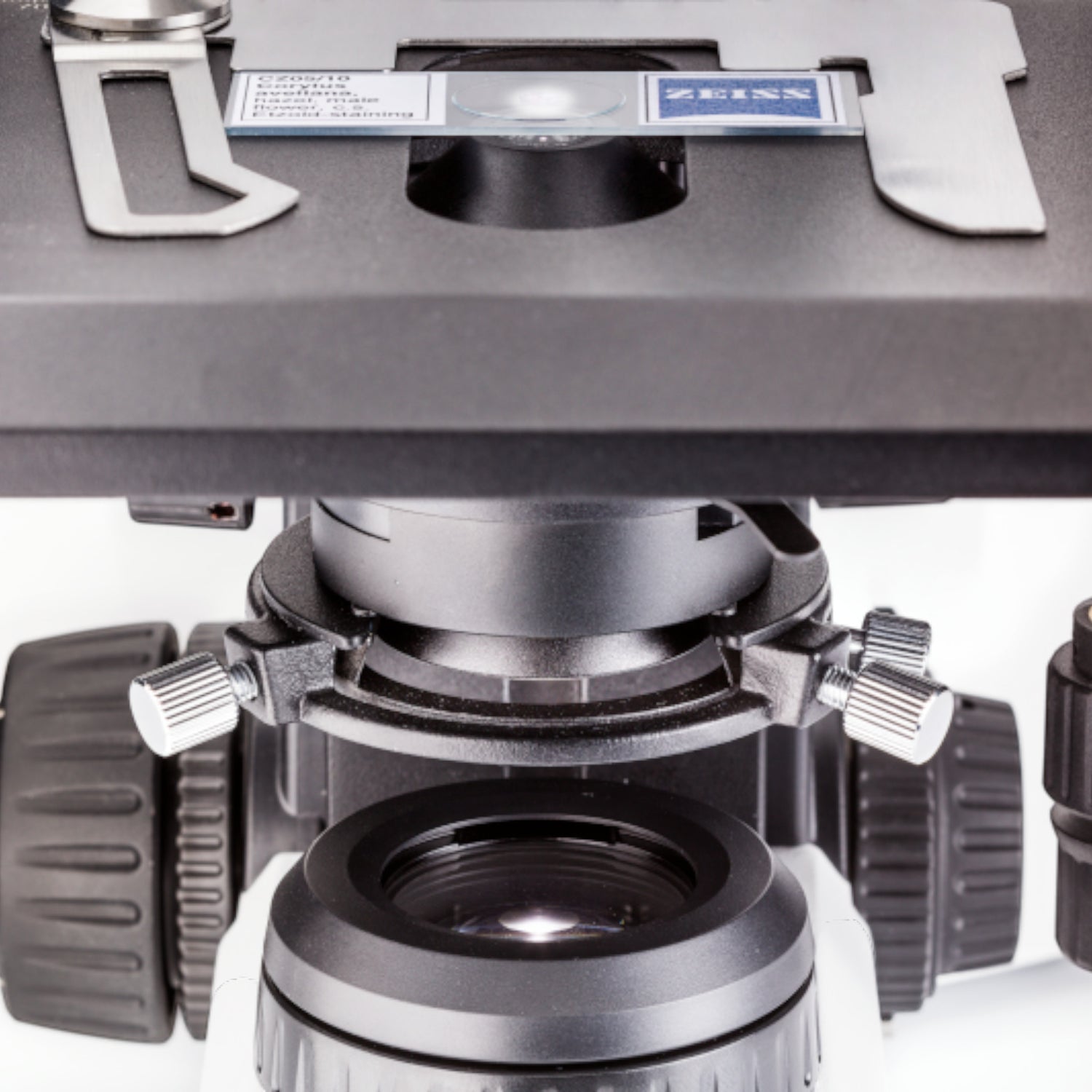

– Cross stage 75 × 50 mm

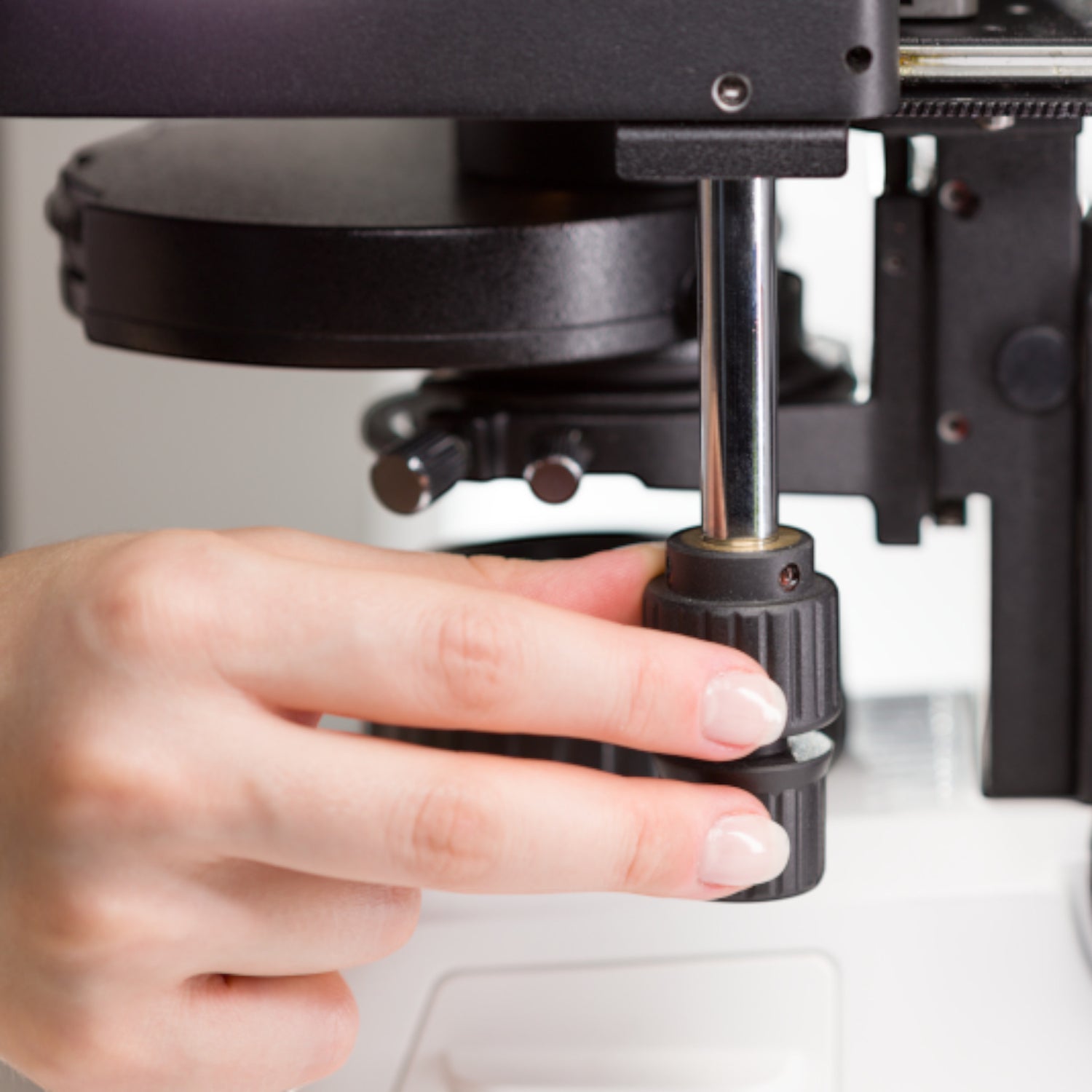

– Right-hand stage drive

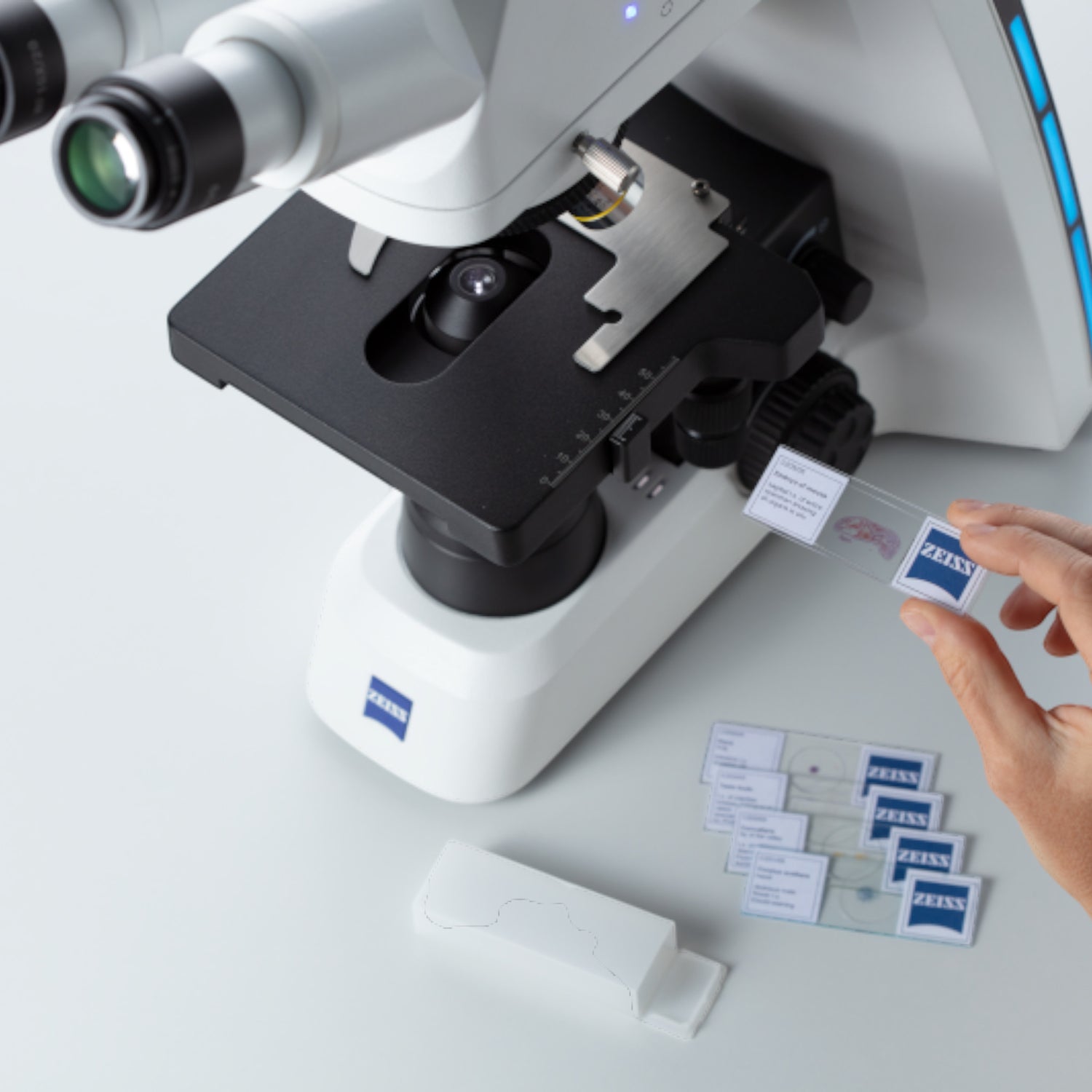

– Specimen holder for two slides
– Left-hand spring lever

Tube

– Trinocular photo tube 25° / Field of view 22
– Splitting ratio 50 % visual / 50 % camera
– Camera connection prepared (C-mount)

Eyepieces and Accessories

– Eyepieces 10× / 22 Br. foc.
– Eyecups
– Diopter d = 30 mm

Nosepiece and Objectives

– 5-fold nosepiece, backward-facing

Objectives:
– iPlan-Achromat 4×
– iPlan-Achromat 10×
– iPlan-Achromat 40×
– iPlan-Achromat 100× / 1.25 Oil

Objective Accessories

– Oiler with 5 ml immersion oil

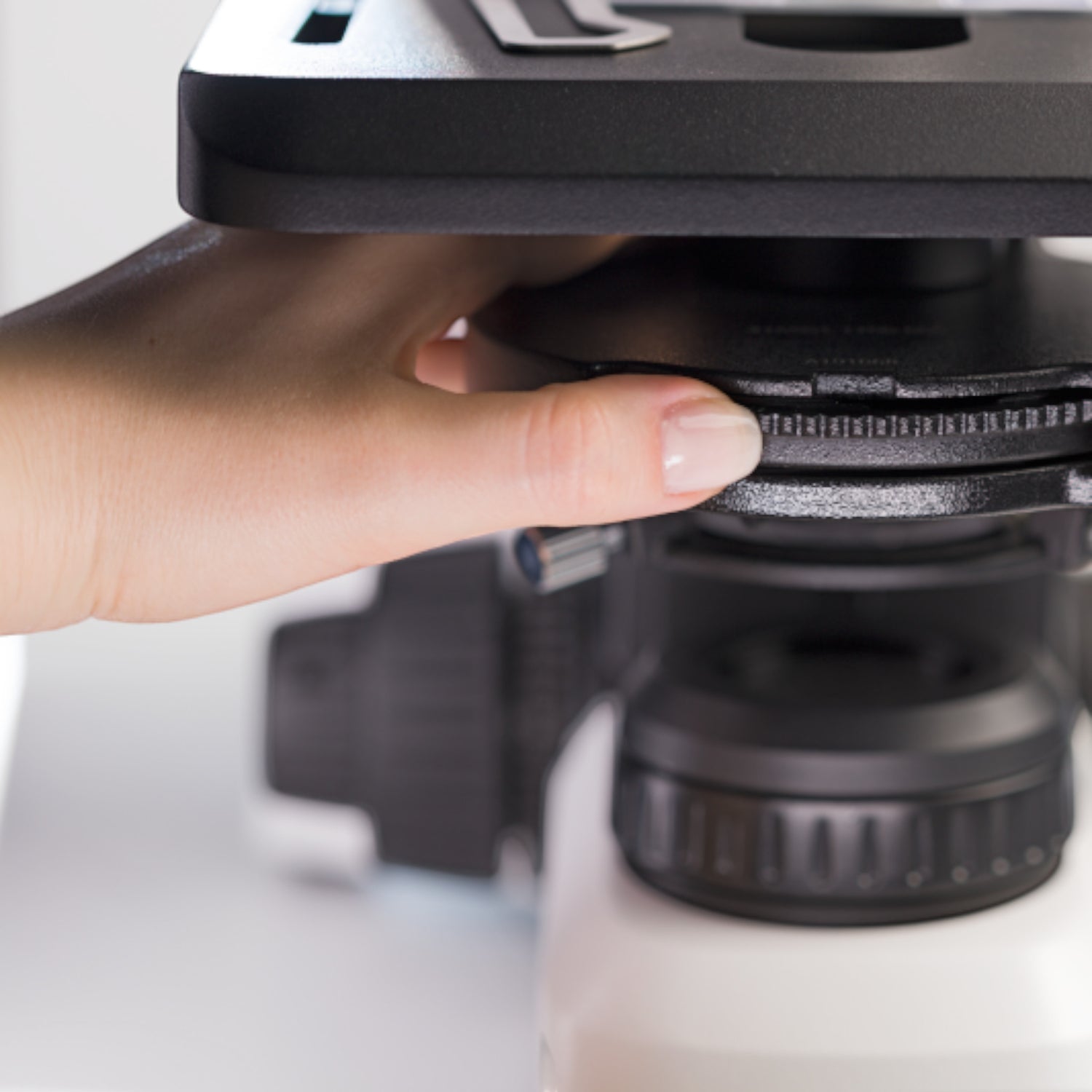

Condenser

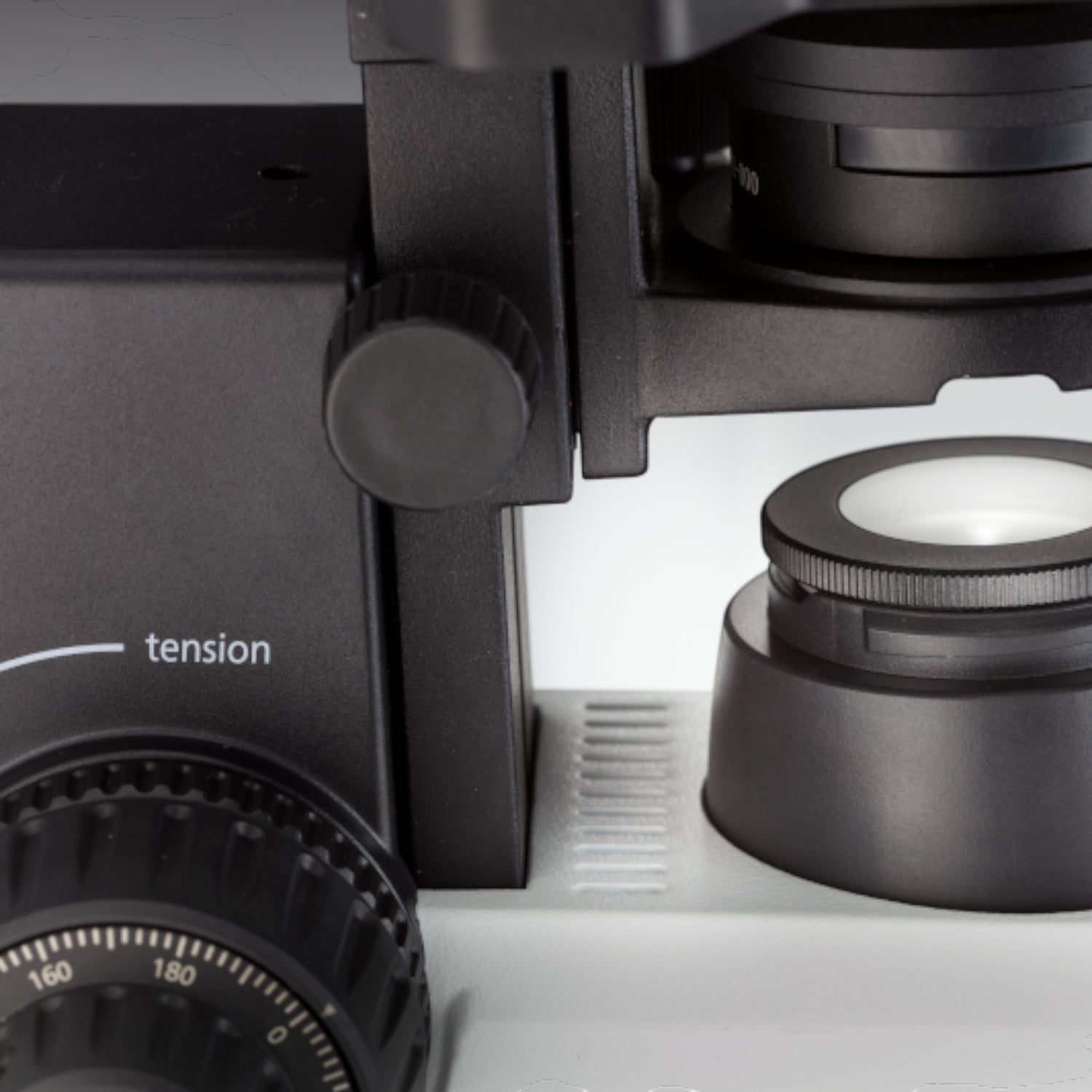

– Abbe condenser

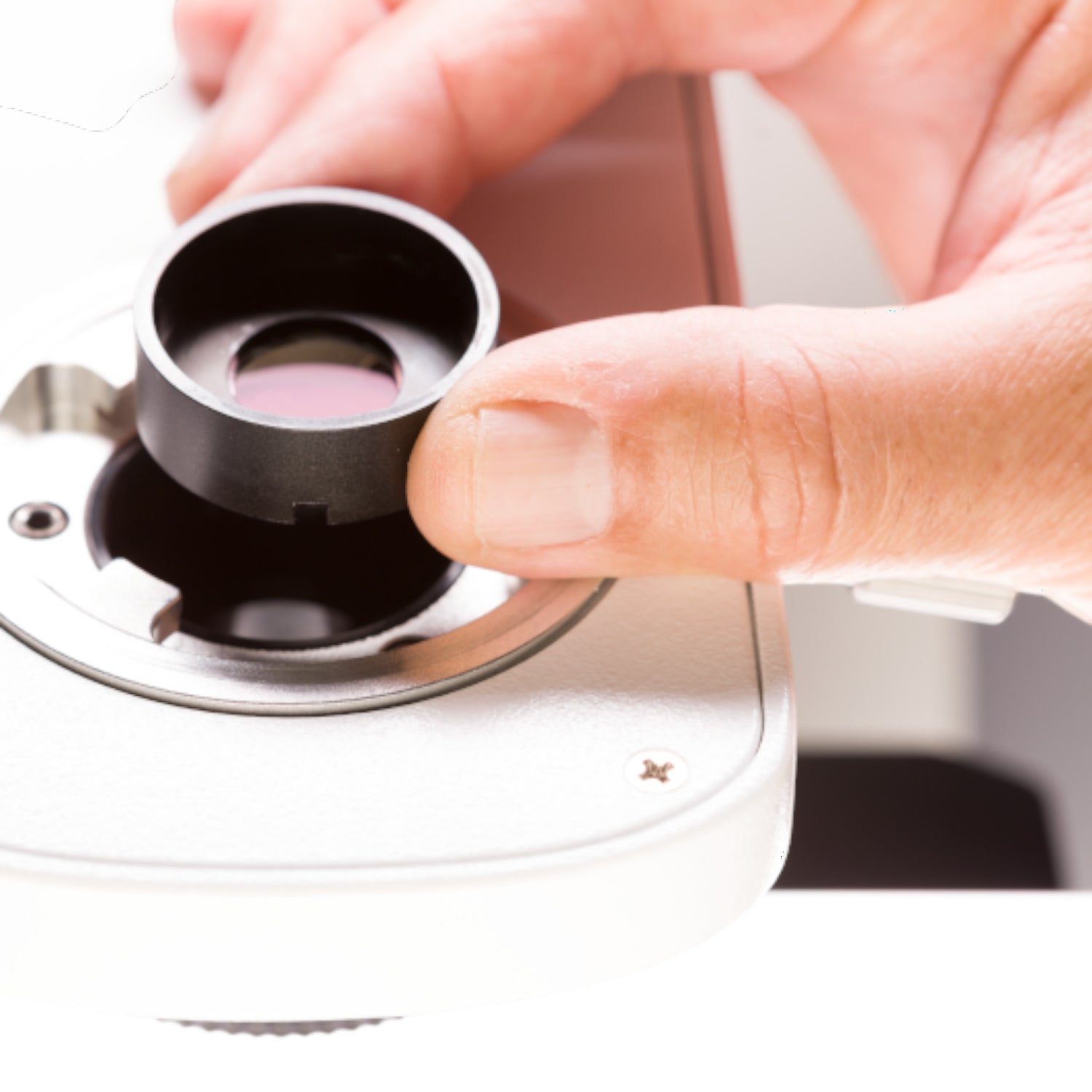

– Modulator disc for
– Brightfield
– Darkfield
– Ph1
– Ph2
– Ph3
