ASKANIA SKU: 30016002322

ASKANIA MZM – Macro Zoom Microscope Standard

€4.755,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

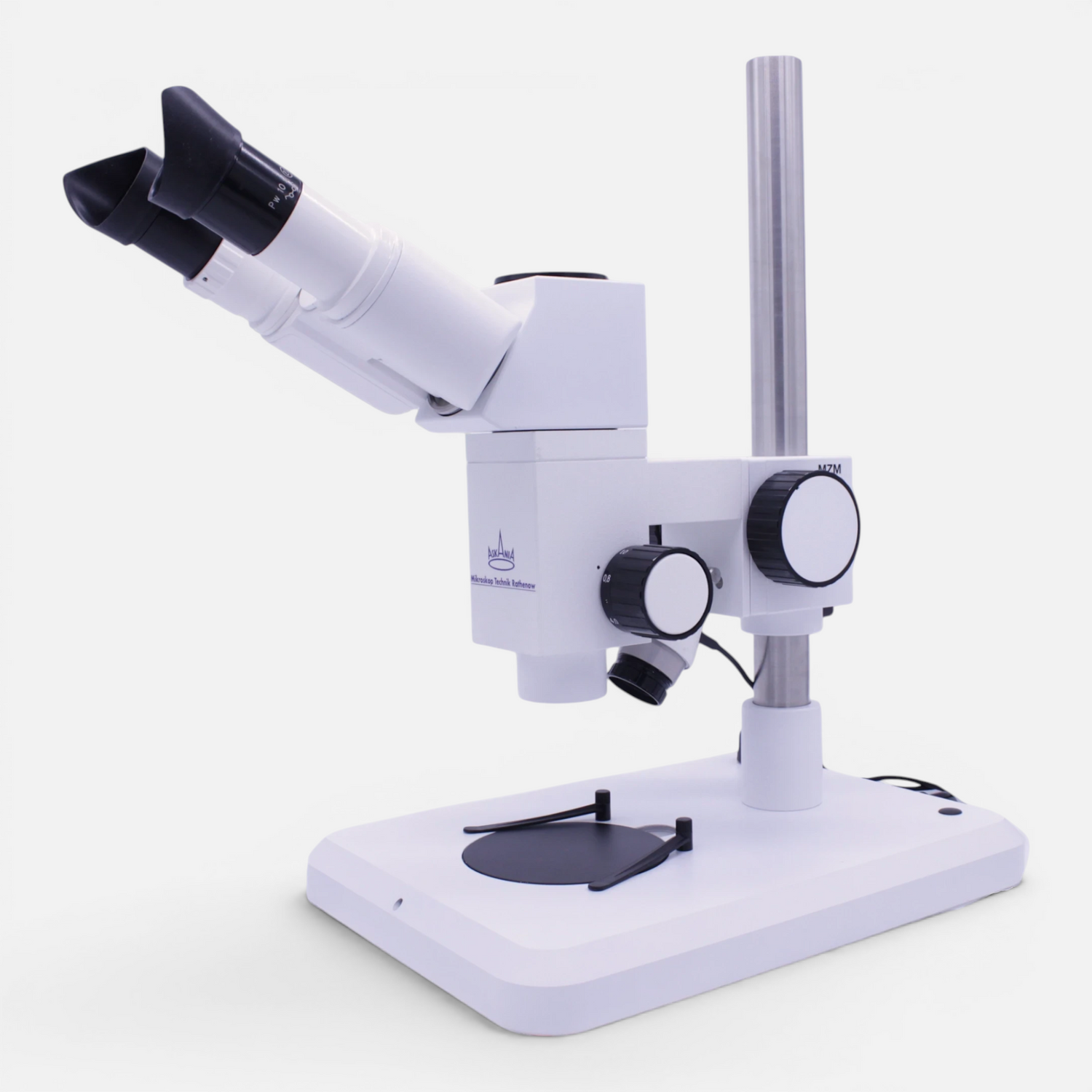

ASKANIA Macro-Zoom Microscope MZM - Standard Configuration

The ASKANIA MZM Macro-Zoom Microscope is a versatile and robust inspection system for applications where large fields of view, high flexibility, and precise working distance are crucial. With its exactly vertical beam path, stepless 5:1 zoom, and a magnification range of 8x to 40x, it is particularly suitable for tasks in metrology, quality control, assembly work, electronics inspection, and research.

The standard configuration combines a trinocular tube (30° / 50:50) for simultaneous observation and image output, an ergonomic binocular tube 30/120, two high-quality GF-PW 10x/20 eyepieces, and a precise focus drive with 50 mm travel and ball guide. This enables comfortable, fatigue-free work even over longer periods.

A central highlight is the integrated 3W LED spot incident illumination, which allows for high-contrast and focusable illumination of the sample. This makes the system ideal for examining structures, surfaces, and components. The device is mounted on a stable incident light stand with a 367 mm column, which offers flexible height adjustment and reliable support. The included black/white insert plate supports different contrast situations.

Thanks to its modular design, the MZM can be expanded at any time – for example, with auxiliary lenses for variable working distances, LED ring lights, transmitted light solutions, camera systems, or measuring tables. This allows the microscope to be precisely adapted to individual technical or scientific requirements and remains adaptable in the long term.


Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

ASKANIA

Flexible Macro Zoom Microscope for Metrology, QA and Technical Applications

The ASKANIA MZM is a macro-zoom microscope with a precisely perpendicular optical path and a large working distance, ideal for industrial inspection tasks, metrology, and optical inspections. Its modular design allows for flexible adaptation to different applications through interchangeable objective lenses, illuminations, camera systems, and stand variants.

– Optical Properties

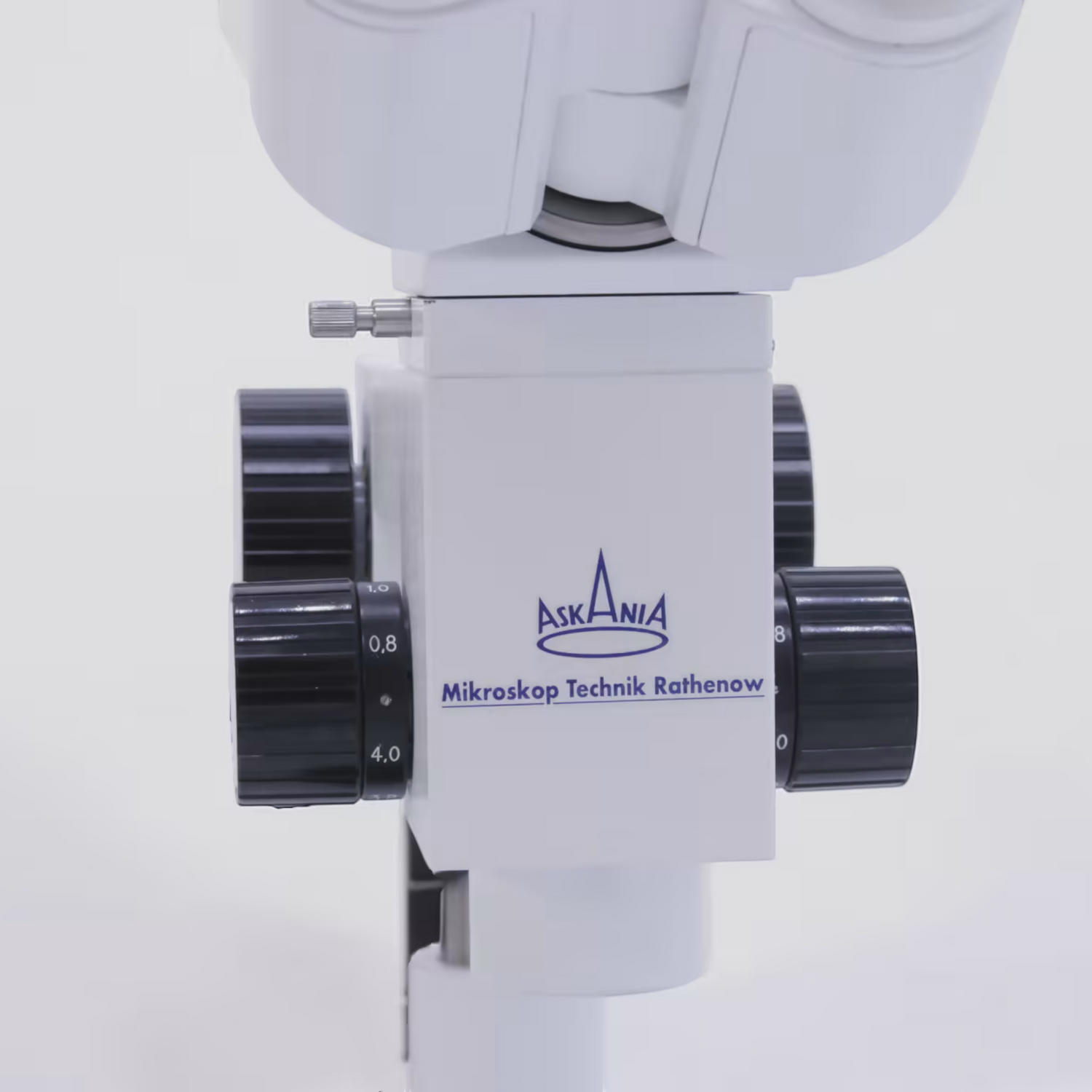

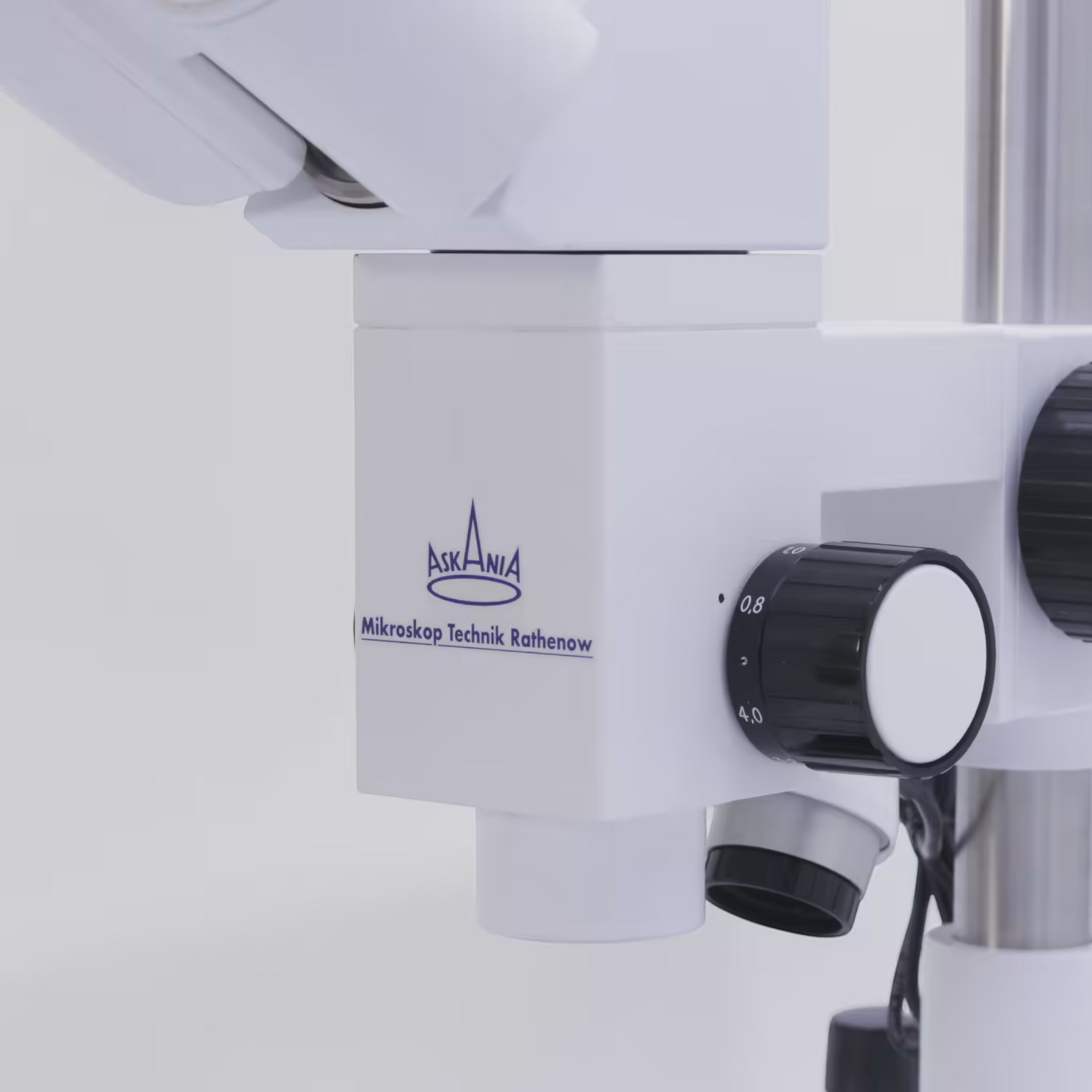

– Zoom factor 5:1 (stepless)
– Magnification range 8x–40x in standard configuration
– Field of view range 25 mm – 5 mm
– Perpendicular optical path for distortion-free measurement
– High working distance 71 mm for comfortable work on components
– Interpupillary distance 52–78 mm, dioptre compensation ±5 dpt

– Tubes & Eyepieces
– Trinocular photo/TV tube (30°, 50:50 split)

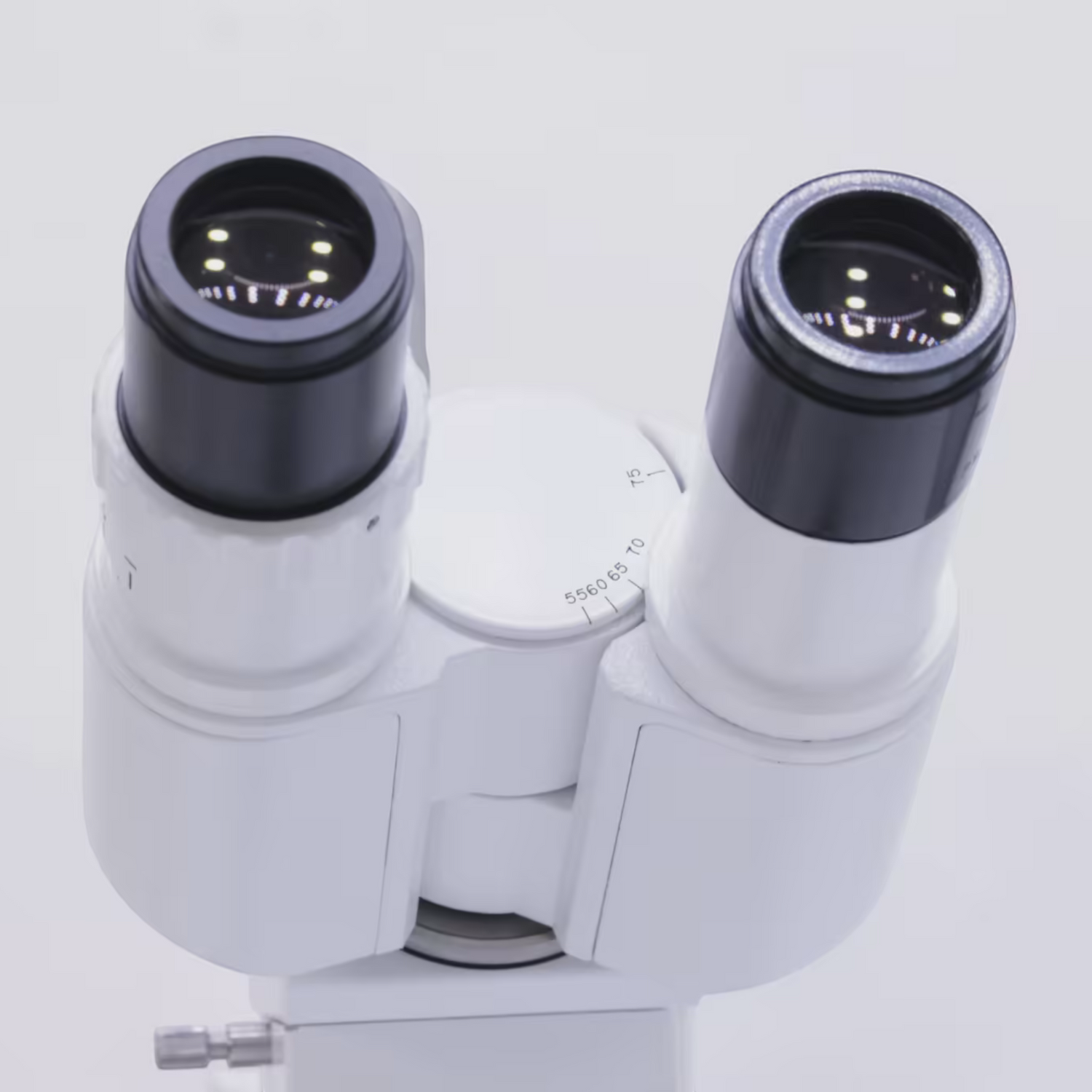

– Binocular tube 30/120
– Eyepiece pair GF-PW 10x/20 (suitable for spectacle wearers, one adjustable)
– Eyecups included

– Mechanics & Stand

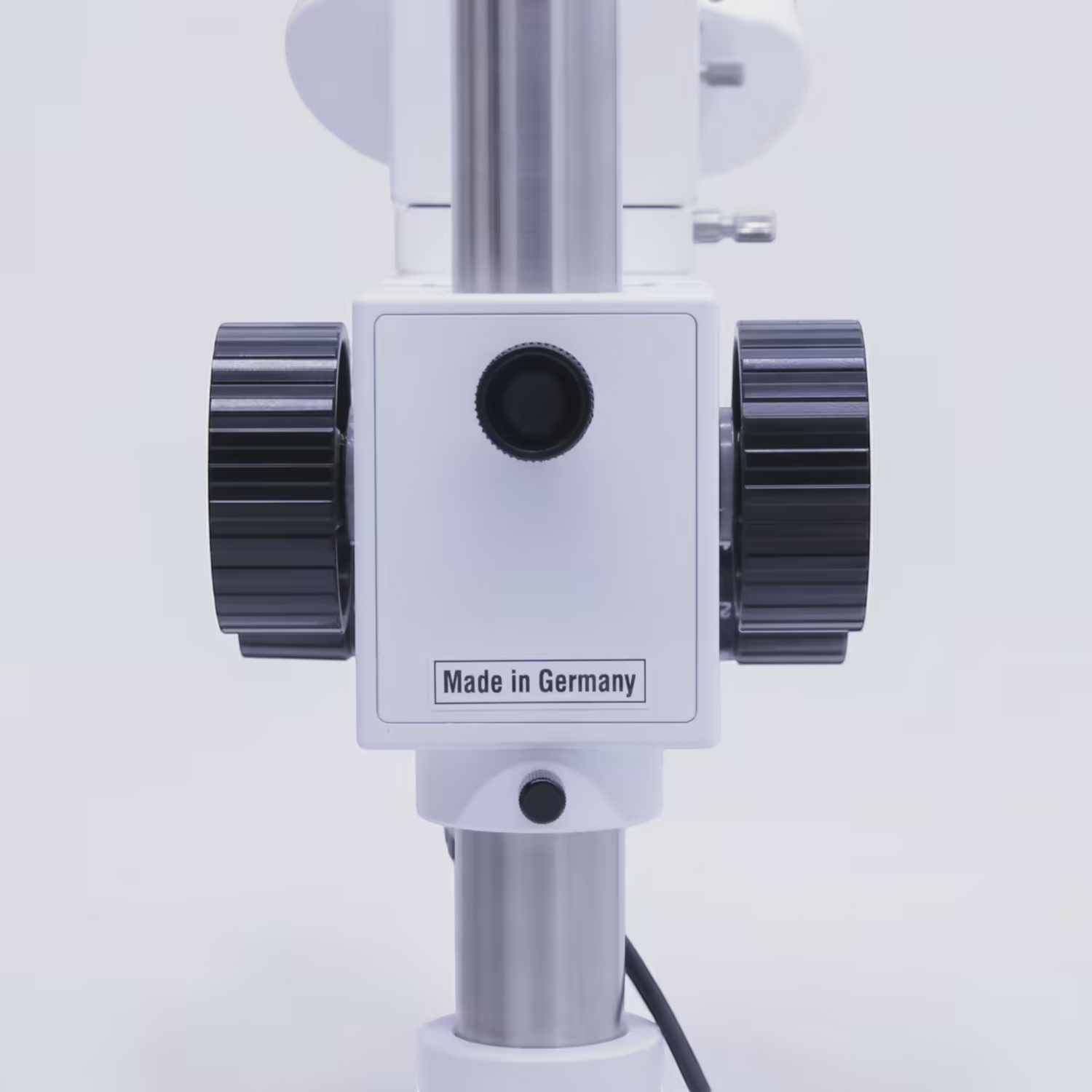

– Focus drive with ball guide, 50 mm stroke
– Stand base A: 310 × 220 × 30 mm
– Column L = 367 mm for variable working heights

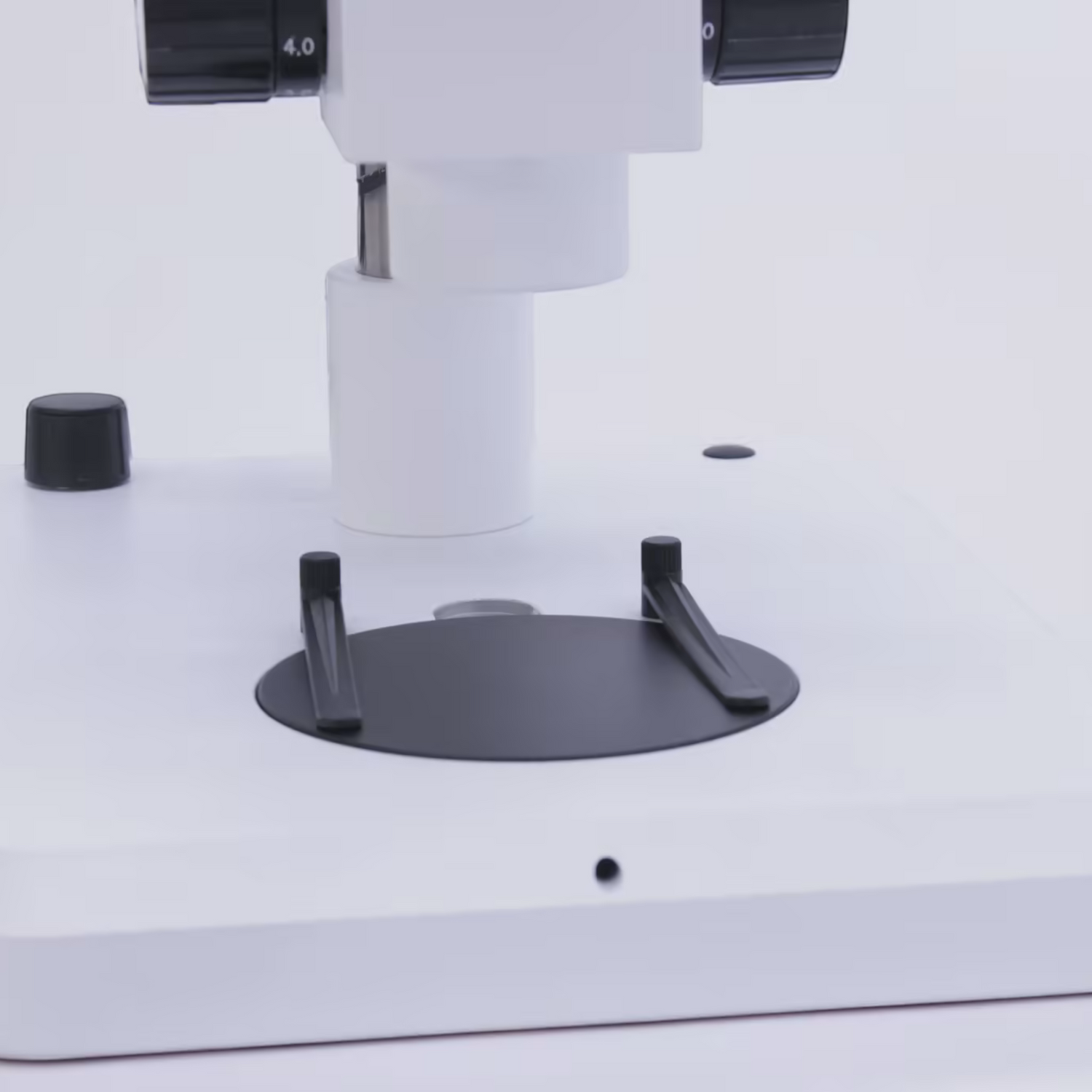

– Black/white stage plate Ø 94.5 mm

– Illumination

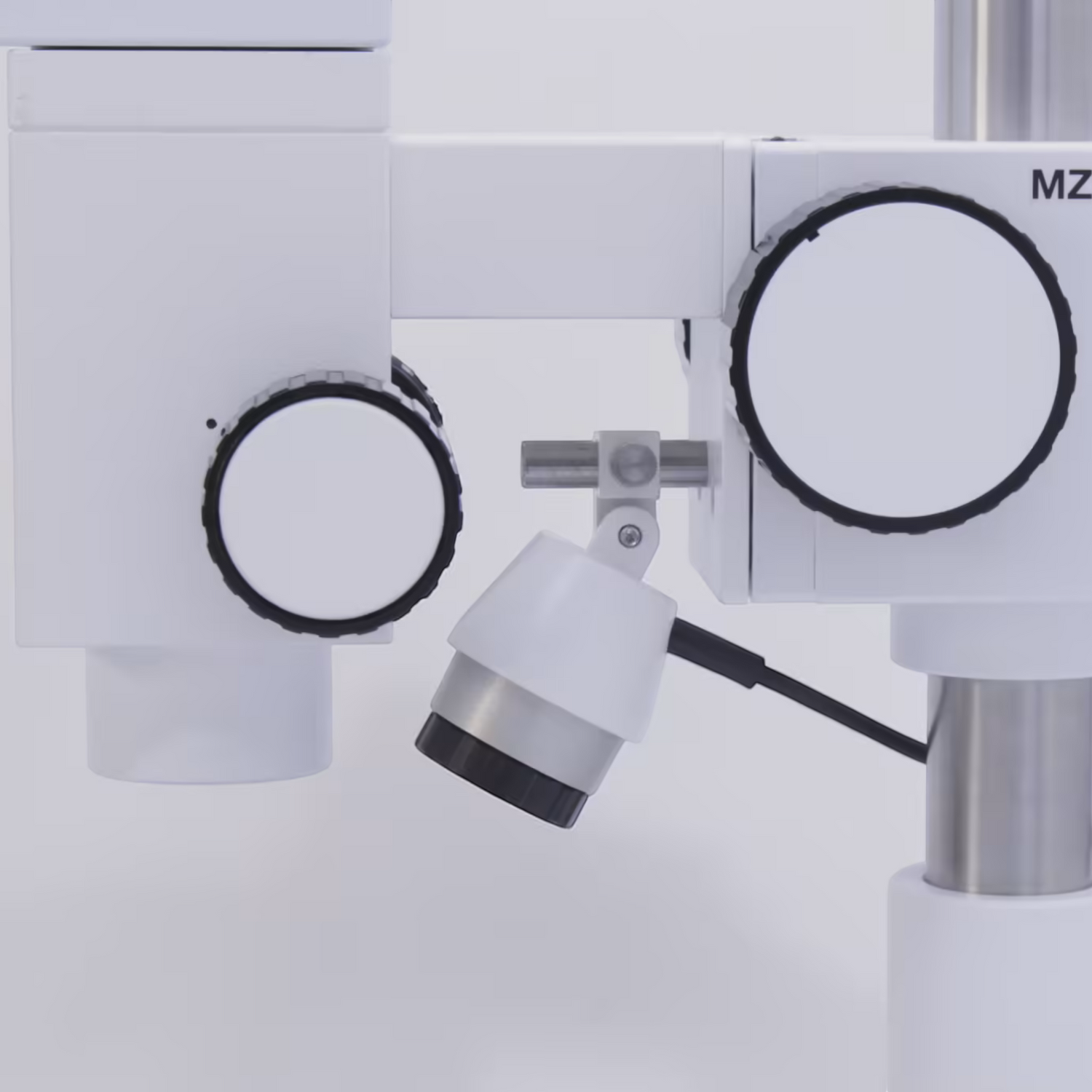

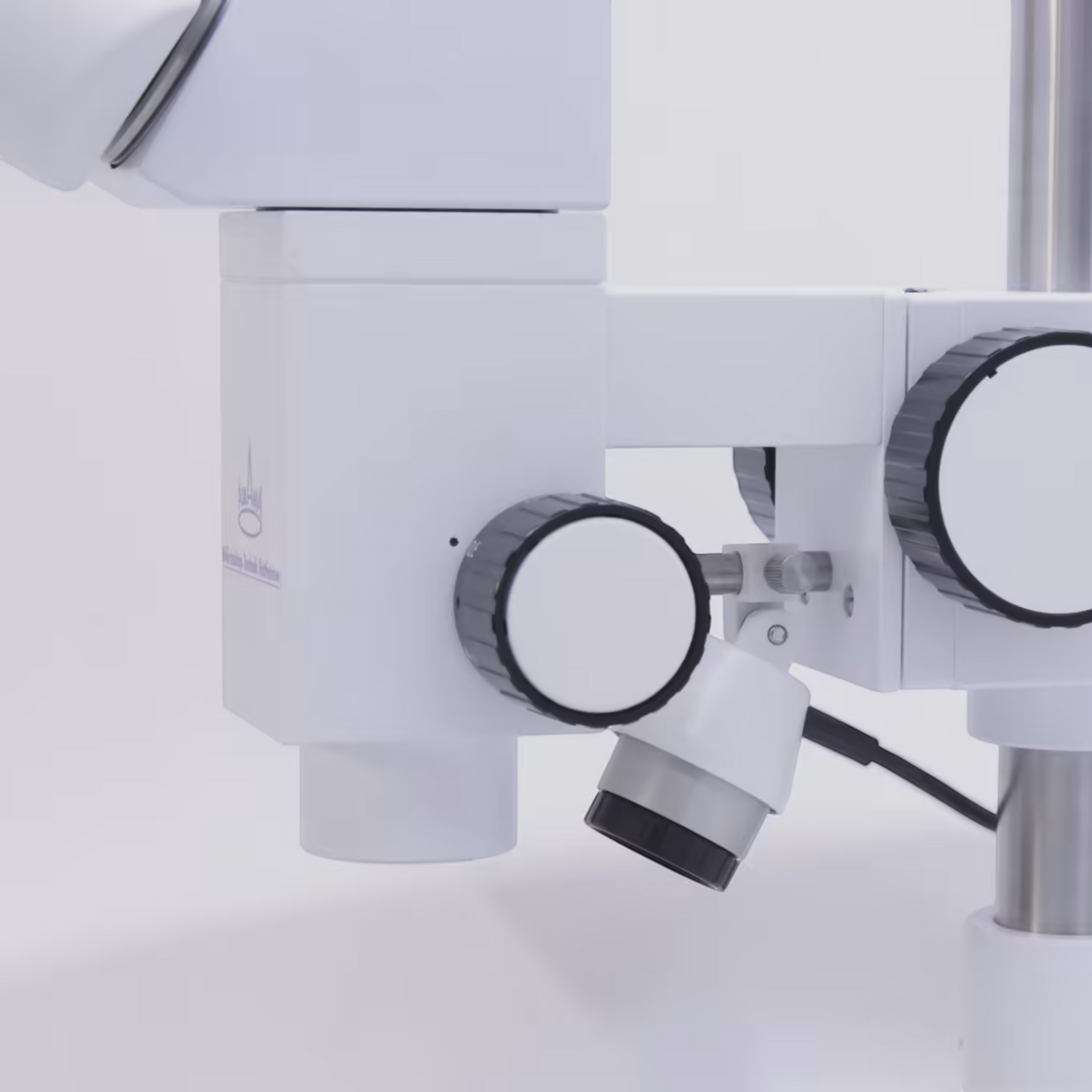

– Incident spot illumination 3W LED, focusable
– Homogeneous illumination of small to medium-sized objects
– Modularly expandable with ring light, coaxial light, transmitted light, and much more

– Areas of Application
– Metrology, quality control, assembly, and repair
– Micro-positioning and preparation
– Electronics & semiconductor inspection
– Research, teaching, didactic applications
– Documentation via camera systems (TV/C-mount/USB, optional)

– Scope of Delivery
– Microscope body MZM
– Trinocular, binocular tube 30/120
– 2× Eyepieces GF-PW 10x/20 + eyecups
– Focus drive 50 mm
– Stand base A + column 367 mm
– LED Spot 3W, focusable
– Black/white stage plate
– Dust cover
