ASKANIA SKU: 30016002422

ASKANIA MZM – Measuring Microscope manual

€7.668,00
zzgl. 19% MwSt.

Beratung zu diesem Produkt anfordern

Mit dem Absenden Ihrer Anfrage stimmen Sie der Verarbeitung Ihrer Daten zur Bearbeitung Ihrer Anfrage zu. Weitere Informationen finden Sie in unserer Datenschutzerklärung .

Shipping & Delivery

Delivery is available within Germany.

The applicable delivery time will be displayed during the order process (checkout).

Shipping costs will be clearly shown in the shopping cart.

Payment options

You have the choice between payment via PayPal or advance payment (bank transfer). Existing customers have the option to purchase on account. Your payment information will be stored encrypted.

Description

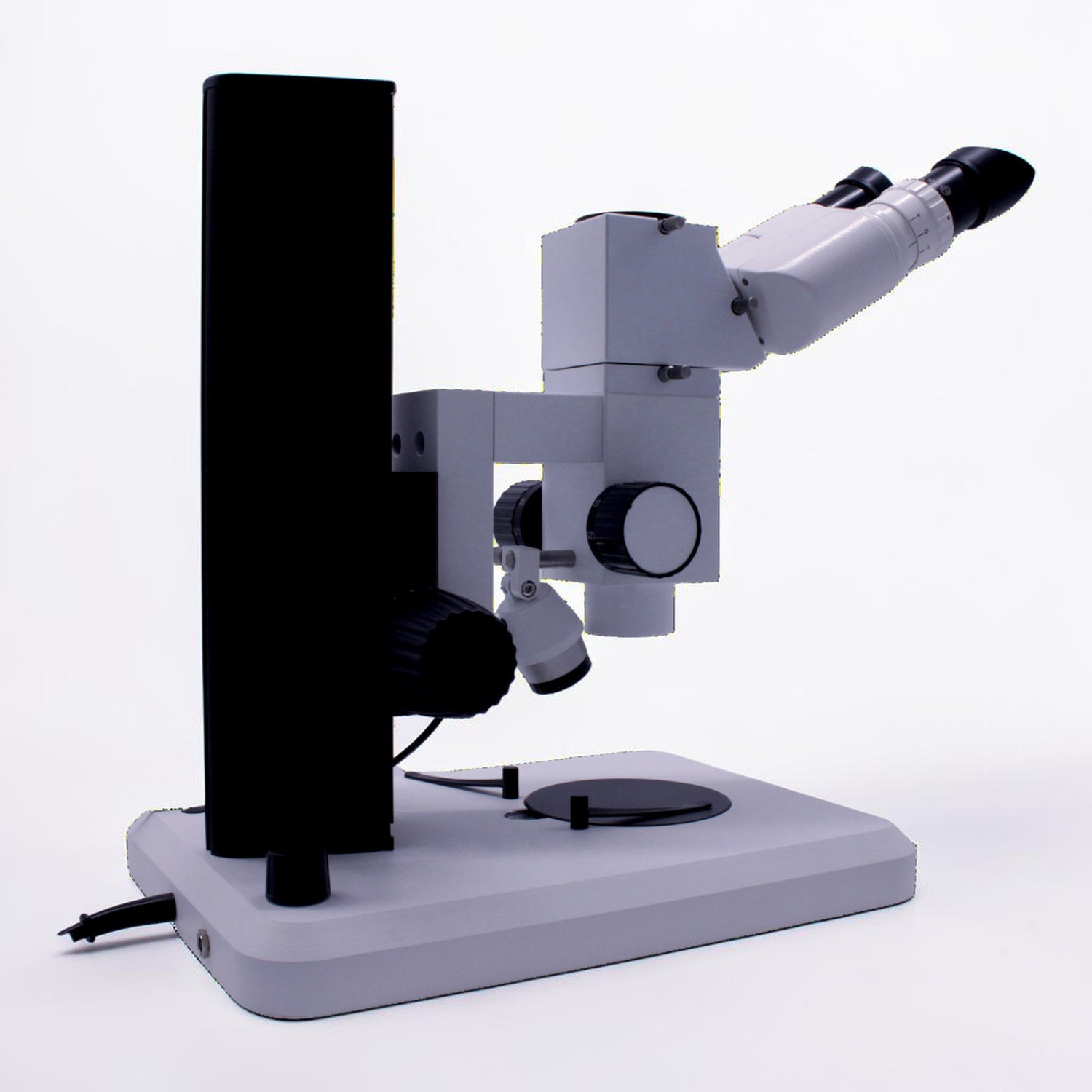

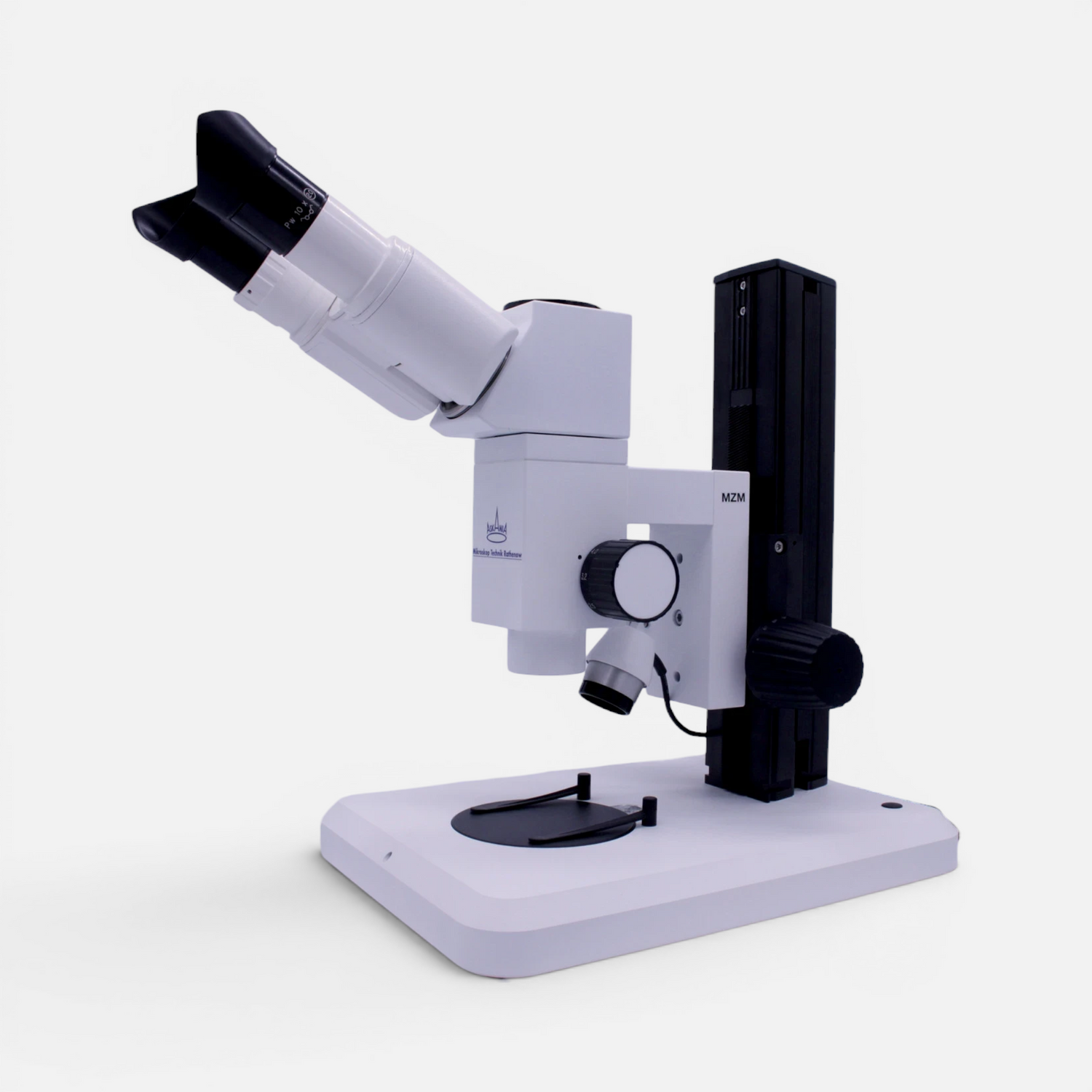

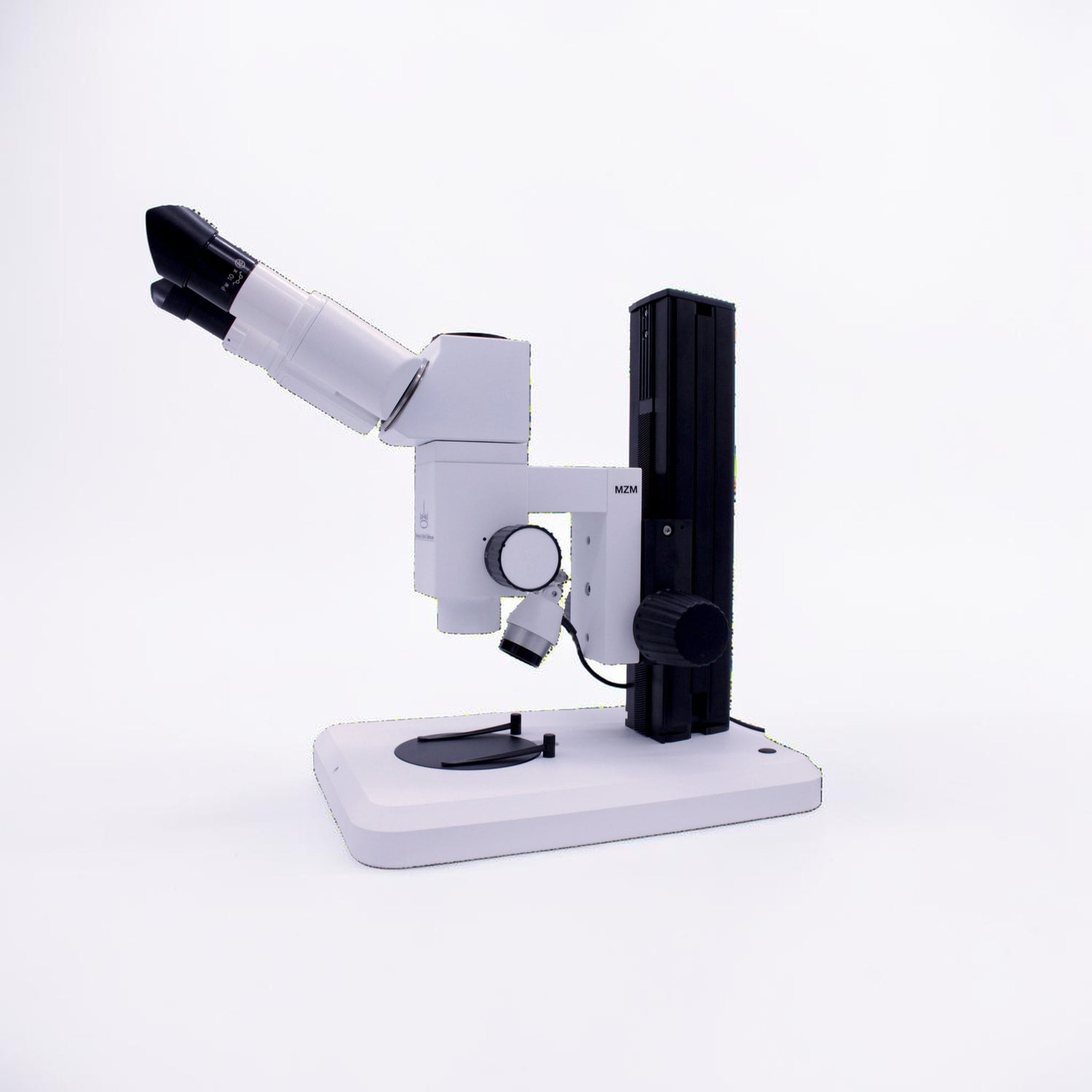

The ASKANIA MZM – Manual Measuring Microscope is a powerful and flexibly expandable inspection and measurement system for applications where precision, stability, and high-quality optical imaging are crucial. With a magnification range from 8x to 40x, a large working distance of 71 mm, and a vertical beam path, this system offers optimal conditions for precise measurement and analysis tasks.

This configuration combines the MZM with a manual measuring stage MT 50×50, equipped with a precise micrometer spindle (0.01 mm readout) and a high-resolution digital micrometer spindle with 0.001 mm readout. This makes the device ideal for quality assurance, surface measurements, structural inspections, component evaluation, and fine component analysis.

The coaxial coarse and fine focus (2 µm resolution) enables reproducible and sensitive focusing. The LED ring light provides uniformly bright, shadow-free illumination – ideal for measurement tasks where contours, edges, and structures must be optimally visible.

The A/D reflected and transmitted light stand with a 367 mm column combines maximum stability with flexible illumination configuration, ensuring precise working conditions. Thanks to its modular design, the MZM can be expanded at any time with illumination options, auxiliary lenses, or camera systems.

Contact

Do you have any questions?

Please do not hesitate to contact us if you have any questions.
You can reach us by phone at +49 3385 5371 0 or by email at info@askania.de.

ASKANIA

Precise measuring microscope for quality control, surface analysis & technical inspections

The ASKANIA MZM – Manual Measuring Microscope combines high-quality optical imaging, modular mechanics, and precise measuring components for demanding technical and scientific applications.

– Optical Features
– 5:1 Zoom Ratio
– Magnification Range 8x–40x
– Field of View 25–5 mm
– Vertical light path for precise, distortion-free measurements
– Working Distance 71 mm
– Eyepieces GF-PW 10x/20 (Standard & Crosshair Reticle)
– Adjustable Interpupillary Distance

– Tubes
– Trinocular Photo/TV Tube, 30°, 50:50
– Binocular Tube 30/120
– Two Eyecups Included

– Mechanics & Stand

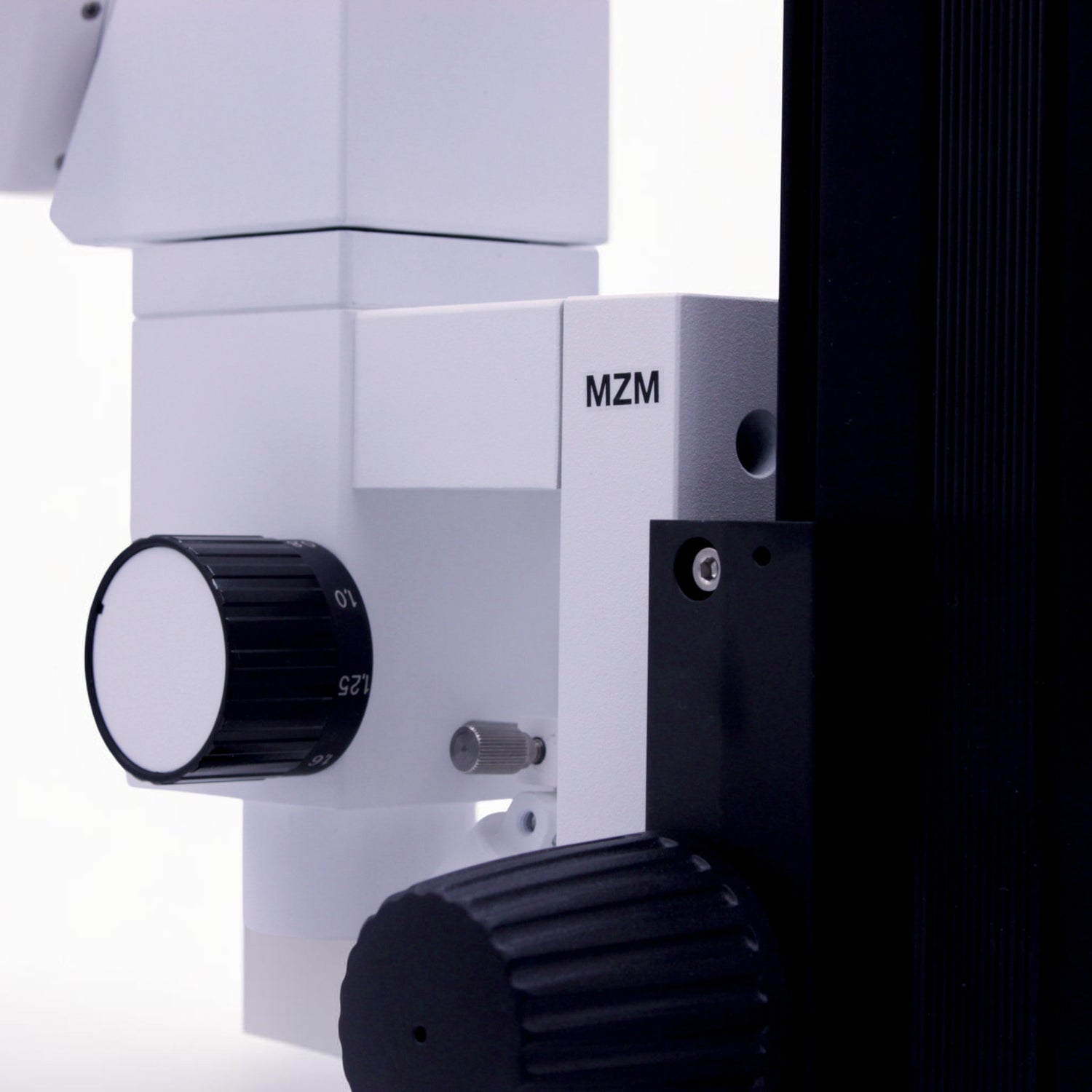

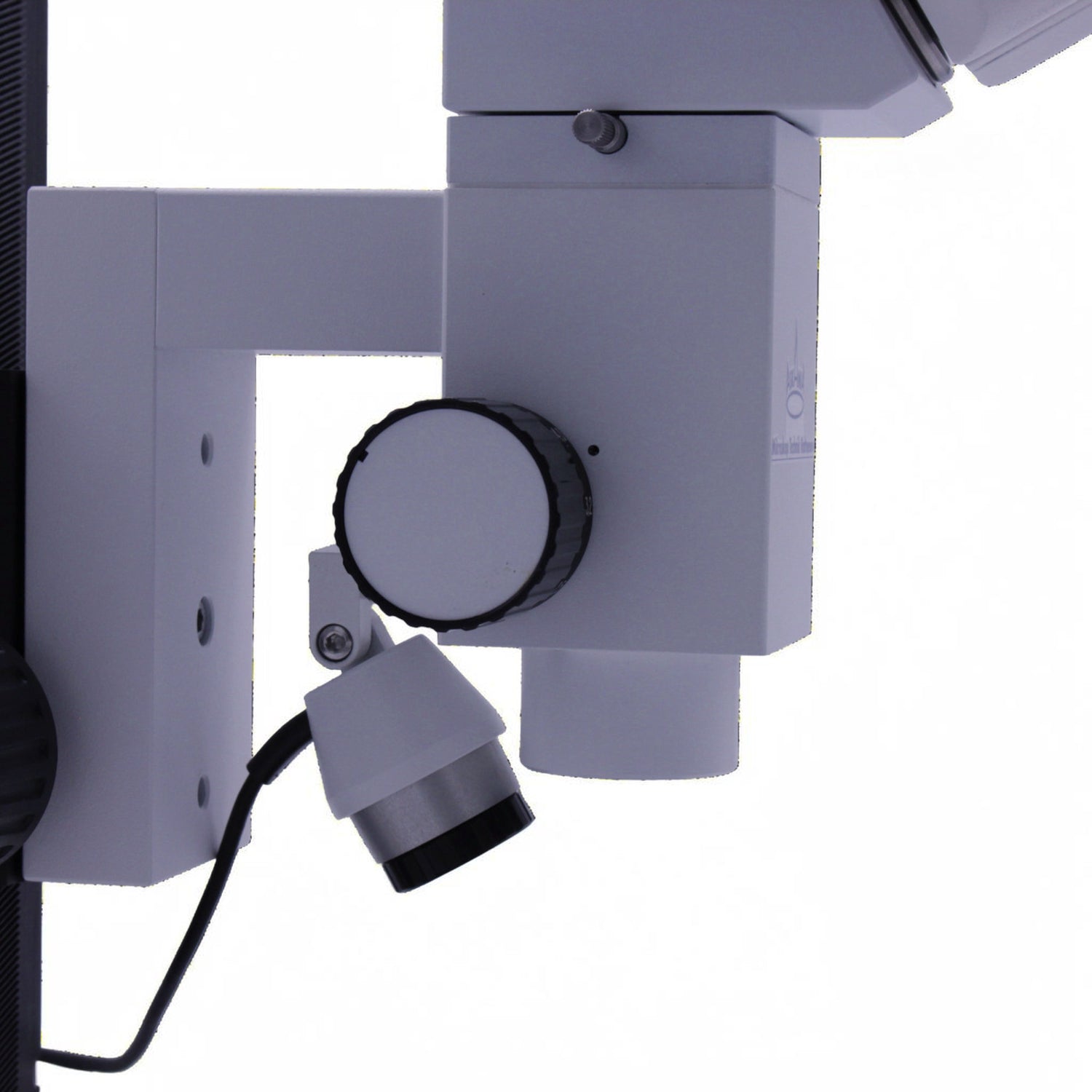

– Coaxial Coarse/Fine Focus with 2 µm Resolution

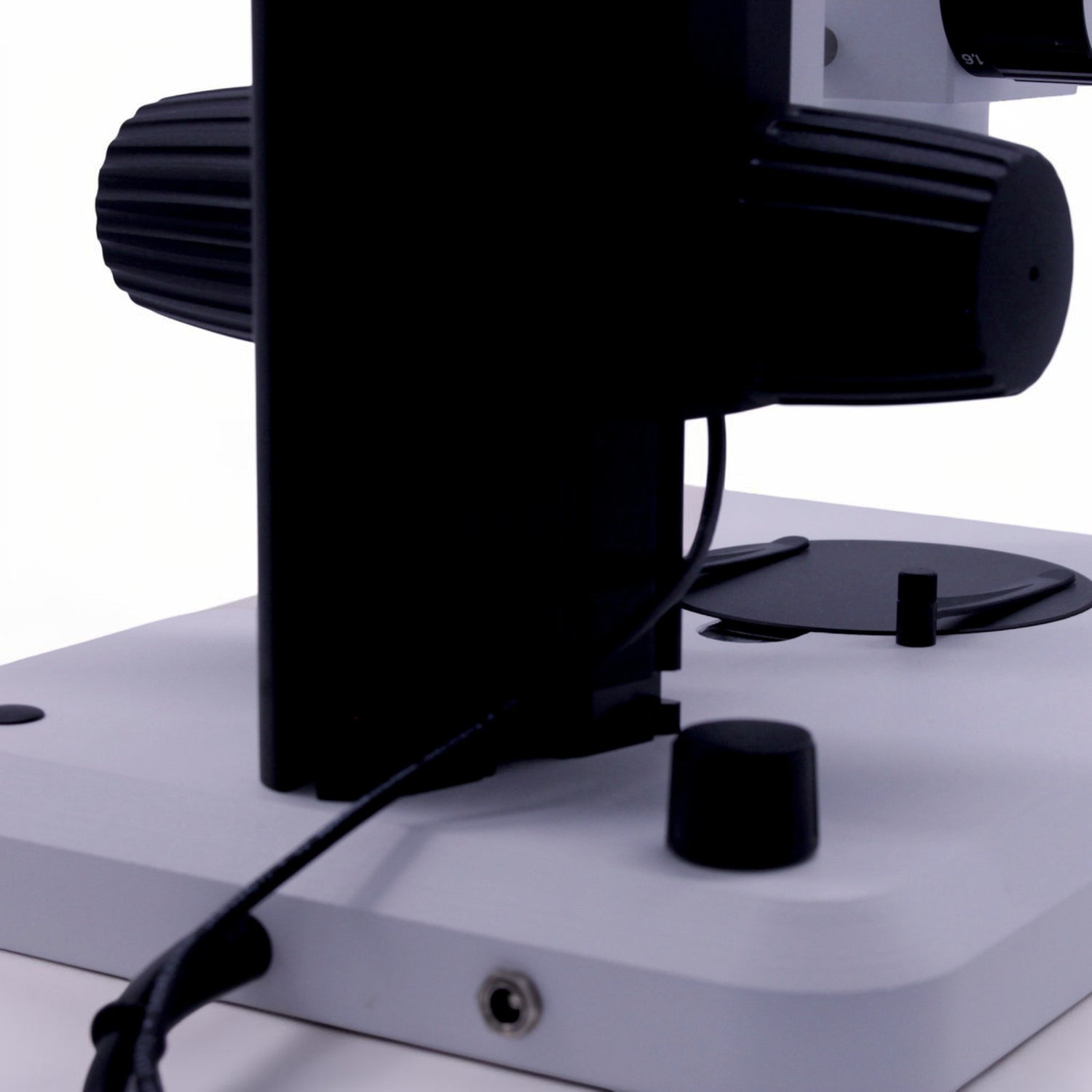

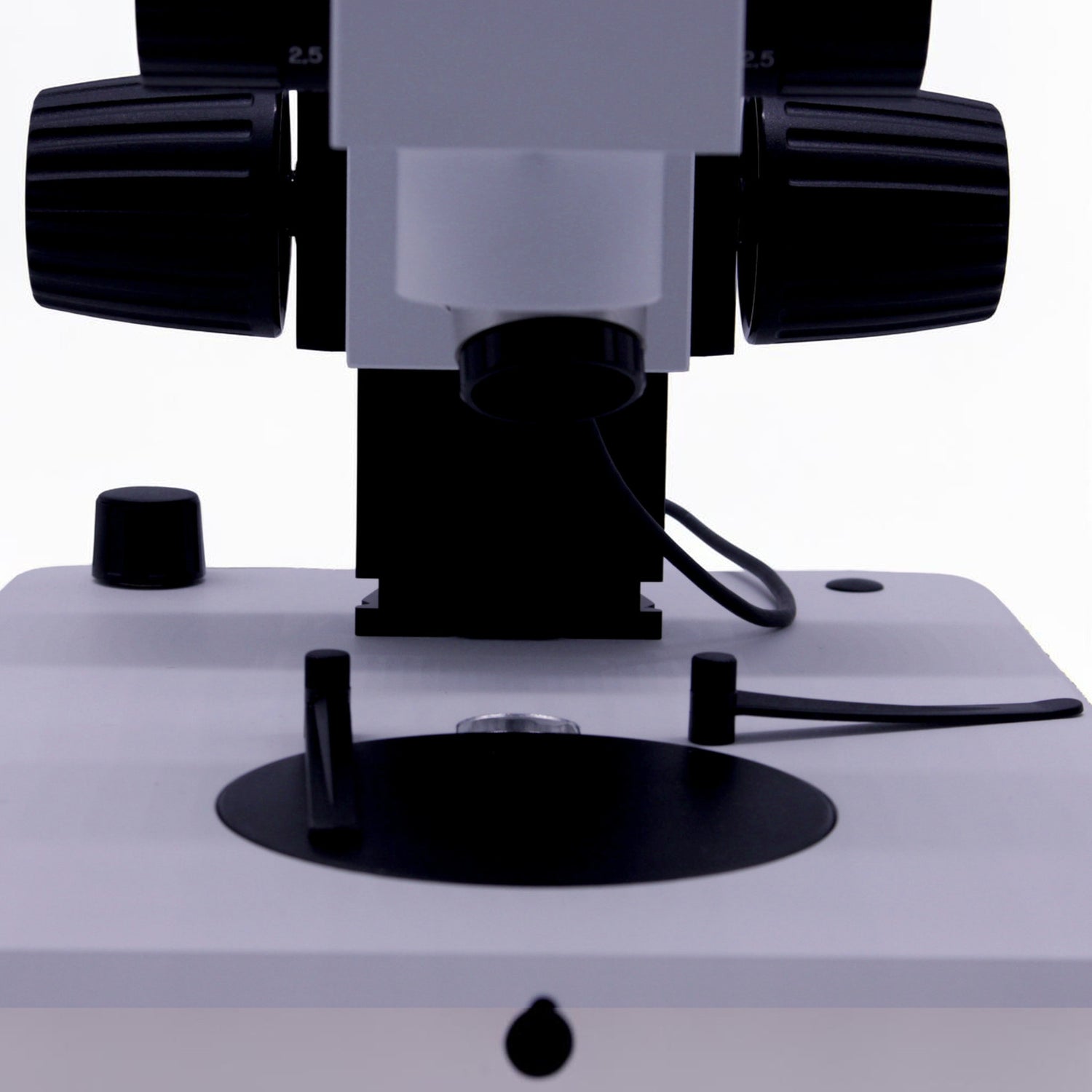

– Stand A/D with Incident and Transmitted Light
– Stand Base 310 × 220 × 30 mm
– Column 367 mm
– Black/White Stage Plate Ø 94.5 mm

– Illumination

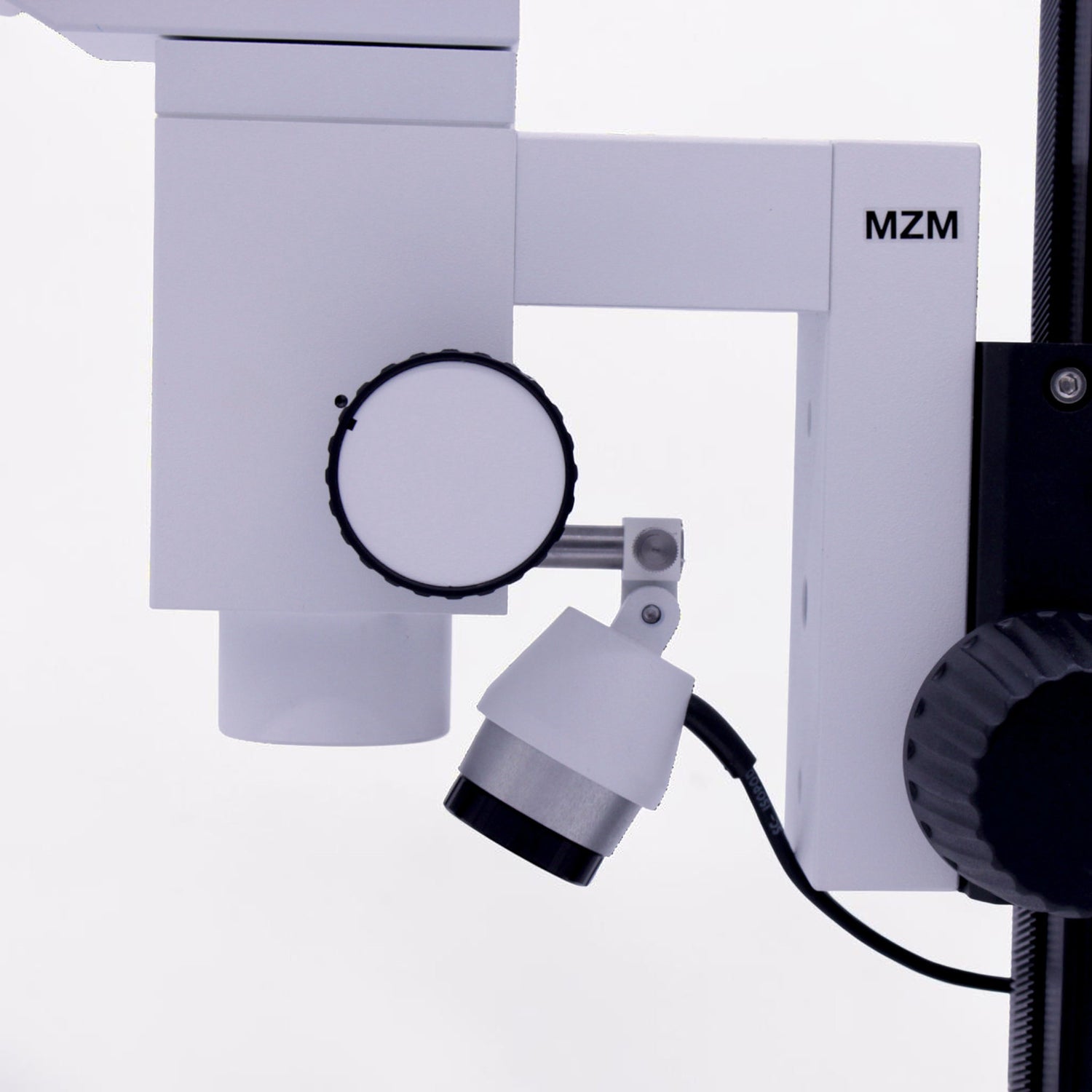

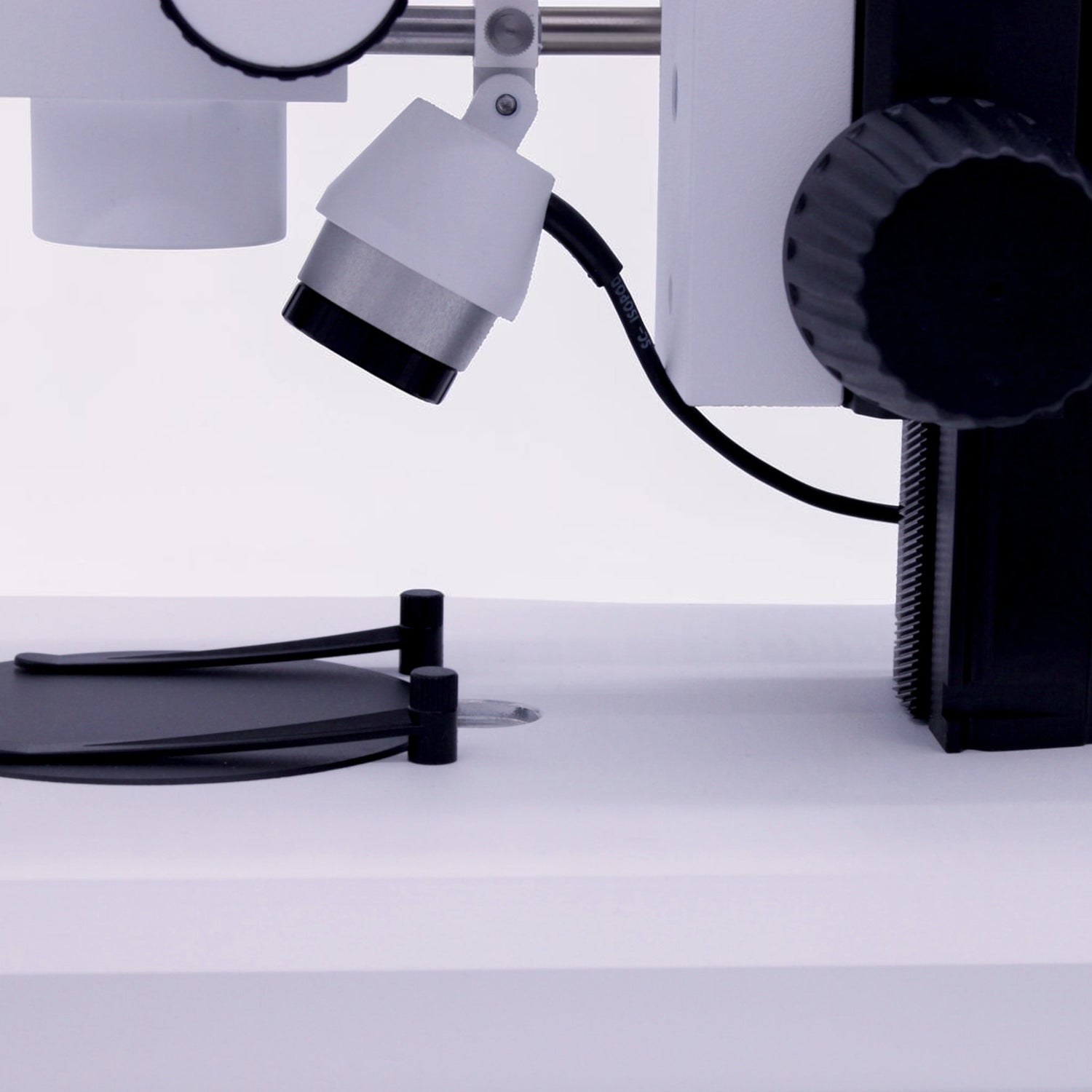

– LED Ring Light for Shadow-Free Illumination
– Uniform Brightness for Edge and Contour Analysis
– Transmitted Light Function via Stand A/D

– Measuring Stage & Measuring Equipment
– Manual Measuring Stage MT 50×50, Glass Plate
– 1× Micrometer Spindle (25 mm, 0.01 mm Reading)
– 1× Digital Micrometer Spindle (50 mm, 0.001 mm Reading, Rotatable Display)
– Sensitive Positioning of Precision Components

– Areas of Application
– Quality Control and Metrology
– Surface Analysis and Structure Testing
– Electronics Inspection & Printed Circuit Boards
– Tool, Precision Mechanics, and Material Testing
– Documentation via Camera Connection

– Scope of Delivery
– MZM Microscope Body
– Trinocular + Binocular Tube
– 2× Eyepieces GF-PW 10x/20 (Standard + Crosshair)
– LED Ring Light
– Incident/Transmitted Light Stand A/D with 367 mm Column
– Measuring Stage MT 50×50
– Micro and Digital Micrometer Spindle
– Black/White Stage Plate
– Dust Cover
